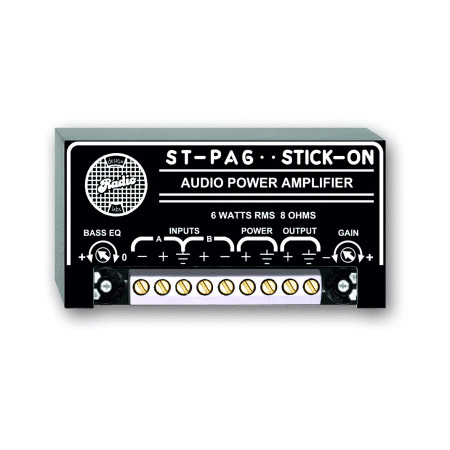

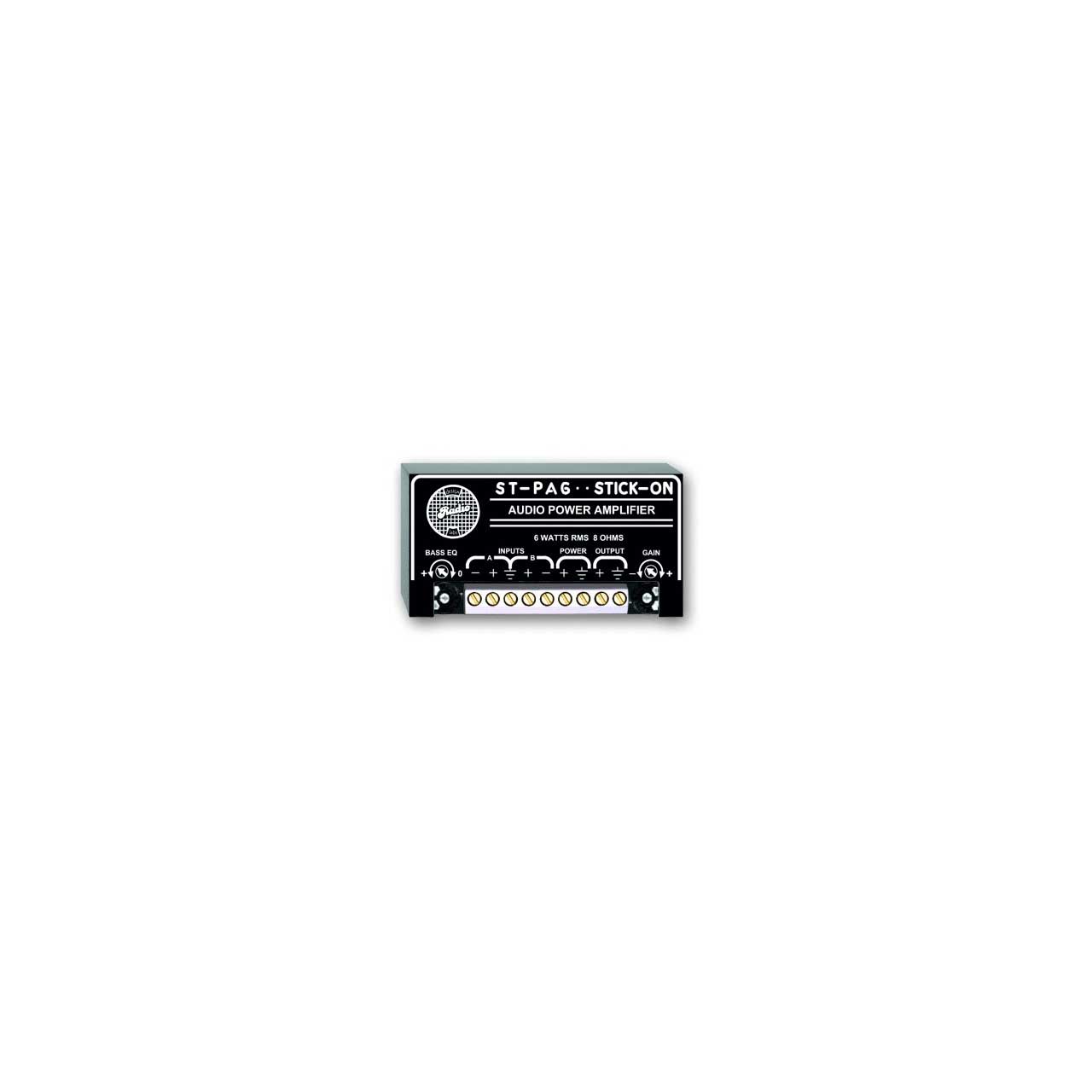

RDL ST-PA6 6 W Mono Audio Amplifier - 8 Ohm

ITEM #: ST-PA6 MFG #: ST-PA6

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$184.53

Our Price:

$138.40

Availability: In Stock
iAvailability Description Popup


    ST-PA6 - Overview

    The RDL ST-PA6 represents the second generation of RDLs breakthrough in the traditional power vs. size ratio. Present technology permits features and performance at the most economical cost ever. The ST-PA6 offers 6 watts of power for a price you would expect to pay for 3 watts.

    The ST-PA6 features two balanced audio inputs, a gain control, equalization control and an 8 Ohm output. The output is designed to deliver a clean 6 watts RMS into an 8 Ohm speaker. Each input is a balanced bridge, with the two inputs actively mixed equally. This is particularly useful for monitoring a stereo line. The output stage features protection against short-circuits and thermal overload. The output protection automatically resets once the condition is removed, making fuse protection unnecessary.

    Required Power Supply RDL PS24V Sold Separately

    • Features:

      • 6 Watts RMS into 8 Ohm
      • Amplifier with Balanced Audio Inputs
      • Built-In 2-Input Mixer
      • Low-Noise and Low-Distortion Amplifier
      • Amplifier with Loudness Equalization

    • Specifications:

      • Inputs (2): 100 kΩ balanced (may be wired balanced or unbalanced)
      • Input Level: 400 mV (RMS) minimum (for rated power output)
      • Frequency Response: 35 Hz to 20 kHz (± 1.5 dB w/EQ setting flat)
      • Equalization (Single-turn trimmer): Flat to +5 dB @ 60 Hz (center frequency of boost), Flat to +4 dB @ 100 Hz, Flat to +3 dB @ 120 Hz
      • THD+N: < 0.35%
      • Noise: < -60 dB
      • Output: 8 Ω unbalanced, 6 watts RMS
      • Ambient Operating Environment: 0° C to 40° C
      • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 400 mA
      • Package Type: Cardboard Box
      • Package Dimensions: 2 x 2 x 4 in.
      • Shipping Weight: 0.205 lbs.
      • WEEE weight: 0.15 lbs.

    • GTIN:

      0813721011008
