RDL ST-PD5U Power Distributor - Switching - (PS-24V2/A)

ITEM #: ST-PD5U MFG #: ST-PD5U

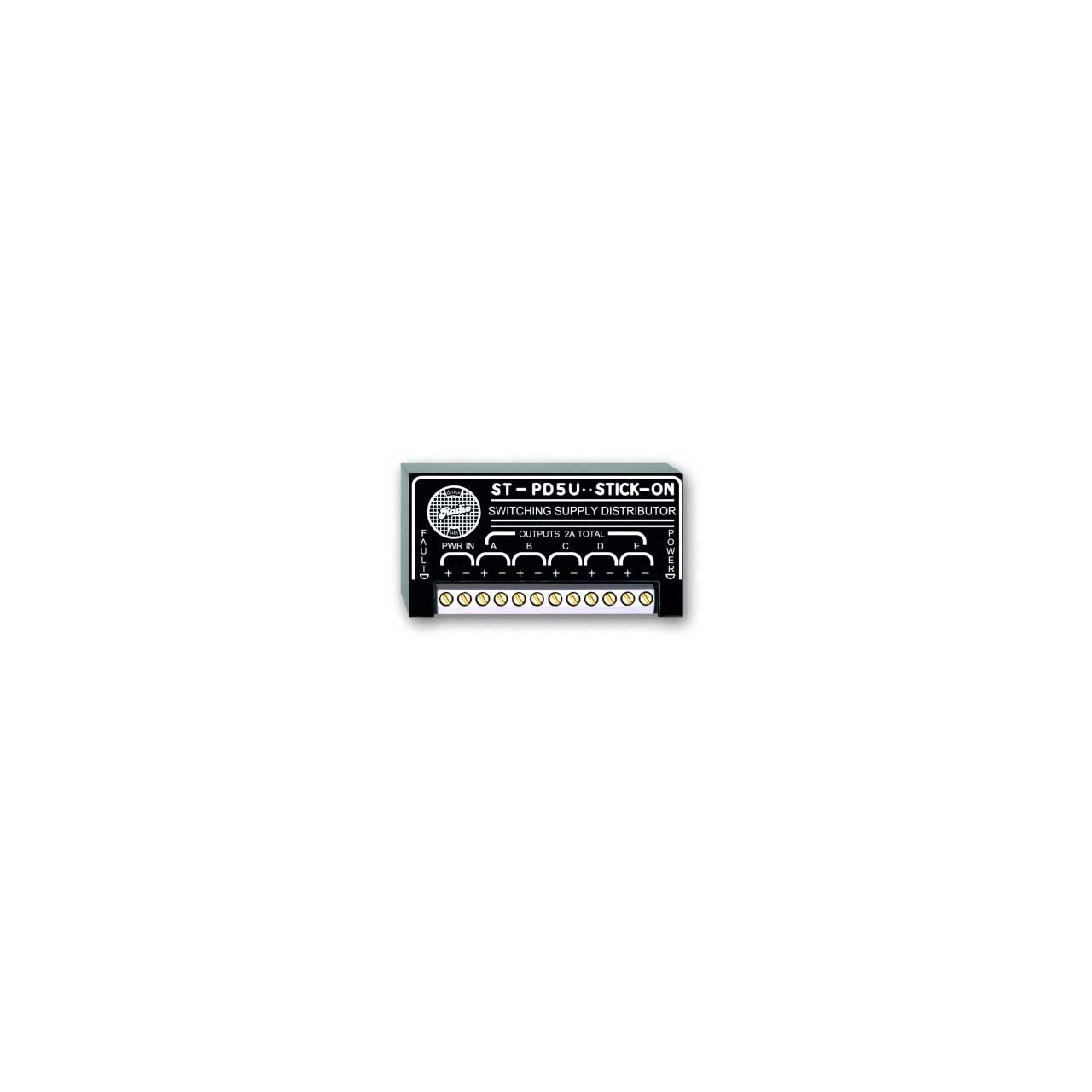

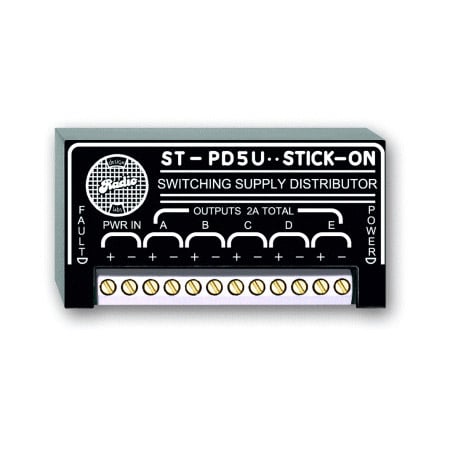

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$150.60

Our Price:

$112.95

Availability: In Stock
iAvailability Description Popup


    ST-PD5U - Overview

    The ST-PD5U is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to five modules from a single power supply. The current limiting circuitry in many switching power supplies will cause the supply to shut down upon power-up when a high current capacitive load is connected. Upon application of power, the ST-PD5U ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. If reverse polarity is connected to the input, the ST-PD5U disconnects the load until the condition is corrected.

    In system design, various modules are frequently operated from a single power supply. Good engineering practice requires that the power wiring to each module originate at the power supply output. The ST-PD5U serves as the power source for each of five modules. A single ST-PD5U can provide power to RDL's floating modules. A separate ST-PD5U can provide power to ground-referenced modules. (Do not attempt to intermix floating and ground-referenced modules from a single ST-PD5U.) Note: If using a linear power supply, distribute the voltage to multiple modules using an RDL ST-PD5

    Wherever power distribution from a switching power supply is needed, the ST-PD5U is the ideal choice. Use the ST-PD5U combined with other RDL RACK-UP, STICK-ON, Flat-Pak or TX series products as part of a complete audio/video system.

    • Features:

      • Distribution of 24 Vdc Power
      • Soft-Start from Switching Supply
      • Distribution of dc Power
      • Up to 5 Power Distribution Points
      • Voltage Presence Indication
      • Reverse Voltage Protection

    • GTIN:

      0813721012203
