StarTech RKCONS1908K 8-Port Rackmount KVM Console for Server Rack - 19 Inch - 1U

ITEM #: ST-RKCONS1908K MFG #: RKCONS1908K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,567.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    RKCONS1908K - Overview

    This StarTech RKCONS1908K rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.

    Maximize your IT budget, minimize your hassle
    This 8-port KVM switch provides all the essential controls you'll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.

    Maximize your screen space
    This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

    Clutter-free monitoring
    The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.

    Hassle-free system integration
    The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. You can also connect to additional servers by connecting to KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

    Applications
    Control a single system, or dozens of KVM-connected computers
    Improve the internal space efficiency of your server cabinet
    Manage cabinet-mounted servers and KVM switches

    • Features:

      • Save money and reduce hassle with a cost-effective rack-mount LCD console
      • Reduce your server room clutter with a 1U rack-mount design
      • Intuitive system integration with direct support for up to eight servers
      • Built-in touchpad and keyboard
      • Resolution up to 1280x1024
      • Supports cascaing with additional KVM switches

    • Specifications:

      • Hardware
      • Audio: No
      • Cables Included: Yes
      • Daisy-Chain: No
      • Display Size: 19in
      • Front Door Key Lock: No
      • KVM Ports: 8
      • Number of Monitors Supported: 1
      • Panel Type: Active Matrix TFT LCD
      • PC Interface: USB
      • PC Video Type: VGA
      • Rack-Mountable: Yes
      • U Height: 1U

        Performance
      • Brightness: 250 cd/m²
      • Color Depth: 8-bit, 16.7M colors
      • Contrast Ratio: 1000:1
      • IP Control: No
      • Maximum Analog Resolutions: 1280 x 1024
      • Maximum Number of Users: 1
      • MTBF: 50, 000 Hrs
      • Pixel Pitch Support: 0.264 x 0.264 mm
      • Supported Resolutions: 1024x768
      • 1280x720 (High-definition 720p)
      • 1280 x 1024 Lower resolutions are also supported

        Connector(s)
      • Console Interface(s): 8 - VGA (15 pin, High Density D-Sub) Female Input
      • Host Connectors: 1 - VGA (15 pin, High Density D-Sub) Female Output
      • Other Interface(s): 1 - VGA (15 pin, High Density D-Sub) Female Input, 2 - USB Type-A (4 pin) USB 2.0 Female Input

        Power
      • Input Current: 1.5A
      • Input Voltage: 100 - 240 AC
      • Power Consumption (In Watts): 21W
      • Power Source: International Power Cords

        Environmental
      • Humidity: 10 ~ 80% RH
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -20°C to 60°C (-4°F to 140°F)

        Physical Characteristics
      • Color: Black
      • Material: Steel
      • Maximum Mounting Depth: 35 in [89 cm]
      • Minimum Mounting Depth: 23.8 in [60.5 cm]
      • Product Height: 1.7 in [4.3 cm]
      • Product Length: 25.3 in [64.3 cm]
      • Product Width: 19 in [48.3 cm]
      • Weight of Product: 29.6 lb [13.4 kg]

        Packaging Information
      • Package Height: 7.5 in [19 cm]
      • Package Length: 30.1 in [76.5 cm]
      • Package Width: 24.2 in [61.5 cm]
      • Shipping (Package) Weight: 42 lb [19 kg]

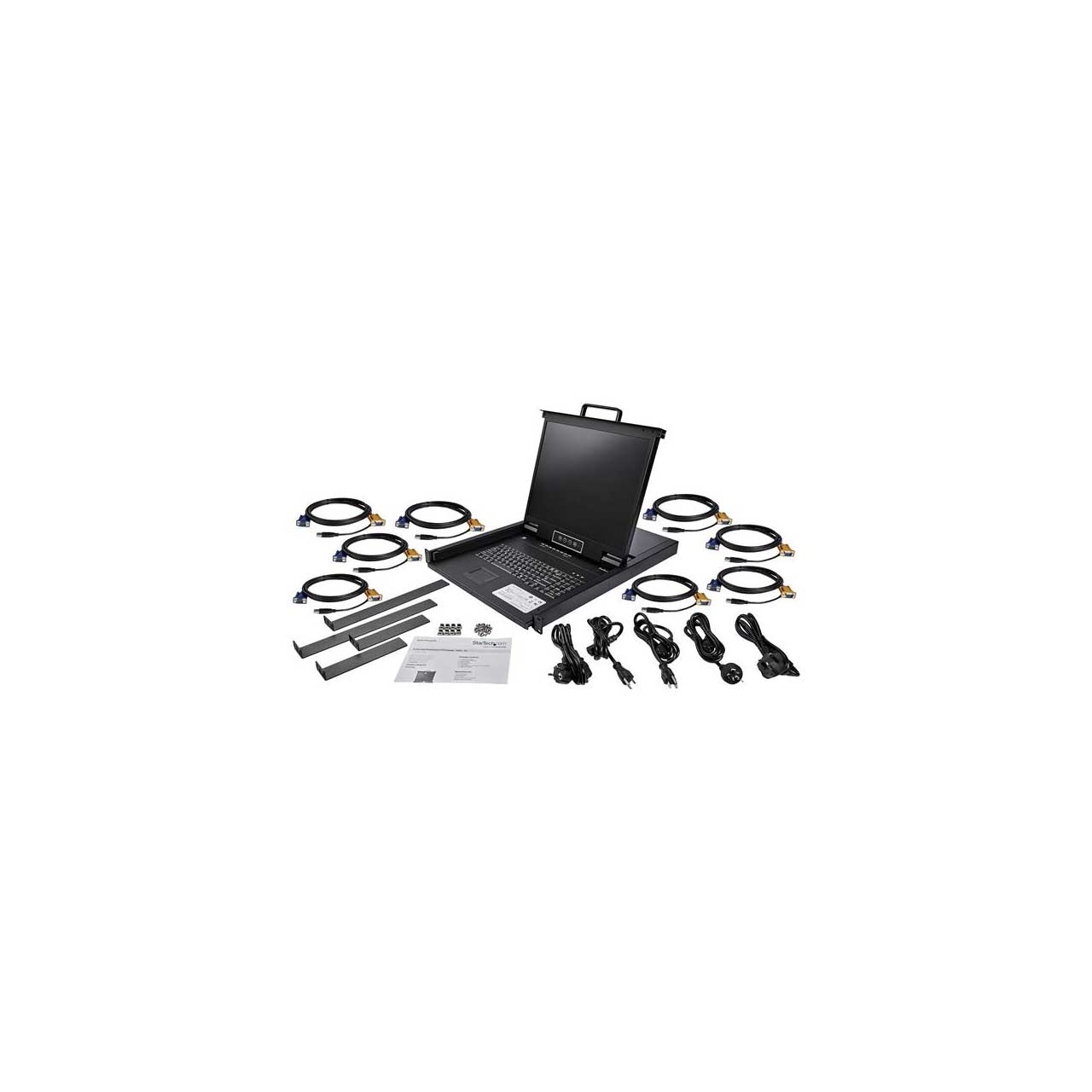

    • Item Includes:

      • 1x Rack Console
      • 8x 6 ft [1.8 m] KVM cables
      • 8x M5 cage nuts
      • 8x M5 screws
      • 5x Regional Power Cords (NA, JP, UK, EU, ANZ)
      • 4x Mounting Rails (variable lengths)
      • 1x Quick-Start Guide

    • GTIN:

      0065030872508
