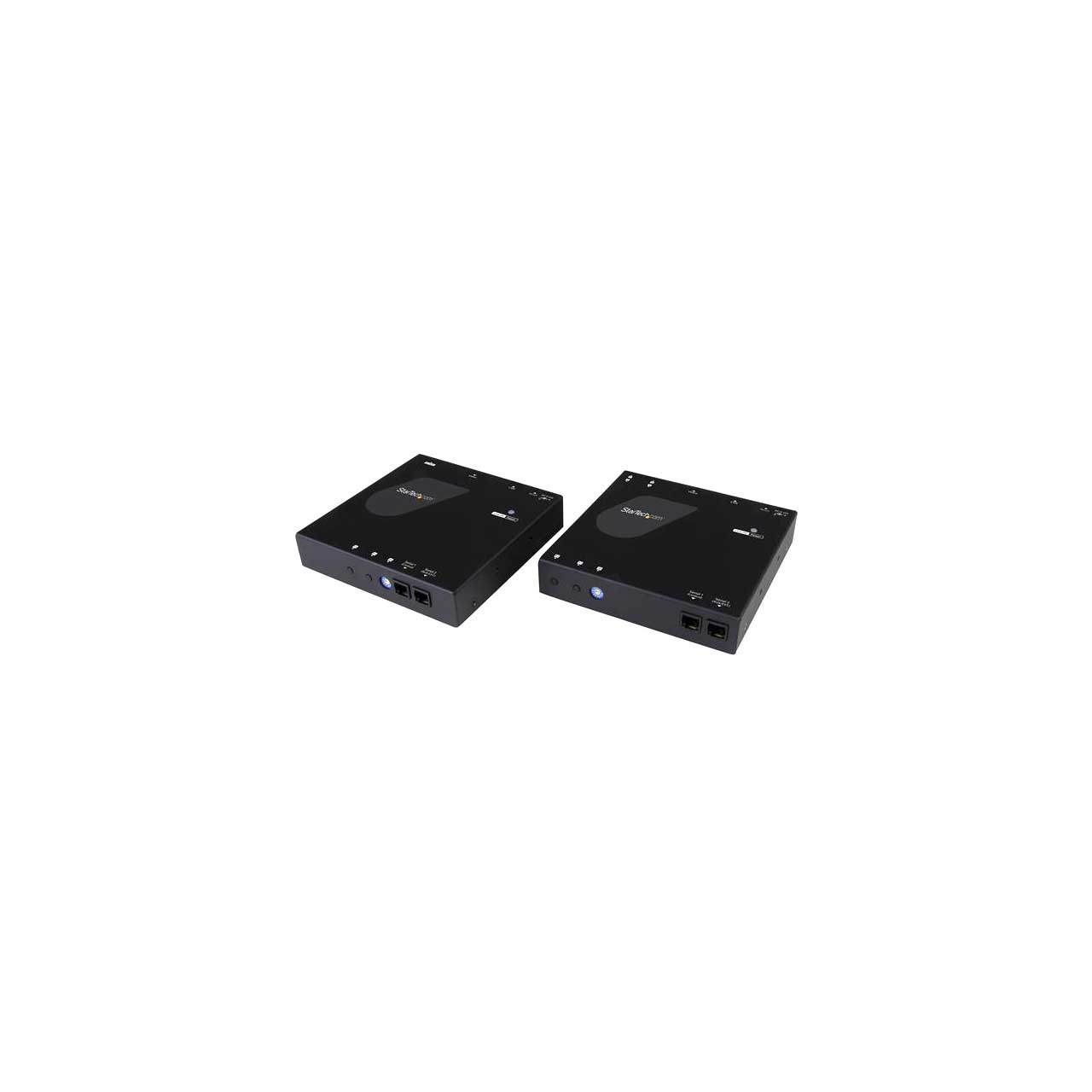

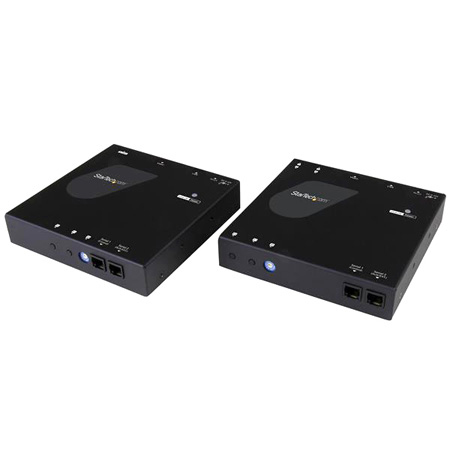

StarTech ST12MHDLANU HDMI Extender over Cat6 IP LAN Ethernet Extender
  • StarTech ST12MHDLANU HDMI Extender over Cat6 IP LAN Ethernet Extender
  • StarTech ST12MHDLANU HDMI Extender over Cat6 IP LAN Ethernet Extender

Questions? Ask a Markertek Expert:
800-522-2025 Email

StarTech ST12MHDLANU HDMI Extender over Cat6 IP LAN Ethernet Extender

Manufacturer: StarTech.com

Item #: ST-ST12MHDLANU   •   MFG #: ST12MHDLANU



List Price:$685.99
Our Price:$579.95

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    This HDMI over IP kit lets you extend an HDMI signal, as well as four USB peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI and USB signals to multiple locations and combine your remote displays to create a video wall while using the USB connection to extend a touch screen to create an interactive digital signage presentation.

    Versatile configuration options

    In a point-to-multipoint setup, you can connect the HDMI over IP kit through an unmanaged or managed Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network, using a managed Gigabit Ethernet switch with IGMP. For further scalability, you can combine up to 16 different extender kits.

    For smaller-scale applications, you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling for a one-to-one HDMI extension up to 330 feet (100 meters).

    Manage your video distribution from your mobile device

    This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation that’s sure to catch your audience’s attention.

    The software is available on iOS for your iPhone or iPad, Android for your smartphone or tablet, and Google Chrome browser.

    Professional, cost-effective, simple installation

    The HDMI over IP extender kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables.

    The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation.

    Download the StarTech.com Video Control software to manage your IP video distribution.

    Note: For best performance, a managed network switch with IGMP is recommended if you are using more than one transmitter, or more than four receivers, Non-managed network switches may also limit the performance of other devices connected to the same network.

    The ST12MHDLANU is backed by a StarTech.com 2-year warranty and free lifetime technical support.


    • Features

      • Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension
      • Extends four USB peripheral devices for remote console control
      • Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser)
      • Tidy, professional installation using the included mounting hardware
      • Connect using a Gigabit LAN network
      • Easy point-to-point or point-to-multipoint setup
      • Extend HDMI using existing network infrastructure
      • Supports video resolutions up to 1920x1080 (1080p)

    • Specifications

      • Local Unit Connectors: HDMI (19 pin)
      • Local Unit Connectors: RJ-45
      • Remote Unit Connectors: HDMI (19 pin)
      • Remote Unit Connectors: RJ-45
      • Connector A: HDMI (19 pin) Female Input
      • Connector A: RJ-45 Female
      • Connector A: USB B (4 pin) Female
      • Connector B: HDMI (19 pin) Female Output
      • Connector B: RJ-45 Female
      • Connector B: USB A (4 pin) Female
      • Humidity: 0% - 80 %
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -10°C to 60°C (14°F to 140°F)
      • Audio: Yes
      • Cabling: Cat 5e UTP or better
      • Daisy-Chain: Yes
      • Output Signal: HDMI
      • Ports: 1
      • Rack-Mountable: Yes
      • LED Indicators: Link OK / POWER - Receiver
      • LED Indicators: Link OK / POWER - Transmitter
      • LED Indicators: Reset - Receiver
      • LED Indicators: Reset - Transmitter
      • Shipping (Package) Weight: 1.9 kg [4.3 lb]
      • Audio Specifications: Stereo Sound
      • Max Distance: 100 m / 330 ft
      • Maximum Digital Resolutions: 1920x1200 @60Hz
      • Supported Resolutions: 1920 x 1200 (1080p)
      • Wide Screen Supported: Yes
      • Color: Black
      • Enclosure Type: Aluminum
      • Product Height: 28 mm [1.1 in]
      • Product Length: 130 mm [5.1 in]
      • Product Weight: 448 g [15.8 oz]
      • Product Width: 97 mm [3.8 in]
      • Center Tip Polarity: Positive
      • Input Current: 0.4 A
      • Input Voltage: 100 ~ 240 AC
      • Output Current: 2 A
      • Output Voltage: 5 DC
      • Plug Type: M
      • Power Source: AC Adapter Included
      • Included in Package: CAT5 cables
      • Included in Package: HDMI over IP receiver
      • Included in Package: HDMI over IP transmitter
      • Included in Package: mounting brackets
      • Included in Package: power adapters
      • Included in Package: quick install guide
      • Included in Package: screw driver
      • Included in Package: screws

    • Item Includes

      • HDMI over IP transmitter
      • HDMI over IP receiver
      • power adapters
      • screws
      • screw driver
      • CAT5 cables
      • mounting brackets
      • quick install guide

    • GTIN:

      0065030862110
