Ocean Matrix OMX-HDMICAT1X4 HDMI 18Gbps [email protected] 1x4 Splitter & Cat6/6a/7 Extender with 4 Receivers - PoC/IR/EDID


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    OMX-HDMICAT1X4 - Overview

    Distribute and extend HDMI signals in brilliant 4K quality to 4 displays at a range over 100 feet with the Ocean Matrix HDMICAT1X4. This system is perfect for digital signage applications in sports bars, restaurants and businesses as well as trade show booths and similar live event spaces. The HDMICAT1X4 supports Power Over Copper to simplify installations at displays or projectors and the system also offers built-in EDID management to ensure your signals are always on.

    The Ocean Matrix HDMICAT1X4 supports HDMI 2.0 [email protected]/60Hz 4:4:4 signals. The base unit of the system has 4 outputs designed for signal distribution over CAT6/6A/7 infrastructures and receiver units can be up to 115 feet away. The system also supports IR control.

    • Features:

      • Extends [email protected]/60Hz up to 35m, [email protected] up to 50m, 1080p up to 60m over CAT/6/6a/7 cable

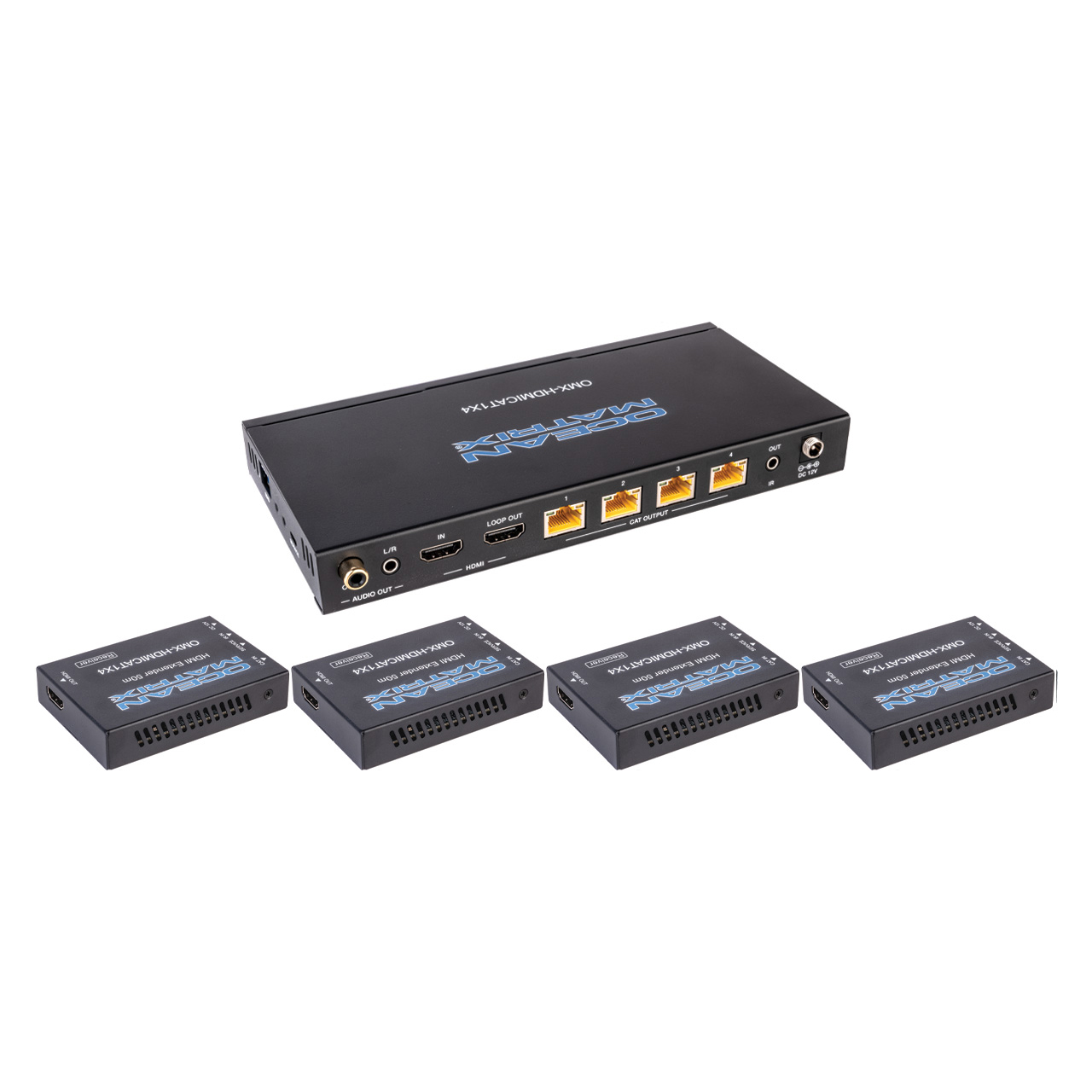

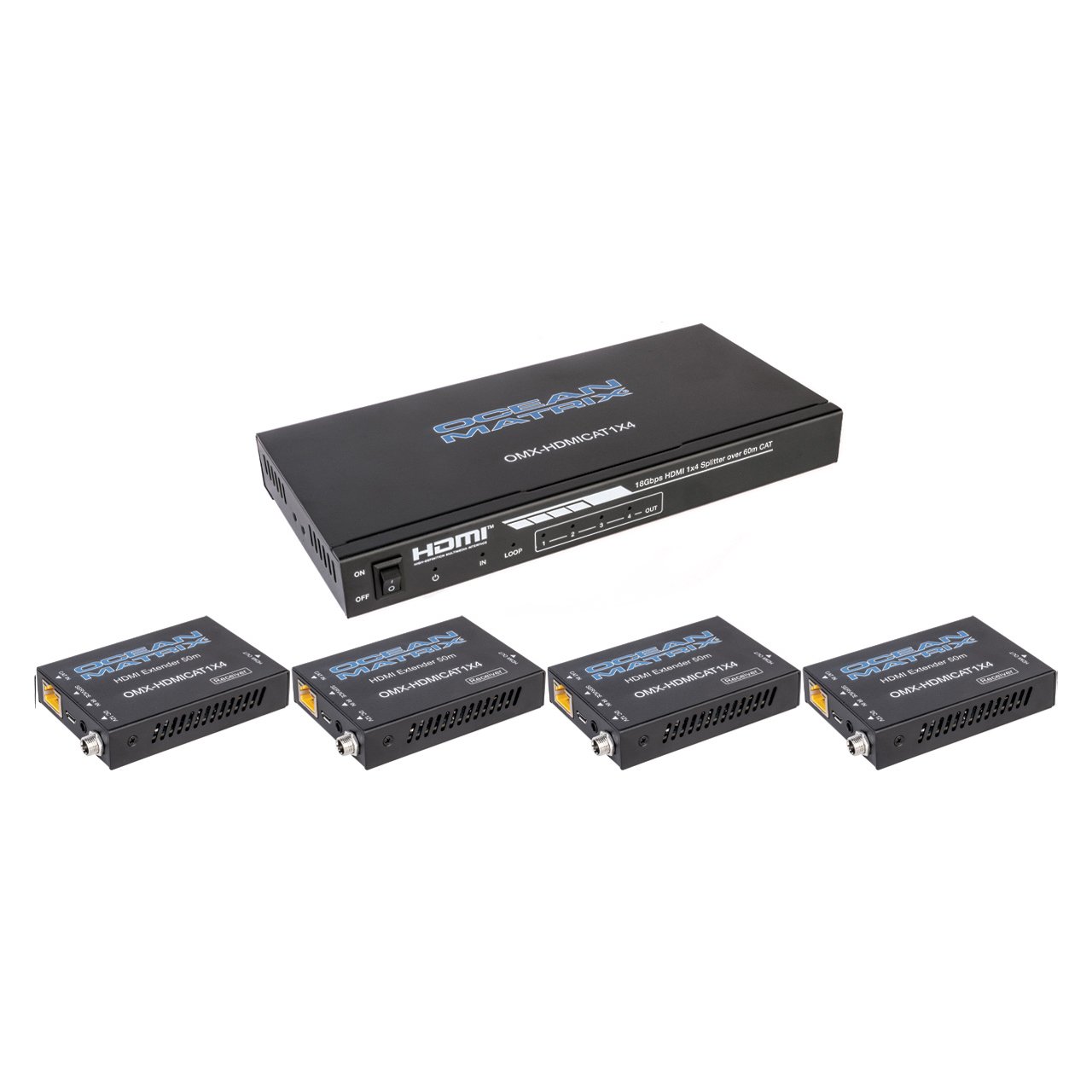

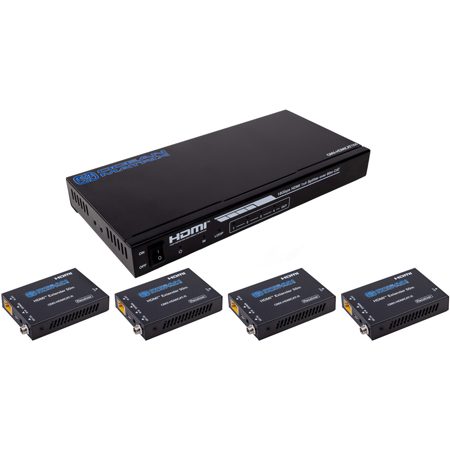

      • Includes 1 Transmitter and 4 Receivers
      • Supports HDR, HDR10+, HLG and Dolby vision
      • Advanced EDID Management
      • One Way PoC from Tx to Rx
      • One-Way IR Control
      • HDMI Loop Out
      • 12V/2.5A DC Locking Power Adapter
      • Metal Enclosure
    • Specifications:

      • HDMI 2.0b, HDCP 2.2 Compliant
      • Audio Pass-Through up to 7.1CH HD Audio
      • Supports 3D, HDR, HDR10+, HLG, and Dolby Vision
      • Supports Digital and Analog Audio De-embedded Outputs
      • Video Bandwidth: 18Gbps
      • Power Consumption: 25.44W
      • Power Input: 100-240V AC 50/60Hz
      • Power Output: 12/2.5A DC
      • Dimensions (WxDxH): TX 8.3 x 3.9 x 1.1 inch / RX 3.5 x 2.4 x 0.7 inch
      • Weight: TX 1.36 lb / RX 0.34 lb
    • Item Includes:

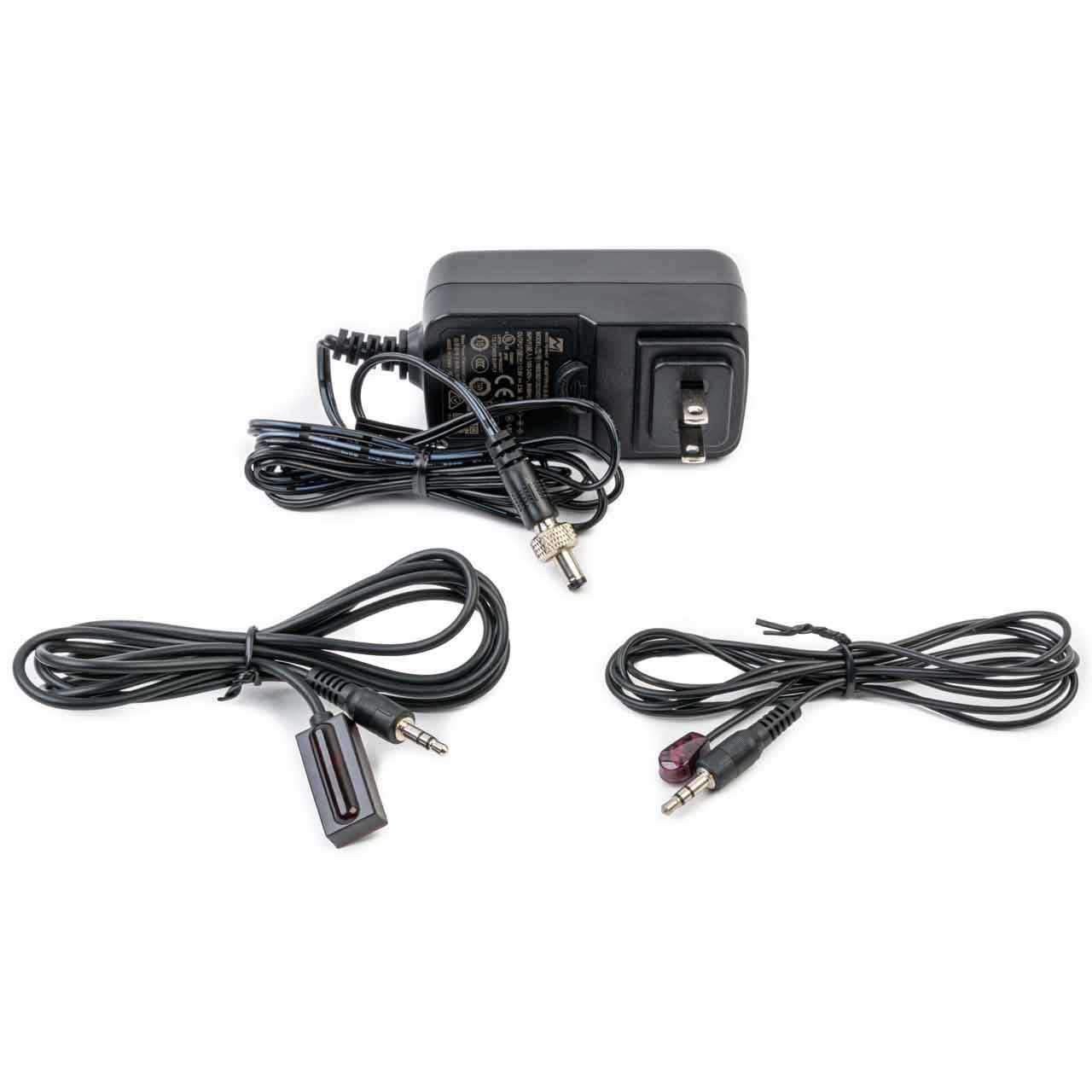

      • (1) Transmitter, (4) CAT Receivers & (4) 20K-60KHz IR Receiver Cables (4.9ft/1.5m), (1) IR Blaster (4.9ft/1.5m), (1) 12V/2.5A DC Locking Power Adapter for Tx
    • Warranty:

      • 1 Year
