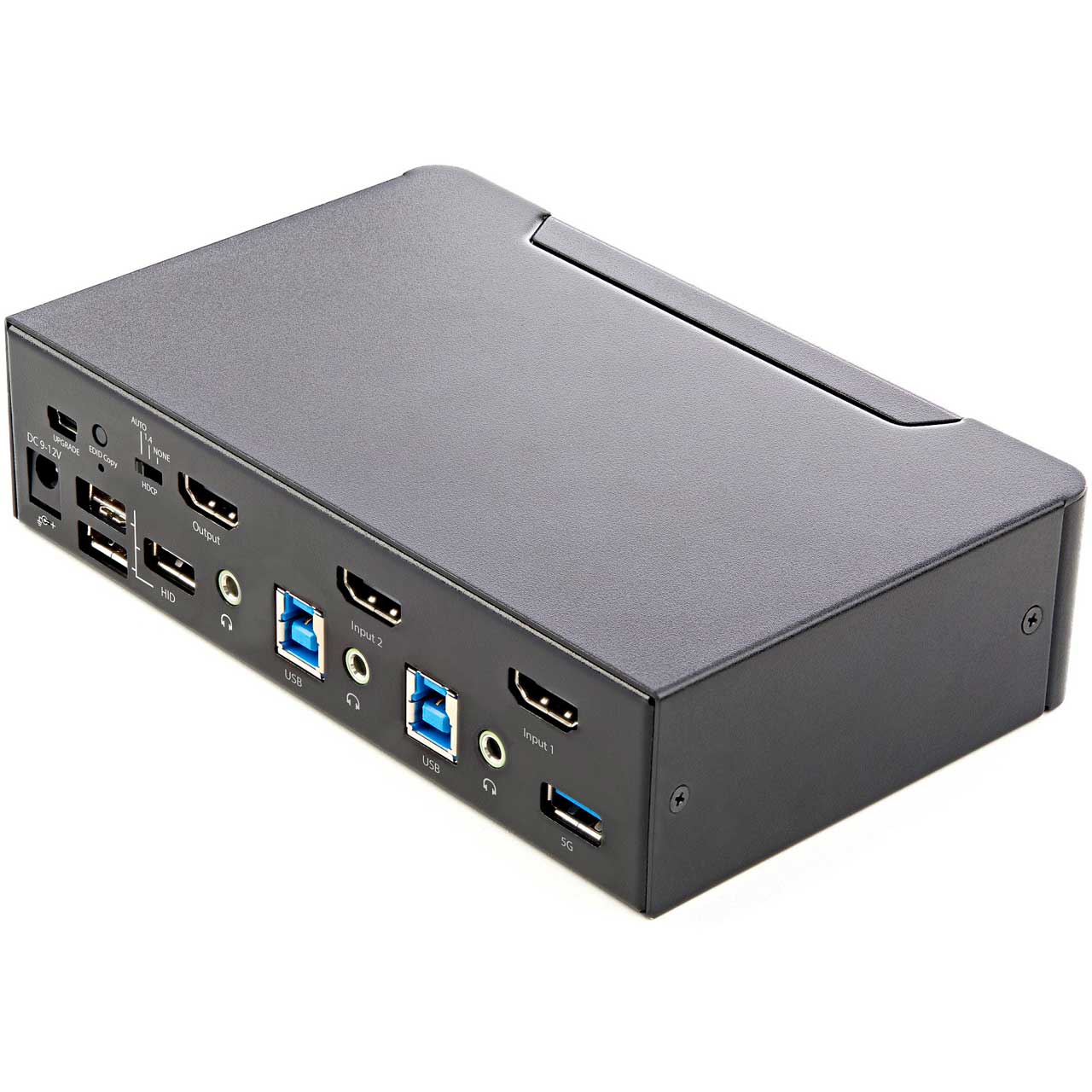

StarTech SV231HU34K6 2 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - HDMI 2.0 KVM Switch with USB3.0 Hub

ITEM #: ST-SV231HU34K6 MFG #: SV231HU34K6

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$317.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SV231HU34K6 - Overview

    This StarTech SV231HU34K6 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

    4K 60Hz Picture and Full Audio Support
    The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.

    With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.

    Integrated USB Hub
    The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

    Windows, Mac & Linux Compatible
    While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.

    Easy to Operate

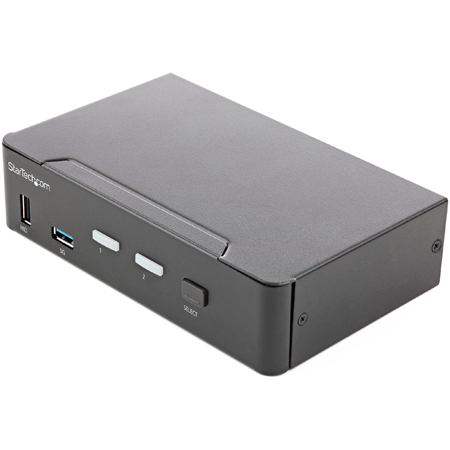

    The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

    StarTech offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.

    This 2-port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.

    • Features:

      • 4K 60Hz UHD: 2 Port HDMI KVM switch supports up to 4K at 60Hz on one monitor for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
      • Fast Switching: Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 2 computers
      • Tech Specs: 2-Port HDMI 2.0 | 3840 x 2160 | HDCP 2.2 | HDR10 Support | 2 Port USB 3.0 Hub (5Gbps)| 4x USB HID | Hotkey, Push Buttons | Stereo Analog + 7.1 Digital Audio | EDID & HDCP Emulation | OS Independent
      • User-Friendly: KVM switch with compact & durable steel housing featuring easily accessible buttons & front-mounted integrated USB switch (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
      • StarTech Advantage: IT professionals' choice for over 30 years; This KVM (Keyboard, Video/Monitor, Mouse) Switch is backed for 2-years by StarTech, including free 24/5 North America based multi-lingual tech support

    • Specifications:

      • Connector(s)

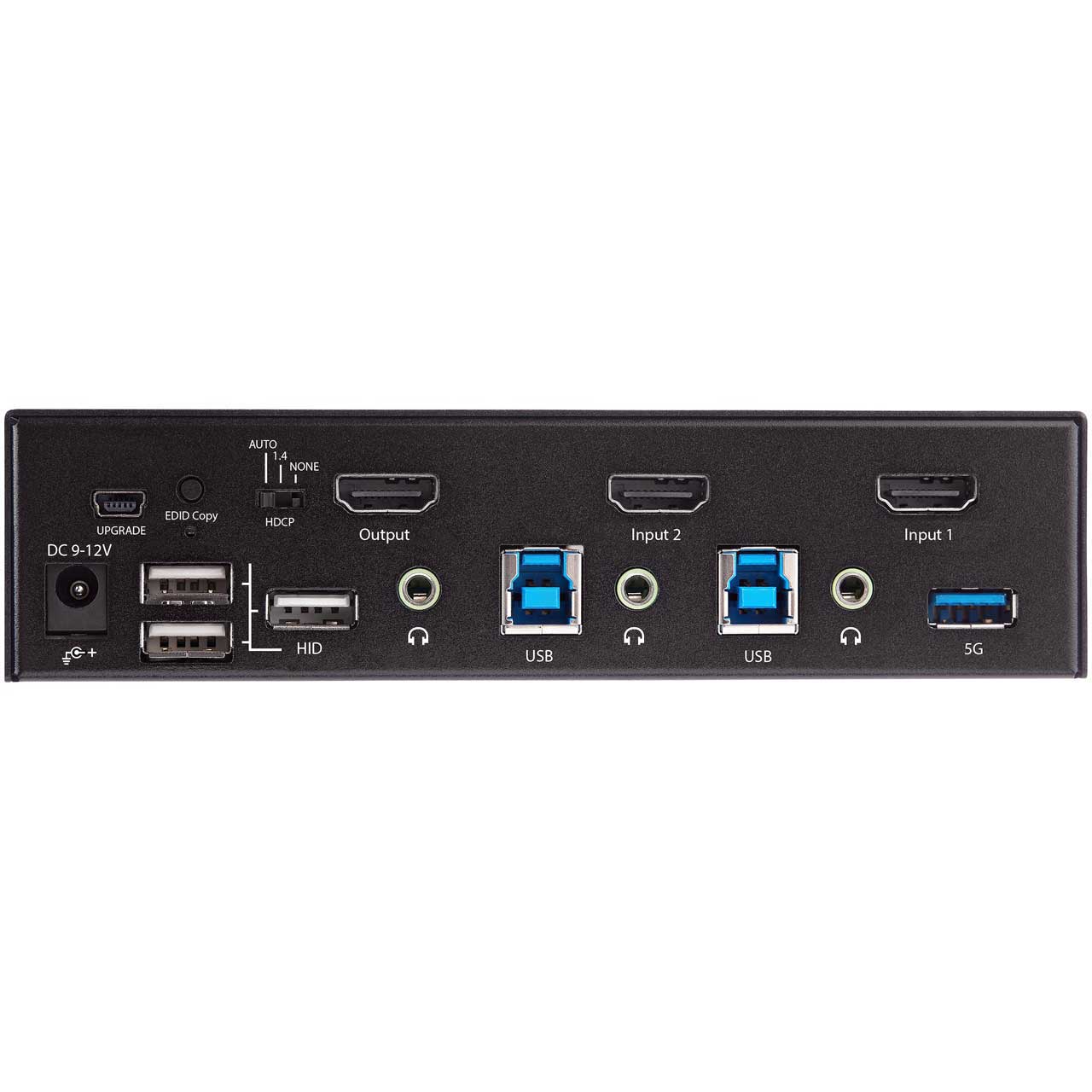

      • Console Interface(s): 1 - 19 pin HDMI Female, 1 - 3.5 mm Audio Female, 2 - 9 pin USB 3.0 A Female, 4 - USB Type-A (4 pin; HID Port) USB 1.1
      • Host Connectors: 2 - 19 pin HDMI Female, 2 - 3.5 mm Stereo Audio (3 Position) Female, 2 - 9 pin USB 3.0 B Female
      • Other Interface(s): 1 - USB Mini-B (5 pin)

        Environmental
      • Operating Temperature: 0°C~40°C
      • Storage Temperature: -10°C~60°C
      • Humidity: 0%~80%

        Hardware
      • U Height: 1RU
      • Audio: Yes
      • Cables Included: No
      • Daisy-Chain: No
      • Number of Monitors Supported: 1
      • KVM Ports: 2
      • Rack-Mountable: No
      • PC Interface: USB 3.2 Gen 1 (5Gbps)
      • PC Video Type: HDMI
      • Chipset ID: Genesys Logic - GL3523

        Indicators
      • LED Indicators: 2 - Green (Power/Sync), 2 - Red (Selected Host)

        Packaging Information
      • Package Height: 3.6 in [9.1 cm]
      • Package Length: 7.1 in [18.0 cm]
      • Shipping (Package) Weight: 2.5 lb [1.1 kg]
      • Package Width: 9.4 in [23.8 cm]

        Performance
      • Auto Scan: 3, 8, 15 & 30 seconds

        Audio Specifications
      • HDMI - 7.1 Channel Audio, HDMI - 2 Channel Audio, Analog Stereo - 2 Channel Audio
      • MTBF: 143 000 hrs
      • Port Selection Support: Push Button and Hotkeys
      • On-Screen Display: No
      • Video Revision: HDMI 2.0
      • IP Control: No
      • Hot-Key Selection: Yes
      • Supported Resolutions: 3840 x 2160 @60Hz
      • Wide Screen Supported: Yes
      • Maximum Number of Users: 1

        Physical Characteristics
      • Color: Black
      • Product Height: 1.6 in [4.0 cm]
      • Product Length: 6.3 in [16.0 cm]
      • Weight of Product: 1.4 lb [0.6 kg]
      • Product Width: 3.9 in [10.0 cm]

        Material
      • Steel: Power
      • Power Source: AC Adapter Included
      • Input Voltage: 100 - 240 AC
      • Input Current: 1.0A
      • Output Voltage: 12V DC
      • Output Current: 3A
      • Center Tip Polarity: Positive
      • Plug Type: M
      • Power Consumption (In Watts): 36W

    • Item Includes:

      • 1x KVM Switch
      • 1x Universal Power Adapter (NA/JP, EU, UK, NZ)
      • 4x Rubber Feet
      • 1x Quick-Start Guide

    • GTIN:

      0065030882002
