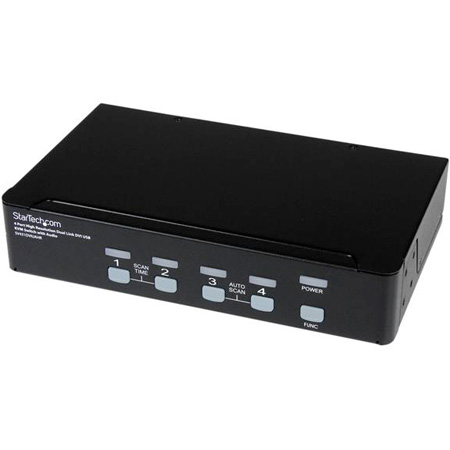

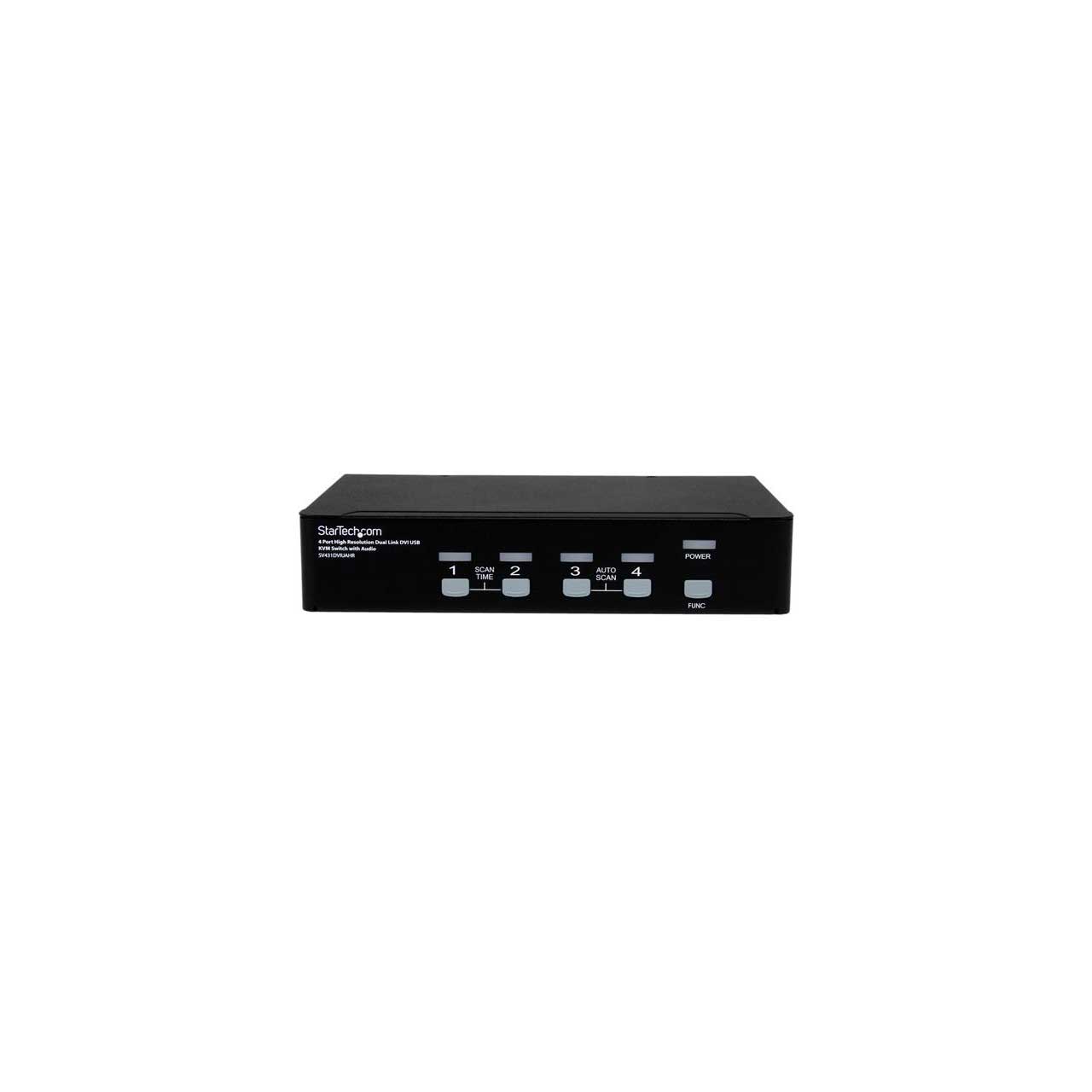

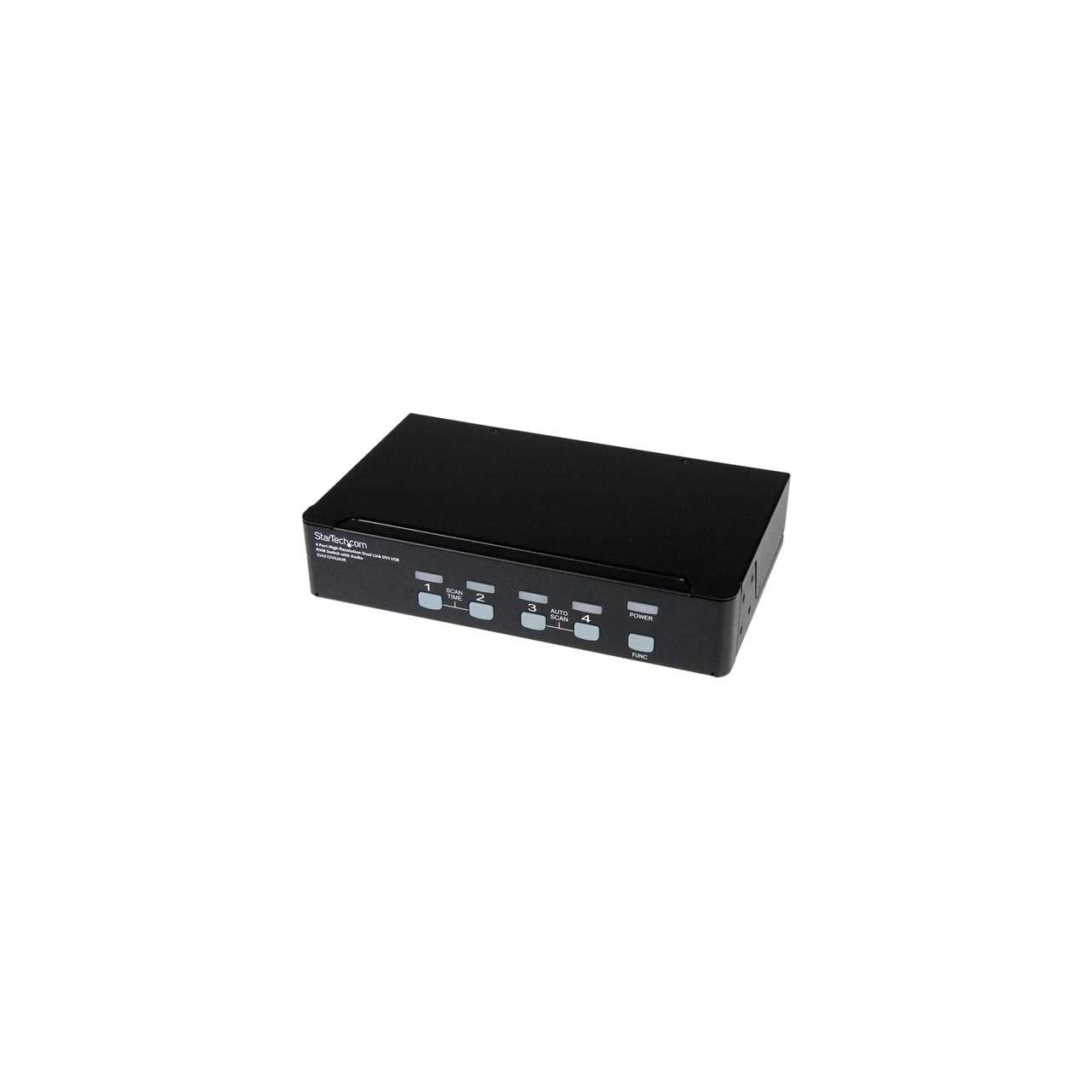

StarTech SV431DVIUAHR 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio

SV431DVIUAHR - Overview

• Features:

  • All metal chassis for long-term durability
  • Supports dual link DVI resolutions up to 2560x1600 @ 60Hz
  • Higher resolutions up to 3840x2400 supported at lower refresh rates
  • Integrated USB 2.0 hub allows you to share up to 3 high-speed USB devices between computers
  • Compatible with all USB supported Operating Systems
  • Front panel push button computer selection
  • HDCP Compliant


• Specifications:

  • Warranty: 3 Years
  • Audio: Yes
  • Cables Included: No
  • Daisy-Chain: No
  • KVM Ports: 4
  • Number of Monitors Supported: 1
  • PC Interface: USB
  • PC Video Type: DVI
  • Rack-Mountable: Optional
  • DVI Support: Yes - Dual Link
  • Hot-Key Selection: No
  • IP Control: No
  • Maximum Digital Resolutions: 2560x1600 @ 60Hz
  • Maximum Number of Users: 1
  • MTBF: 64,000 Hours
  • On-Screen Display: No
  • Port Selection Support: Push Button
  • Wide Screen Supported: Yes
  • Console Interface(s): 1 - DVI-I (29 pin) Female; 2 - 3.5 mm Mini-Jack (3 Position) Female; 2 - USB Type-A (4 pin) USB 2.0 Female

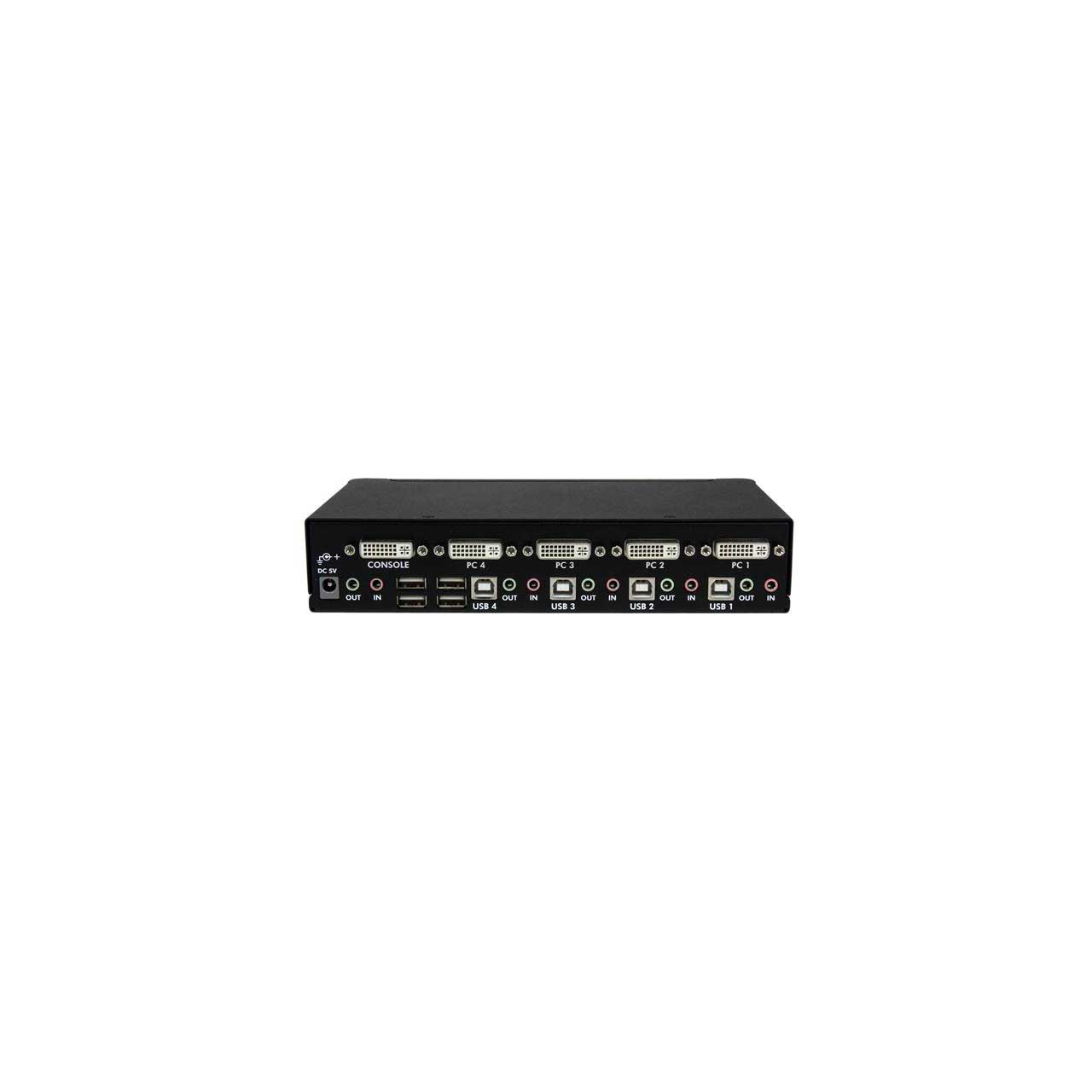

  • Host Connectors 4 - DVI-I (29 pin) Female; 4 - USB B (4 pin) Female; 8 - 3.5 mm Mini-Jack (3 Position) Female
  • Other Interface(s): 2 - USB Type-A (4 pin) USB 2.0 Female
  • OS Compatibility: OS independent; No software or drivers required
  • Center Tip Polarity: Positive
  • Input Current: 0.4A
  • Input Voltage: 110V-240V AC
  • Output Current: 2A
  • Output Voltage: 5 DC
  • Plug Type: N
  • Power Consumption (In Watts): 10

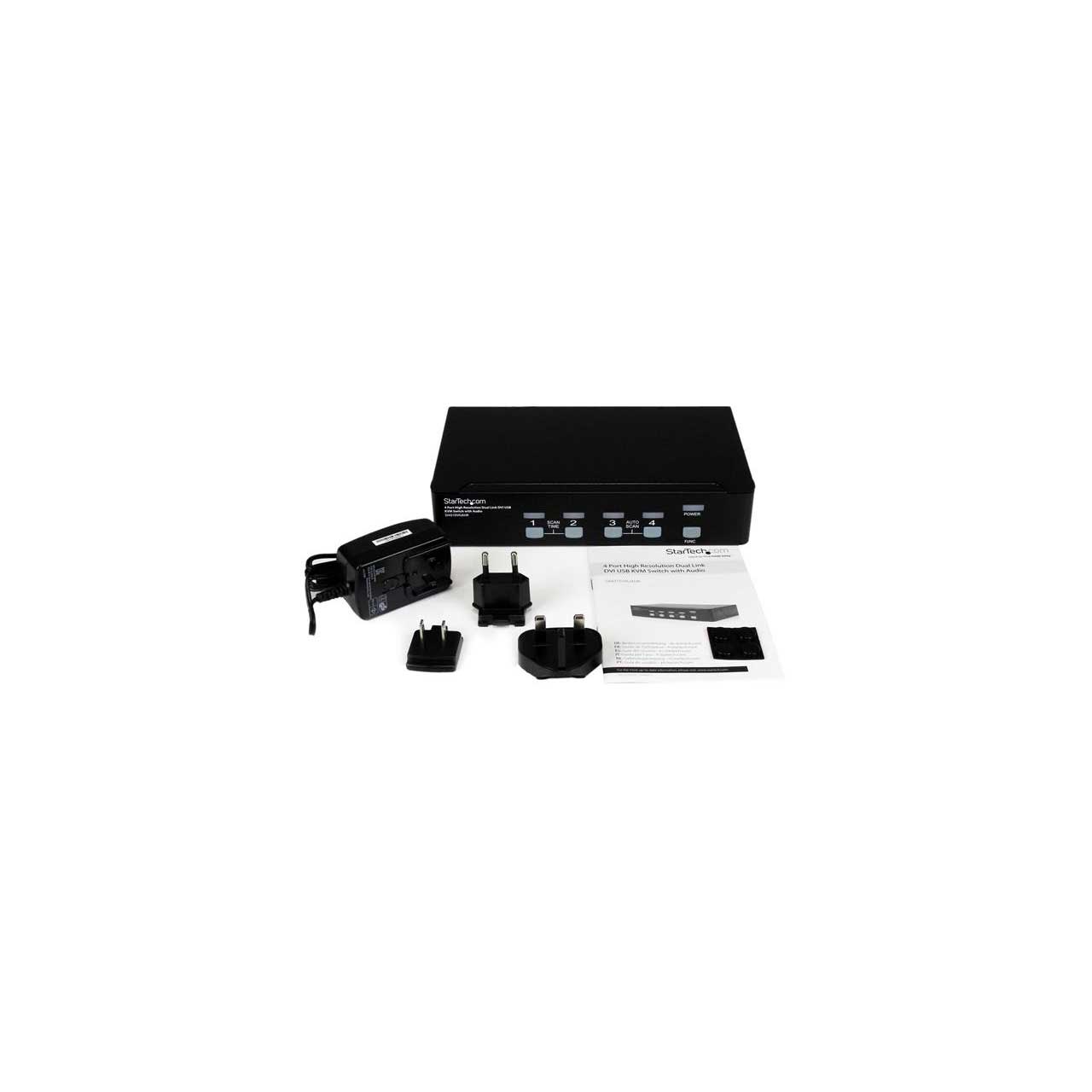

  • Power Source: AC Adapter Included
  • Humidity: 0~80% RH
  • Operating Temperature: 32°F to 104°F
  • Storage Temperature: -4°F to 140°F
  • Color: Black
  • Enclosure Type: Steel
  • Product Depth: 5.1 in
  • Product Height: 1.7 in
  • Product Weight: 61.8 oz
  • Product Width: 8.7 in


• Warranty:

  • 3 Year


• GTIN:

  0065030831369
