Stewart DSP100-2-LZ-D 2 Channel DSP-Enabled Amplifier 2 x 100W @ 4/8 Ohms Dante Network Enabled

ITEM #: STW-DSP100-2-LZD MFG #: DSP100-2-LZ-D

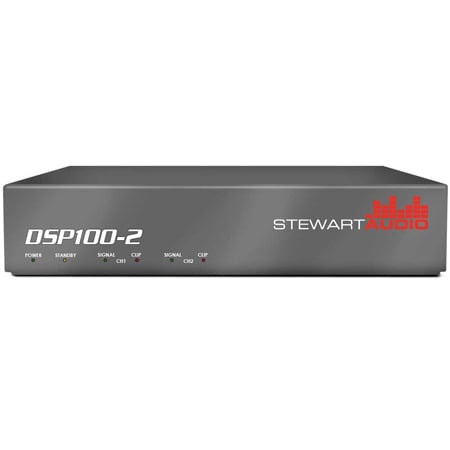

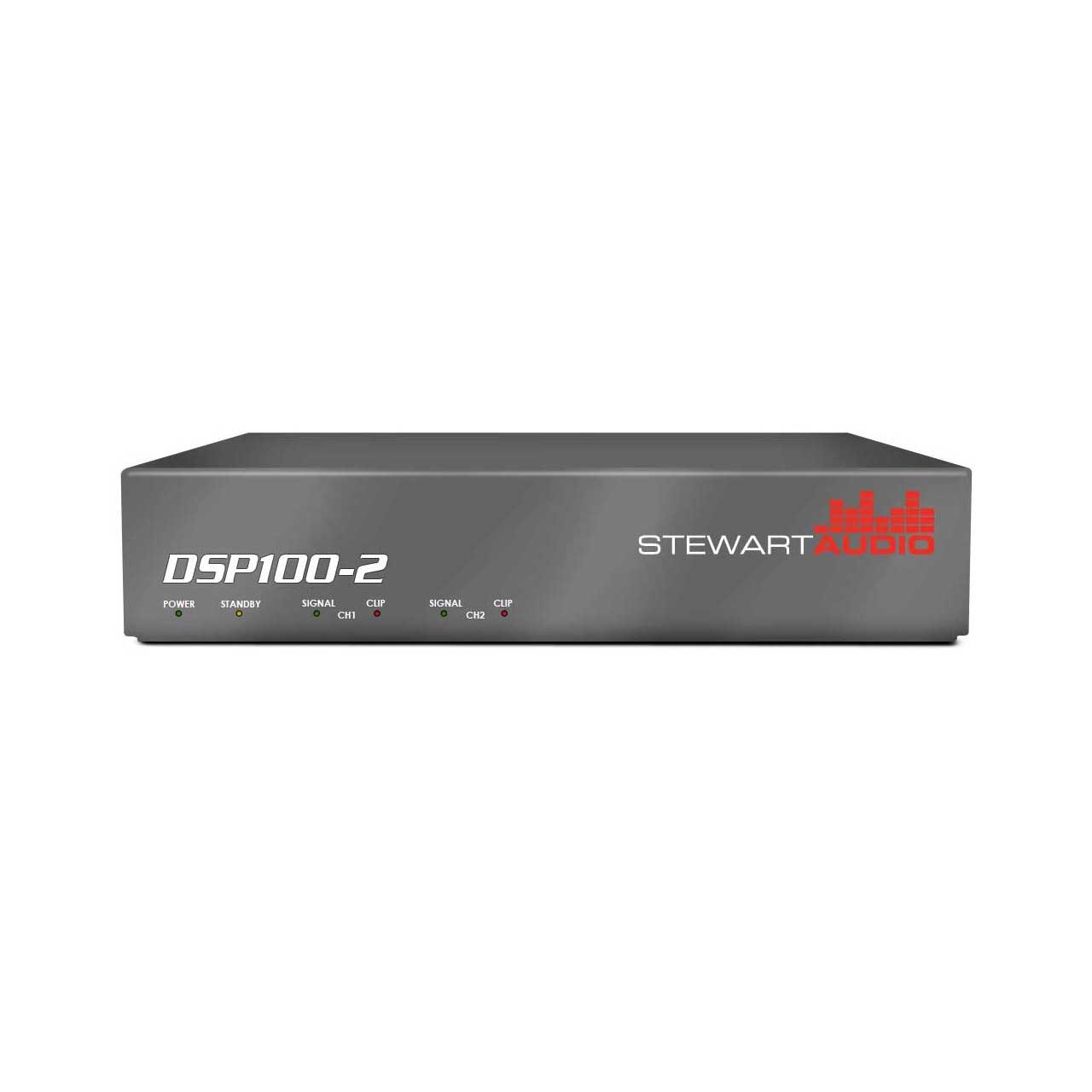

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,359.00

Our Price:

$1,149.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    DSP100-2-LZ-D - Overview

    The DSP100-2-LZ-D is an affordable amplifier with fully integrated DSP designed to optimize the speakers and overcome the acoustical limitations of a zone. The DSP100-2-LZ-D provides 100W from each channel into 8 Ohms. The robust, full function DSP includes a full cross-point mixer, EQ, filters, limiters, and more. A USB port makes programing simple, fast and repeatable for large installations. The remove volume control allows volume control from a wide range of devices. You won't find a more cost effective way to bring outstanding sound quality to two zones on the market today.

    • Features:

      • Onboard full featured DSP
      • Configurable via USB port
      • Convection cooled, 1/2 rack enclosure
      • 2 balanced + 2 RCA analog line/mic inputs
      • 2 Dante input channels
      • Remote Volume Control
      • Made in the USA

    • Specifications:

      • Output: 100W x 2 @ 4/8 Ohms
      • Frequency Response: 100 Hz - 20kHz
      • THD+N: <.1% @ Full Power
      • Signal-to-Noise Ratio: >100dB
      • Input Sensitivity: 1V (0 dBV)
      • Input impedance (Balanced/Unbalanced): 7.2K Ohms/3.6K Ohms
      • Current Draw - Standby, 1/8 Power: 12W/65W (Varies by model)
      • Amplifier Class: D
      • Remote Volume: 0-10VDC
      • External Mute: Contact-Closure
      • Input Connectors: 3.5mm Euroblock and RCA
      • Output Connectors: 5mm Euroblock
      • LED Indicators: Power, Standby, Signal, and Clip
      • Controls: USB for programming, Remote Volume, Trim Knobs
      • Optional Network Input: Dante
      • Power Supply Input: 110/240 VAC 50/60Hz (Universal Input)
      • Cooling: Convection-Cooling (No Fans)
      • Construction: Aluminum Chassis
      • Mounting: Rack-Mountable
      • Dimensions (height, width, depth): 1.7"H x 8.4"W x 10.7"D
      • Weight: 4.5lbs max (varies by model)

    • Warranty:

      • 3 Year
