Tripp Lite SUPER7COAX 6 Outlet Spike and Noise Suppressor

ITEM #: SUPER 7 COAX MFG #: SUPER 7 COAX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order


Item unavailable.Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email


Availability: Sold Out
iAvailability Description Popup


SUPER 7 COAX - Overview

The Tripp Lite SUPER7COAX surge suppressor from Tripp Lite has 7 outlets and a 7-ft. cord with a space-saving right-angle plug. The unit has 2160 joules of surge energy absorption to handle the strongest surges. Built-in 2.2 GHZ gold coax jacks prevent surges from damaging your cable/satellite equipment. Diagnostic LEDs alert the user to potential power problems. $75,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).

  • Features:

    • 7 outlets

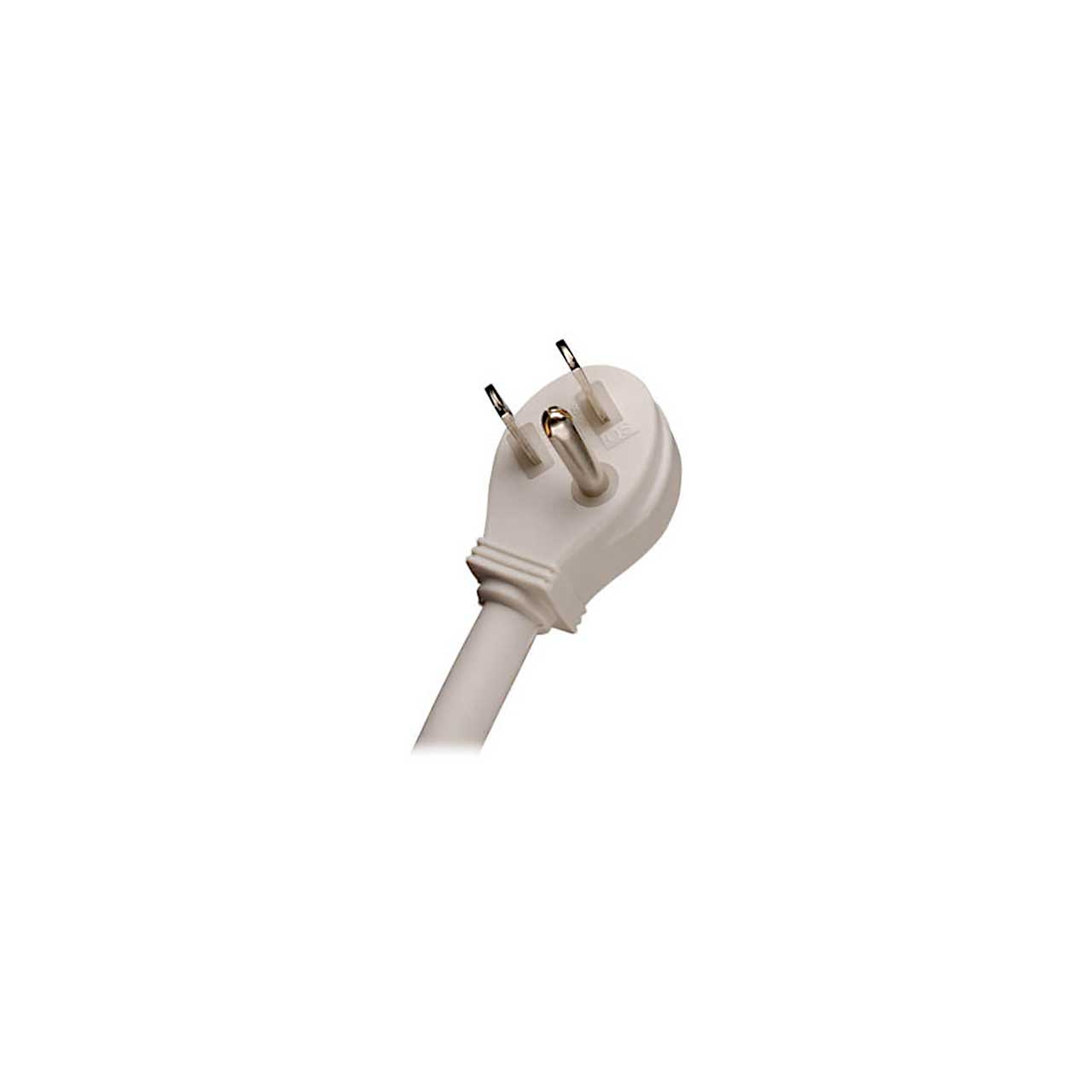

    • 7-ft. cord with space-saving right-angle plug
    • Surge suppression rating: 2160 joules
    • 1 set of 2.2 GHz gold coaxial jacks
    • EMI/RFI noise filtering
    • Can accommodate up to 3 transformers without blocking remaining outlets
    • $75,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) covers connected equipment
    • Diagnostic LEDs indicate protection present & ground present
    • Keyhole supports for wall mounting
    • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required

  • Specifications:

    • Input
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 120V (110-125V)
    • Input Cord Gauge Type: 14 gauge; SJT
    • Voltage Compatibility (VAC): 120
    • Maximum Surge Amps: 144000
    • Input Plug Type: NEMA 5-15P
    • Input Cord Length (ft.): 7
    • Right-Angle Plug: Yes
    • Integrated Cord Clip: No

      Output
    • Frequency Compatibility: 50 / 60 Hz
    • Output (Watts): 1800
    • Output Receptacles: (7) 5-15R
    • Circuit Breaker (amps): 15
    • Transformer Accommodation: (4) Yes
    • Outlet Orientation: Single row of 5, plus 2 side mounted outlets
    • Right-Angle Outlets: No

      User Interface, Alerts & Controls
    • Diagnostic LED(s): Yes
    • Switches: Two position on/off power switch
    • Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status

      Surge / Noise Suppression
    • AC Suppression Joule Rating: 2160
    • AC Suppression Response Time: < 1 ns
    • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
    • Clamping Voltage (RMS): 150
    • UL1449 Let Through Rating: 330V L-G; 400V L-N; 400V N-G
    • EMI / RFI Filtering: Up to 20 dB
    • Automatic Shut-Off: Yes

      Dataline Surge Suppression
    • Telephone/DSL Protection: No
    • Cable (Coax) Protection: Yes
    • Cable (Coax) Protection Details: 1 line
    • Network (Ethernet) Protection: No

      Physical
    • Anti-Microbial Protective Coating: No
    • Color: Light Gray
    • Color (AC Line Cord): Light Gray
    • Housing Color: Light Gray
    • Integrated Keyhole Mounting Slots: Yes
    • Keyhole Slot Mounting Measurement (Center to Center): Distance Between Slots = 78mm; Distance Between Slot Height = 24mm
    • Material of Construction: Plastic
    • Outlets Measurement (Center to Center): Between Standard Outlets = 29mm; Between Transformer Outlets = 48mm
    • Receptacle Color: Light gray
    • Shipping Dimensions (hwd / in.): 12.60 x 2.00 x 6.00
    • Shipping Weight (lbs.): 1.80
    • Unit Dimensions (hwd / in.): 1.54 x 2.72 x 10.3
    • Unit Weight (lbs.): 1.39

      Special Features
    • Rotatable Outlets: No

      Standards & Compliance
    • Canada: cUL
    • Approvals: Exceeds IEEE 587 category A&B specifications
    • UL1449 3rd Edition (AC Suppression): UL1449 3RD EDITION
    • UL1363 (Power Tap): UL1363
    • UL497A (Communications): UL497A
    • FCC Part 68 (Communications): FCC Part 68
    • Industry Canada (Communications): Industry Canada

  • Item Includes:

    • 1x Super7Coax Surge Suppressor
    • 1x 6-ft gold coax cable
    • 1x Warranty information with instruction manual

  • GTIN:

    0037332010902
