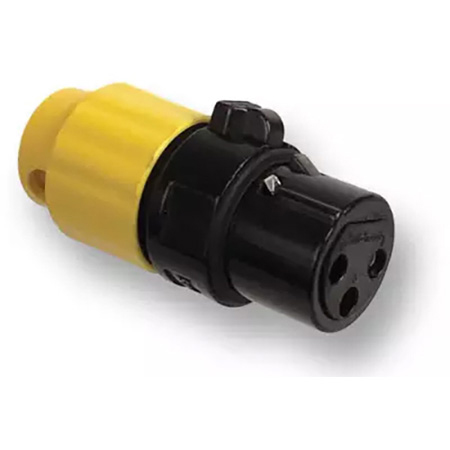

Switchcraft AAA3FBYYLP Low Profile 3 Position Female XLR Connector - Black with Yellow Back

ITEM #: SW-AAA3FBYYLP MFG #: AAA3FBYYLP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$7.00

Our Price:

$6.42

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AAA3FBYYLP - Overview

    Switchcraft Quality XLRs With A Space Saving Design!

    The Switchcraft AAA3FBYYLP AAA Series XLR, Low Profile, 3 Position Female, Black with Yellow Backshell. The cable exits the connector sideways for space savings and can easily be adjusted to face any direction. AAA Series XLRs from Switchcraft are known for their durability and ease of use. This new low-profile design pairs the same connector body with a smaller plastic backshell for applications where small size and low weight are critical.

    360° Adjustable Right Angle
    The cable exits the connector sideways for space savings and can easily be adjusted to face any direction.

    Size and Weight saving design
    Space saving design is up to 75% lighter and 80% smaller than our R-series right angle XLRs.

    Switchcraft Quality
    Built with the same quality Switchcraft is known for because they use the same connector body as our AAA series XLRs.

    Please note: Maximum overall cable size should not exceed 0.205" [5.2mm]

    • Specifications:

      • Number of Positions: 3 Position
      • Gender: Female
      • Termination Style: Solder
      • Mounting Style: Cable
      • Contact Plating: Silver
      • Orientation: Right Angle
      • Contact Material: Copper Alloy
      • Voltage Rating: 125V
      • Current Rating: 15A
      • Life: 5,000 insert/withdrawals min
      • Electrical: 15A, 125V AC (3-pin)
      • Max Cable Size: 0.205" [5.2mm]
      • Housing: Plated Zinc Alloy
      • Contacts: Silver Plated Copper
        *Gold plating available
      • Handle/Insulator: Thermoplastic
