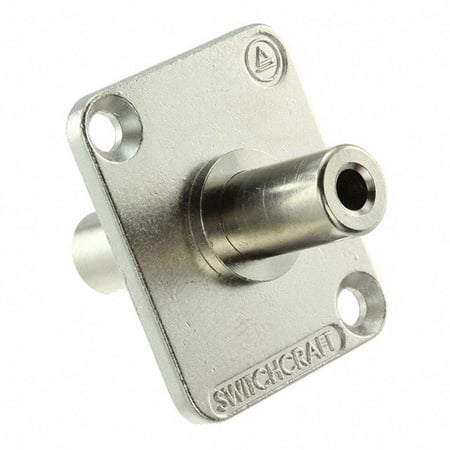

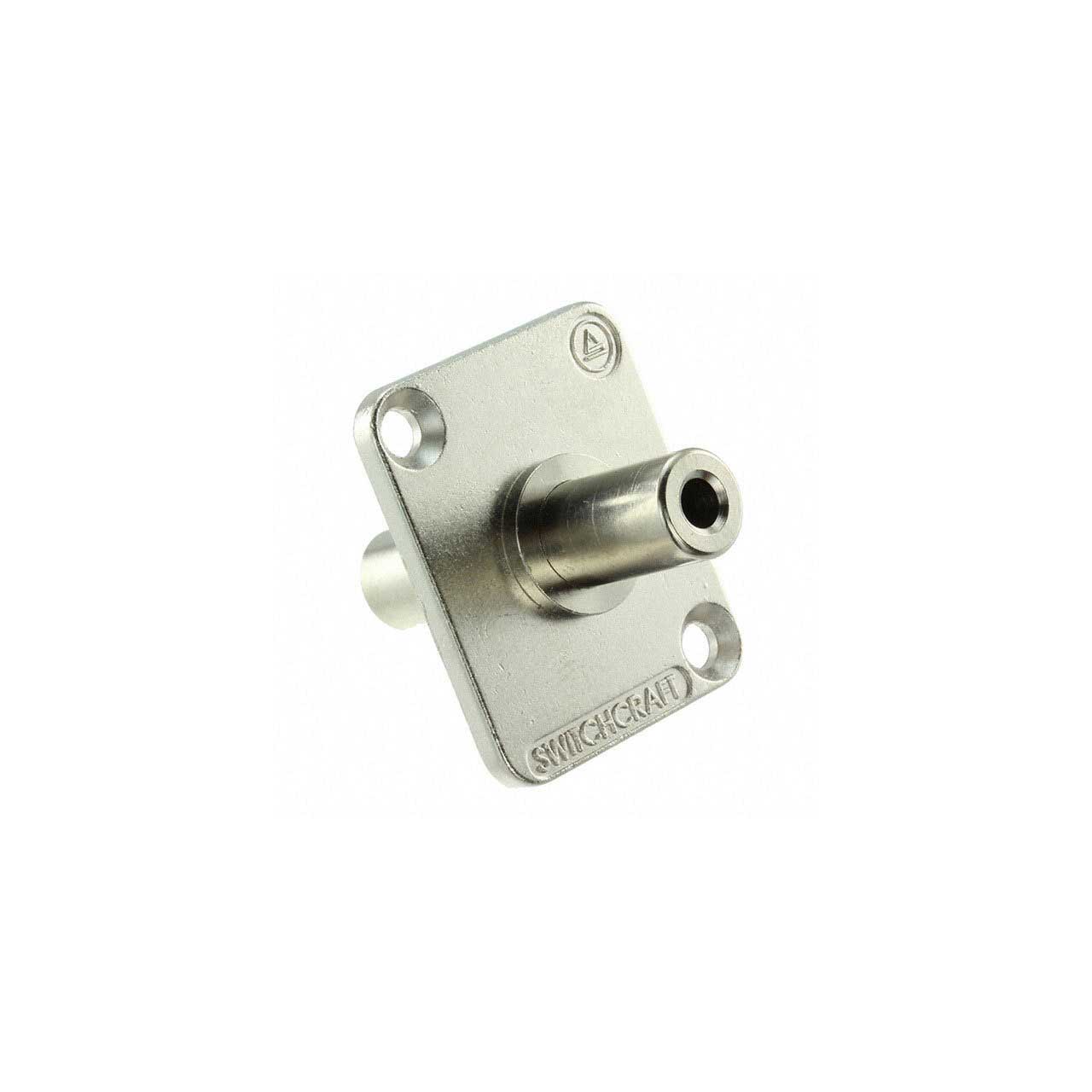

Switchcraft EH35MM2 EH Series 3.5MM Feed Thru - Nickle

EH35MM2 - Overview

• Features:

  • 3.5mm Feed-Thru Connector available in nickel-plated or black finish EH panel housing
  • Compatible with Switchcraft QGPK Series Rack Panels and WP Series Wall Plates
  • All connectors fit into a standard XLR panel cutout


• Specifications:

  • FEED THRU ADAPTER
  • Body: Brass, Nickel plated
  • Nut: Steel, Nickel plated
  • Washer: Steel, Nickel plated
    MECHANICAL
  • Vibration: Per Mil-Std 202G, Method 201A
  • Insertion Force: 10.0 Lbs max
  • Withdrawal force: 1.50 Lbs min.
  • Life Cycle: 5,000 min.
    ENVIRONMENT
  • Thermal Shock: Per Mil-Std 202G, Method 107G
  • Salt Spray test: Per Mil- Std 202G, Method 101E
  • Humidity state: Per Mil-Std 202G, Method 103B


• Warranty:

  • Limited Lifetime
