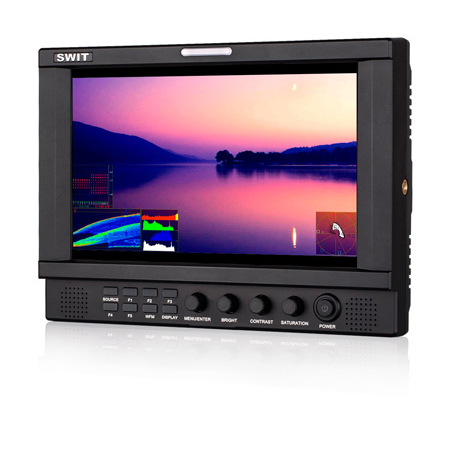

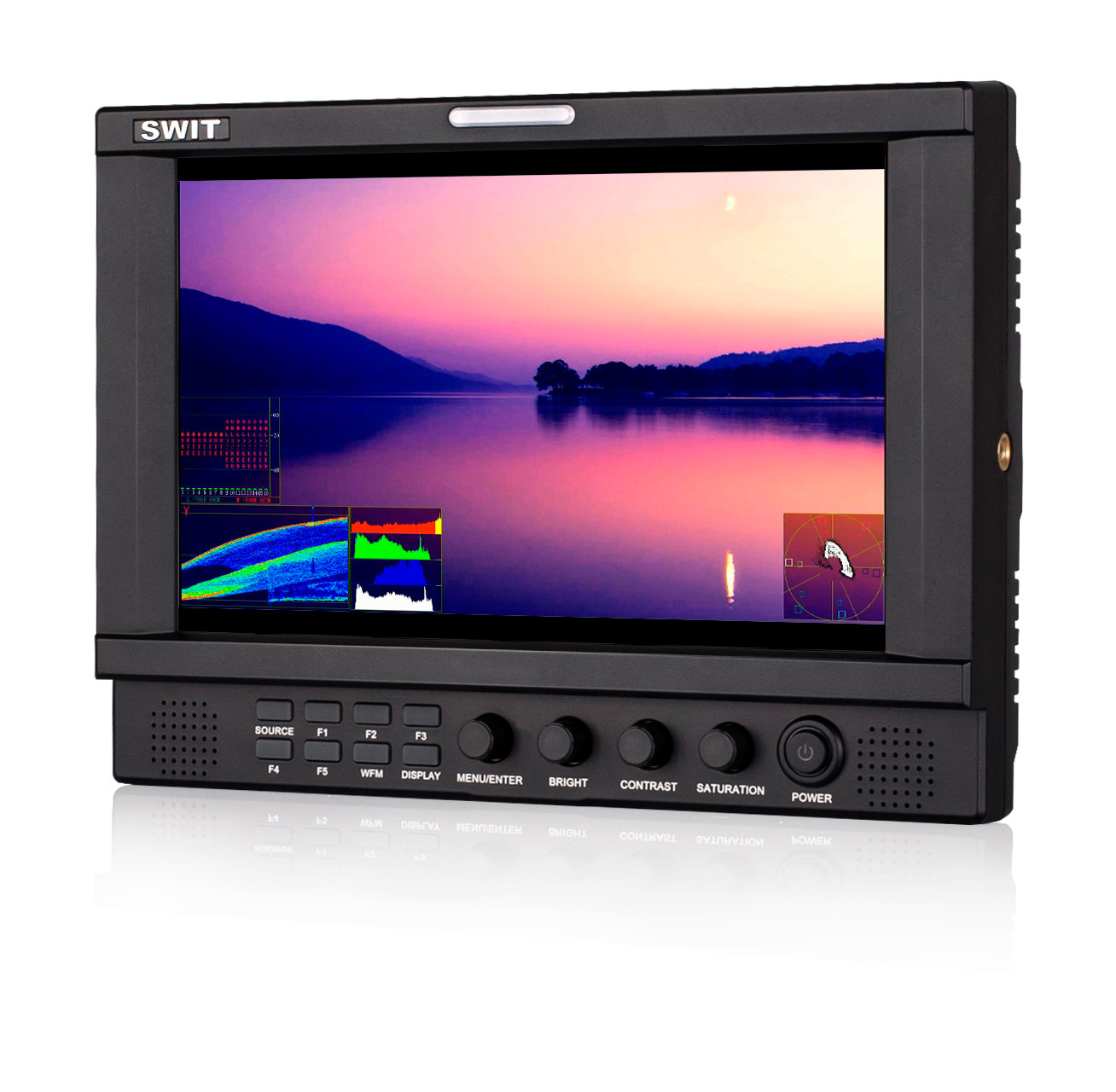

S-1093FB is a 9" Full HD/HDMI Waveform IPS LCD panel monitor with 1920×1200 resolution, LED backlight, 800:1 contrast and viewing angle of Horizontal: 170° / Vertical: 170°. It overlayed with glass to prevent screen from cracking & scratches. It features with built-in many video analysis assistant functions such as: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y). False Color, Zebra Stripes and focus assistance.

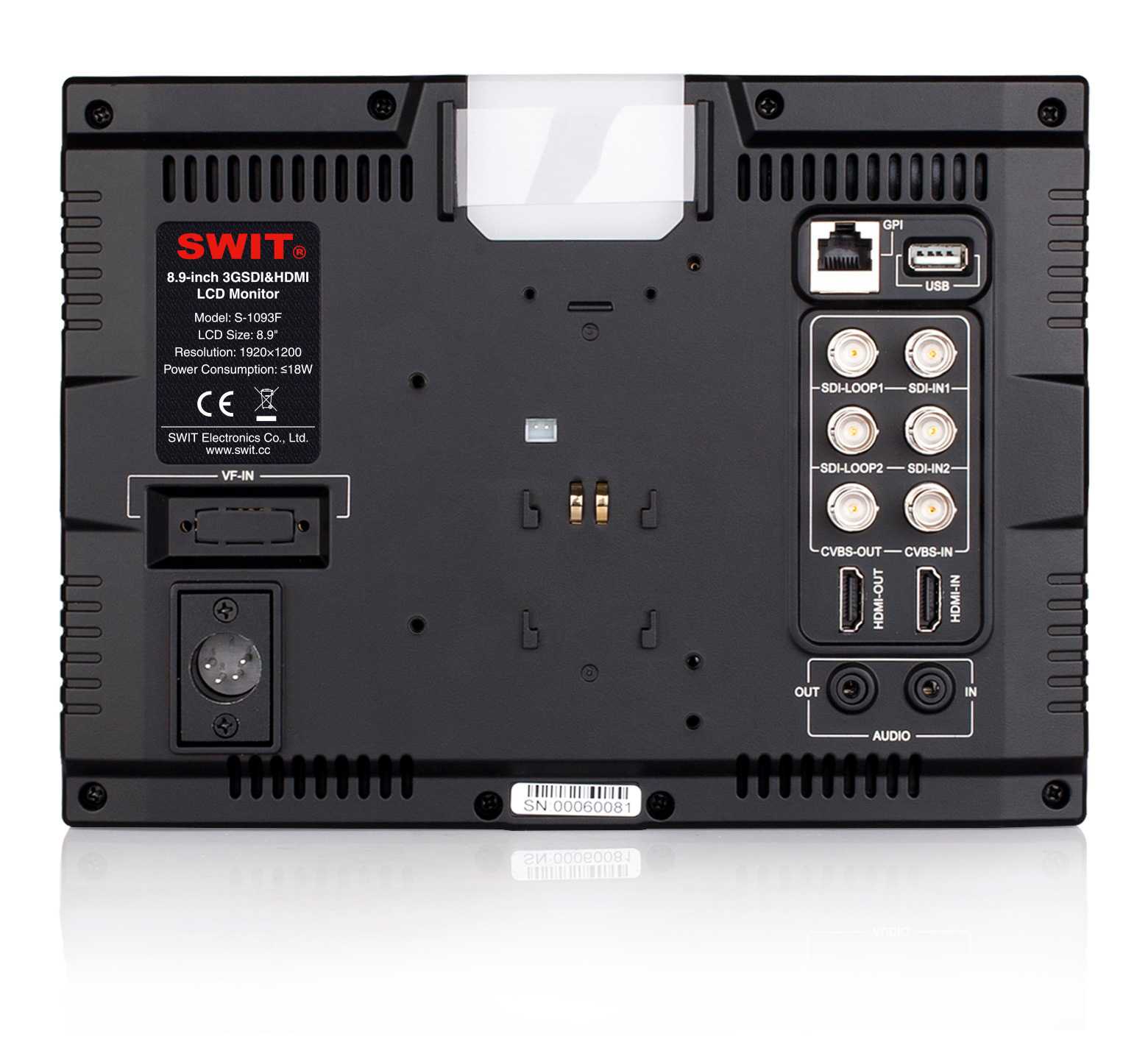

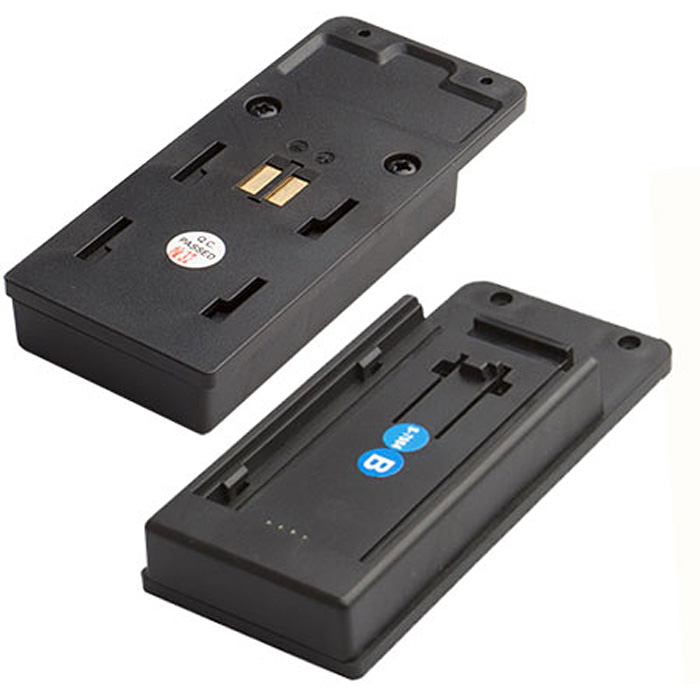

S-1093FB supports 3GSDI, HDMI & CVBS inputs and loop through outputs. It also supports HD/SDI-16ch and HDMI-8ch embedded audio meters display with marks and audio abnormal alert info, users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter can be displayed as 2 channels, 8 channels, and full 16 channels. S-1093FB includes a snap on battery mount which compatible with Panasonic VW-VBG6 and SWIT S-8BG6 batteries. It also can be powered via a AC adapter.
