SWIT S-2240V 12W Bi-Color SMD On-Camera LED Light with JVC BN-VF823 Battery Plate

ITEM #: SWIT-S-2240V MFG #: S-2240V

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    S-2240V - Overview

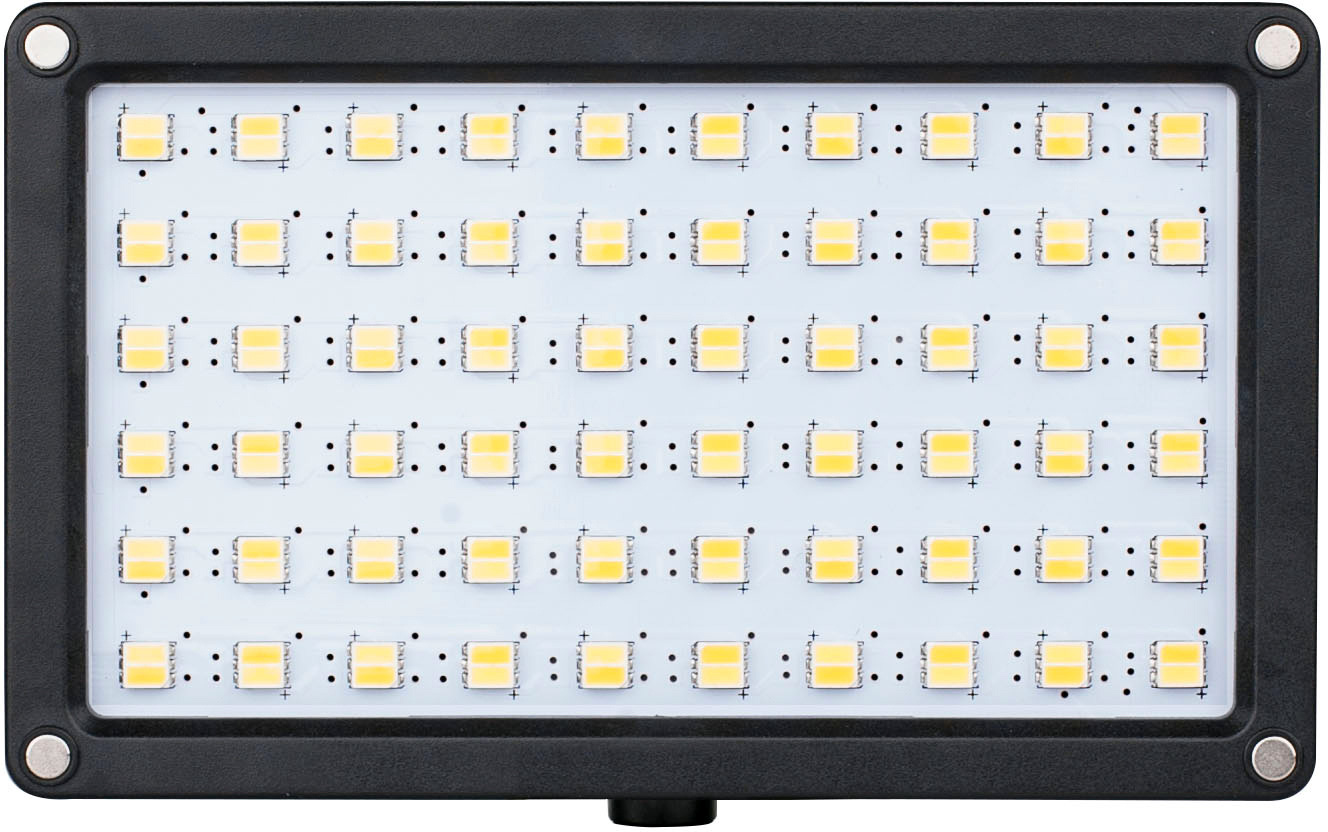

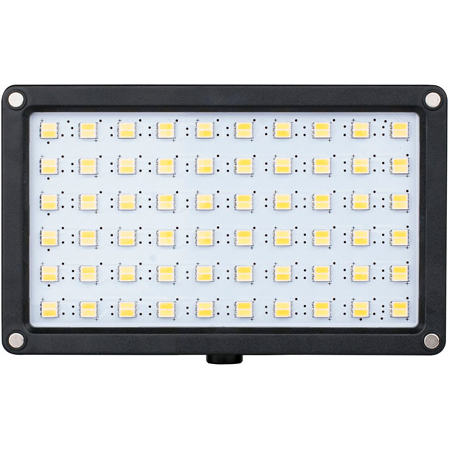

    The SWIT S-2240V is a 5.6" x 3.6" on-camera LED light featuring surface mounted LED technology, including 60pcs ultra-bright SMD LEDs, suitable for wide area on-camera lighting. The provided magnetic diffuser cover generates a symmetrical, soft and glareless area of light for close interview and professional film lighting. The SMD LED of S-2240V has a 120° wide beam angle, and its “half-declined" beam angle can reach up to 68°. Each SMD LED of S-2240V is packaged with both 5600K and 3200K LEDs, thus the output color temperature can be continuously adjusted between 3200K and 5600K. As the S-2240V offers a super-high CRI of 92 and TLCI of 97, you will not lose the original color of the object. It accepts 6-17V wide voltage input, as well as SWIT S-7004V snap-on DV battery plate that is compatible with JVC BN-VF823, and SWIT S-8823 batteries.

    • Features:

      • 60pcs ultra bright long-life LEDs
      • Surface mounted LED technology
      • 120° (half-declined 68°) wide beam angle
      • 3200K-5600K continuously adjustable
      • 12W power, 300Lux @ 1 meter center
      • 10%-100% flick-free dimming
      • Super high CRI Ra92, TLCI97

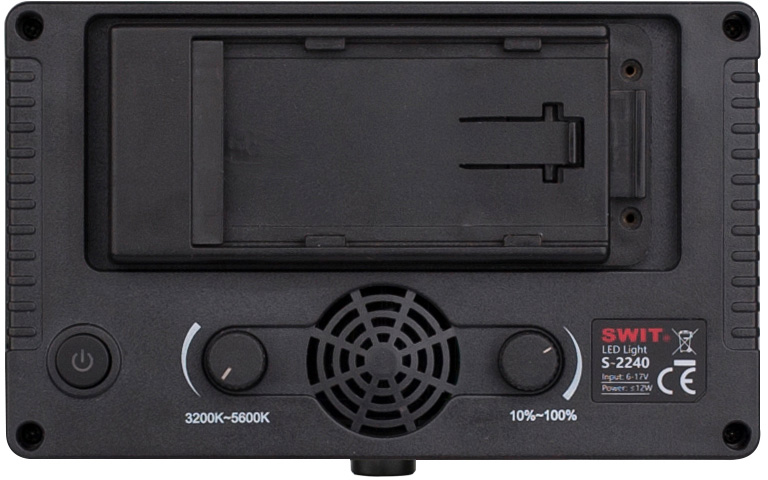

      • Snap on JVC BN-VF823 battery plate
      • Support DC 6-17V input from D-tap

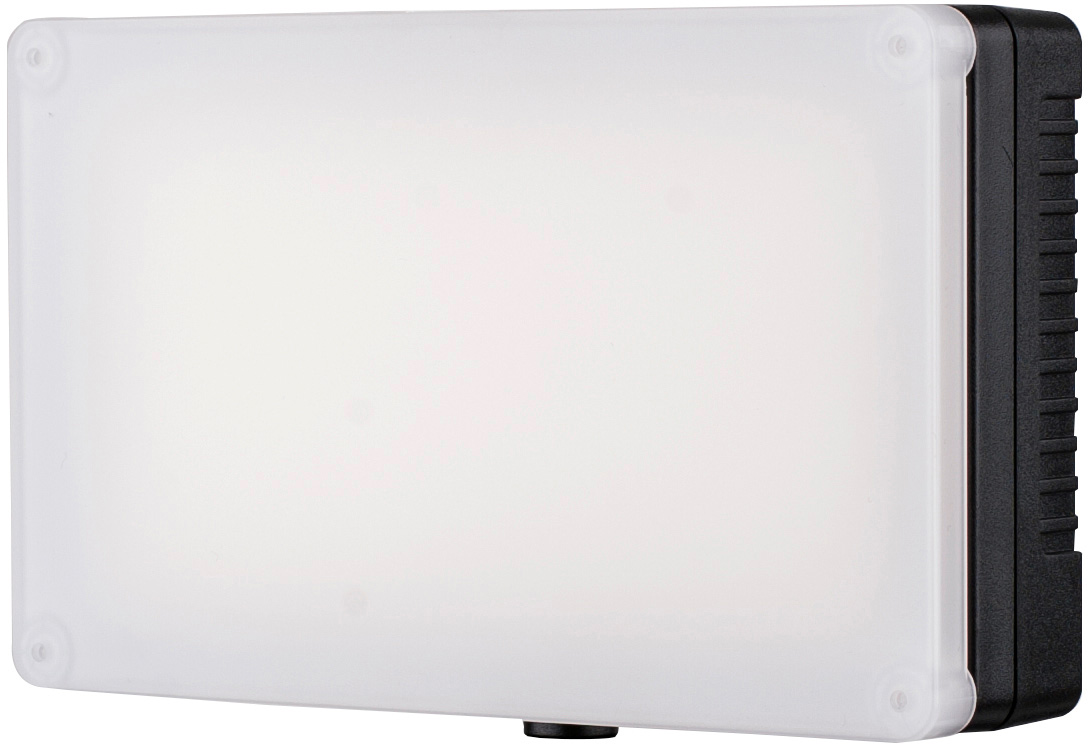

      • Magnetic Duffer cover
    • Specifications:

      • 60pcs SMD LEDs
      • Illuminance: 300Lux @ 1 meter
      • Beam angle: 120°; Half decline at 68°
      • Color temperature: 3200K±200K - 5600K±300K
      • Color performance: CRI Ra93; TLCI97
      • Working voltage: DC 6V-17V
      • Power consumption: Approx. 12W
      • Dimension: 5.6"(W)x3.6"(H)x1.3"(D) / 143(W)x91(H)x34(D)mm
      • Weight: Approx. 0.37lb /166g

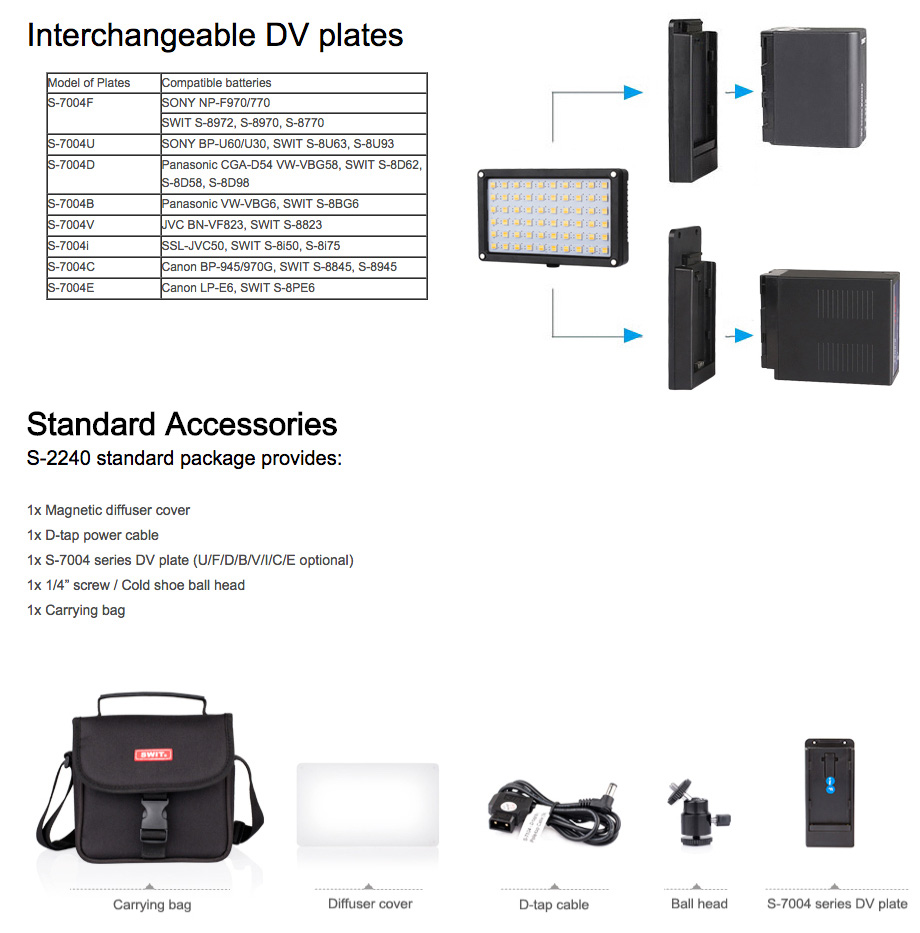

    • Item Includes:

      • 1x Magnetic diffuser cover
      • 1x D-tap power cable
      • 1x S-7004V JVC BN-VF823 battery plate
      • 1x 1/4" screw / Cold shoe ball head
      • 1x Carrying bag
    • Warranty:

      • Two Year Conditional Warranty
    • GTIN:
