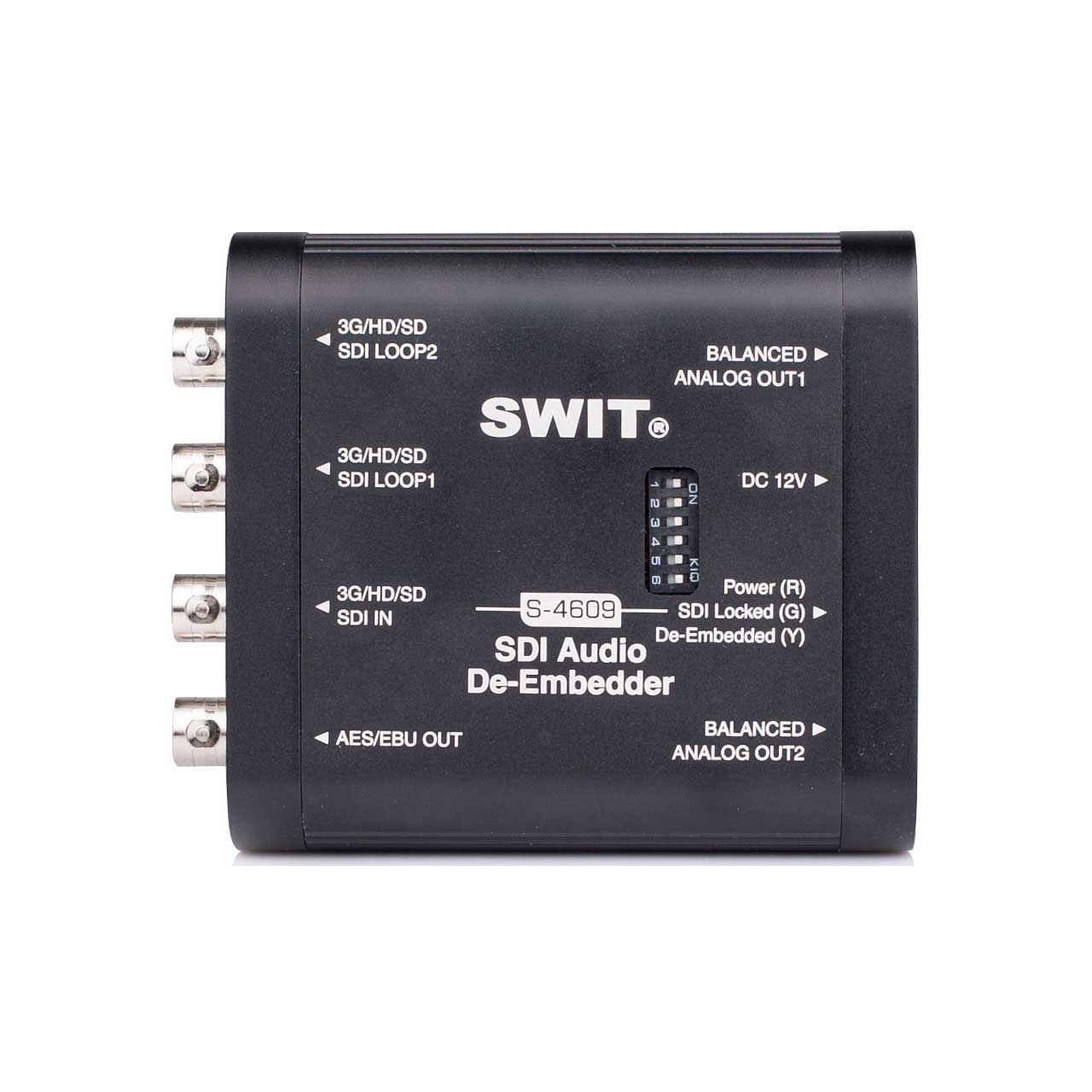

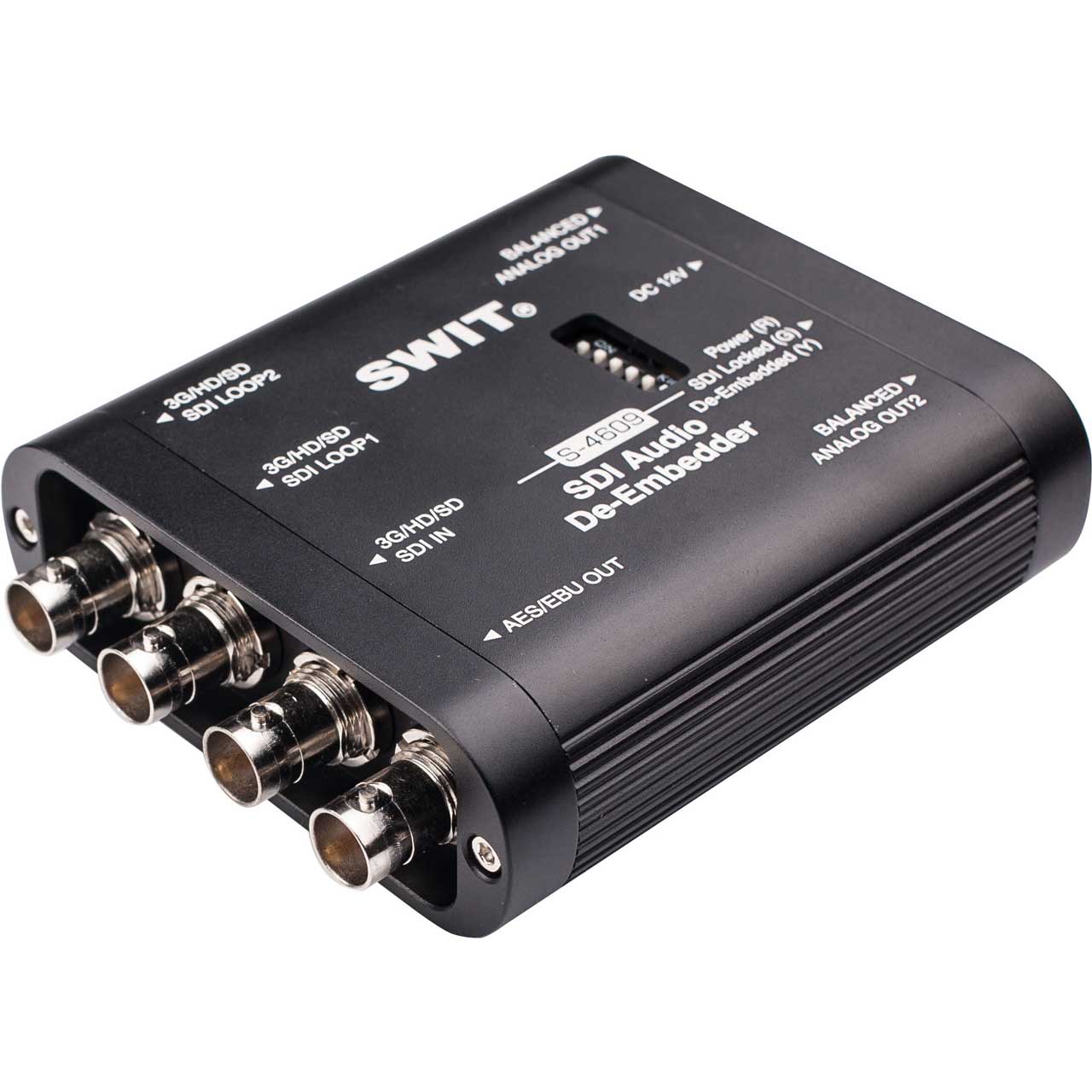

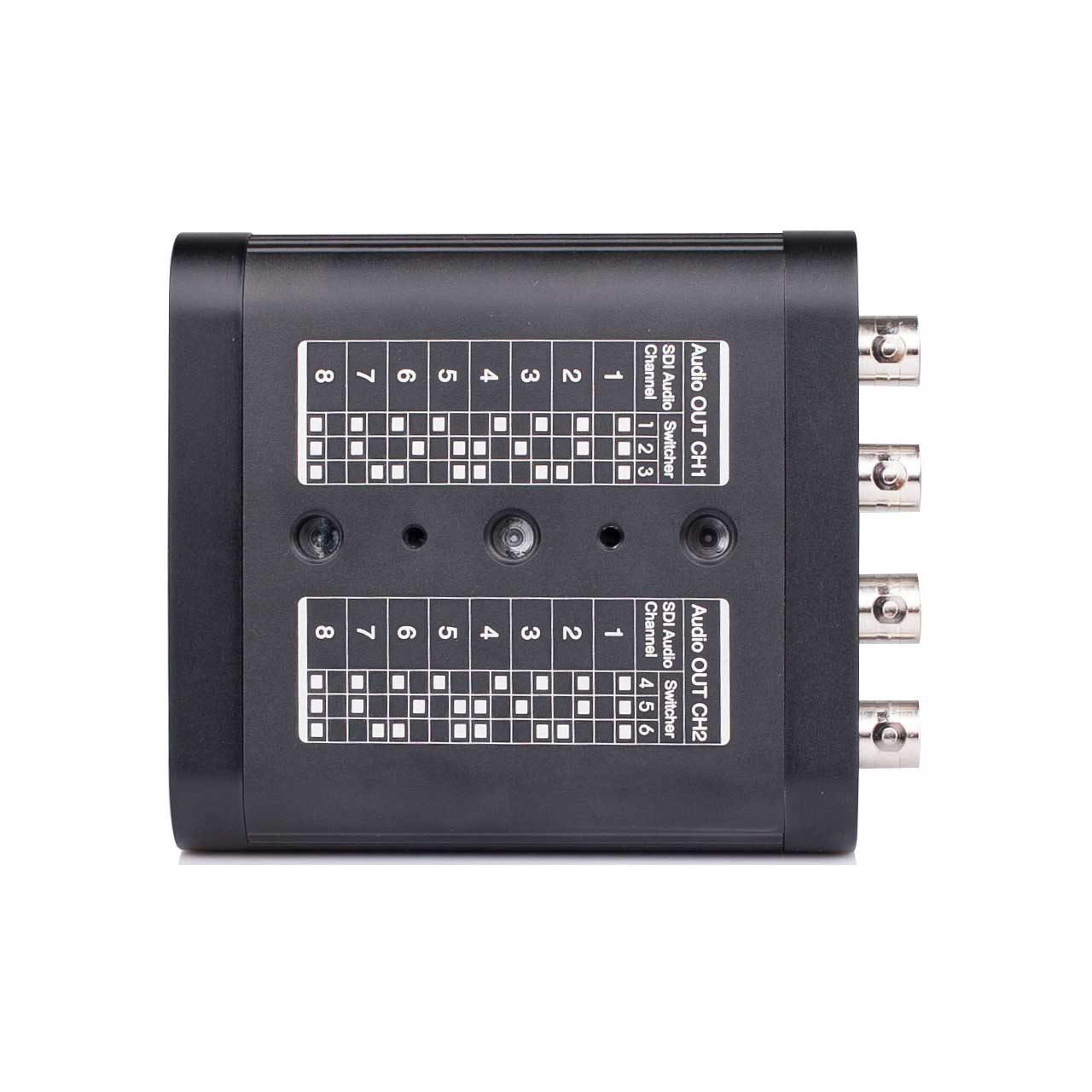

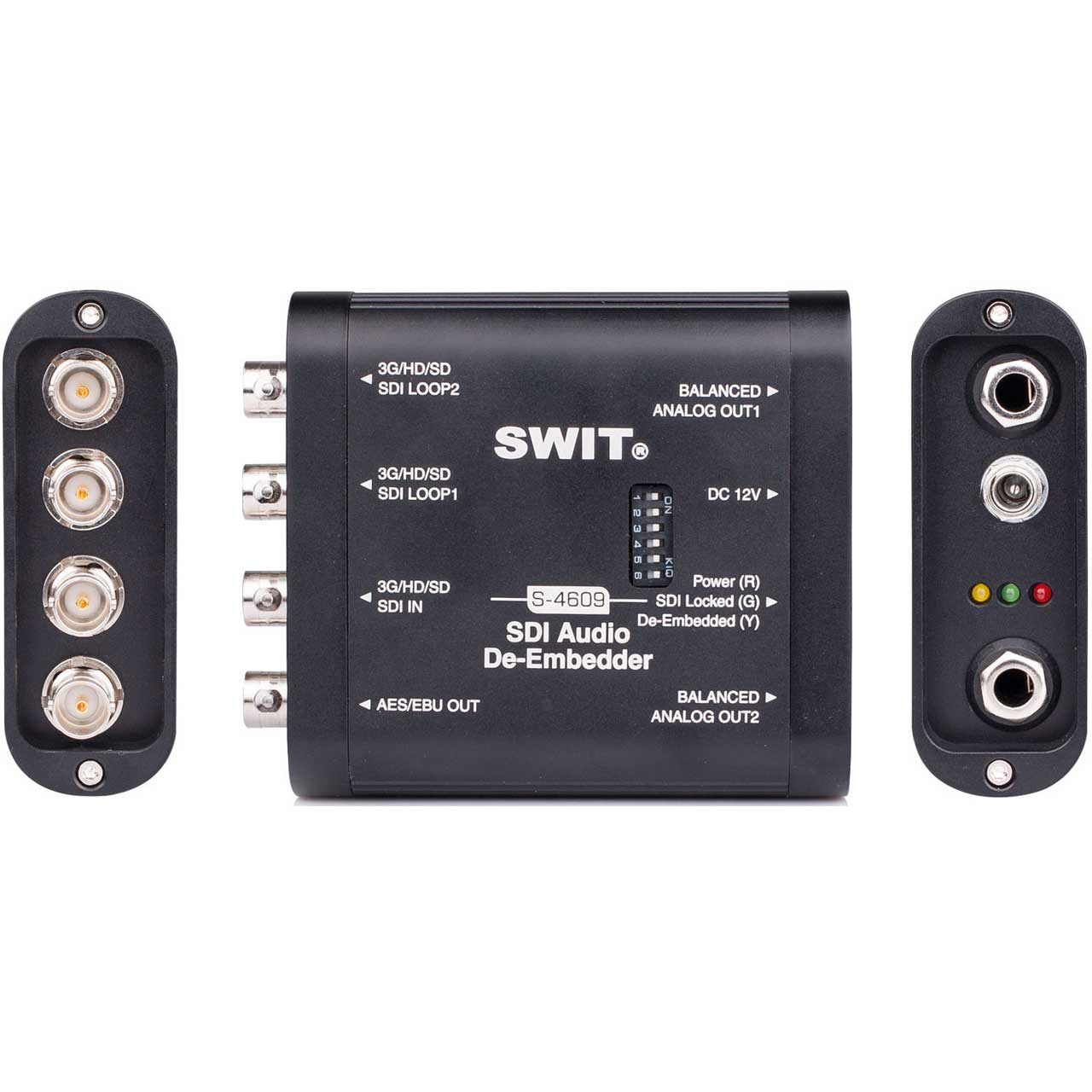

S-4609 is a mini SDI audio de-embedder, supports up to 3Gb/s SDI, and can be widely used in broadcast field production and professional audio/video conversion and transmission. S-4609 can De-embeded any 2-ch audio from the first 8-ch of SDI embedded audios. User can select the channel number to be de-embedded by the 6 switchers on the front panel of the product. The De-embedded audios can be output via two balanced Anolog audio outputs and one AES/EBU digital output. Also, S-4609 provided two 3G-SDI loop through outputs which for the original SDI signal loopout. S-4609 built With 3 LED indictors which is quick reference for checking power connection, SDI input recognization and the status of the De-embedded audio delivery.
1x 3G/HD/SD-SDI input
2x 3G/HD/SD-SDI loop output (Reclocked)
1x AES/EBU digital audio output (2-ch)
2x 6.35mm 1/4" analog audio output (balanced)
(If both AES/EBU audio and analog audio is connected, only AES/EBU audio outputs)
