SWIT S-4914 TF/S-4914RA 700m 3GSDI/HDMI Wireless Transmission System: T w/ Sony L Series Plate & R w/ Gold-mount Plate
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

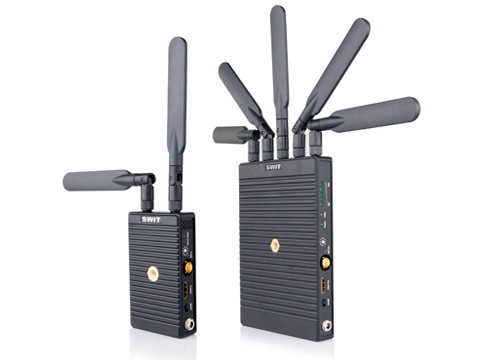

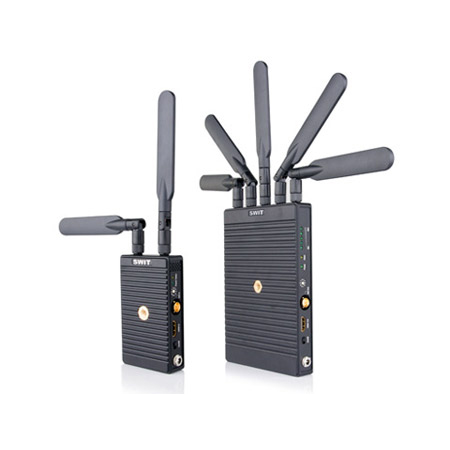

    SWIT S-4914 TF/S-4914RA 700m 3GSDI/HDMI Wireless Transmission System: T w/ Sony L Series Plate & R w/ Gold-mount Plate

    Item #: SWIT-S4914TFSRA   •   MFG #: S-4914 TF/S-4914RA


    List Price:$4,850.00
    Our Price:$4,650.00

    free ship
    Direct Ship from manufacturer, contact us for availability
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

      California Residents:
      Cancer and Reproductive Harm -


      S-4914 is the broadcast industry wireless system, includes an S-4914TF transmitter and an S-4914RA receiver, with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI signals wirelessly transmitted up to 700 meters (2296 ft) with less than 1ms latency. It supports resolutions up to 1080p60/50 uncompressed SDI and HDMI with two channels of embedded audio
      The S-4914 wireless system operates on a license-free frequency 5.1GHz-5.9GHz. The frequency bands are user configurable and support at 4 wireless channels in one location. It also supports multicast function that 1 transmitter to multi receivers. S-4914TF transmitter is compact designed with Sony L series plate and S-4914RA receiver built with Gold mount plate. Both transmitter and receiver also can be powered via pole DC input of 6.5-17V. The transmitter S-4914TF features:
      3G/HD/SD-SDI input ×1
      HDMI ×1
      The receiver S-4914RA features:
      3G/HD/SD-SDI output ×1
      HDMI x1
      The receiver offers simultaneous SDI and HDMI outputs
      If both SDI and HDMI are being input to transmitter, the receiver will give priority to SDI output.

      • Features

        • Professional WHDI (MIMO/OFDM) technology
        • Uncompressed 3G/HD-SDI and HDMI wireless
        • 2-ch SDI/HDMI embedded audio transmission
        • 700 meters (LOS) transmission distance
        • Less than 1ms latency
        • 5.1-5.9GHz license-free operation frequency
        • User configurable frequency bands
        • Multicast - 1 transmitter to multi receivers
        • Less than 63mW radio power
        • AES 256bit encryption
        • Mini transmitter designed for HDV camcorder
        • Sony L series plate on transmitter
        • Gold mount plate on receiver.
        • All-metal housing, durable
        • Pure hardware connection; Plug and Play
      • Specifications

        • Wireless frequency: 5.1~5.9GHz
        • Radio modules: OFDM 16QAM
        • Max Transmission distance: Approx 700m(2296ft) LOS
        • Latency: ≤1 millisecond
        • Power consumption: ≤6.5W on both transmitter and receiver
        • Radio power Max: transimitter: 21dBm (63mW)
        • Input voltage: DC / Battery:6.5~17V for both transmitter and receiver
        • Working environment Temperature: 0°C -+40°C
        • Dimension: transmitter 2.8x4.7x1.5 inch (71×120×37 mm) / receiver 5.1x7.4x1.9 inch (130×188×47 mm)
        • Net weight(with antenna): transmitter 0.7 lb(300g) / receiver 1.8 lb(797g)
      • Item Includes

        • The wireless system package provides:
        • 1x S-4914TF Transmitter with Sony L series Plate
        • 1x S-4914RA Receiver with Gold mount plate
        • 7x Antennas
        • 1x Articulating arm trestle
        • 1x Crab clamp
        • 1x D-tap to 5.5/2.1mm pole cable
        • 1x 5.5/2.1mm pole power adaptor
        • 2x Flat screwdriver (for band configuration)
