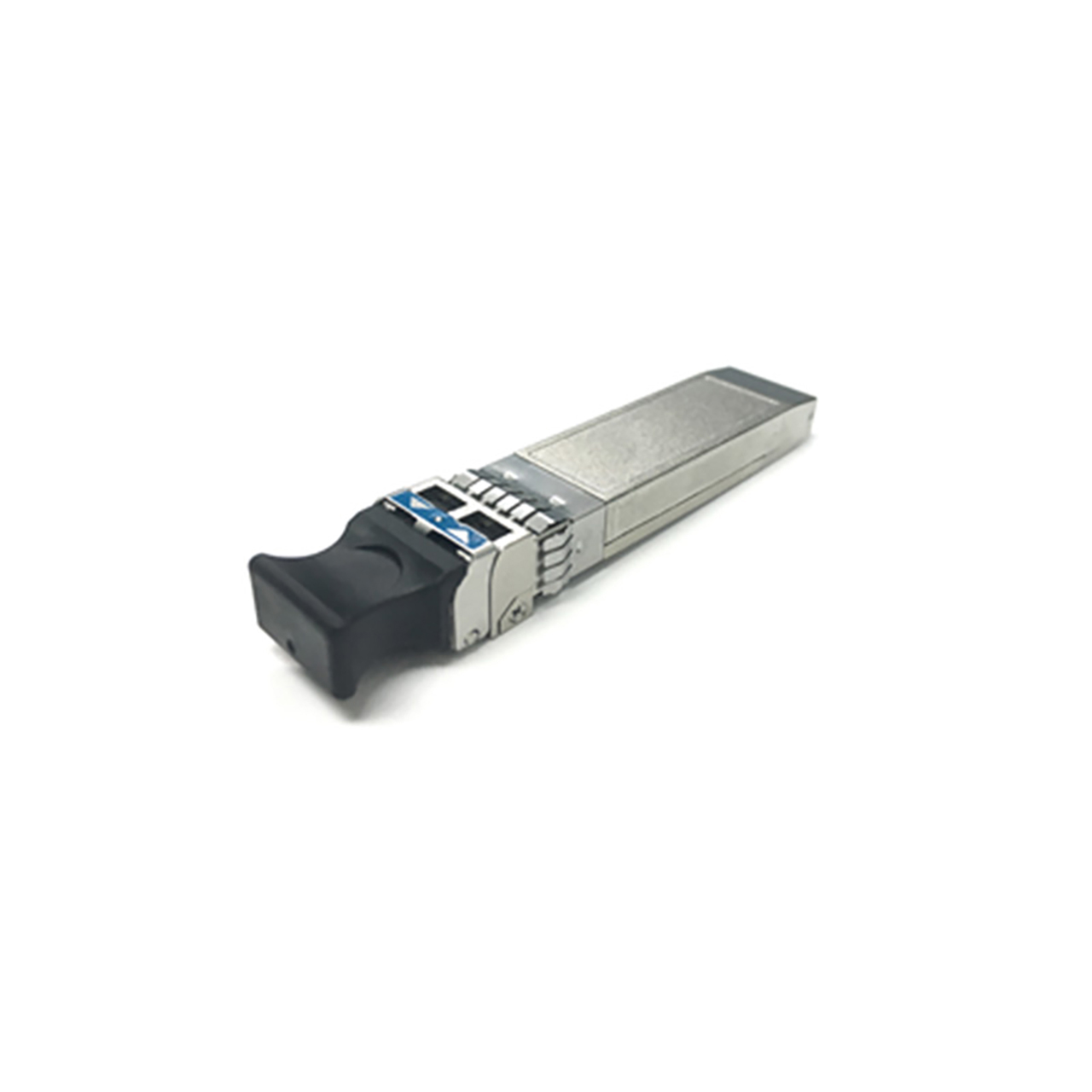

The SY13B5-10ATNA-S transceiver from OMC TECH is small form factor pluggable module for serial optical data communications such as IEEE 802.3cc 25GBASE-LR/LW. It is with the SFP28 and SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single-mode-fiber (SMF) and operates at a nominal wavelength of 1310nm.
Transmitter Section
The transmitter consists of a high-performance 1310 nm MQW DFB structure laser in the optical subassembly (OSA), which is housed within a metal barrel package. In addition, this component is also class 1 laser that compliant with International Safety Standard IEC-60825-1:2014. It complies with EN60825-1:2014/A11:2021 and FDA 21 CFR 1040.10 and 1040.11.
Receiver Section
The receiver contains of an InGaAs PIN photodiode that coupled to a high sensitivity transimpedance amplifier (TIA) in an OSA. This OSA combination is mated to a post amplifier IC that provides the post amplification SD (Signal Detection) or LOS (Loss of Signal) indication circuit which provides the logic high state output when an unusable input optical signal level detected
Applications:
-S MPTE ST2110 IP Network
- Data center and enterprise storage system
- Computer Cluster Cross-connect
- 25G BASE-SR Ethernet
- Custom High-speed Data Pipes
