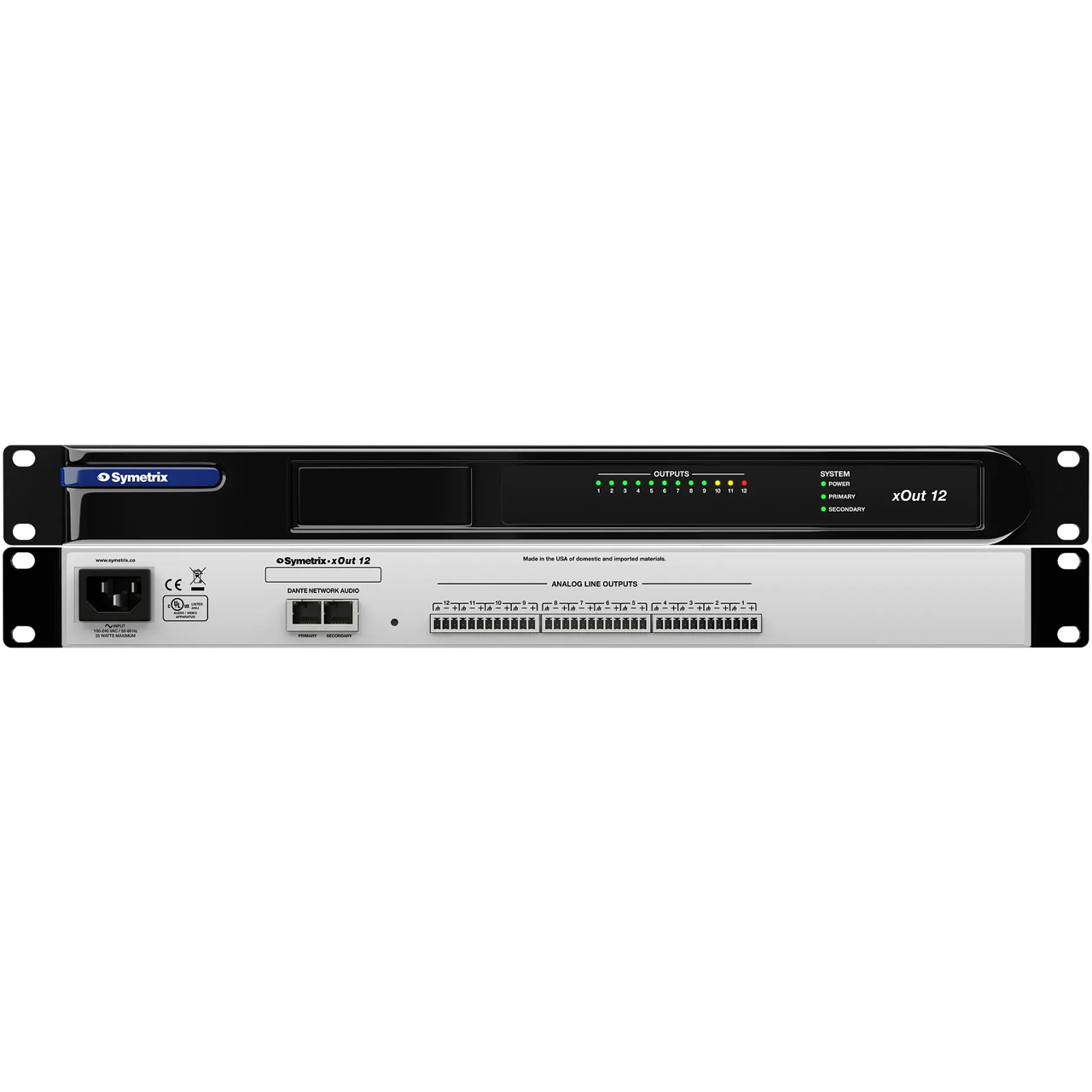

Symetrix 80-0090 xOUT 12 xIO Audio Expanders 1RU 12x0 Dante I/O Endpoint - 12 Line Out

80-0090 - Overview

• Features:

  • 12 channel Dante receive.
  • Dante protocol over standard IT networks with ultra-low latency.
  • 12 line outputs, with industry leading performance specifications.
  • Composer software setup and control eliminates switches,
  • circuit board jumpers, mechanical adjustments, or the need for third-party software.
  • Dante (Secondary) gigabit Ethernet port supports redundant Dante network audio implementation or daisy-chaining of up to 10 units with external network switches.
  • Internal universal input power supply.


• Specifications:

  • Electrical
  • Sampling rate: 48 kHz, ± 100 ppm
  • Frequency response (D/A): 20 Hz - 20 kHz, ± 0.5 dB
  • Channel separation (D/A): > 111 dB @ 1 kHz, +24 dBu
  • Dante cable: Standard CAT6, maximum device to device length = 100 meters
  • Connectors: 3.81 mm terminal blocks
  • Number of outputs: Twelve (12) balanced line level
  • Nominal output level: +4 dBu with 20 dB of headroom
  • Maximum output level: +24 dBu (+22.8 dBu into a 2k Ohm minimum load)
  • Output Impedance: 300 Ohms balanced, 150 Ohms unbalanced
  • Dynamic Range: > 118 dB, A-weighted
  • THD+Noise: < -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain
  • Latency: 0.60 mS

    Mechanical
  • Space Required: 1U (WDH: 18.91 in x 9.5 in x 1.72 in
  • Electrical: 100-240 VAC, 50/60 Hz, 25 Watts maximum universal input.
  • No line voltage switching required.
  • Ventilation: Maximum recommended ambient operating temperature is 86 F.
  • Ensure that the left and right equipment sides are unobstructed (2 in. minimum clearance).
  • The ventilation should not be impeded by covering the ventilation openings with items
  • such as newspapers, tablecloths, curtains, etc.
  • Certifications or Compliance: UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS.


• Item Includes:

  • 1x Power cable
  • 12x Detachable 3.81 mm terminal block connectors
