Integrated single-unit construction for ease of installation

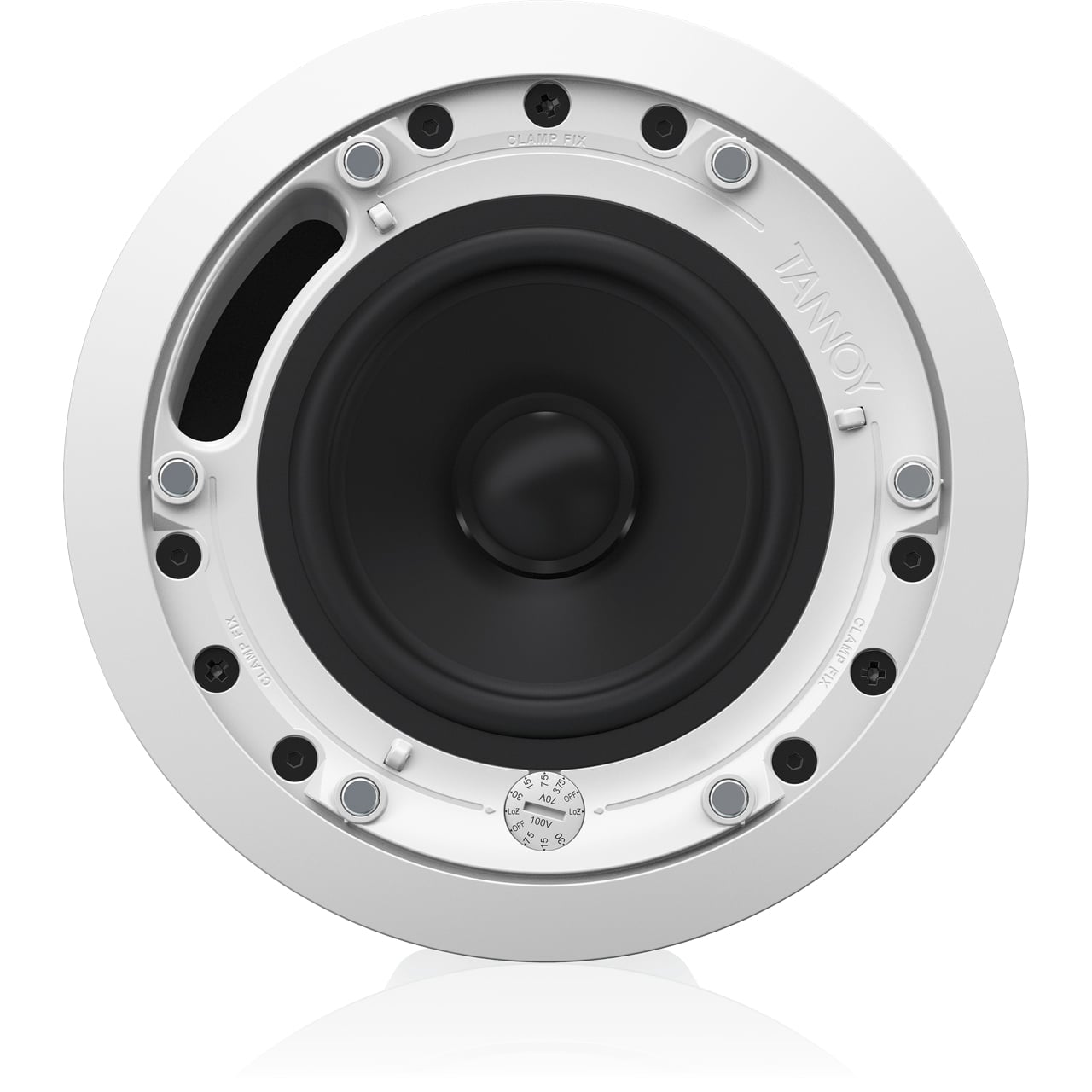

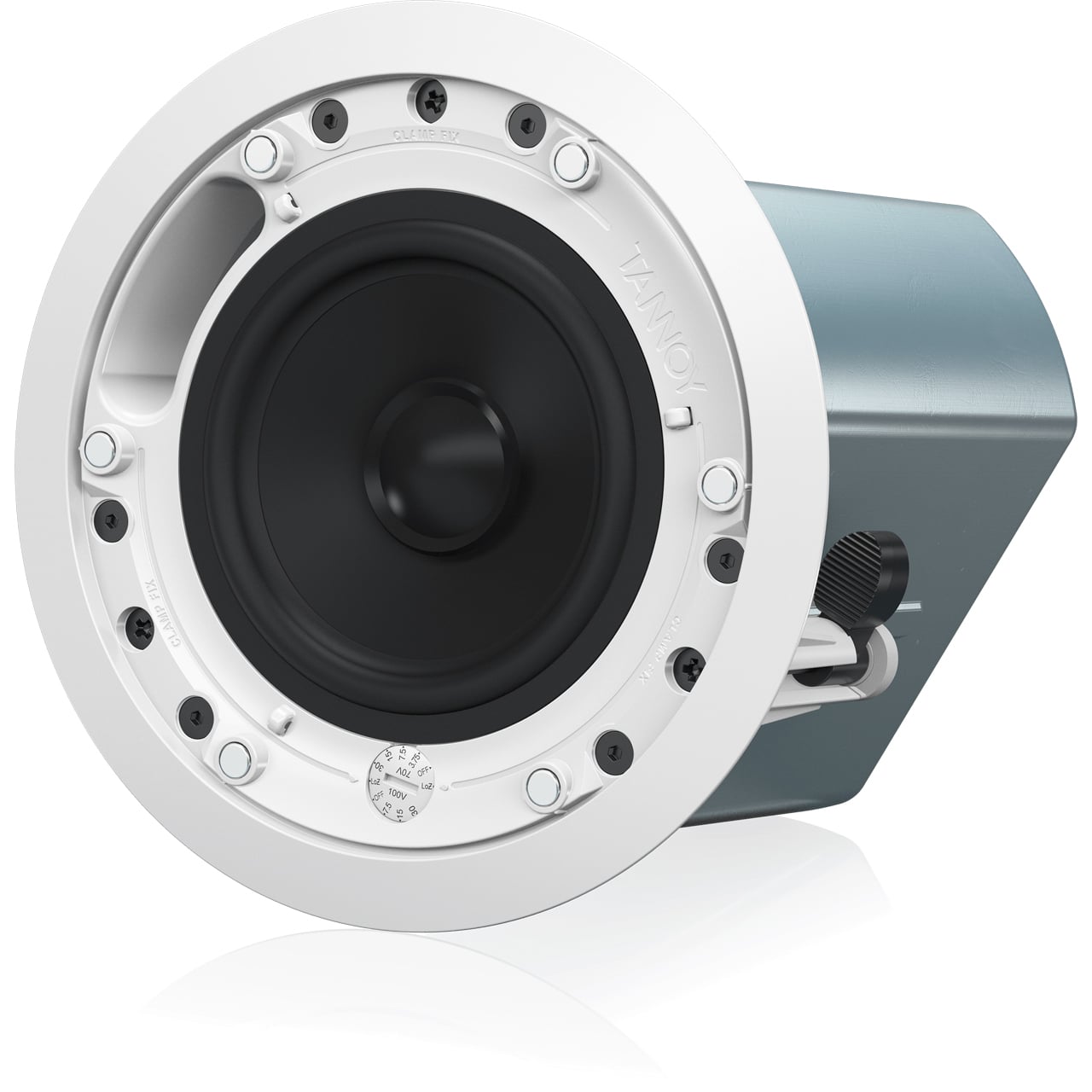

The Tannoy TA-CMS503ICT-BM is a 5-Inch Full-range ceiling loudspeaker. It includes ICT (Inductive Coupling Technology) point source driver for extended frequency range and removable steel mesh grille. The TA-CMS503ICT-BM has high durability design for constant heavy usage in demanding applications.
-
- Full-range ceiling loudspeaker for installation applications
- 50W continuous, 200W peak power
- 5" ICT (Inductive Coupling Technology) point source driver for extended frequency range

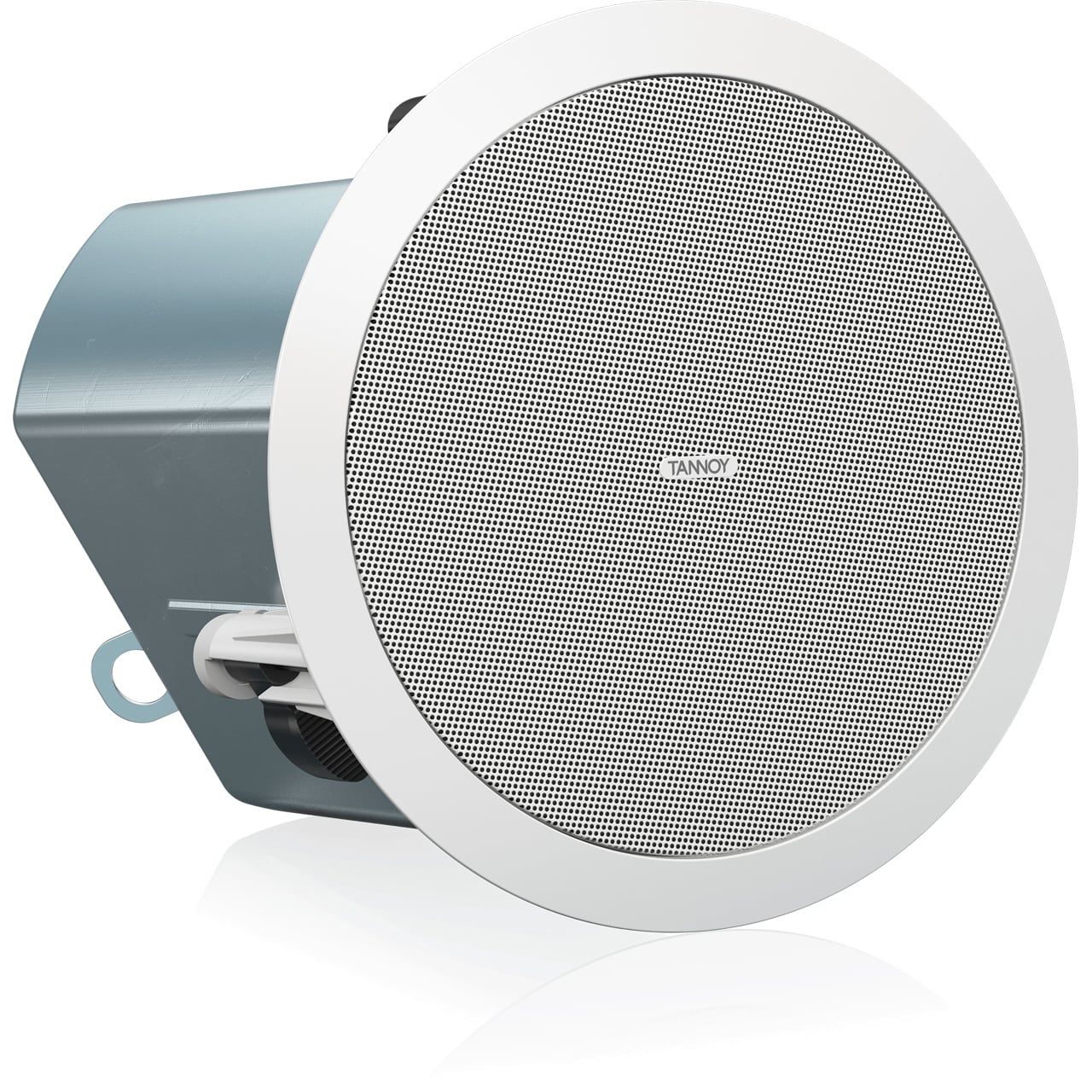

- Blind Mount version supplied with acoustically enhanced zinc-plated steel back can
- UL 1480 certified for general signalling systems
- UL 2043 certified for air-handling spaces
- Multiple transformer taps for 70V and 100V line systems or 16Ω direct input
- Low insertion loss 30W line transformer with easily accessible tapping switch
- Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
- Semi-matte white finish fits unobtrusively in any environment

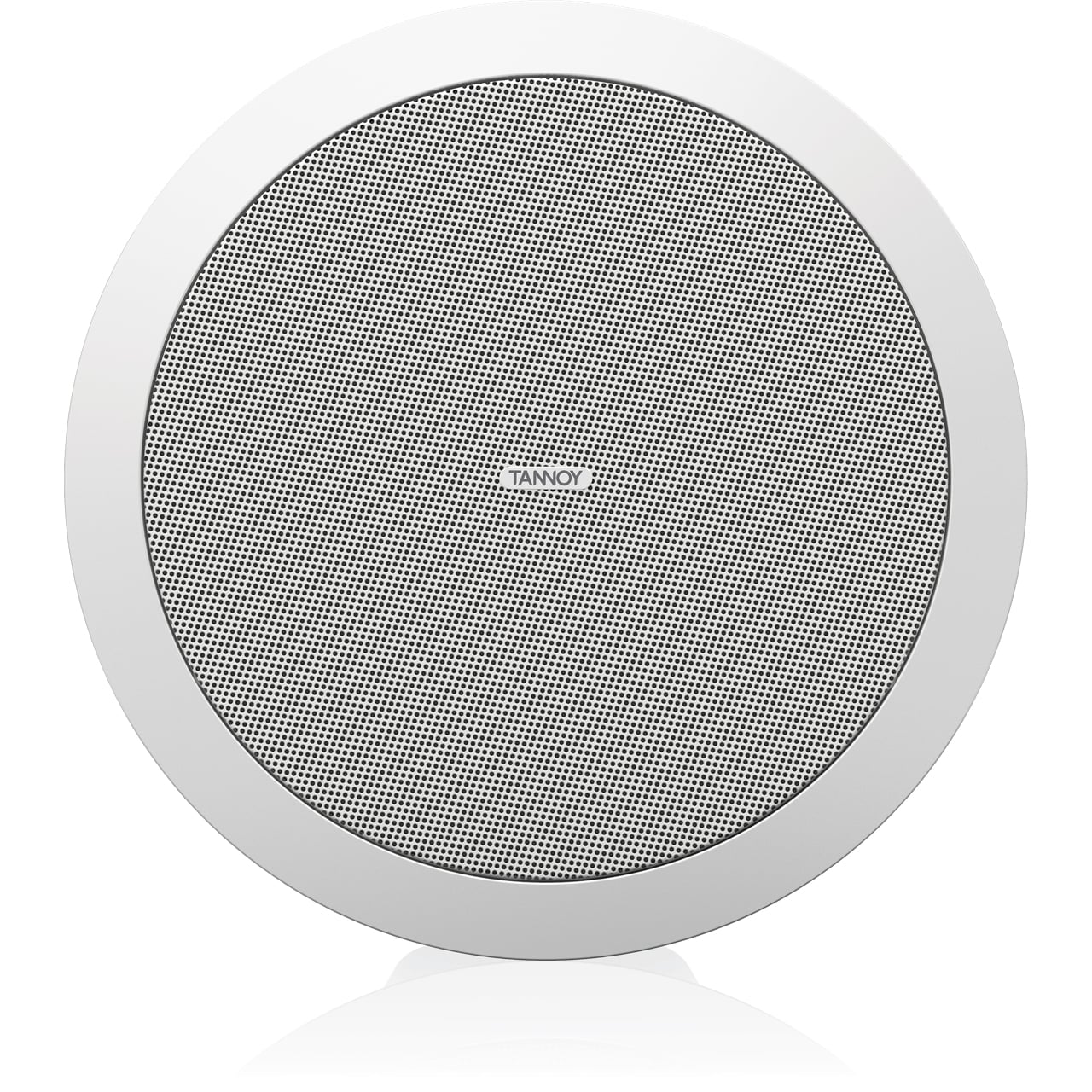

- Powder-coated UV resistant perforated steel mesh grille with dust protection
- Removable magnetic grille for custom painting
-
- Frequency Response (-3dB): 85Hz - 22kHz BM Backcan
- Frequency Range (-10dB): 74Hz - 24kHz BM Backcan
- System Sensitivity (1W @ 1m): 89dB (1W = 4V for 16Ω)
- Nominal Coverage Angle: 90° conical
- Coverage Angle (1kHz - 6kHz): 105°
- Directivity Factor (Q): 5.6 averaged 1kHz - 6kHz
- Directivity Index (DI): 7.0 averaged 1kHz - 6kHz
- Recommended Amplifier Power: 100W @ 16Ω
- Nominal Impedance (Lo, Z): 16Ω
- Crossover: 7kHz inductively coupled
- Low Frequency: 5" (130mm) mineral loaded polypropylene
- High Frequency: ICT aluminium dome
- Safety Features: Safety ring located at rear of enclosure for load bearing safety bond
- Clamping Design: Security toggle clamp Min/Max clamping range 0.37" (9.5mm) x 2.36" (60mm), Recommended clamp torque: 1.5Nm
- Backcan Options: Complete with fixed backcan
- Cable Entry Options: Cable clamp & squeeze connector for conduit up to 0.87" (22mm)
- Conduit Knockouts on PI Backcan: 3 Sets of horizontal positions of 0.75", 0.87", 1.10" (19mm, 22mm, 28mm)
- Connectors: Removable locking connector with screw terminals with "loop through" facility
- Compliance: UL-1480, UL-2043, CE
- Hole Cutout Diameter (all models): 7.48" (190mm)
- Net Weight: 8.70lbs (3.95kg)
-
- 1x C-Ring
- 1x Tile-bridge kit
- 1x Paint mask
- 1x Cut-out template
- 1x Grille
