Turtle TAV-USBEXTKIT2 USB 2.0 BYOD with HDMI Extender Kit over CAT6 Ethernet - 230 Feet

ITEM #: TAV-USBEXTKIT2 MFG #: TAV-USBEXTKIT2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAV-USBEXTKIT2 - Overview

The Turtle AV TAV-USBEXTKIT2 is a USB Extender Kit that pushes the boundaries of connectivity, delivering high-speed USB and uncompressed 4K60 video in a single, compact solution. Whether it’s a full-scale AV install or smaller BYOD meeting spaces, this kit has you covered.

BYOD Rooms, Meet your New BFF
Send 4K60 video input over USB-C from laptops and other devices via a CAT6/6a/7 cable and output it via HDMI 2.0b to screens.

Go Long. Or go Longer
4K60 goes long. 4K30 goes longer. Whichever you choose, the video is in 4:4:4, so your computer screen looks perfect on the big screen.

Teams and Zoom All Day Baby
The PD power pass-through allows for an external USB power brick up to 100W to pass through power to the USB-C video connection, delivering power to the device that’s plugged in. No more panic moments worrying about your device’s power; instead, you can worry about how much coffee you need for those long meetings.

Plug-and-Play
No drivers. No software. Just connect the Host and Device Extenders, and the system is ready to use.

Tough and Compact
Both Tx and Rx (Host and Device) Extenders are built tough in full metal housing with a compact form factor, making them ideal for installation in AV racks, conference rooms, or behind equipment.

TAA Compliant
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

  • Features:

    • 4K60 (4:4:4 8bit) video and USB 2.0 signals up to 130ft (40m)
    • 4K30 (4:4:4 8bit) video and USB 2.0 signals up to 230ft (70m)
    • High Dynamic Range pass through
    • 100W USB-C PD port for charging
    • Power over Cable (PoC) for simplified installs
    • API control for advanced system integration
    • Plug-and-play compatibility with universal device support
    • Subframe latency over a single CAT cable
    • Audio pass through

  • Specifications:

      Technical
    • HDMI: HDMI 2.0b
    • HDCP: HDCP 2.3
    • USB: USB 2.0
    • Video Bandwidth: 18Gbps
    • Video Resolution: Up to 4K@60Hz (4:4:4 8bit)
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
    • Color Depth: 8/10/12bit
    • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • Audio Formats
    • USB-C/HDMI Passthrough:
      - LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD
      - Master Audio and DTS:X
    • Transmission Distance:
      - Extend 4K60Hz (4:4:4 8bit) signal up to 130ft (40m)
      - 4K30Hz (4:4:4 8bit) signal up to 230ft (70m) with CAT6A/7 cable
      - USB 2.0 pass through up to 230ft/70m, connecting to 4 USB devices to the receiver
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

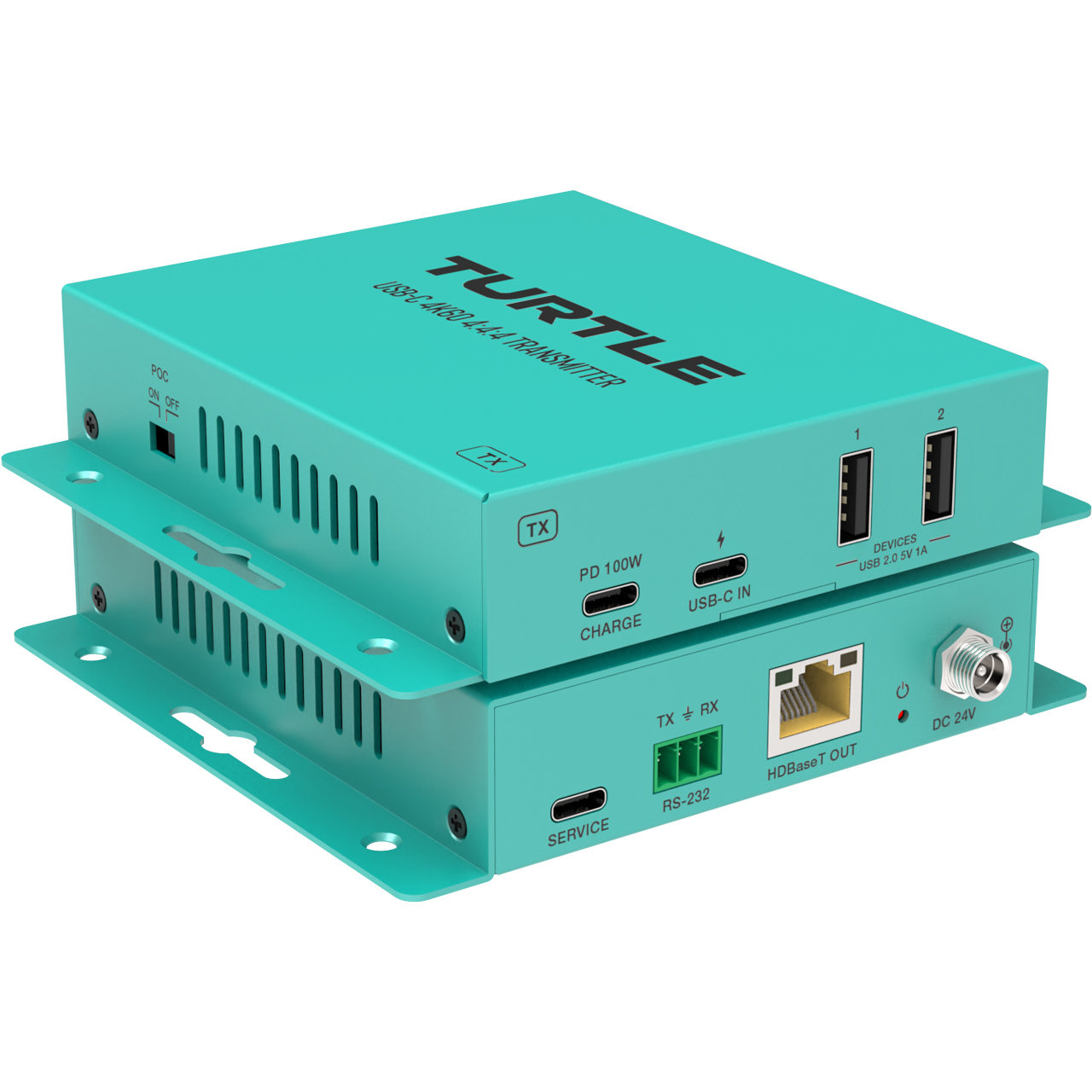

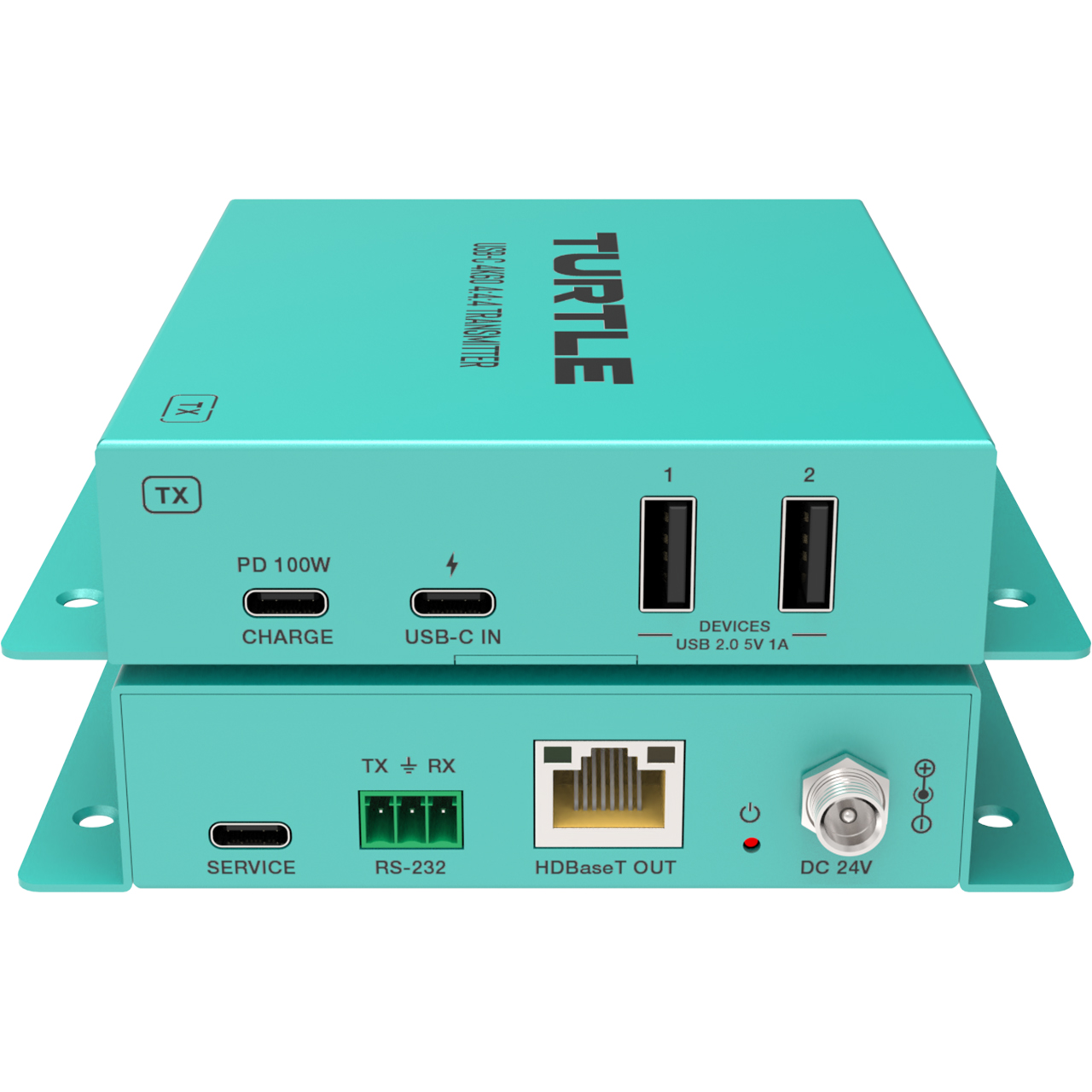

      Transmitter
    • Front Panel:
      - 1x CHARGE [USB Type C, 24-pin female]
      - 1x USB-C IN [USB Type C, 24-pin female]
      - 2x USB 2.0 DEVICES [USB Type A, 4-pin female]
    • Rear Panel:
      - 1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port]
      - 1x RS-232 [3-pin phoenix with 3.5mm pitch]
      - 1x HDBaseT OUT [RJ45 connector, 24V PoC]
      - 1x Power LED [Red LED, Power indicator]
      - 1x DC 24V [24V/2.7A, 19mm locking connector]
    • Side Panel:
      - 1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/OFF selection]

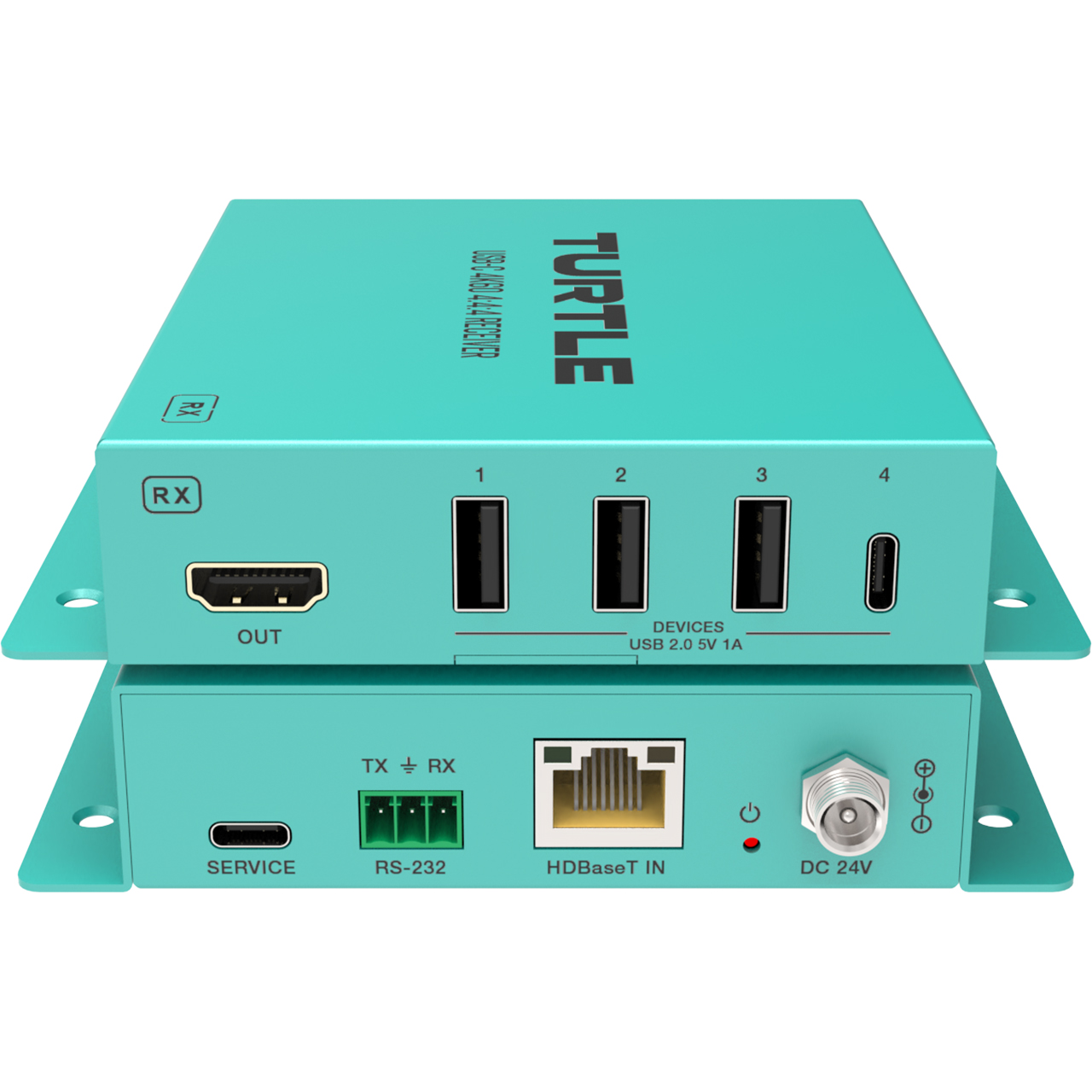

      Receiver
    • Front Panel:
      - 1x HDMI OUT [HDMI Type A, 19-pin female]
      - 1x USB 2.0 DEVICES [USB Type C, 12-pin female]
      - 2x USB 2.0 DEVICES [USB Type A, 4-pin female]
    • Rear Panel:
      - 1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port]
      - 1x RS-232 [3-pin phoenix with 3.5mm pitch]
      - 1x HDBaseT OUT [RJ45 connector, 24V PoC]
      - 1x Power LED [Red LED, Power indicator]
      - 1x DC 24V [24V/2.7A, 19mm locking connector]
    • Side Panel:
      - 1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/OFF selection]

  • Item Includes:

    • 1x TAV-USBEXTKIT2 100W USB-C 4K60 4:4:4 video and USB 2.0 Extender Kit over CAT
    • 1x Power Supply

  • Warranty:

    • 5-Year Limited Warranty
