TD-1580-L22 - Overview

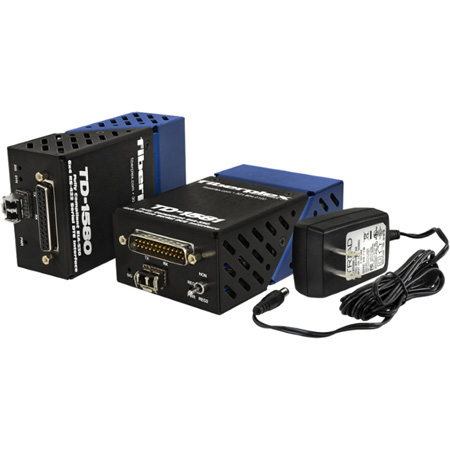

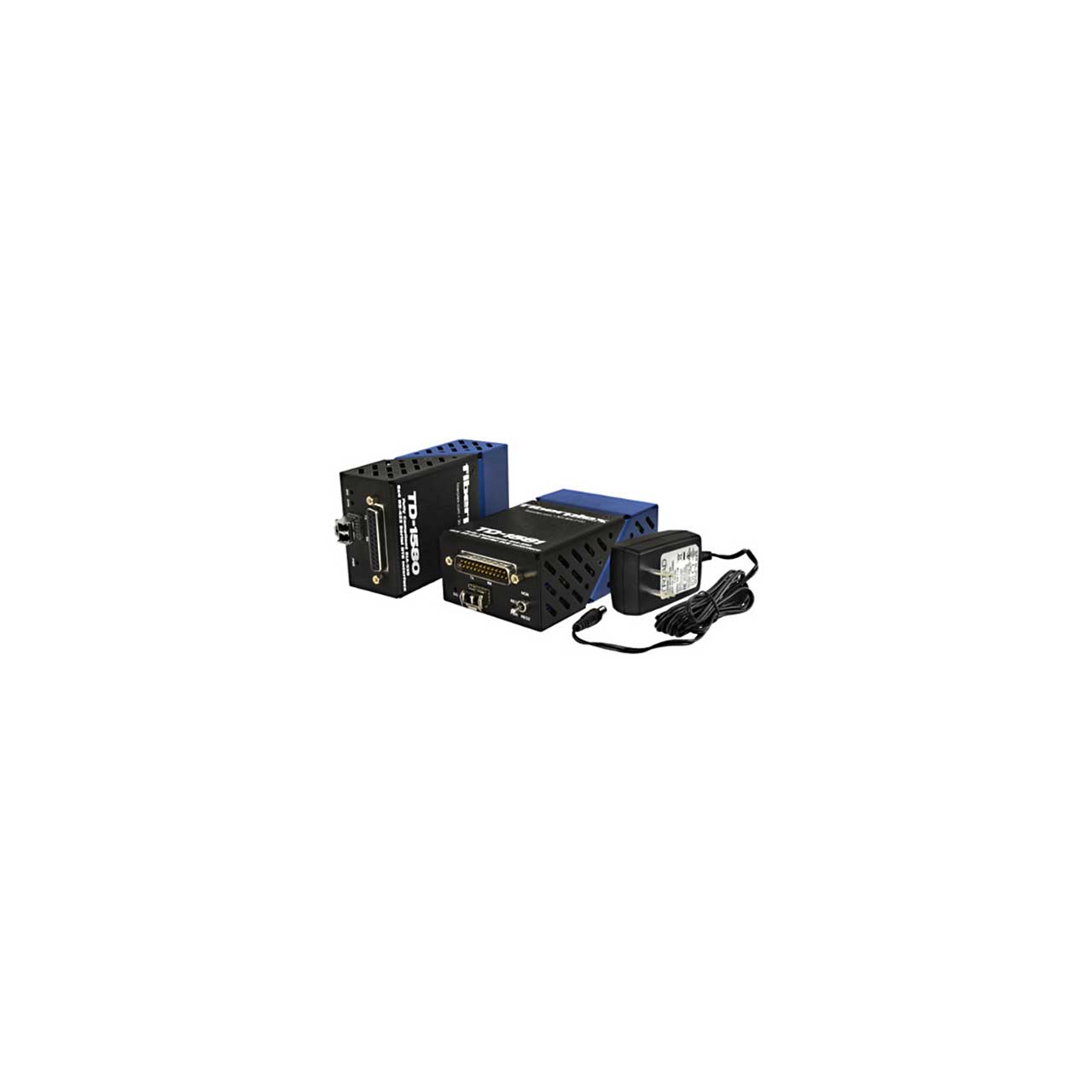

The Fiberplex TD-1580-L22 and TD-1581-L22 pair together to form a powerful balanced serial data transport solution. The DB-25 connectors are pinned out to directly support an EIA-530 serial link. However due to the transparency and flexibility of the design, the TD-1580/81 can be used as 6x4 independent 6 Mbps RS-422 channels and 2x1 independent 256 Kbps RS-232 channels.

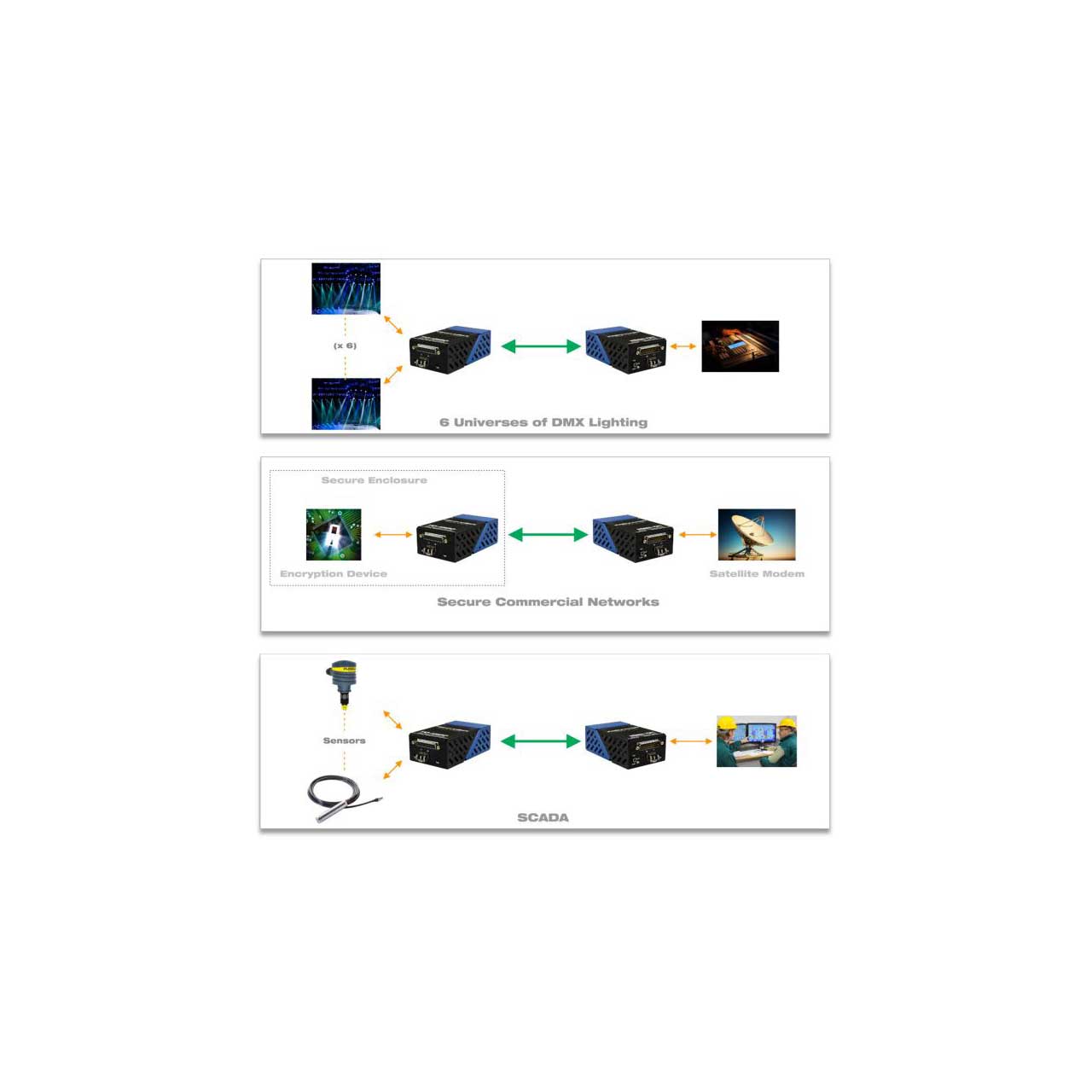

This incredible versatility can solve a myriad of serial data communications problems. Your once limited serial links can not only be consolidated but extended to over 20 Km on a single fiber pair. SCADA (supervisory control and data acquisition), Telecommunications, Facility Automation and Control, even DMX Lighting control applications can all benefit from the TD-1581.

Compatible With:
TIA/EIA-530 (RS-530)
MIL-STD-188-114A balanced Type 1 and Type 2
FED STD 1030A
Can alternatively be used for 6 x 4 RS-422 and 1 x 2 RS-232
EIS-530 and RS-422 channels support data rates from DC to 6.144 Mbps
Can be used for up to 6 universes of DMX lighting control

Applications
SCADA
Oil and Gas
Hamoe/Facility Automation
Telecommunications
Industrial Controls
DMX Lighting

For more advanced systems, a 'Regeneration' switch on the TD-1581 allows users to toggle between synchronous applications that require Send Timing (ST) and asynchronous or synchronous applications that require Terminal Timing (TT).
