10-0021 - Overview

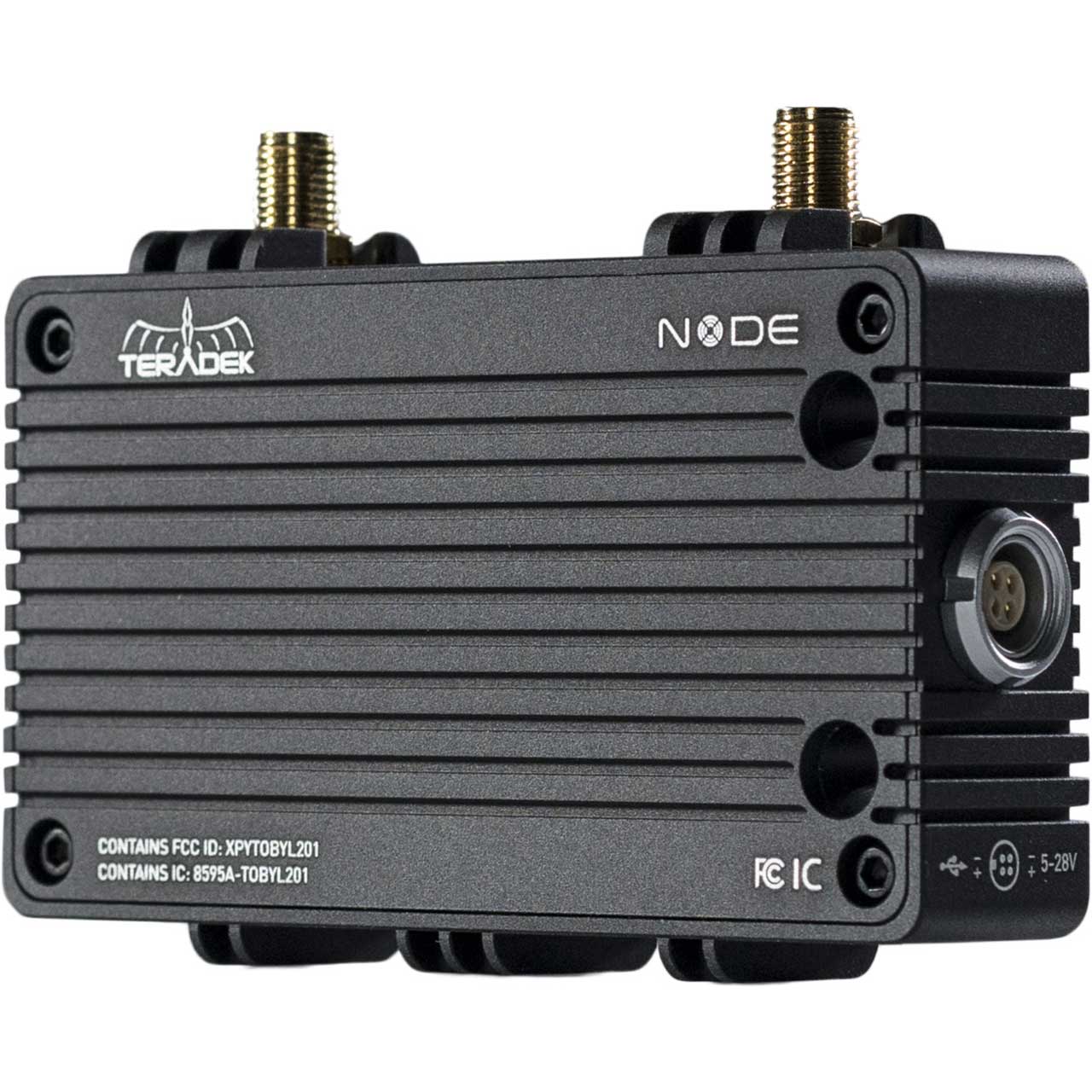

The Teradek 10-0021 Node ( for use in Europe and Asia) is a high performance 3G/4G/LTE modem that provides exceptional connectivity and weather resistance compared to carrier-branded USB modems. With comprehensive data band support, Node can use any SIM card in regions around the world for cellular connectivity.

Exceptional Cellular Connectivity
Node offers exceptional cellular connectivity over 4G LTE modems from major network carriers. With external high-gain antennas, Node gives you robust internet in the most challenging broadband environments.

Worldwide Data Band Support
Node can operate on most 3G / 4G/ LTE data bands in any region around the world.

Super Durable and Weather Resistant

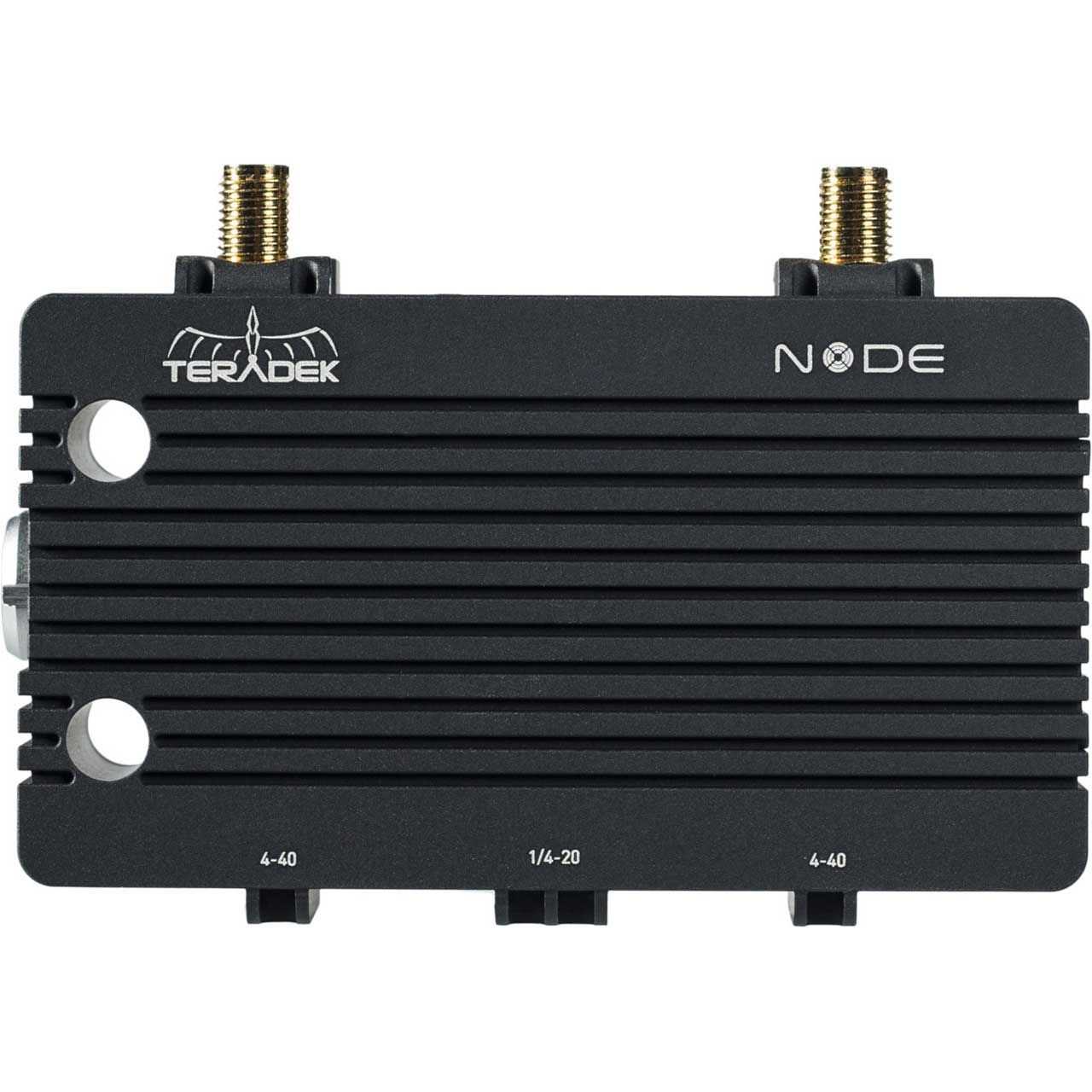

Traditional USB modems are flimsy and are easily broken during extended use in the field. Node solves the durability problem with an aluminum chassis, 1/4"-20 and 4-40 mounting options, and a 4-pin locking connector to attach to your Teradek device.

USB and 4-Pin Connectors
Choose between USB and 4-pin connectors to connect the Node modem to your Teradek device. 4-pin connectors offer weather resistance and a stronger link to your rig, allowing you to put the system through regular abuse without risking disconnection.

The following Teradek devices are compatible with the Teradek Node:
VidiU Go, VidiU Pro, Vidiu X
Link Pro, Link
600 Series Cube encoder and decoder, Bond 657 and Bond 659
700 Series Cube encoder and decoder, Bond 757 and Bond 759

Other Teradek devices, including legacy encoders and decoders, are not compatible and not supported for use with the Node.

  • Features:

    • Exceptional Cellular Connectivity
    • Worldwide Data Band Support
    • Super Durable and Weather Resistant
    • USB and 4-Pin Connectors
    • Compatible With Several Teradek Products

  • Specifications:

    • Physical
    • Dimensions (WxDxH): 3.258 x 0.728 x 2.198" (82.75 x 18.5 x 59.25mm)
    • Weight: 4oz. (110g)
    • Construction: Milled Aluminum (Chassis), regulation compliant; PCB

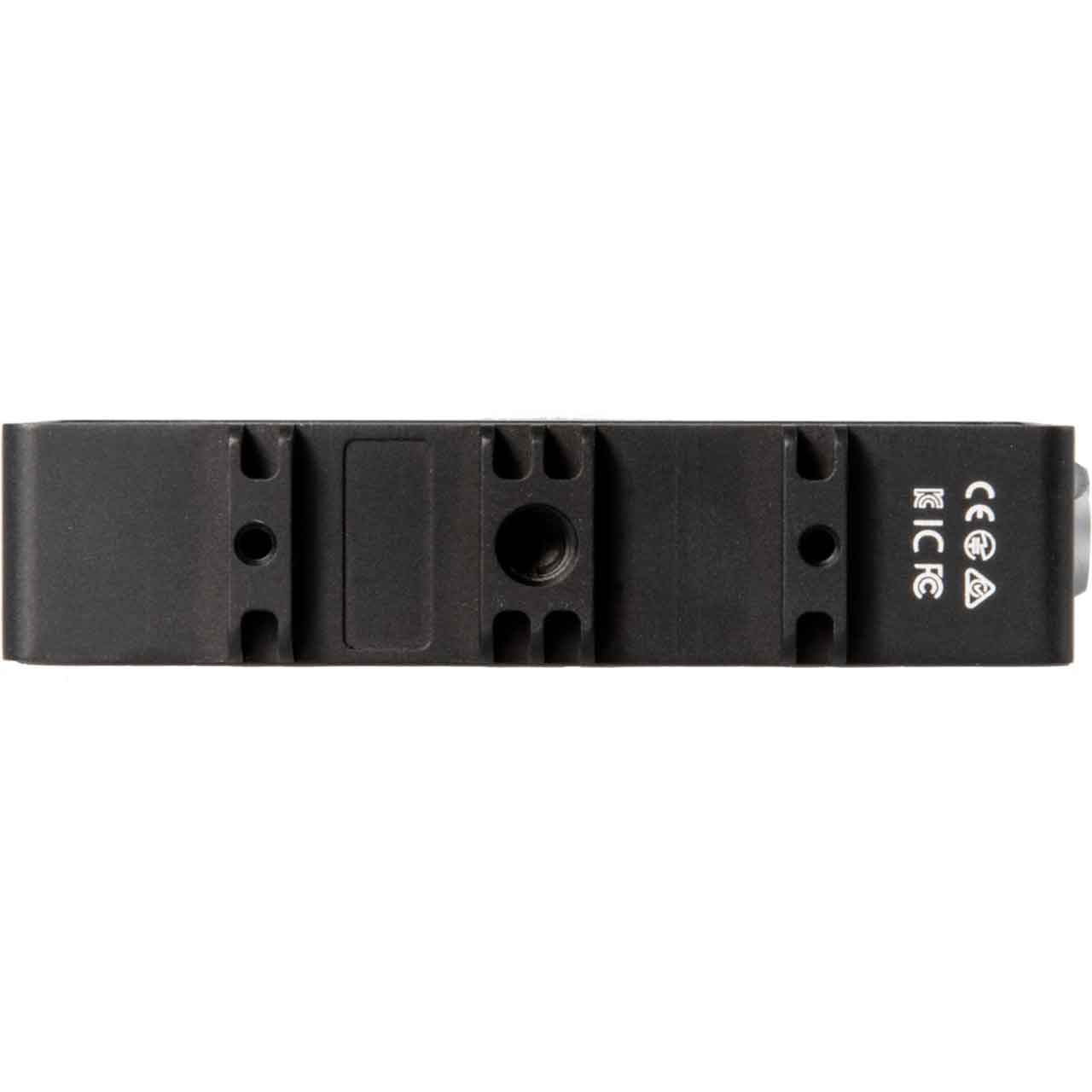

    • Mountability:
      1/4"-20 threaded hole
      2x 4-40 threaded holes
      Additional mounting options available

      Environmental +
    • Operating: 14° to 122°F (-10°C to 50°C)
    • Storage: -40° to 194°F (-40°C to 90°C)
    • Operating Humidity: 5% to 95% (non-condensing)
    • Storage Humidity: Max. 90%

      Interfaces +
    • Interface

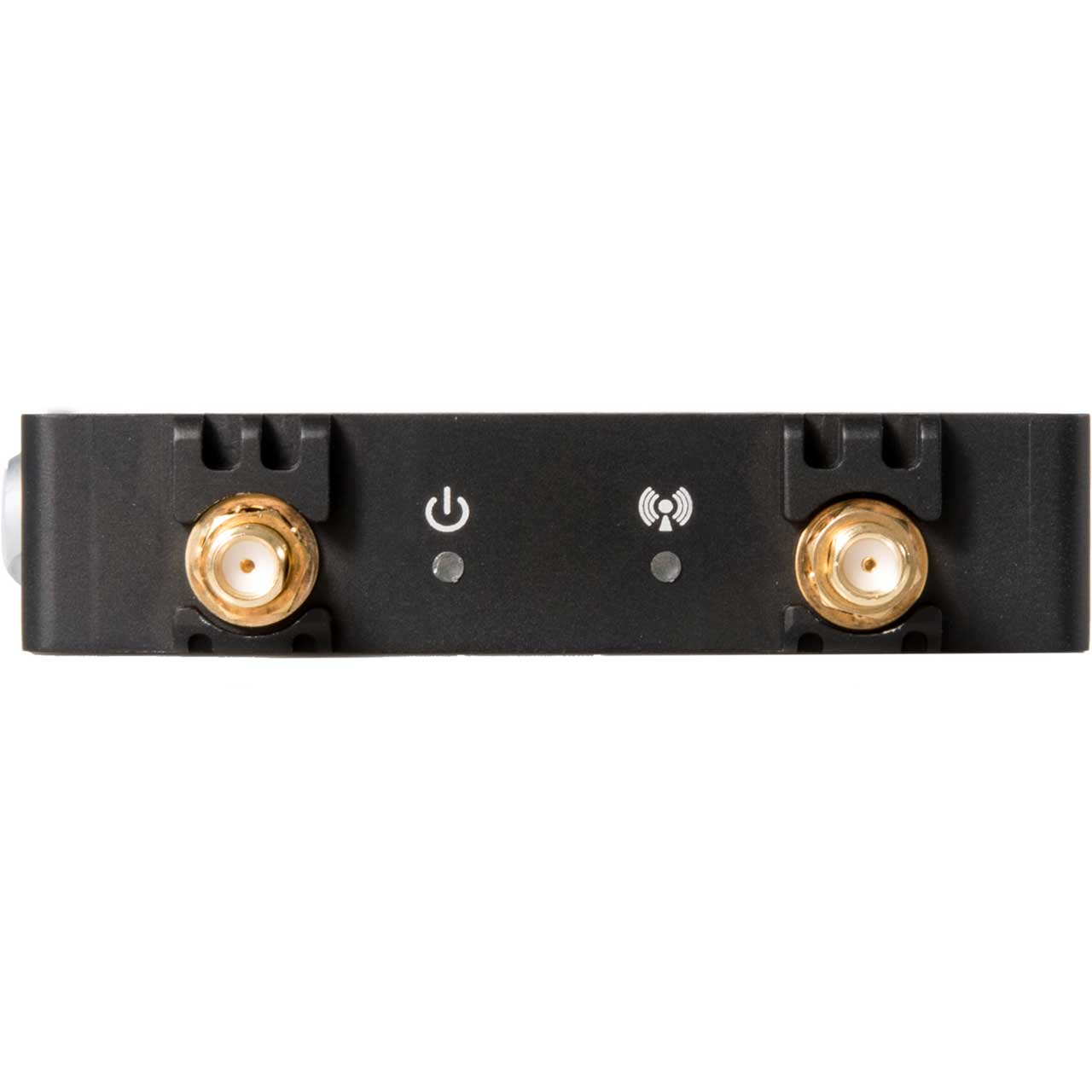

    • 2 Status LEDs
    • Interface
    • USB to 4-pin connector

      Network +
    • Lte:
      EU/Asia: LTE FDD Cat 4, Bands 1,3,5,7,8,20
      Please see other models for Support in Other Regions
    • Umts:
      EU/Asia: HSDPA Cat 24, HSUPA Cat 6, Bands
      850/900/1900/2100
      Please see other models for Support in Other Regions
    • Rf:
      2x2 MIMO SMA
      Band 17 (700 MHz), Band 13 (750 MHz) Band
      5 (850 MHz)
      Band 4 (1700 MHz) Band 2 (1900 MHz)
    • Power Class:
      Class 3 23dBm LTE mode
      Class 3 24 dBm for UMTS/HSDPA/HSUPA
      Mode
    • Data Rate:
      LTE cat. 4: up to 150 Mb/s DL, 50 Mb/s UL
      HSDPA cat.14, up to 21 Mb/s DL
      HSUPA cat.6, up to 5.6 Mb/s UL
    • Sim: Full size SIM

      Power
    • Power Input: 2-Pin Connector, 5-28V
    • Battery: None
    • Nominal Power Consumption: 5W Max

  • Item Includes:

    • 2x Antennas - Wide Band, whip tilt, SMA Mount
    • 2x Antennas - Wide Band, Penta Straight, SMA Mount
    • 1x Sim Card Adapter
    • 1x 4-pin to USB 18 inch Cable
    • 1x Quick Start Guide

  • GTIN:

    0818264020654
