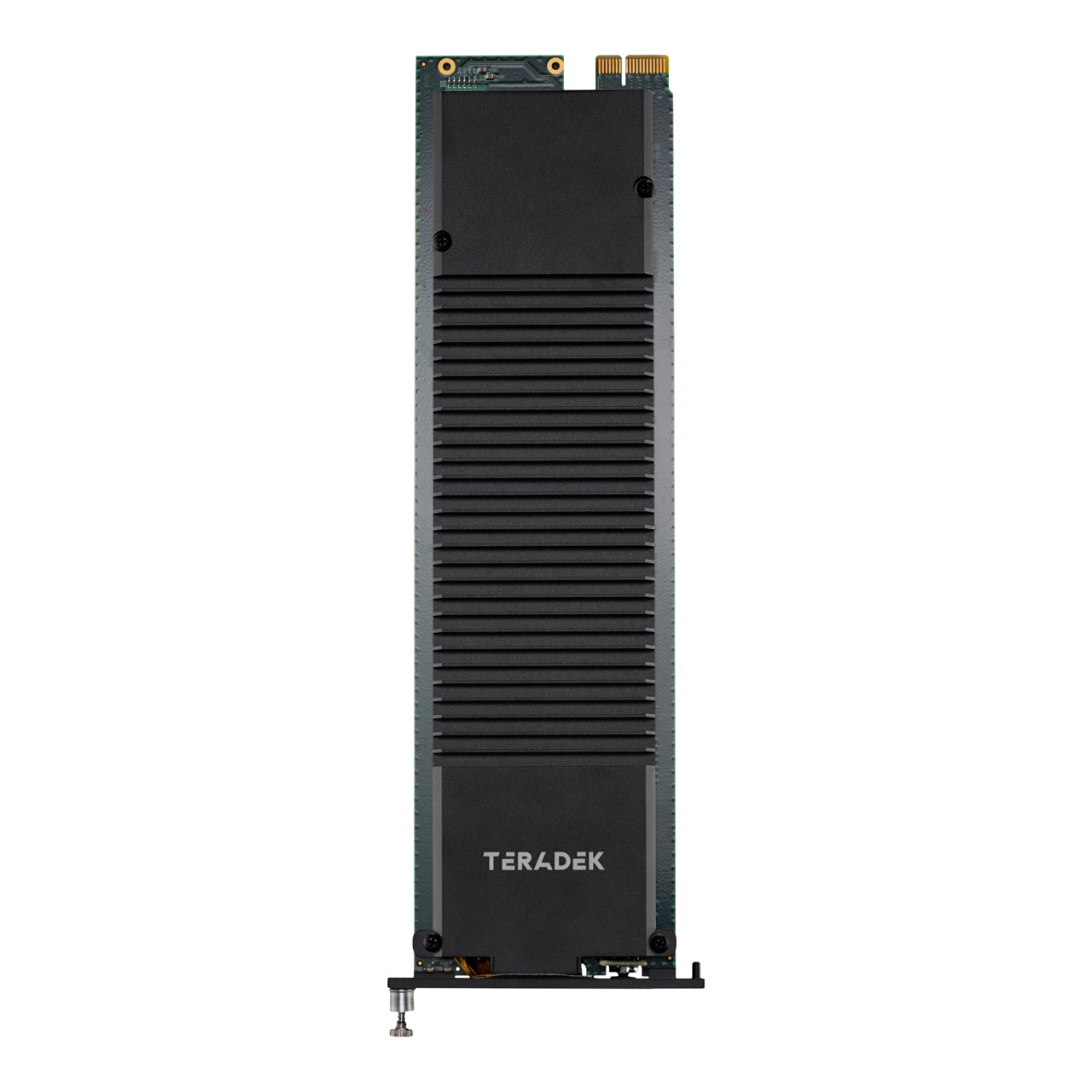

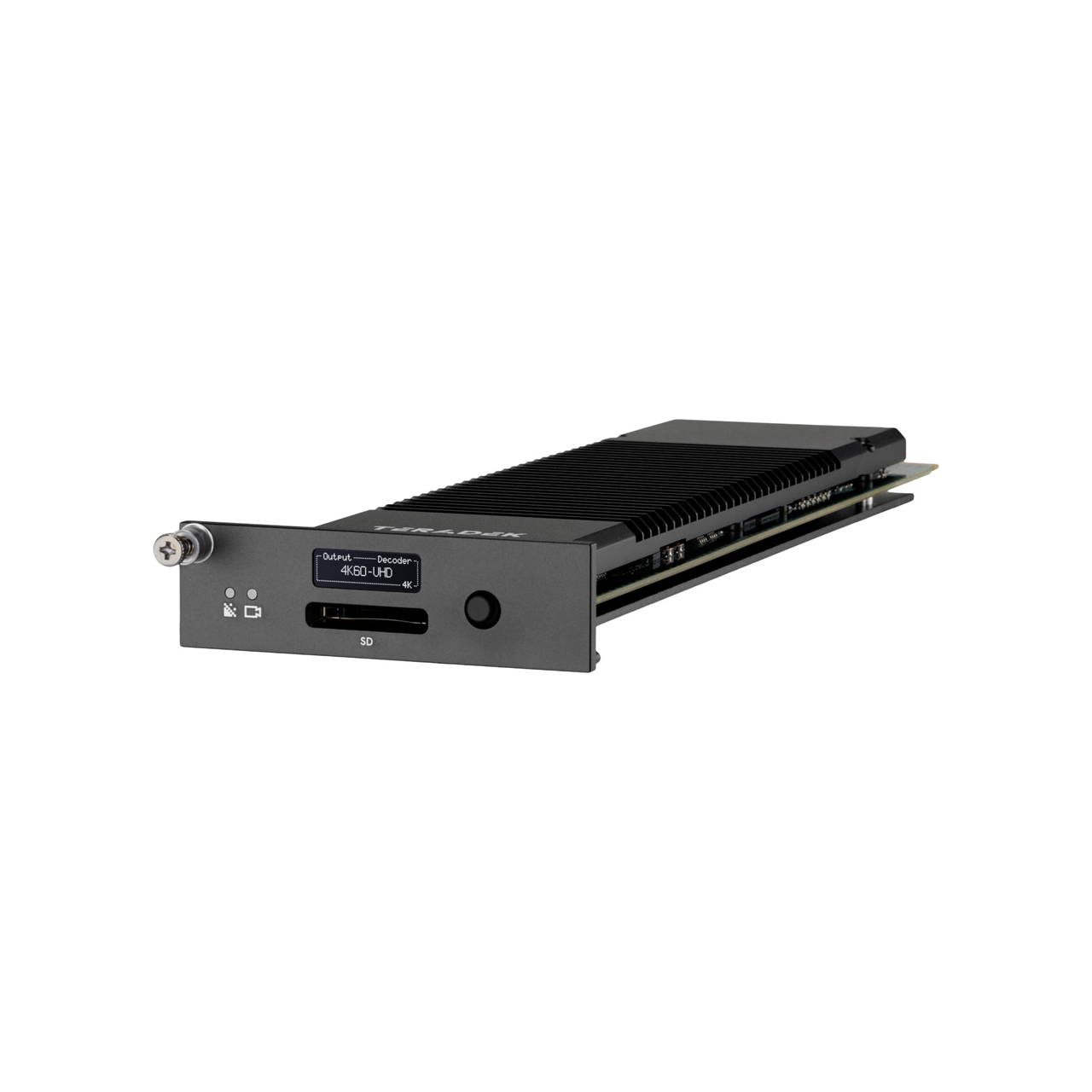

Teradek 10-2877-S Prism 877 4K 10bit HEVC/AVC Encoder/Decoder Card for Prism Rack - 2x 12G-SDI

Name: Teradek 10-2877-S Prism 877 4K 10bit HEVC/AVC Encoder/Decoder Card for Prism Rack - 2x 12G-SDI
Brand: Teradek
SKU: TER-10-2877-S
Price: 3890.00 USD
Availability: InStock

ITEM #: TER-10-2877-S MFG #: 10-2877-S

Teradek

I/O Options:

I/O Options

Our Price:

$3,890.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

10-2877-S - Overview

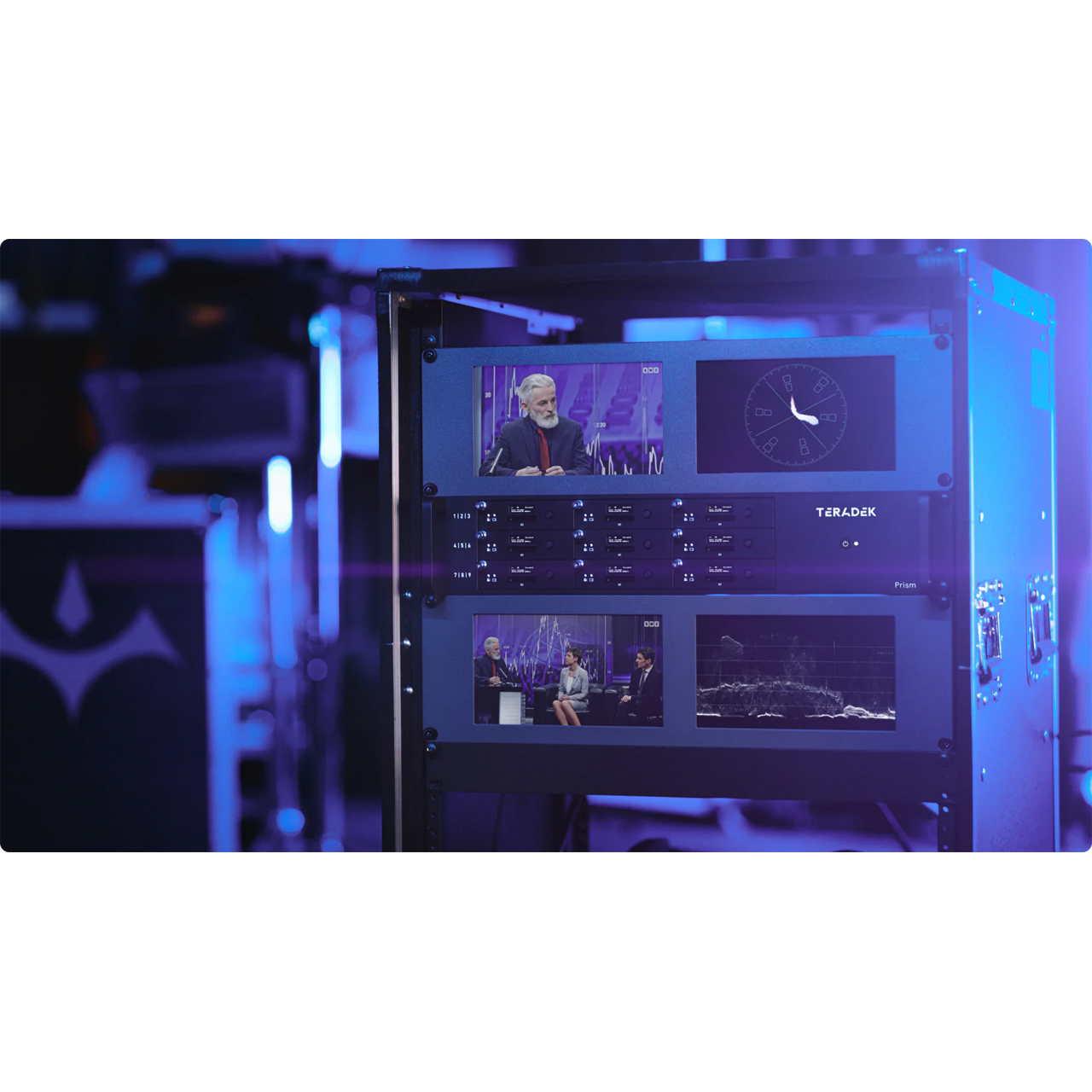

Teradek Prism 877 (10-2877-S) is an ultra flexible H.264/HEVC encoder/decoder solution with two 12G-SDI for Enterprise, Broadcast, Live Production, and Public Safety applications. With room for up to nine codec cards in a 2RU chassis (up to three codec cards in 1RU chassis), Prism can encode or decode up to 4Kp60 video with stunning 10-bit 4:2:2 image fidelity. Prism 877 cards can be both an encoder or decoder through a software switch and the encoder side supports the decode license expanding density.

Specifications:

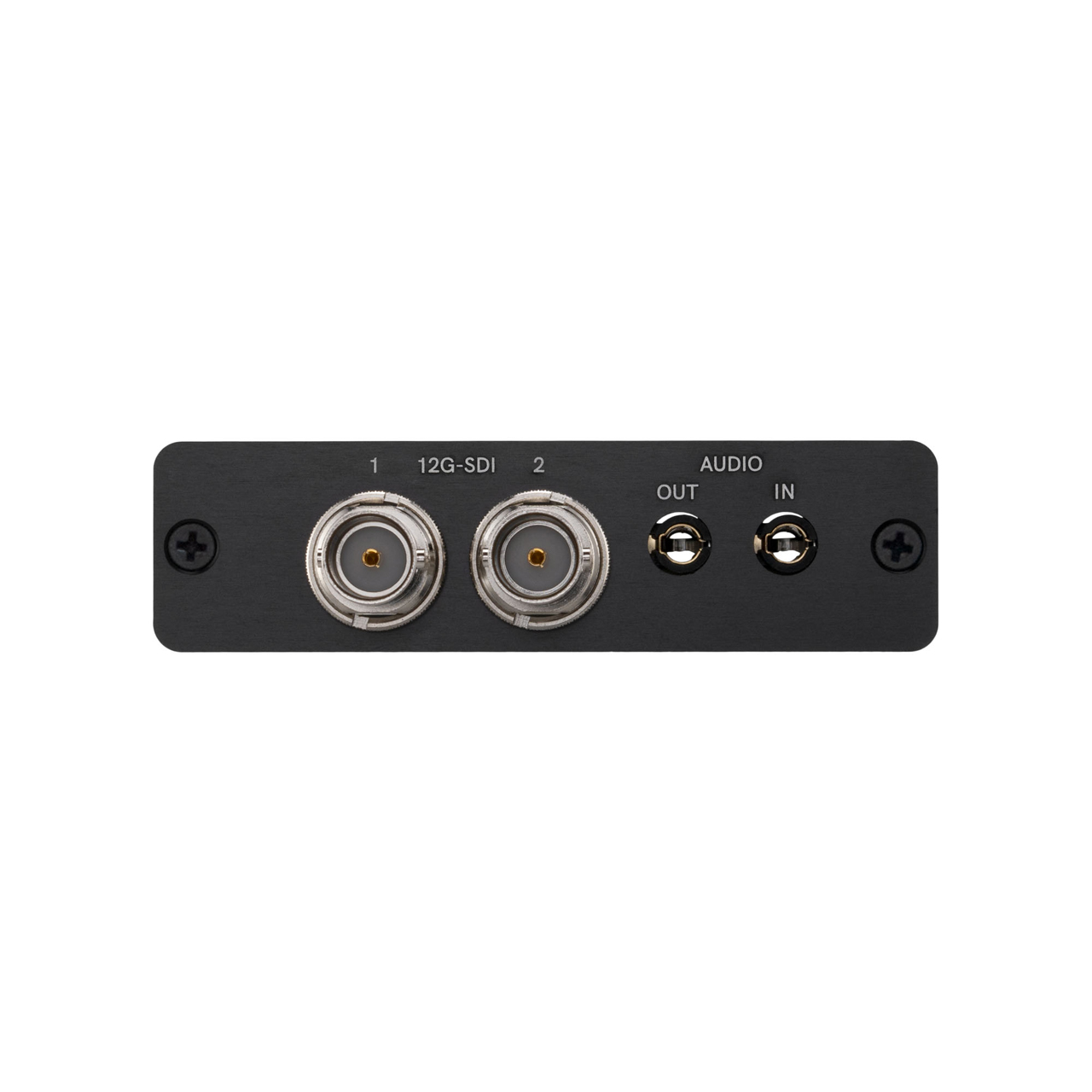

- Video Inputs/Outputs: 2x SD/HD/3G/6G/12G-SDI (75 O BNC Loop, Decode, or Encode/Decode)
- Supported Modes: Single Encode, Single Decode, Bi-directional Encode/Decode (additional license)
- Supported Resolutions:
  - 4K DCI 23.98/24/25/29.97/30
  - 4K UHD 23.98/24/25/29.97/30/50/59.94/60
  - 1080p 23.98/24/25/29.97/30/50/59.94/60
  - 1080i 50/59.94/60
  - 1080PsF 23/24/25/29/30
  - 720p 50/59.94/60
  - 576i
  - 480i

  Video Processing
- Video Compression:
  - ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
  - H.264: Baseline profile, Main profile, High profile
  - ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
  - HEVC: Main profile
- Supported Video Bitrate: 250 Kbps to 50 Mbps
- Video Format Conversion Support: Built in video scaler and deinterlacer
- Number of Encoded streams (Single Encode Mode): One 4KP60 4:2:2 10bit
- Number of Decoded streams (1x Decode): One 4KP60 4:2:2 10bit
- Number of Encoded/Decoded streams (Bi-Directional): 1x 4KP60 4:2:0 8 bit encode, 1x 4KP60 4:2:0 8 bit Decode
- HDR Support: Yes
- Color Correction:
  - CDL/1024 1D LUT (supports 10-bit color)
  - 33x33x33 3D LUT (supports 10-bit color)
- Bonding:Teradek Bonding Protocol and Teradek Reliable Transport - Debonding* with license
- Recording: 256GB NVME, SD Card - Full size, NFS
- Camera to Cloud: Core Cloud, Teradek TV, Frame.io, Sony Ci, Sony C3P, PIX, Autodesk

  Audio
- Audio Compression: AAC-LC
- Audio Bitrate: 32kbps to 512kbps
- Audio Input: Embedded over SDI, 3.5mm TRS Stereo Line Level Analog Input
- Audio Output: 3.5mm TRS Stereo Line Level output
- IFB: Analog Line In/Line only (Analog input disabled for use with video)

  Licenseable Features
- Enable Extra Streams: Extra simultaneous destinations
- Enable Decoding: Enabled ability to decode to SDI output
- Debonding:
  - Debond Teradek Bonding Protocol and re-transmit via Teradek Bonding
  - Protocol: TDS, SRT, RTMP, MPEG-TS, RTSP, HLS

  Protocol Support
- Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
- Supported Video Transport Protocols: Teradek Reliable Transport (TRT), Teradek Bonding Protocol, Secure Reliable Transport (SRT), Reliable Internet Stream Transport (RIST), RTMP/RTMPS, MPEG-TS DASH (UDP, TCP, TCP Server, Multicast), RTSP/RTP, HLS Server, Integrated CDNs (YouTube, Facebook, Vimeo), Airmix, WHIP, WHEP
- Remote Management: Teradek Core Cloud, Private SDK

  Physical Attributes
- Dimensions (HxWxD): 3.56" x 1" x 10.9" (90.5mm x 26.1mm x 276.5mm)
- Weight: 12.4oz (352g)
- Construction: Milled aluminum
- Mountability: Mounted in Teradek Prism RU Chassis

  Interfaces

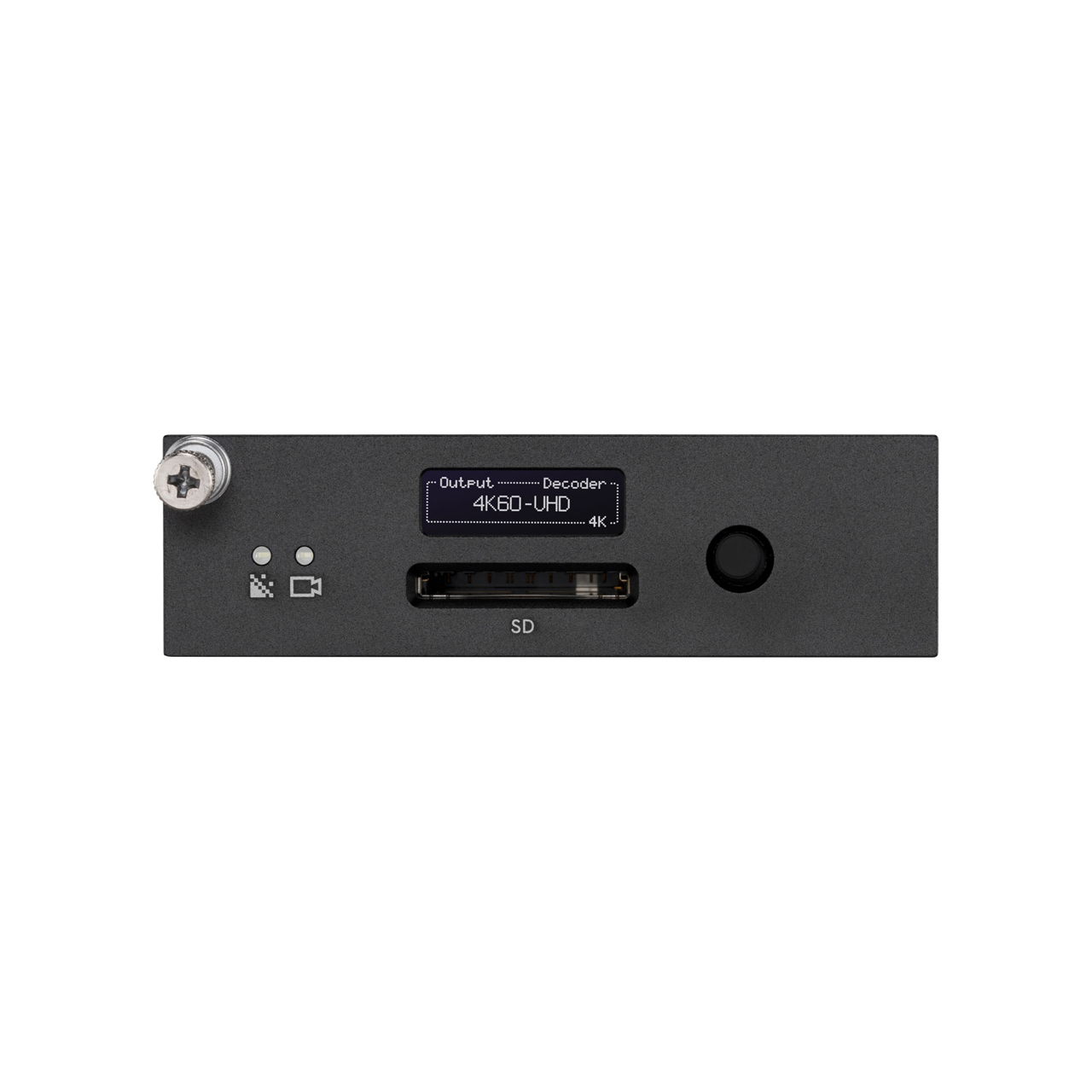

- Configuration Interface: Feature-rich Web UI for configuration and control, OLED Status Display w/ Nav control buttons
- Switches Menu: joystick and Reboot button

  Power
- Power Input: Powered by Teradek Prism RU Chassis
- Nominal Power Consumption: Up to 15W/card

  Network
- Ethernet: 2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
Item Includes:
- 1x Teradek 10-2877-S Prism 877 4K 10bit HEVC/AVC Encoder/Decoder Card for Prism Rack - 12G-SDI
