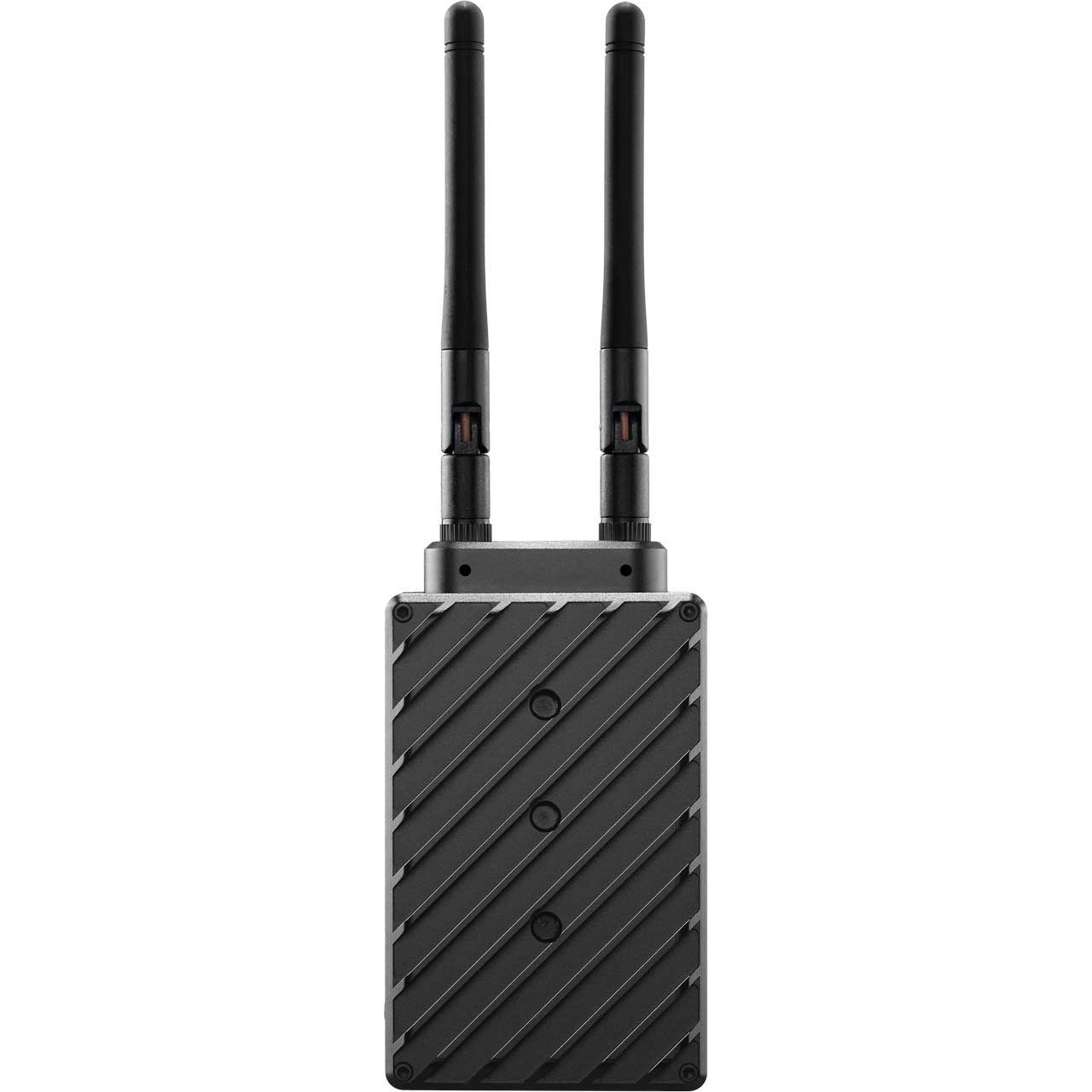

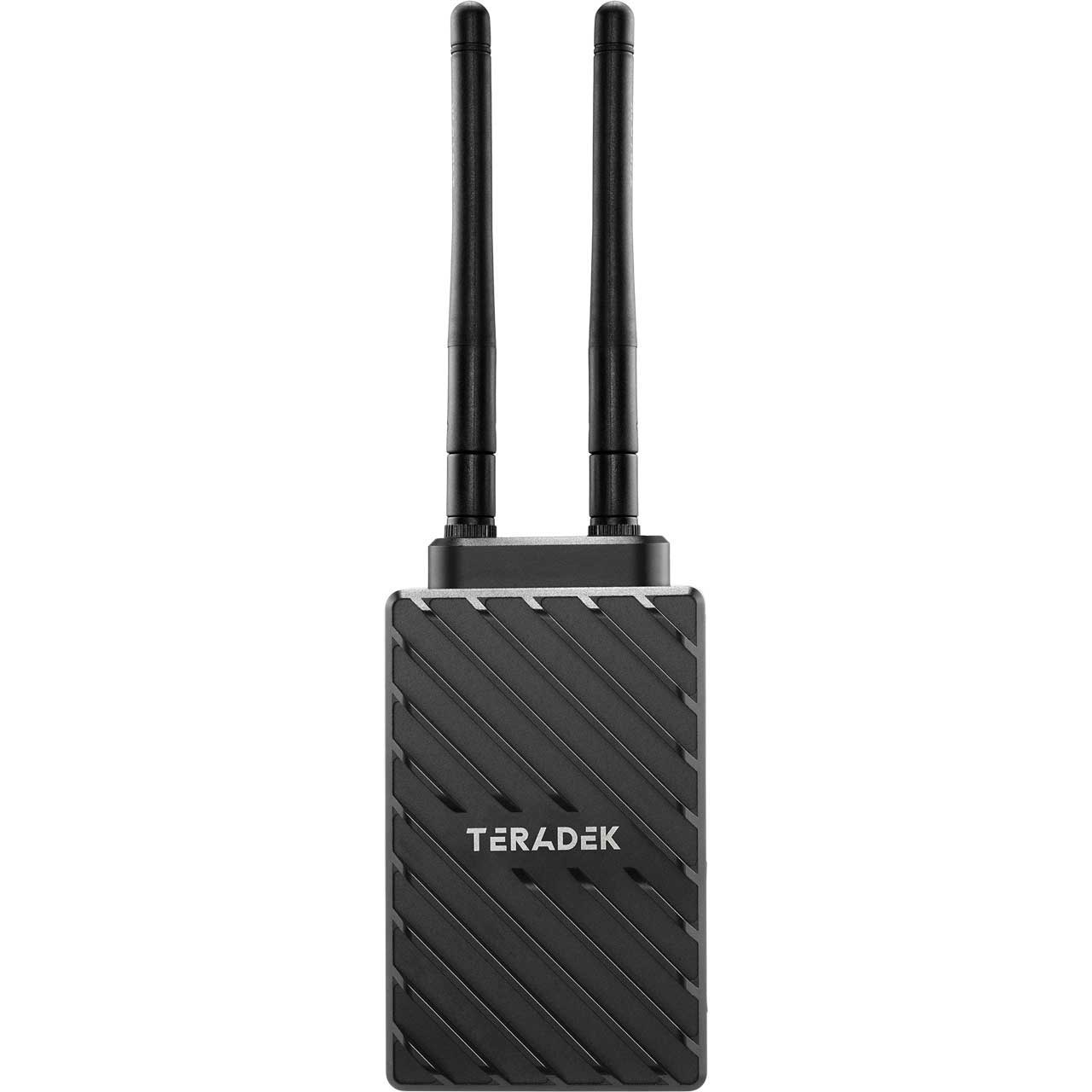

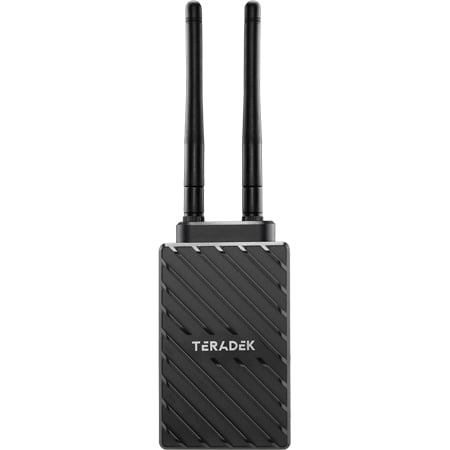

Teradek Bolt 6 LT HDMI 750 Wireless Video Transmitter with No Battery Mount

ITEM #: TER-BLT6LTHD75TX MFG #: 10-2266-N

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$840.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    10-2266-N - Overview

    Teradek Bolt 6 LT HDMI 750 is a Wireless Video Transmitter with No Battery Mount. The Bolt 6 LT HDMI TX is a real-time wireless video transmitter that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send color-accurate, True-HDR videos in under 0.001 seconds.

    Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to their new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

    The Transmitter, their most compact design ever, is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter.

    The Bolt 6 LT HDMI TX is 4K HDMI only. If you require both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT model.

    • Features:

      • Zero Delay
      • 6GHz Wireless Frequency Access
      • Bolt 4K Cross-Compatibility
      • Improved Long Range Mode
      • Inputs: HDMI
      • Outputs: HDMI

    • Specifications:

      • Video
      • Video Inputs: 1x HDMI 1.4b Type-A receptacle
      • Video Outputs: 1x HDMI 1.4b Type-A receptacle
      • Color Sampling: HDMI: RGB/YCrCb 4:4:4, 8/10-bit; YCrCb 4:2:2
      • Delay Tx To Rx: <0.001sec

        Supported Resolutions
      • 4Kp23.98/24/25/29.97/30
      • 1080p23.98/24/25/29.97/30/50/59.94/60
      • 1080psf23.98/24/25/29.97/30
      • 1080i50/59.94/60
      • 720p50/59.94/60
      • 480p59.94/60 576p50

        Video Processing
      • Video Compression: Visually Lossless
      • Color Correction: None

        Audio Processing
      • Audio Compression: 48kHz 24-bit PCM

        Inputs
      • Audio Input: Embedded HDMI Audio Input (2 Channel)

        Physical
      • Dimensions: 2.36 x 4.05 x 1.30"
      • Weight: 206g (7.3oz)
      • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

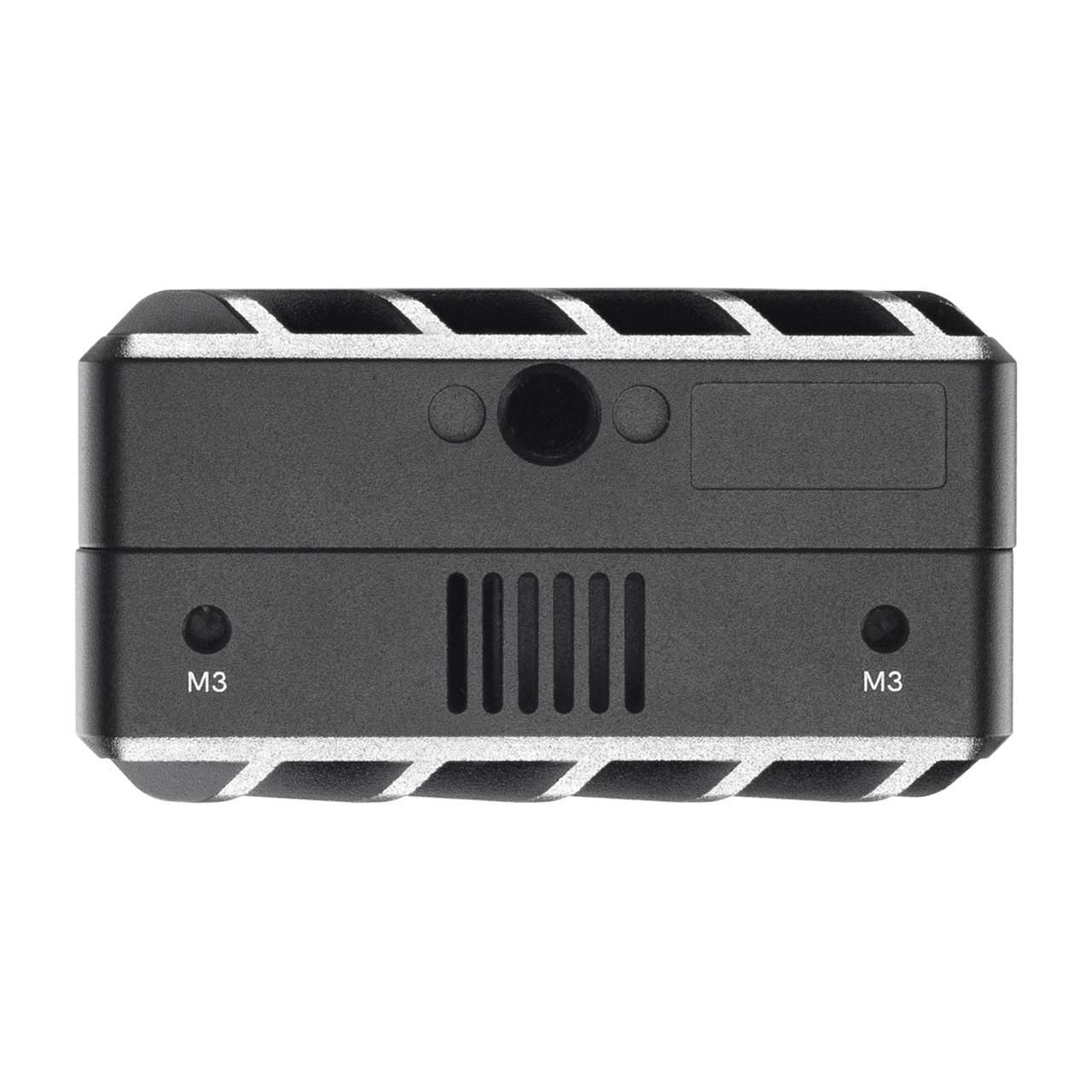

      • Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

        Interfaces

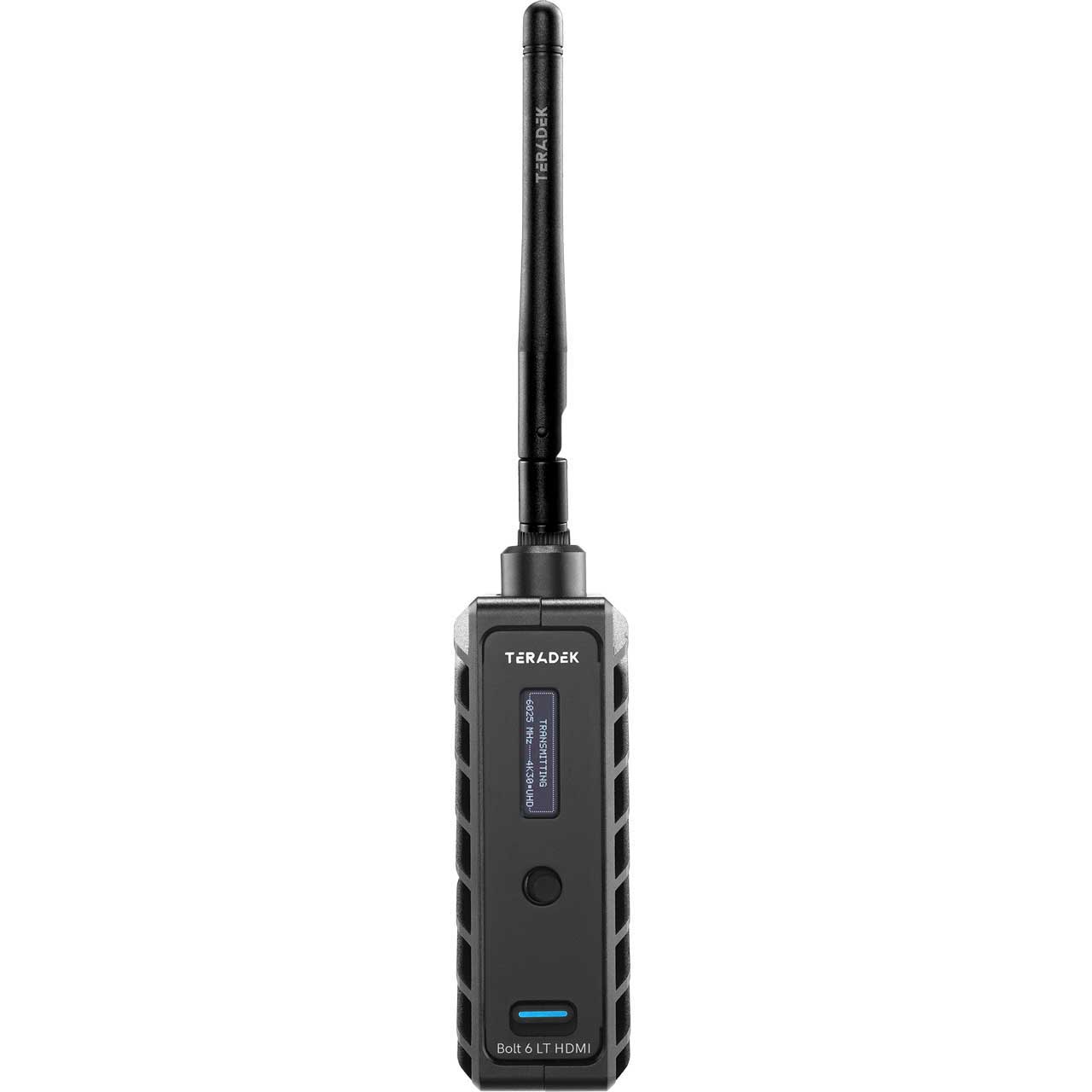

      • Configuration Interfaces: OSD with Menu, Joystick Navigation
      • Switches: On/Off Switch
      • Mobile App: Bolt App
      • Desktop App: Bolt Manager application for OSX & Windows
      • USB Interface Functionality: Upgrade via USB-C and 5pin Locking Connector CCU
      • Bluetooth: 2.4 GHz

        Network

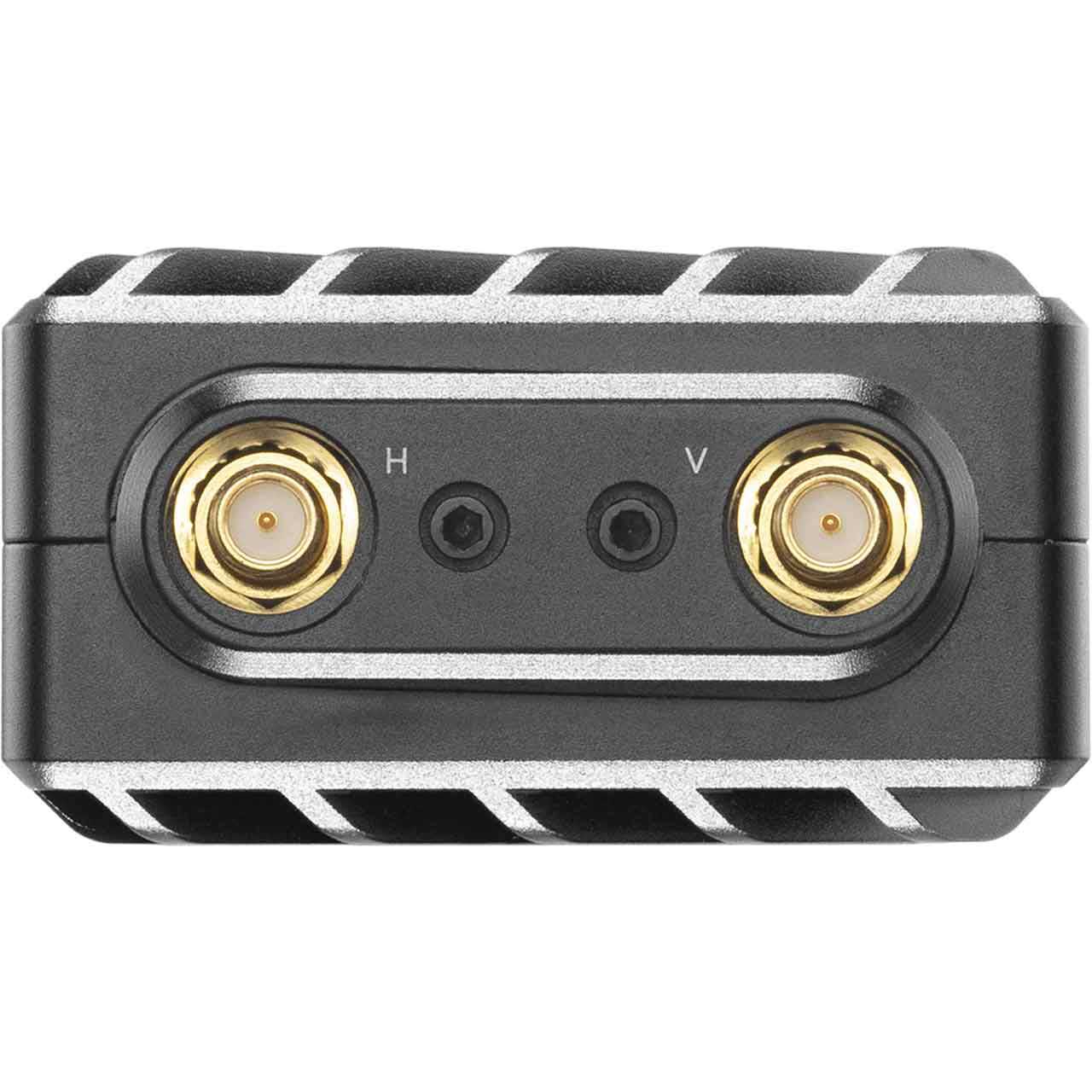

      • Antennas: 2 External 2dBi antennas (included)
      • Wireless
        Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
        DFS Frequencies: 5.270 ~ 5.670 GHz
      • Rf Channel Selection: Auto, Manual
      • Encryption: AES-256, RSA-1024 key exchange
      • Rf Power: 23 dbm EIRP
      • Range: Up to 750 ft, line of sight
      • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
      • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
      • Interoperability: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

        Power
      • Power Input: 2-Pin Circular locking Connector 6-28 VDC
      • Battery: None, optional Sony/Canon dual battery plate
      • Nominal Power Consumption: 7 Watts

        Environmental
      • Operating Temperature: 32° to 104°F

        Compare Chart
      • Ghz Support: Yes
      • Compatible With Bolt4k: Yes
      • Available Ranges: 750 ft
      • Maximum HDMI Resolution: 3840x2160p30
      • Smallhd Wireless Camera Control Port: Yes
      • Transmitter Weight: 7.3 oz / 206 g
      • Receiver Connectivity
      • Zerodelay: Yes?

    • Item Includes:

      • 1x Bolt 6 LT HDMI 750 TX
      • 1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
      • 1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
      • 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
      • 1x USB 2.0 Type A Male to USB Type C Male - 1m Cable

    • GTIN:

      0818264028841
