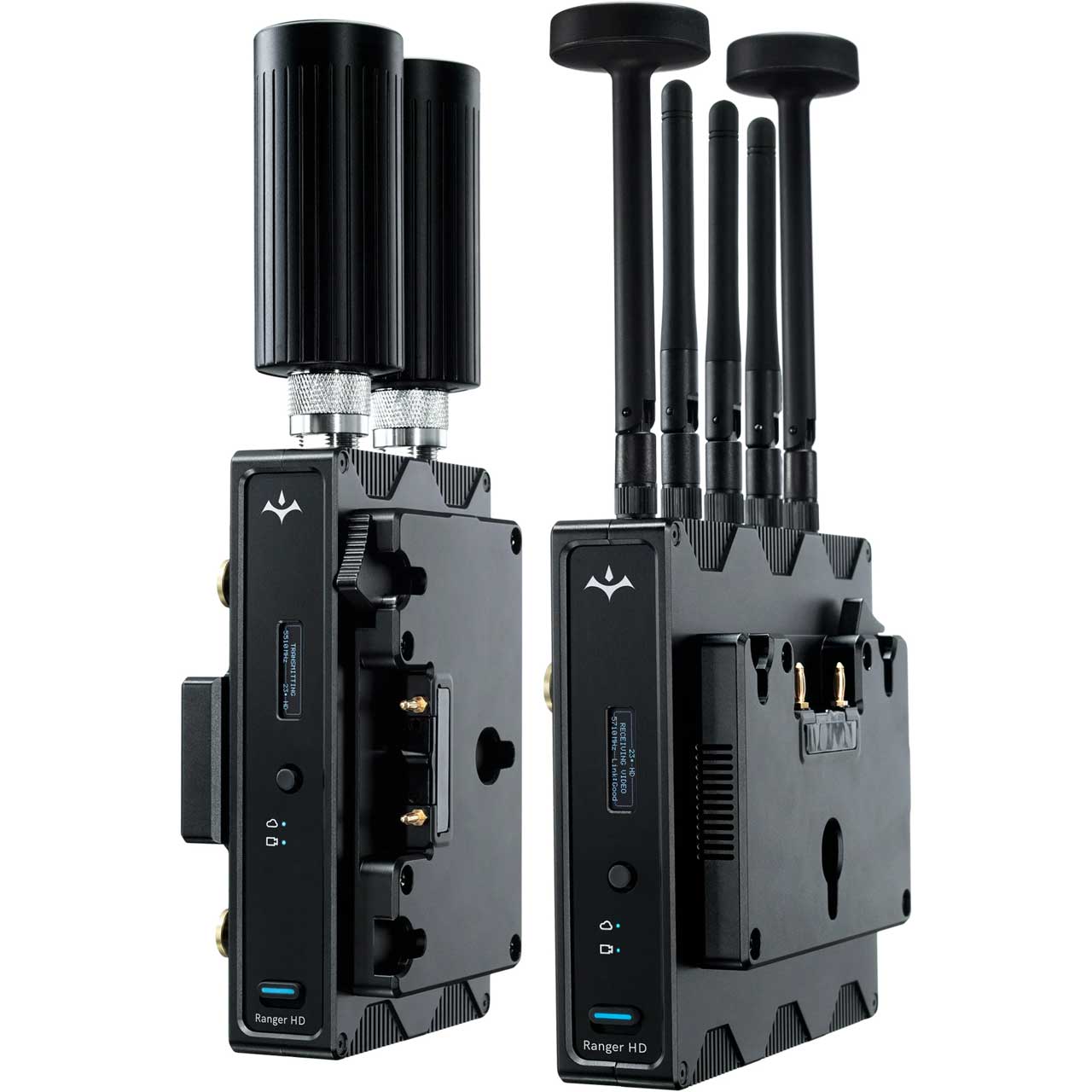

Teradek Ranger HD 3G-SDI/HDMI Zero-Delay Wireless Video Transmitter/Receiver Set - SMPTE 424M - Gold-Mount

10-2510-G - Overview

10-bit, 4:2:2 image quality

• Features:

  • Wireless 1080p60 HDR video
  • Zero-delay (< 1 ms)
  • 10-bit, 4:2:2 image quality
  • Supports a directional antenna for superb wireless performance (sold separately)
  • Up to 1,500 ft. of range line of sight
  • 4.9 GHz to 6.0 GHz operation
  • UNII-5 ready
  • 40 MHz / 20 MHz channel bandwidth
  • AES-256 encryption using RSA 1024 key exchange protocol
  • Manual and automatic frequency selection
  • Multicast-capable up to 6 receivers


• Specifications:

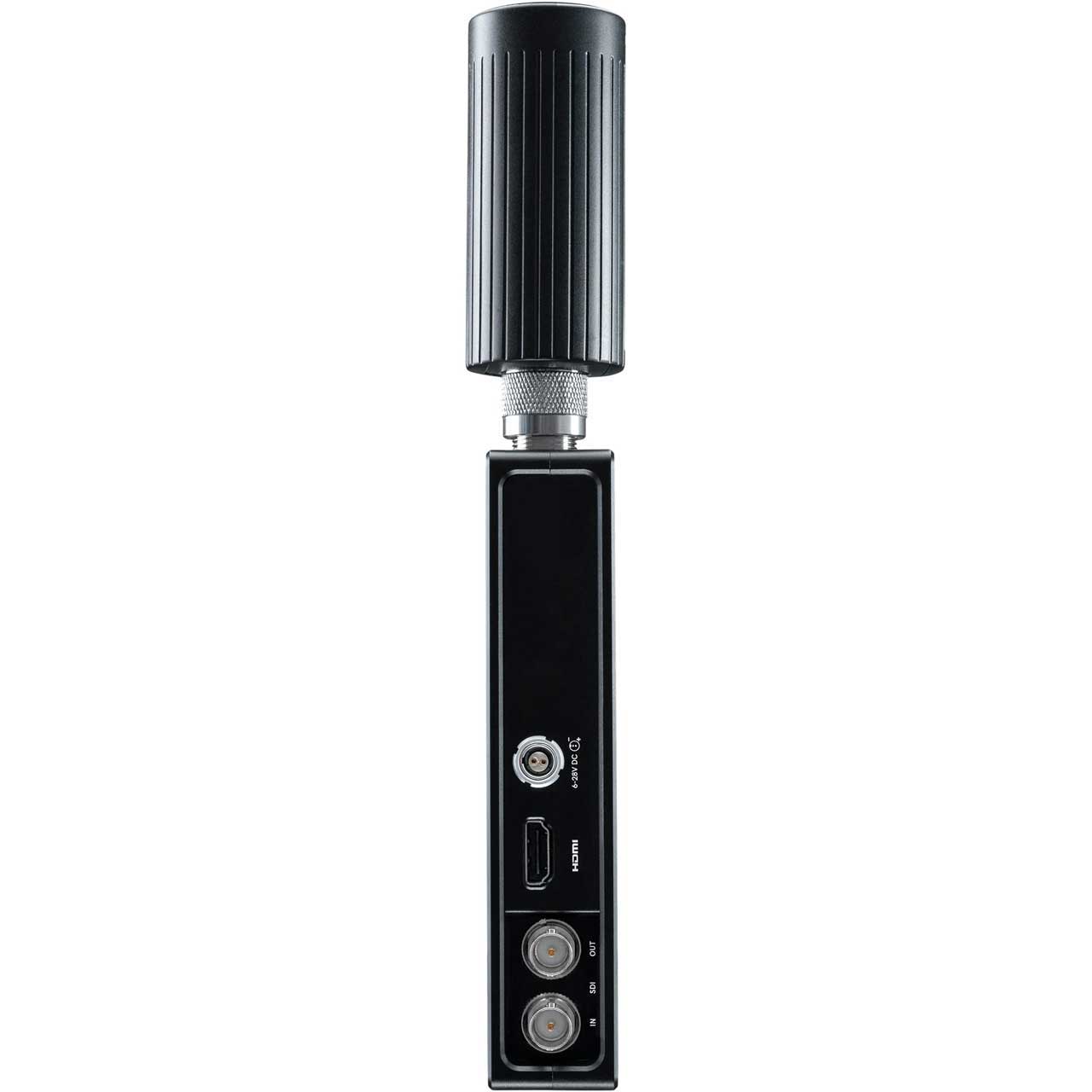

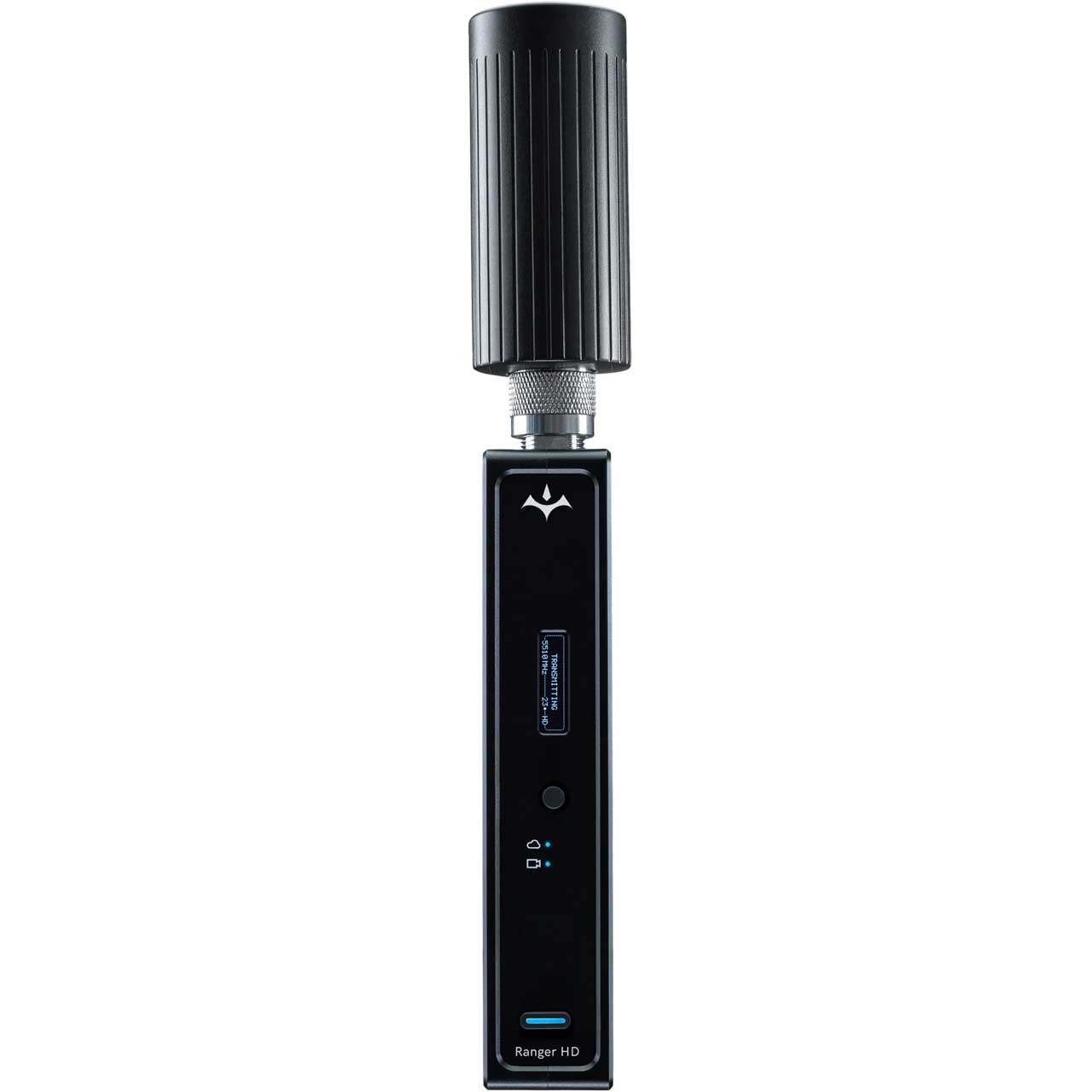

  • Ranger HD TX
    Video
  • Video Inputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x1), 1 xHDMI 2.0 Type-A receptacle
  • Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x1)
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit, HDMI: RGB 4:4:4, 8-bit / YCbCr 4:2:2, 10-bit
  • Delay TxTo Rx: <0.001sec
  • Input Cross Conversion: HDMI to SDI
  • Supported Resolutions:
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)
  • Video Compression: Visually Lossless
  • Video Format Conversion Support: None
  • Audio Format: 48kHz 24-bit PCM
  • Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
  • Dimensions: 5.9" x 3.6" x 1.2"
  • Weight: 19.1oz
  • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
  • Configuration Interfaces: OSD with Menu, Joystick Navigation
  • Switches: On/Off Switch
  • Mobile App: iOS and Android app configuration via Bluetooth
  • Desktop App: Launchpad application for OSX & Windows
  • USB Interface Functionality: Upgrade via Micro-USB
  • Bluetooth: Bluetooth 5 LE
  • Network - Antennas: 1x Horizontal N-Type antenna, 1x Vertical N-Type antenna
    Wireless
  • Licensed Frequencies:
    4.850 ~ 5.150 GHz
    5.350 ~ 5.470 GHz
    5.850 ~ 5.925 GHz
  • Unlicensed Frequencies:
    5.150 ~ 5.250 GHz (Non-DFS)
    5.250 ~ 5.350 GHz (DFS)
    5.470 ~ 5.725 GHz (DFS)
    5.725 ~ 5.850 GHz (Non-DFS)
  • Rf Channel Selection: Auto, Manual, Manual available for non-DFS Channels
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 19 dbm (2 external 2dBi antennas) (<80mW transmit power)
  • Range: Up to 1500 ft, line of sight
  • Unicast Multicast: No
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones, Can operate up to 6 sets in same location
  • Power Input: 2-Pin Circular locking connector 7-28 VDC
  • Battery: Gold-Mount
  • Nominal Power Consumption: 19 Watts
  • Operating Temperature: 0-40°C

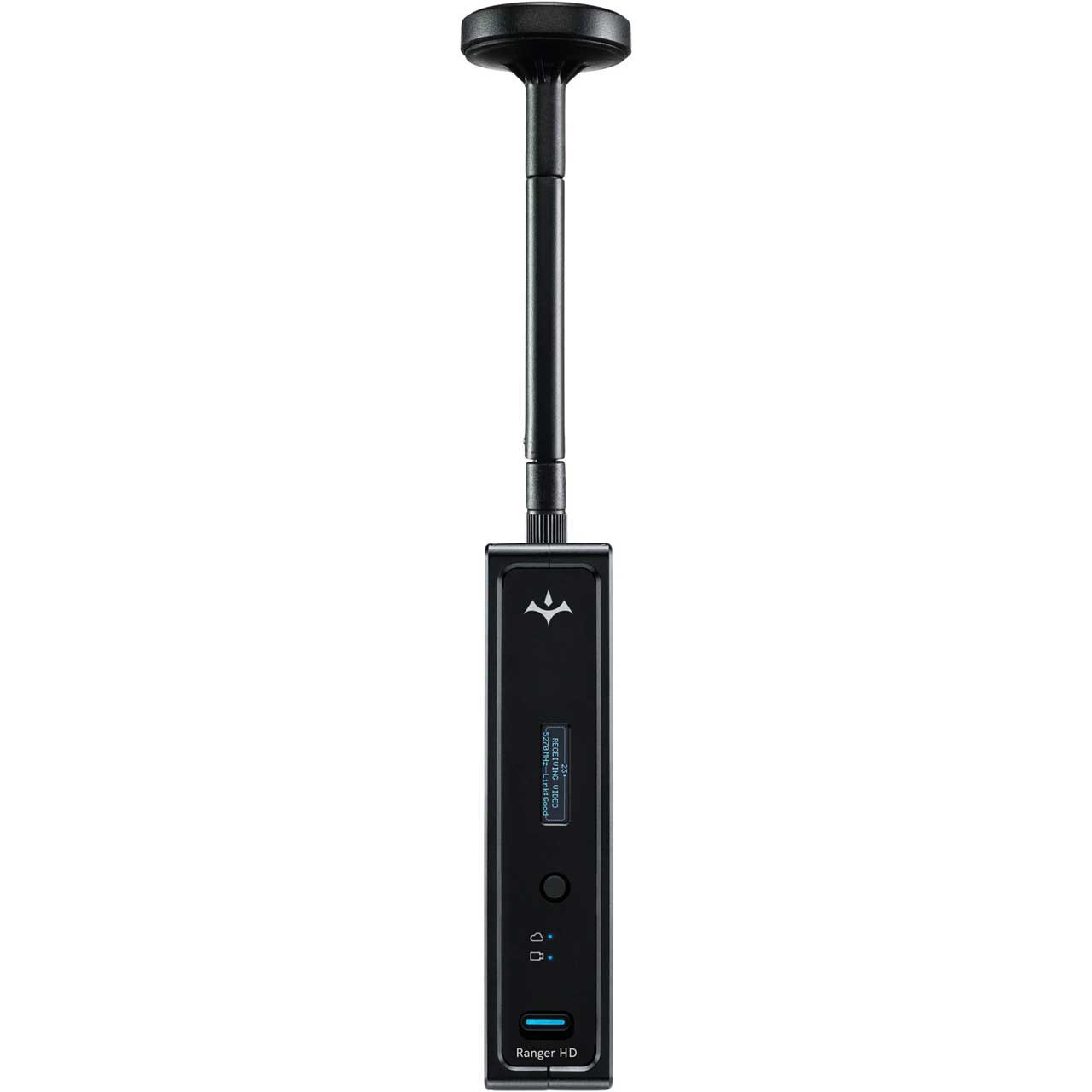

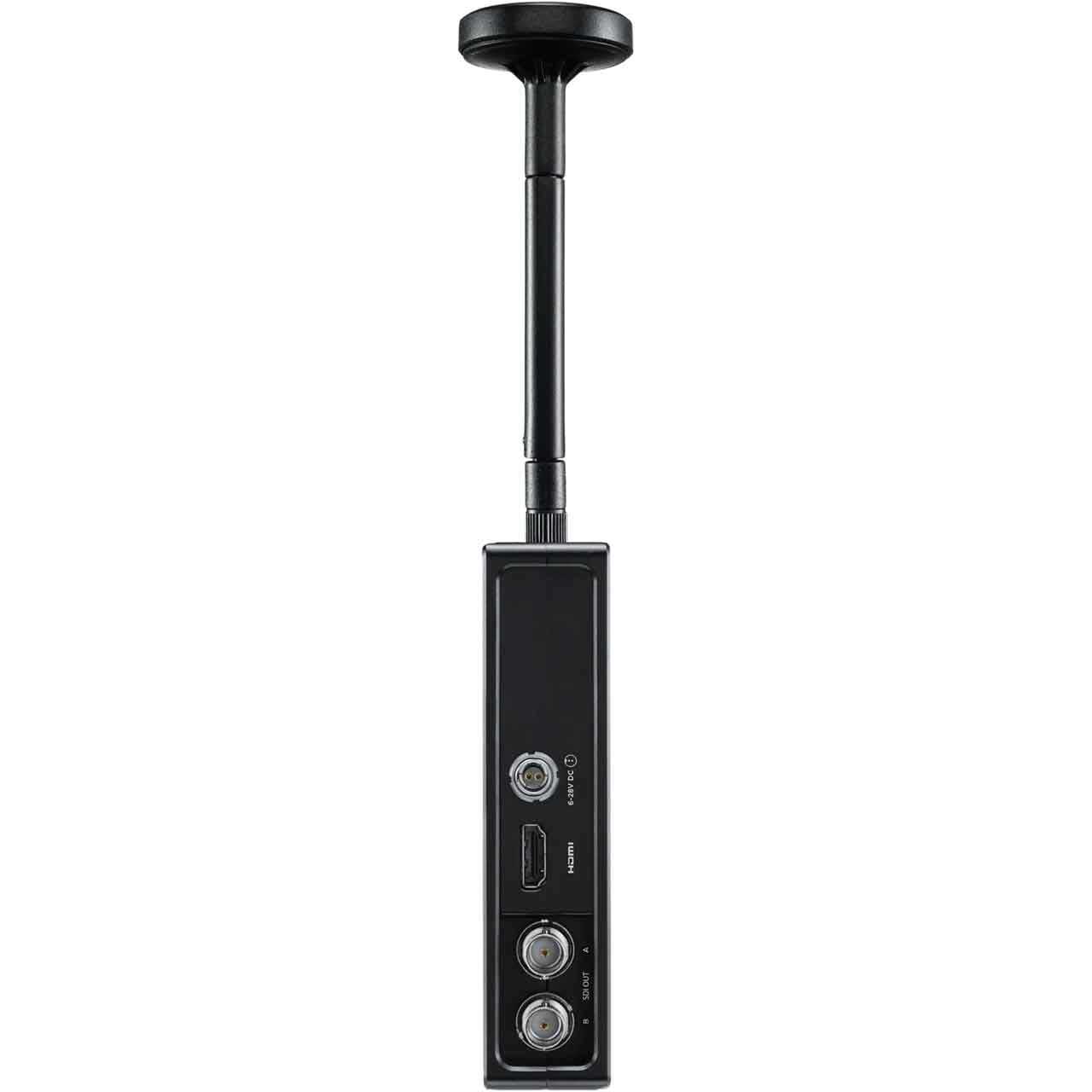

    Ranger HD RX
  • Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x2), 1x HDMI 2.0 Type-A receptacle
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit, HDMI: RGB 4:4:4, 8-bit / YCbCr 4:2:2, 10-bit
  • Delay TxTo Rx: <0.001sec
  • Supported Resolutions
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)
  • Video Compression: Visually Lossless
  • Video Format Conversion Support: Yes, Framerate and Resolution Scaling
  • Audio Format: 48kHz 24-bit PCM
  • Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)
  • Dimensions: 5.3" x 5.5" x 1.2"
  • Weight: 23 oz (656g)
  • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
  • Configuration Interfaces: OSD with Menu, Joystick Navigation
  • Switches: On/Off Switch
  • Recording Storage: Upgrade via Micro-USB
  • Mobile App: iOS and Android app configuration via Bluetooth
  • Desktop App: Launchpad application for OSX & Windows
  • Usb Interface Functionality: Bluetooth 5 LE
  • Antennas: 5 External 2 dBi antennas (included)
  • Wireless
  • Licensed Frequencies:
    4.850 ~ 5.150 GHz
    5.350 ~ 5.470 GHz
    5.850 ~ 5.925 GHz
  • Unlicensed Frequencies:
    5.150 ~ 5.250 GHz (Non-DFS)
    5.250 ~ 5.350 GHz (DFS)
    5.470 ~ 5.725 GHz (DFS)
    5.725 ~ 5.850 GHz (Non-DFS)
  • Rf Channel Selection: Auto, Manual, Manual available for non-DFS Channels
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
  • Range: Up to 1500 ft, line of sight
  • Unicast Multicast: No
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones, Can operate up to 6 sets in same location
  • Power Input: 2-Pin circular locking connector 6-28V DC
  • Battery: Goldmount
  • Nominal Power Consumption: 15 Watts
  • Operating Temperature: 0-40°C


• Item Includes:

  • 1x Teradek Ranger HD 3G-SDI/HDMI Wireless Video TX/RX Set - Gold-Mount
