Thor H-THUNDER-1 Full HD 1080p 1RU 1-Channel HDMI CATV RF QAM/ATSC Modulator with DVB-T and ISDB-T Over Coax

ITEM #: THR-H-THUNDER-1 MFG #: H-THUNDER-1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,194.00

Our Price:

$995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


H-THUNDER-1 - Overview

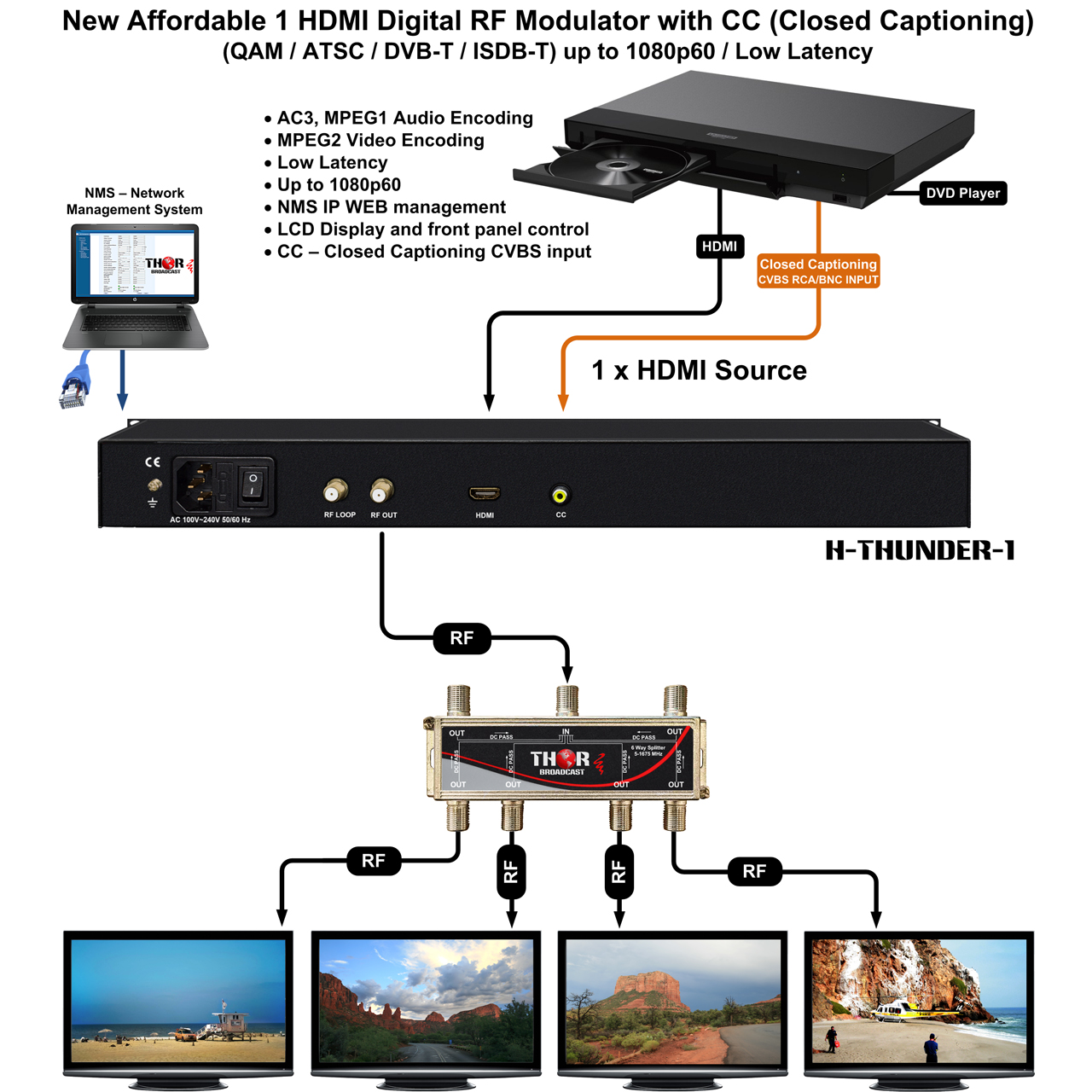

The Thor H-THUNDER-1 is a HDMI Digital RF Encoder Modulator for Full HD up to 1080P that supports one HDMI input. The signal source can be from any STB, satellite receiver, closed-circuit television camera or antenna source and the output signal is designed to work with any TV or STB. It comes standard with multiple RF modulation standards built in to assure this device can work anywhere in the world in a plug and play format.

This unit is similar to Thor's popular H-1, 2 and 4 HDMI-QAM-IPLL product line, but it has some differences. It's less expensive and each program is modulated on its own frequency and has a CATV RF output only, no IPTV output.

  • Features:

    • 1x HDMI Input
    • Works with any HDMI source like DVD Players or Cable, Satellite STBs up to 1080p/60 resolution
    • MPEG2 Video Encoding
    • 1080p/60, 1080i, 720p, 576i, 480i Video Resolution
    • Low Latency (50ms - 100ms)
    • MPEG Layer 2, AAC, and DD AC3 Audio Encoding
    • CC (Closed Caption), EIA 608
    • LCN
    • DVB-C DIGITAL QAM, ATSC, DVB-T, ISDB-T RF in One Device
    • Modulation Dynamic Switching
    • Control Via Web-Based NMS with Easy Updates Via Web
    • LCD Display and Front Panel Control

  • Specifications:

      Video
    • Encoding: MPEG2
    • Interface: 1x HDMI
    • Resolution Input:
      - 480i
      - 576i
      - 720p @ 50
      - 720p @ 60
      - 1080i/p @ 50
      - 1080i/p @ 60
    • Output: Max. 1080p @ 30
    • Bit Rate: 5Mbps - 19Mbps (Default: 12Mbps (J.83b))

      Audio
    • Encoding Section: Audio
    • Encoding: MPEG-1 Layer2, AAC, AC3
    • Sample Rate: 48kHz

      Modulator Section
    • MER: Typ. 35dB
    • RF Range: 50MHz - 950MHz, 1kHz step
    • Standard: ATSC
    • Constellation: 8VSB
    • Standard: QAM J.83B
    • Constellation: 64QAM, 256QAM

      System
    • Management: LCD + Control buttons/Ethernet
    • Language: English
    • Upgrade: Ethernet
    • Power Supply: AC 100V - 240V, 50/60Hz
    • Dimensions: 19" x 12.9" x 1.7" (484mm x 135mm x 44mm)
    • Weight: 2.2lbs (1000g)

  • Item Includes:

    • 1x H-THUNDER-1 One HDMI Digital RF Encoder Modulator

  • Warranty:

    • 1 Year Limited Warranty
