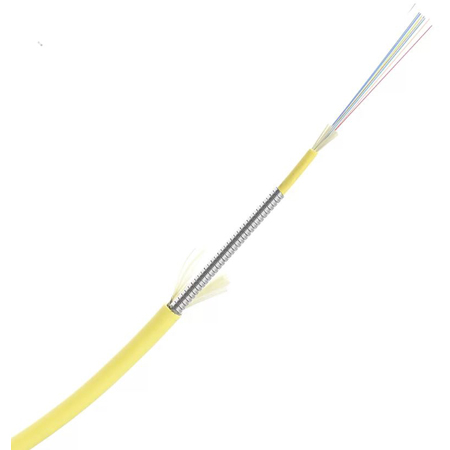

TiniFiber TF6-OS2-PL 6 Fiber OS2 900um Plenum Indoor Armored Indoor Fiber Optic Cable - Yellow - 1000 Foot

ITEM #: TIN-TF6-OS2-PL MFG #: TF6-OS2-PL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    TF6-OS2-PL - Overview

    TiniFiber TF6-OS2-PL is a 6 Fiber OS2 900um Plenum Indoor Armored Indoor Fiber Optic Cable. TiniFiber® is a revolutionary designed fiber optic cable that will provide the single best solution for all your fiber optic projects and usage. Micro Armor Fiber™ can be used in any application: Telco, CATV, LAN, SAN, Broadcast, DAS, Communication, Security, Indoor, Outdoor and Aerial installations.

    Micro Armor Fiber™
    The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility
    Lightest and smallest armor makes routing and installation faster and easier
    Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor(AIA)

    Encased Stainless Steel Coiled Tubular Armor
    Provides the strongest armor with maximum bend radius and designed for all indoor & outdoor conditions
    Crush and rodent resistant

    Outer Jackets
    All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects

    MultiMode / SingleMode Strands
    OS2, OM1, OM3, OM4 from 1 to 144 Strands (250u/900u/Ribbon)
    Compatible with all standard connectors

    Kevlar Fiber Strands
    Adds tensile strength and flexibility

    • Features:

      • The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility
      • Lightest and smallest armor makes routing and installation faster and easier
      • Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor(AIA)
      • Provides the strongest armor with maximum bend radius and designed for all indoor & outdoor conditions
      • Crush and rodent resistant
      • All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects
      • OS2, OM1, OM3, OM4 from 1 to 144 Strands (250u/900u/Ribbon)
      • Compatible with all standard connectors
      • Kevlar Fiber Strands adds tensile strength and flexibility

    • Specifications:

      • Fiber Count: 6
      • Environment: Duct, Indoor, Plenum
      • Fiber Category: SingleMode Fiber (OS2)
      • Fiber Type: 900um
      • Jacket Type: Plenum
      • Fiber Core/Cladding Diameter: 8.6~9.5um/124.8±0.7
      • Wavelengths/Max. Attenuation: 1310 ≤0.4 dB/km, 1550 ≤0.3 dB/km
      • Nominal Outer Diameter: 6.0±0.5 mm
      • Weight: 62.5 kg/km
      • Min. Dynamic Bend Radius: 20D
      • Min. Static Bend Radius: 10D
      • Storage Temp: -20°C to 70°C (-4 °F to 158 °F)
      • Installation Temp: -10°C to 60°C (-10 °F to 140 °F)
      • Operation Temp: -20°C to 70°C (-4 °F to 158 °F)
      • Max. Dynamic Tensile Strength: 500 N
      • Max. Static Tensile Strength: 100 N
      • Max. Dynamic Crush Resistance: 3000
      • Max. Static Crush Resistance: 500 N
      • Stainless Steel Tube Outer Diameter: 4.2 mm
      • Stainless Steel Tube Inner Diameter: 3.45 mm
      • Steel Braid: 5*16
      • Kevlar: 6x800dtex, 8x800dtex
      • Max. Data Rate: 100G / 40km
      • NEC Rating: OFCP

    • Item Includes:

      • 1x TiniFiber TF6-OS2-PL 6 Fiber OS2 900um Plenum Indoor Armored Indoor Fiber Optic Cable - 1000 Foot
