TRENDnet R156005 SignalTEK NT Touchscreen Copper and Fiber Network Transmission and Bandwidth Tester Kit

ITEM #: TNET-R156005 MFG #: R156005

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$5,016.00

Our Price:

$4,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


R156005 - Overview

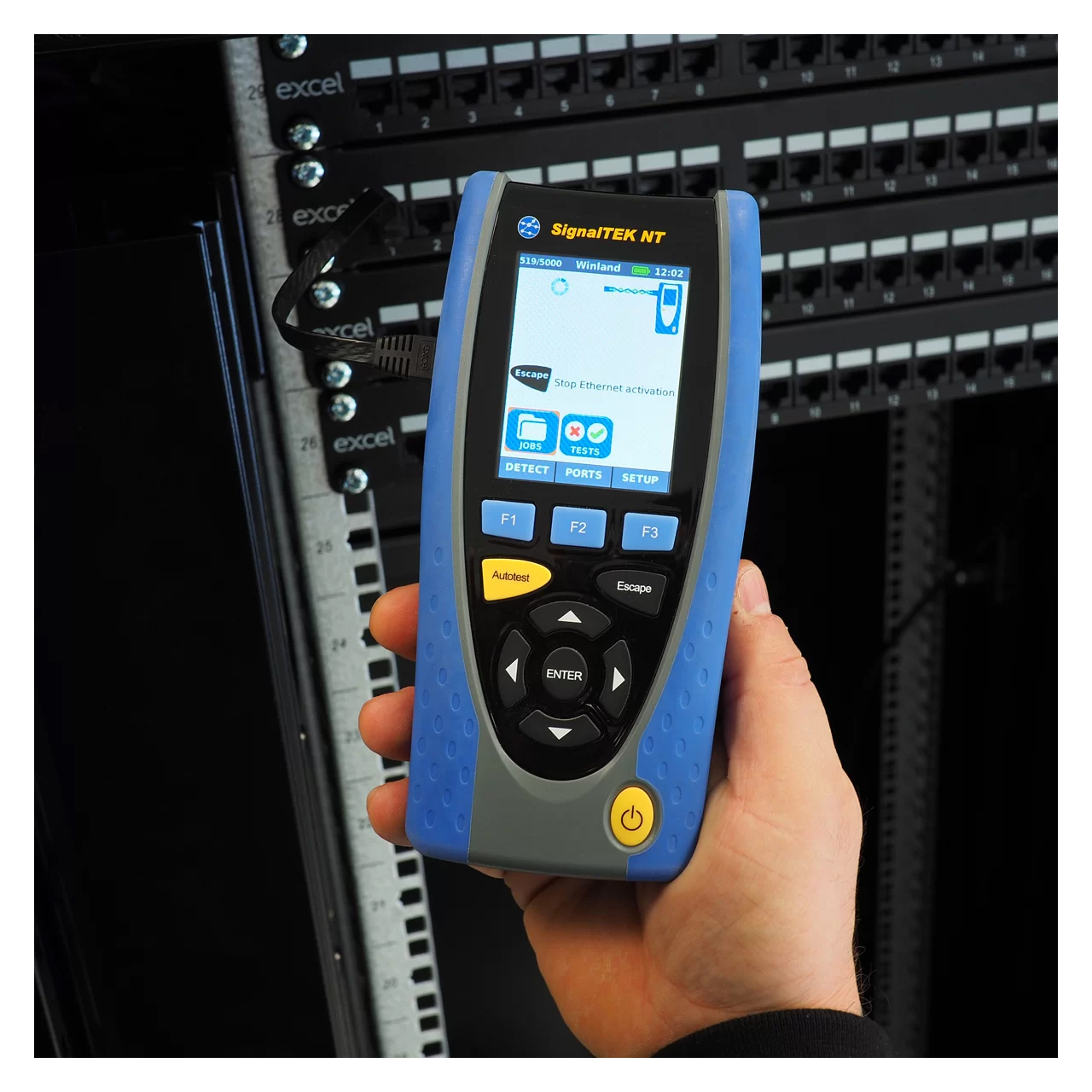

With SignalTEK NT B09C8X67WM, you can prove performance of cable installations, as well as maintain and troubleshoot data cabling and Ethernet network issues. SignalTEK NT allows you to prove the performance up to Gigabit Ethernet transmission rates. It requires no configuration from the user as the two handsets automatically pair ready for testing. Simply select a useage scenario to simulate the appropriate service, from VoIP to CCTV, video, and web traffic. SignalTEK NT provides professional PDF reports that can be shared with colleagues and clients use the free TREND AnyWare mobile app.

  • Features:

    • Network traffic performance test to IEEE802.3ab standard
    • Port blink to visually trace cables
    • Eliminate manual cable tracing with displays port ID of LLDP/CDP
    • Copper, Fiber and Network testing
    • PoE testing up to 90W with Pass/Fail result
    • Verify future upgrades to test if existing cabling can support up to 1Gb/s ethernet
    • Send reports anywhere using the free IDEAL AnyWARE app

  • Specifications:

      SignalTEK NY Display Unit
    • Power: Battery Powered
    • Style: Standard
    • Color: Gray, Blue, Black
    • Specification Met: Ieee802.3ab

      Carrying Case
    • Dimensions (WxHxD): 17.32" 11.18" x 4.53" (439.93mm x 289.97mm x 115.06mm)
    • Weight: 6.19lbs (2.81kg)

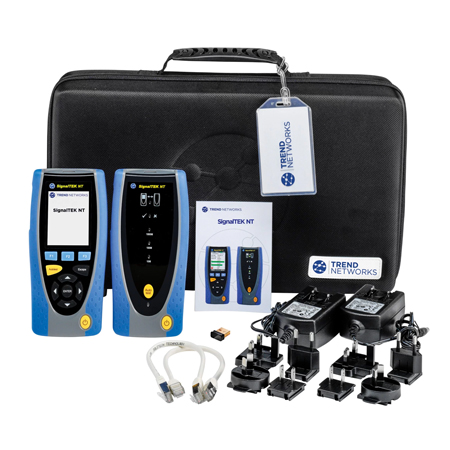

  • Item Includes:

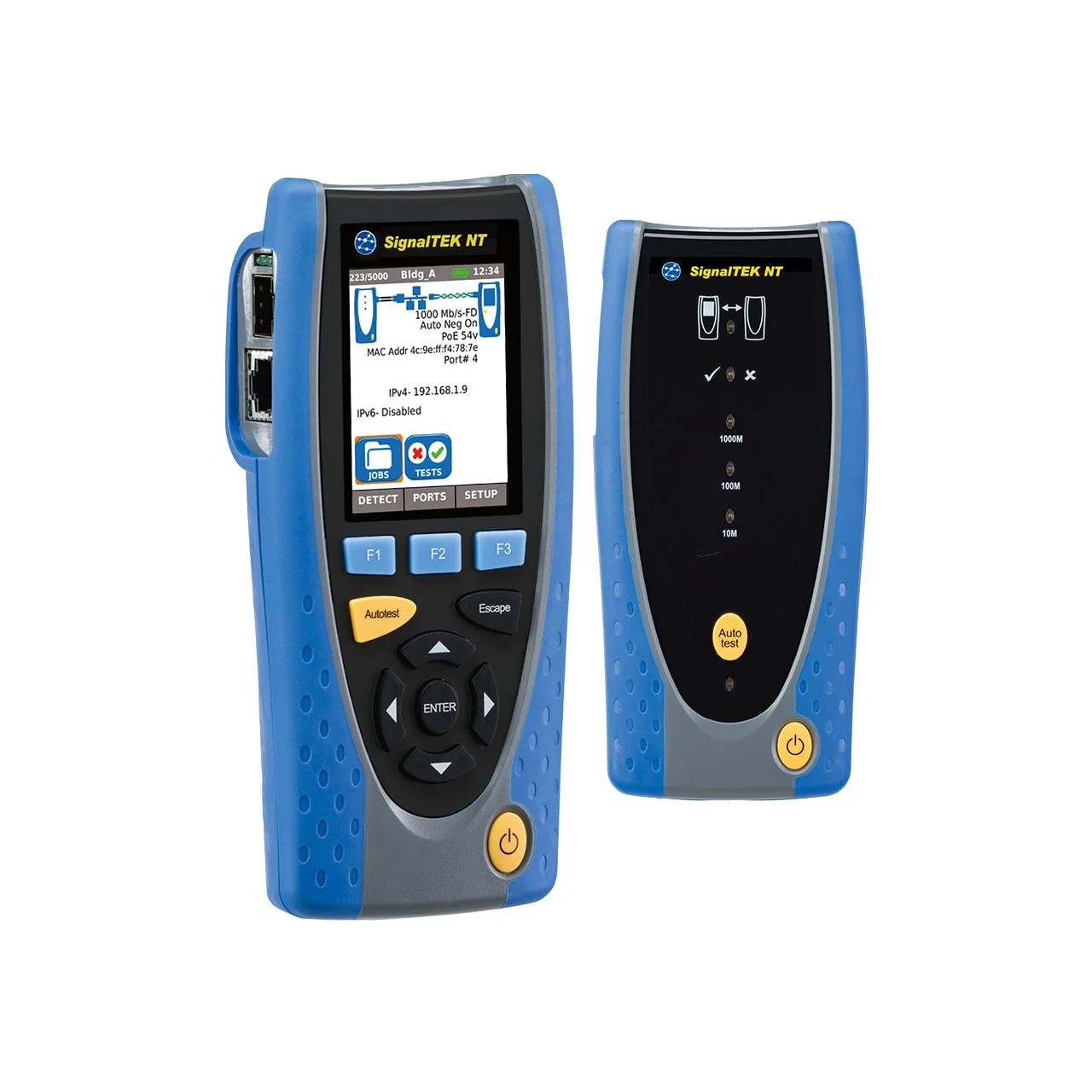

    • 1x SignalTEK NT display unit with touchscreen
    • 1x SignalTEK NT remote unit
    • 2x Power module (rechargeable)
    • 2x Mains PSU UK/EU/US/AU adapters
    • 2x 12' (300mm) J-45 cable
    • 1x Quick reference guide (English)
    • 1x Carrying case
    • 1x USB Wi-Fi adapter

  • Warranty:

    • 1 Year Limited Warranty
