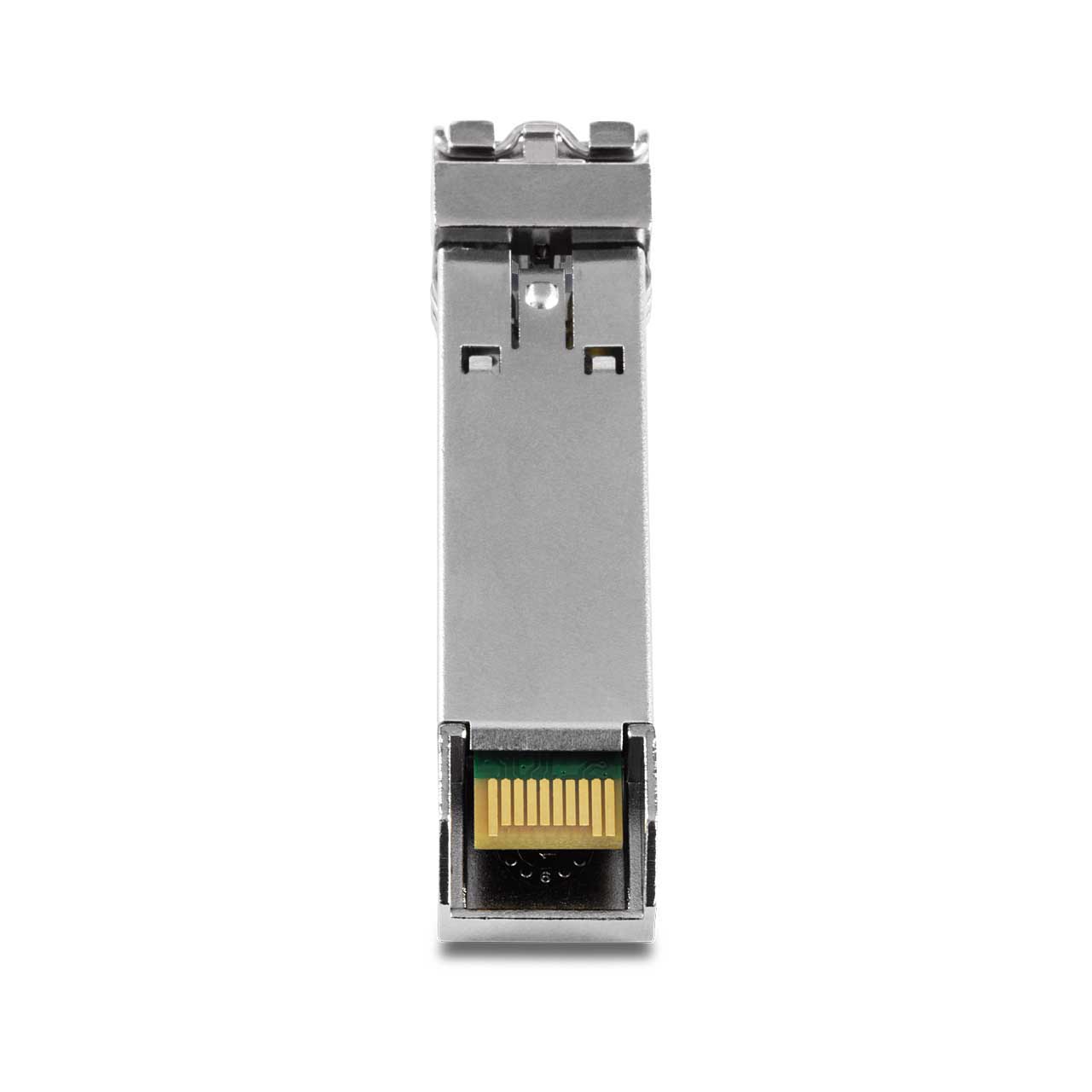

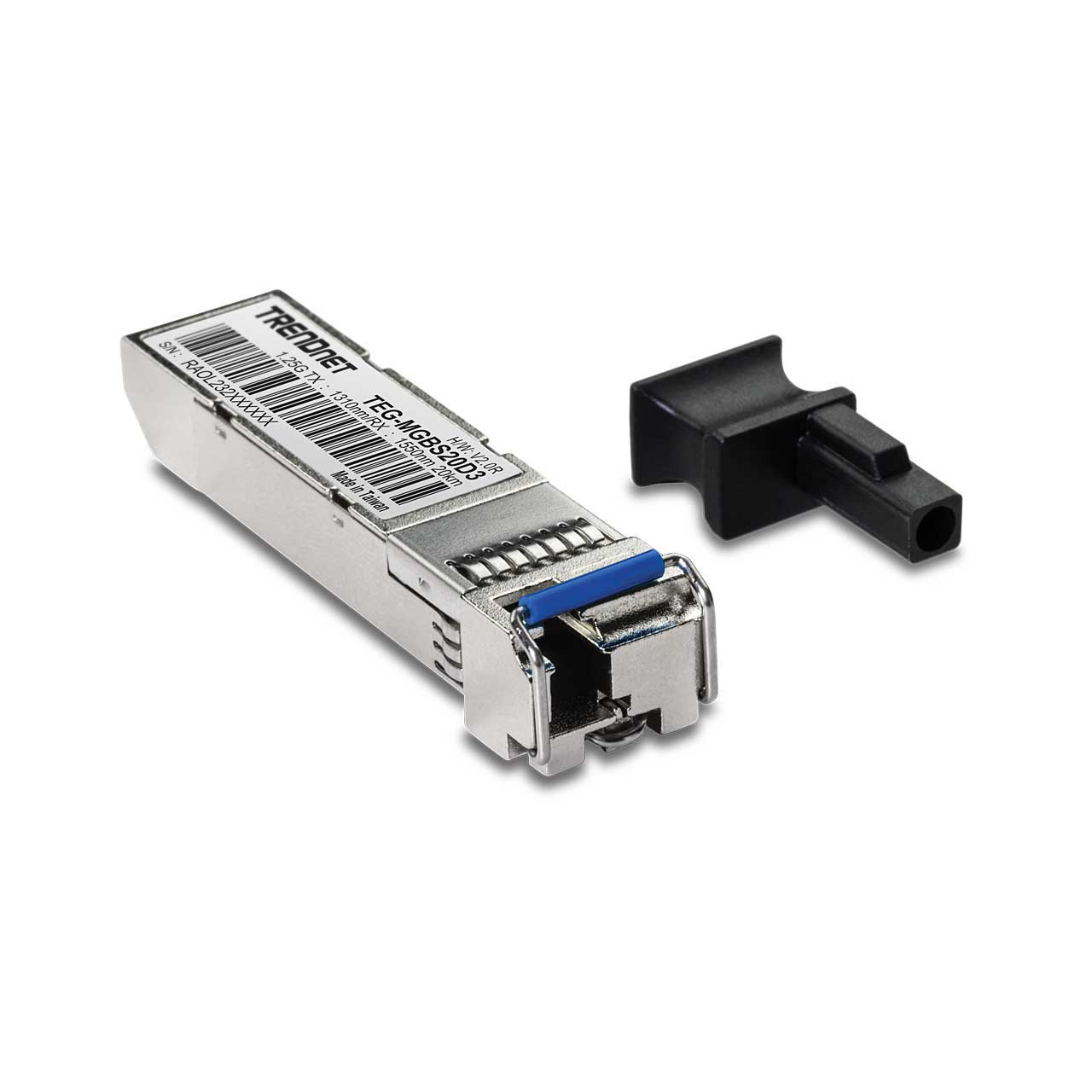

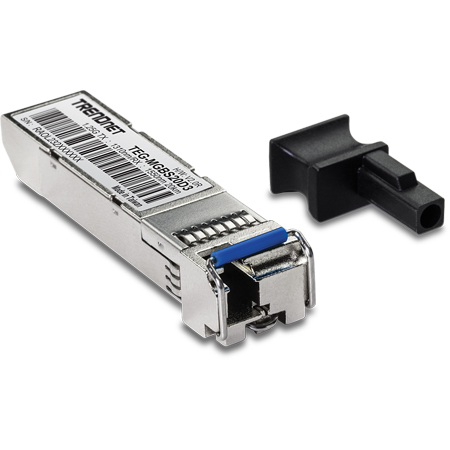

TRENDnet TEG-MGBS20D3 SFP to RJ45 Dual Wavelength Single-Mode LC SFP Module - Pairs with TEG-MGBS20D5

ITEM #: TNET-TEGMGBS20D3 MFG #: TEG-MGBS20D3

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$39.99

Our Price:

$36.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TEG-MGBS20D3 - Overview

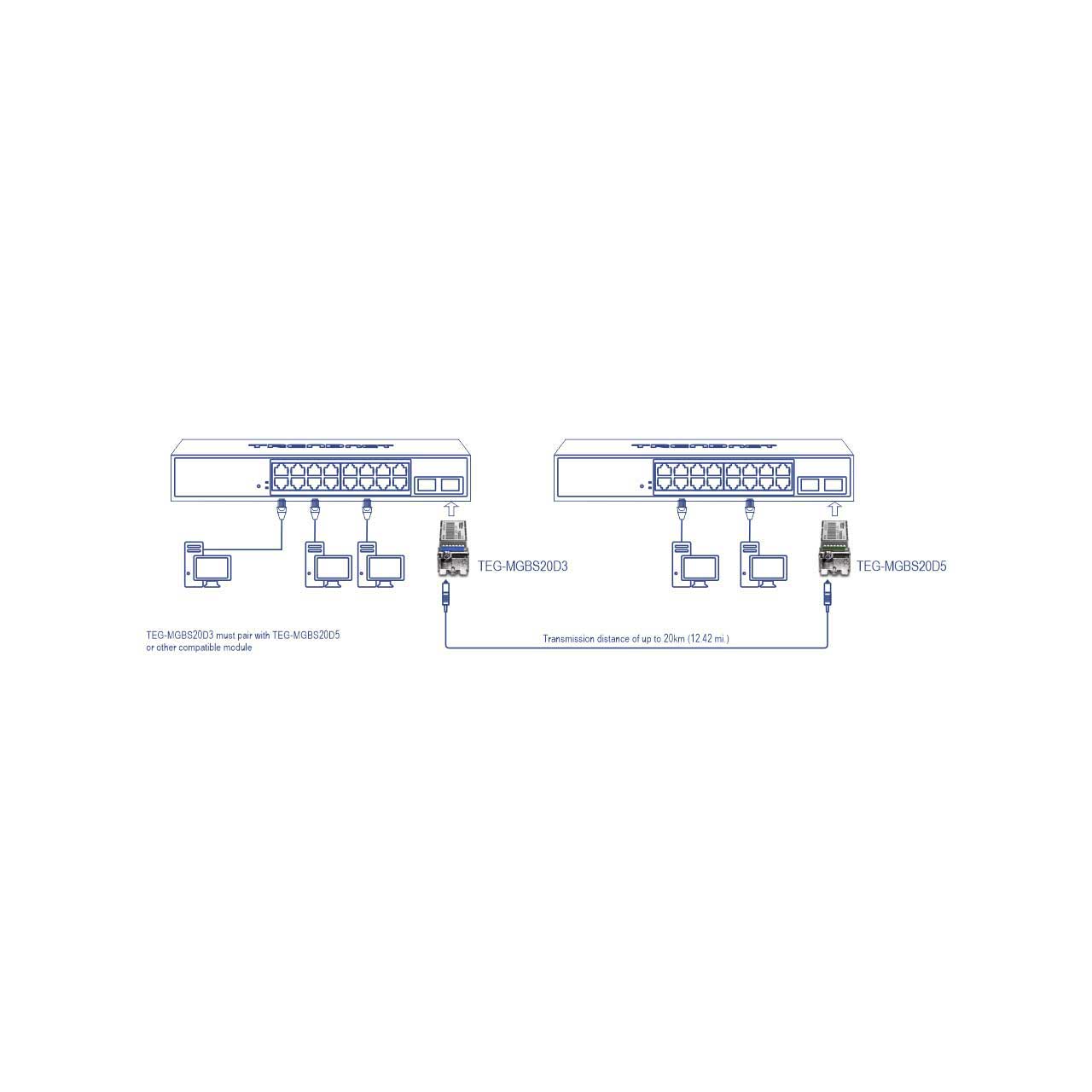

TRENDnet's TEG-MGBS20D3 when paired with the TEG-MGBS20D5 (sold separately) creates a long distance, single strand fiber solution with a range of up to 20 KM (12.4 miles). Grow your pre-existing two-strand fiber connection, and turn it into two separate single-strand fiber connection. The SFP interface is compatible with standard SFP slots and offers a 1000BASE-LX SFP interface

  • Features:

    • Must Pair with TEG-MGBS20D5 or other compatible module
    • LC Simplex (single strand) connector-type
    • Bi-Directional (WDM) SFP Module
    • Spans distances of up to 20KM (12.4 Miles)
    • TX: 1310 nm/ Rx: 1550 nm, +3.3v Power Sup

  • Specifications:

    • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
    • Device Interface: SFP MSA Compliant, LC Simplex connector
    • Data Transfer Rate: 1.25Gbps
    • Wavelength: TX: 1310nm, RX: 1550nm
    • Optical Output Power: 9-3 dBm
    • Distance: 12.42 mi (20km)
    • Special Features: Hot pluggable, Metal enclosure
    • Sensitivity: -25 dBm
    • Power: Max. Consumption: 0.8W
    • Operating Temperature: 32° - 158° F (0° - 70° C)

  • Item Includes:

    • 1x SFP Dual Wavelength Single Mode LC Module - 12.42 mi (20 km)

  • GTIN:

    0710931502015
