TRENDnet TPE-147GI 65 Watt 4-Port Gigabit PoE+ Injector/4x Gigabit Ports (Data in)/4x Gigabit PoE Ports (Data + PoE Out)

ITEM #: TNET-TPE-147GI MFG #: TPE-147GI

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$77.64

Our Price:

$69.88

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TPE-147GI - Overview

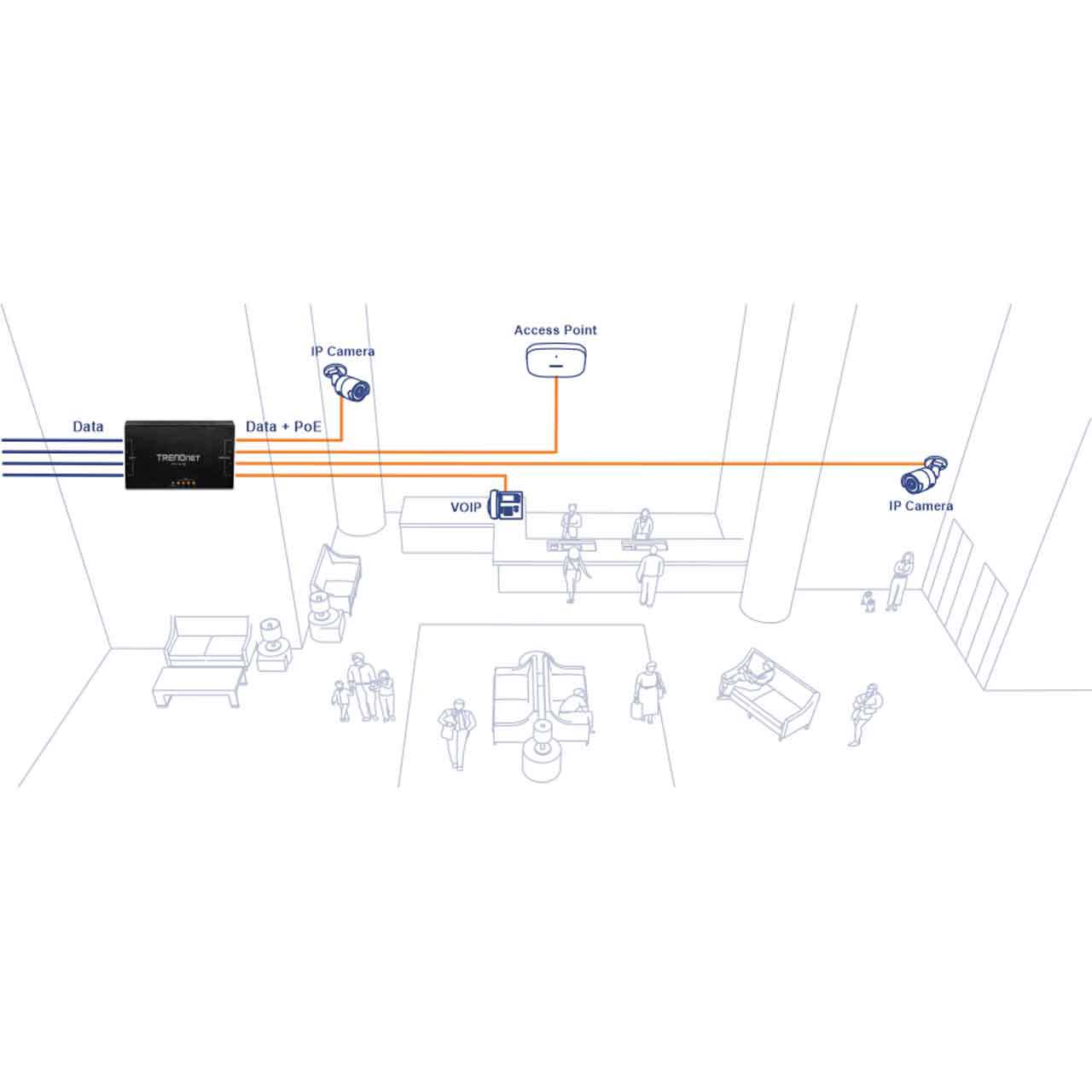

    TRENDnet's 65W 4-Port Gigabit PoE+ Injector, model TPE-147GI, allows users to add PoE+ power to a non-PoE switch. Connect the 4-port PoE+ injector to a non-PoE Gigabit switch, and then run Ethernet cables up to 100 meters (328 ft.) to network four PoE devices. This multi-port gigabit PoE+ injector supplies up to 30W of power to four PoE or PoE+ devices. The fanless design on the 4-port PoE+ injector conveniently eliminates operating noise and lowers energy consumption.

    • Features:

      • 4 x Gigabit ports (Data in)
      • 4 x Gigabit PoE+ ports (Data + PoE out)
      • 65W PoE power budget
      • Supports both PoE (15.4W) and PoE+ (30W) power
      • Uses IEEE 802.3af / IEEE 802.3at industry PoE standards for greater device interoperability
      • Connects PoE devices up to 100m (328 ft.) away
      • Fanless design eliminates operating noise and lowers energy consumption

    • Specifications:

      • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
      • Device Interface: 4 x Gigabit Data in ports, 4 x Gigabit Data + PoE+ out ports, Metal Housing, Power Switch
      • PoE Budget: Max. 65W
      • Power: Input: 100 - 240V AC, 50/60 Hz, Output: 55V DC, 1.3A, Max. consumption: 70W
      • Temperature: 0° - 40° C (32° - 104° F)
      • Humidity: Max. 90% non-condensing
      • Certifications: CE, FCC
      • Dimensions: 126.4 x 73.95 x 32mm (5 x 2.9 x 1.26 in.)
      • Weight: 322g (11.3 oz.)

    • Item Includes:

      • 1x TPE-147GI
      • 1x Quick Installation Guide
      • 1x Power Brick
      • 1x Power Cord

    • Warranty:

      • 3 year

    • GTIN:

      0710931161724
