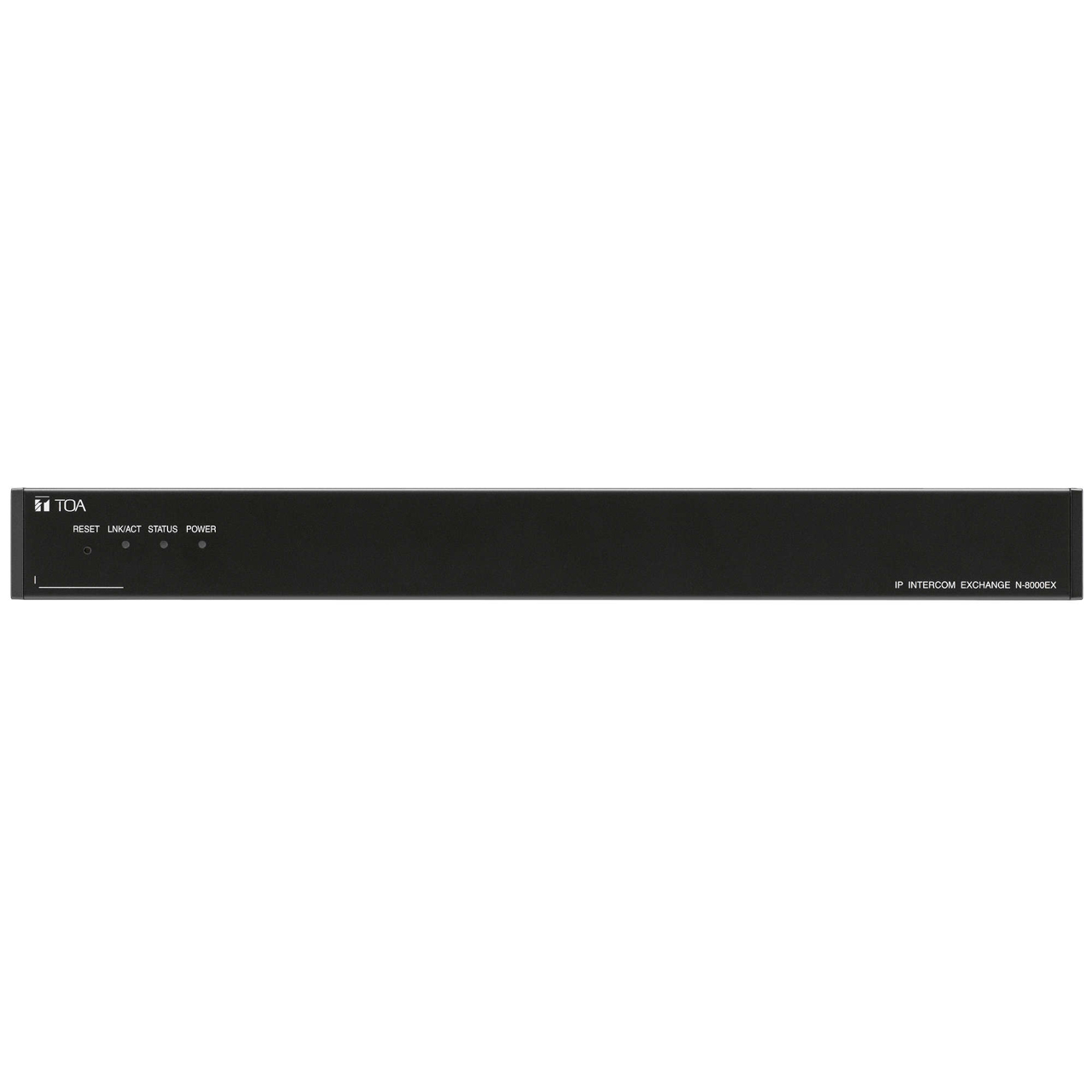

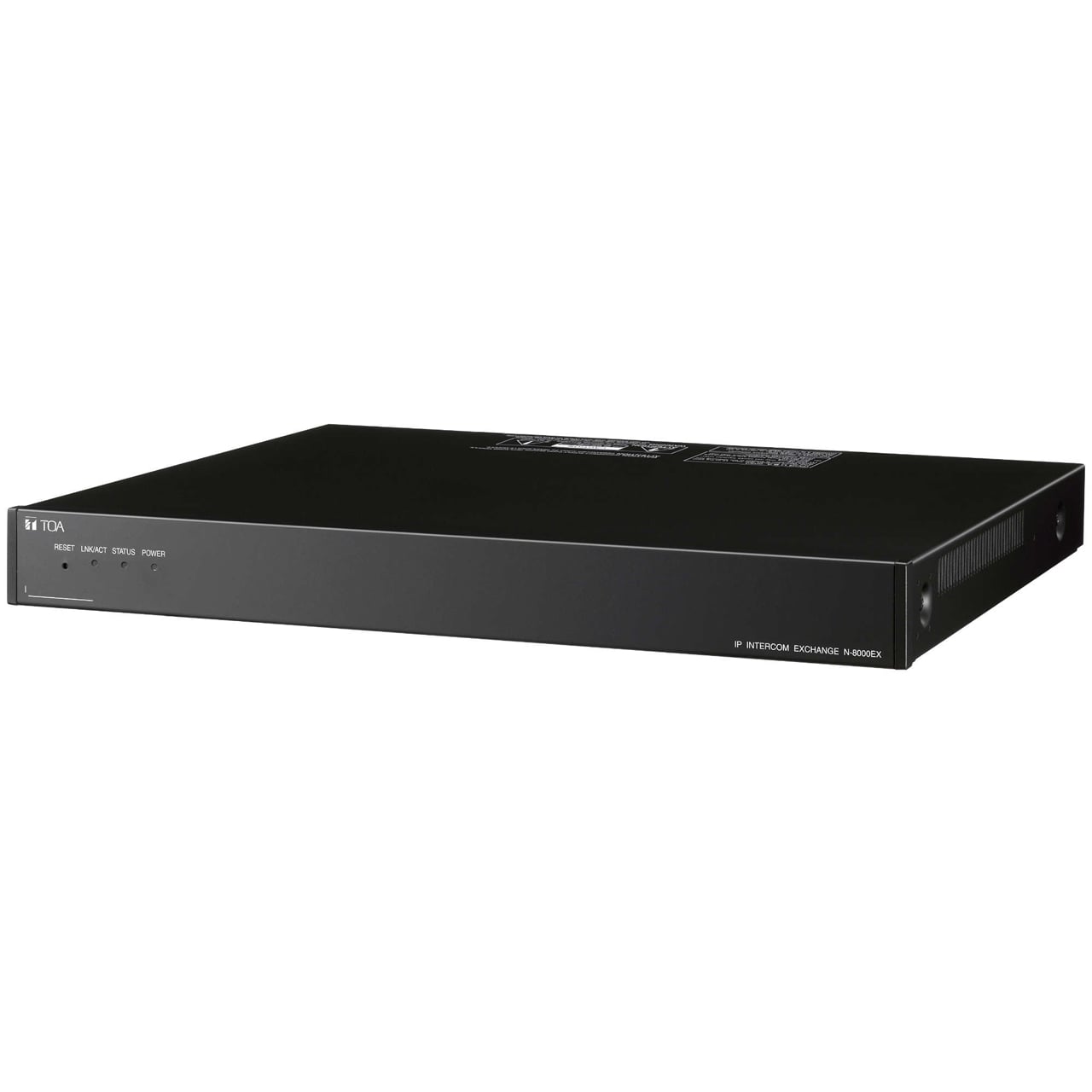

TOA N-8000EX IP Intercom 2-Wire Exchange with 2x Line-Level Audio Outputs - Rack / Wall Mount Kit Included

N-8000EX - Overview

• Features:

  • 10 Base-T/100 Base-TX Ethernet network connection
  • 16 station capacity

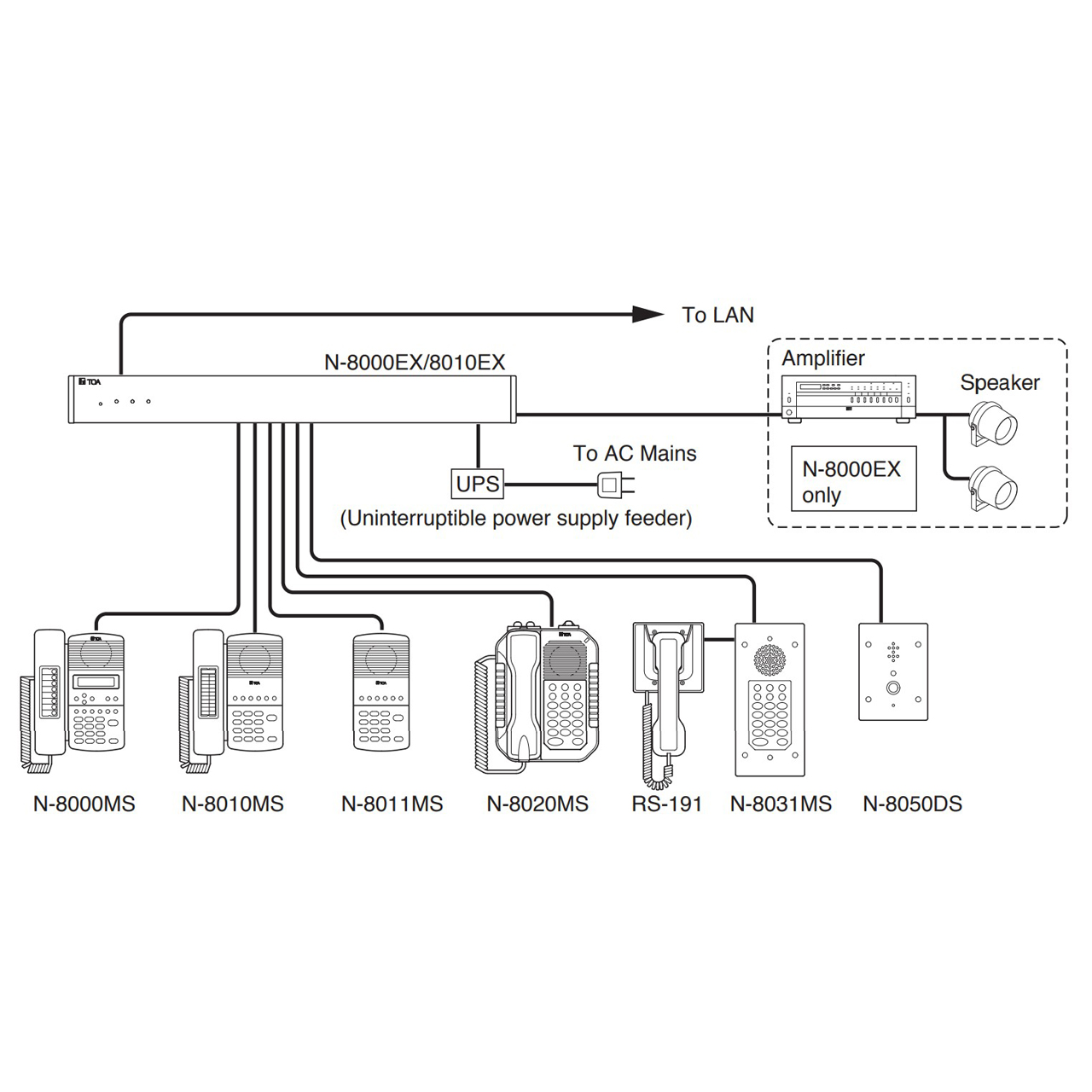

  • Stations connect to exchange via twisted pair cable
  • 4 internal/8 external speech links
  • 2 audio paging outputs, 2 relay outputs


• Specifications:

  • Power Source: 120V AC, 50/60Hz
  • Power Consumption: 50W (at rated), 75W (max.)

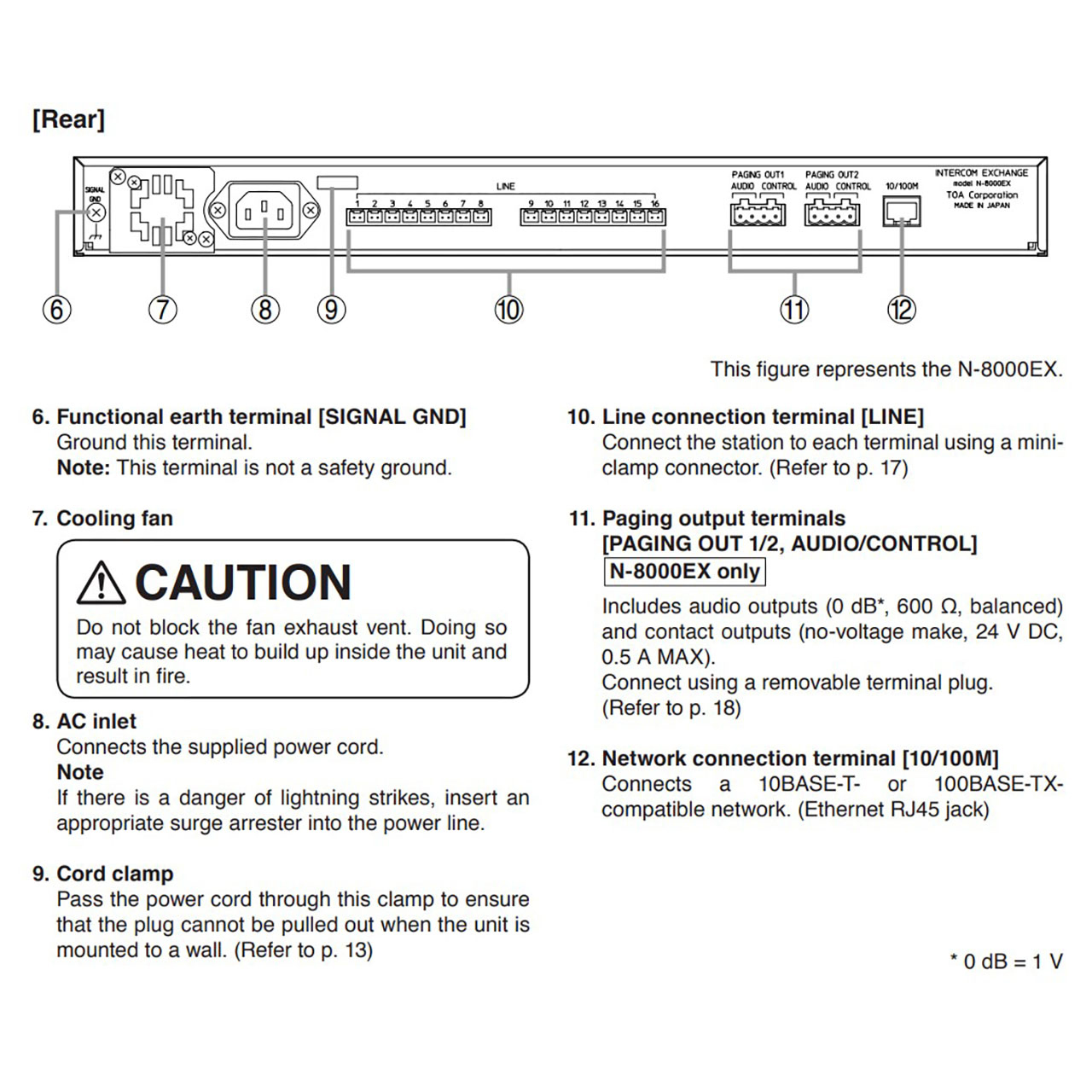

  • Paging Output:
    - Audio: 2 channels Max. 0dB*, 600Ω, balanced
    - Control: 2 channels, relay contact output, contact capacity: 24V DC/0.5A

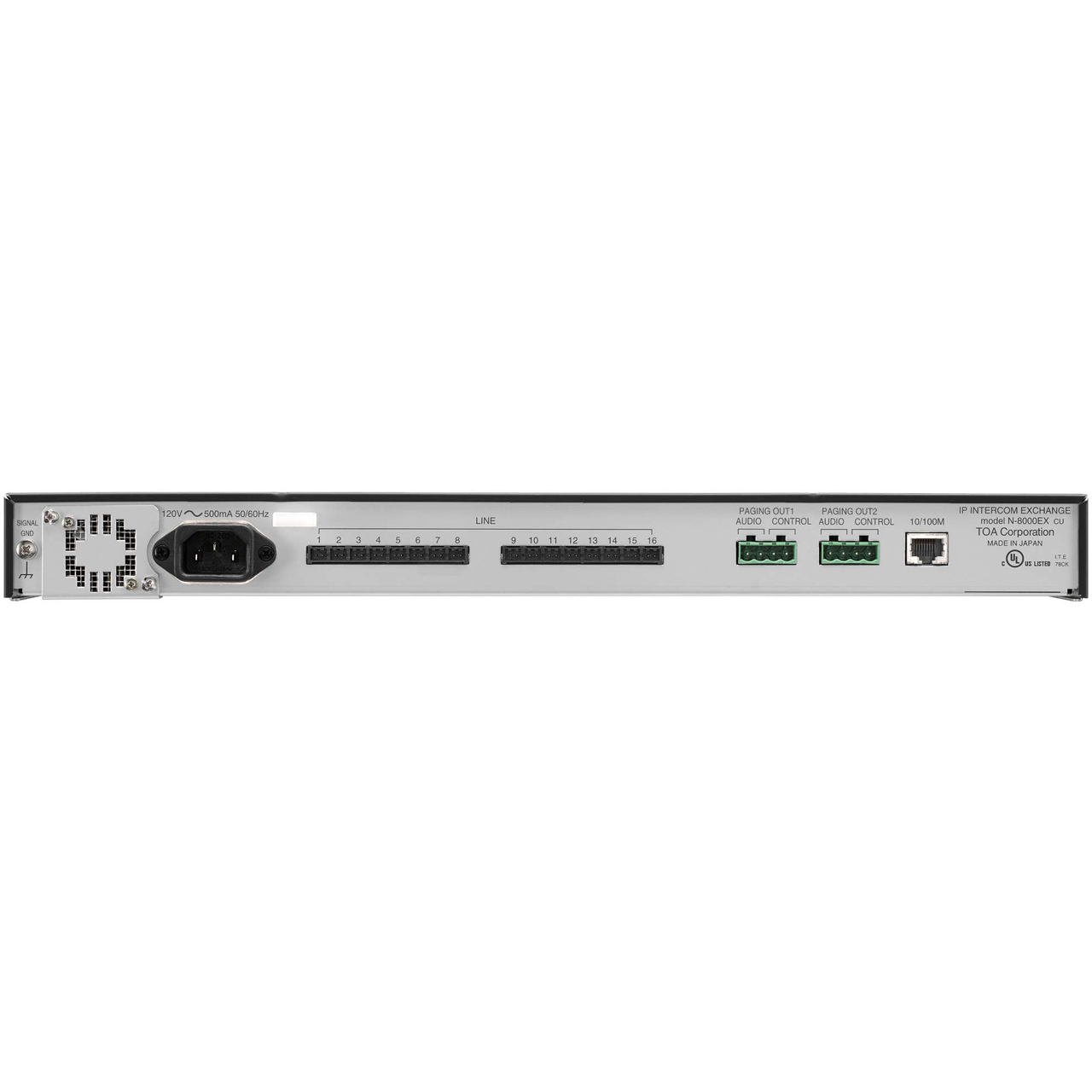

    - Connector: Removable terminal block
  • Interface Section for Station:
    - Number of Lines: 16 lines
    - Number of Speech Link: Internal: 4/External: 8
    - Type of Speech Path: Space sharing/Time Space sharing
    - Transmission System: 2 wire 160kbps echo canceller transmission system
    - Signal Level: 0dB* or less
    - Transmission Range: Max. 1500m (F0.65mm, Loop resistance 170Ω)
    - Speech Method: Simultaneous conversation by way of echo canceller (Hands-free)
    - Connector: Dedicated connector
    - Wiring Method: 1 set of twisted pair cable
    - Feeding Voltage/Current: 48V DC, Max. 70mA
  • Network Section:
    - Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
    - Network Protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
    - Audio Packet Transmission System: Unicast, Multicast
    - Number of Paging Destinations: Unicast (max. 16), Multicast (max. 191)
    - Connector: RJ45 connector
    - Voice Sampling Frequency: 16kHz, 8kHz (controllable on the software)
    - Quantifying Bit Number: 16-bit
    - Voice Encoding Method: Sub-band ADPCM, Cryptosystem
    - Voice Packet Loss Recovery: Silence insertion
    - Audio Delay Time: 80 ms, 320 ms (controllable on the software)
  • Indicator: Network LNK/ACT indication, Status lamp, Power-on indication lamp
  • Other:
    - Firmware update function, System data hold function, Reset switch (front panel)
    - Forced air cooling, Time of day hold facility
  • Installation Method: Rack, Desk, Surface mount
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Operating Humidity: 90% RH or less (no condensation)
  • Finish: Pre-coated steel plate, black, 30% gloss
  • Dimensions (WxHxD): 16.54" x 1.74" x 14.02" (420mm x 44.3mm x 356mm)
  • Weight: 9lbs (4.1kg)
  • Shipping Weight: 14.11lbs (6.4kg)


• Item Includes:

  • 1x AC power cord (2m)
  • 1x CD (for PC setting, maintenance use)
  • 2x Removable terminal plug (4 pins)
  • 20x Mini-clamp plug (2 pins)
  • 4x Plastic foot
  • 4x Screw for fitting plastic foot
  • 2x Rack mounting bracket
  • 4x Screw for rack mounting
  • 2x Wall mounting bracket
  • 8x Screw for mounting bracket
  • 4x Screw for wall mounting
