TOA N-8000MI IP Intercom Multi Interface Unit with 2x Line-Level Audio Input / Output - Rack / Wall Mount Kit Included

Name: TOA N-8000MI IP Intercom Multi Interface Unit with 2x Line-Level Audio Input / Output - Rack / Wall Mount Kit Included
Brand: TOA Electronics, Inc.
SKU: TOA-N-8000MI
Price: 3480.00 USD
Availability: Backorder

ITEM #: TOA-N-8000MI MFG #: N-8000MI

TOA Electronics, Inc.

List Price:

$4,307.00

Our Price:

$3,480.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

N-8000MI - Overview

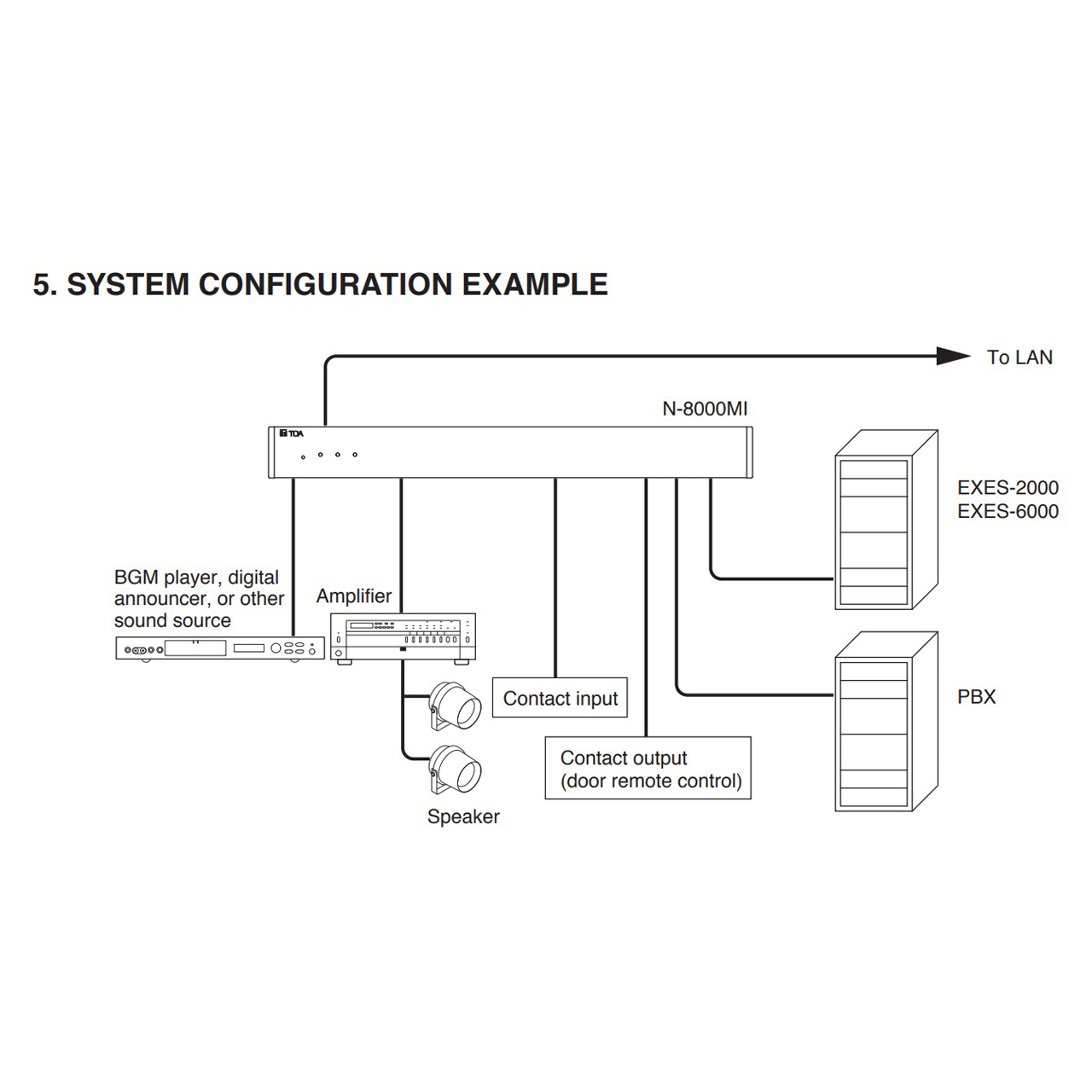

The TOA N-8000MI is a multi-interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. Connecting the multi-interface to a local area network permits the ideal system for in-house or wide-area information transmission applications, such as paging, periodical broadcasts, and background music broadcasts, to be built between the multi-interface and IP intercom exchange or other multi-interface unit. The contact bridge function can be realized through contact input and output control. The N-8000MI also features the tie-line function to be connected to the EXES-2000 intercom system or the EXES-6000 system. A total of up to 192 multi-interface units and IP intercom exchanges can be connected to a network. The unit can be mounted in an EIA standard rack (1-unit size) or to a wall using the supplied bracket.

Features:
- 10 Base-T/100 Base-TX Ethernet network connection
- 16x Contact Input/16x Contact Output
- Function to diagnose system line and network status
- 2x Audio Inputs: Paging, BGM
- 2x Audio Outputs: Paging
Specifications:
- Power Source: 120V AC, 50/60Hz
- Power Consumption: 16W (250mA)(at rated), 21W (330mA)(max.)
- Audio Input:
  - Input: 2x inputs (2x P/input), Max. 0dB (*1), 600Ω or less, balanced, with a semi-fixed volume for adjustment (0dB - -25dB)
  - Control: 2x inputs (2x P/input), no-voltage make contact input, open voltage: 12V DC,
  - Short-Circuit Current: 10mA
  - Removable terminal block (8 pins)
- Audio Output:
  - Output: 2x outputs (2x P/output), Max. 0dB (*1), 600Ω or less, balanced
  - Control: 2x outputs (2x P/output), relay contact output, contact capacity: 24V DC/0.5A
  - Removable terminal block (8 pins)
- Contact Input:
  - 16x Inputs, No-Voltage Make Contact Input, Open Voltage: 12V DC,
  - Short-Circuit Current: 10mA, removable terminal block (18 pins)
- Contact Output: 16x outputs, relay contact output, contact capacity: 24V DC/0.5A, removable terminal block (18 pins)
- PBX I/F: PBX input and output: 2 channels, Max.: 0dB (*2) or less, Average: -15dB (*2) or less, 600Ω, balanced, mini-clamp connector (2 pins), with adjustment functions for both input and output (Input: 0dB - +15dB, Output: -15dB - 0dB), Analog E & M interface
- Tie-Line I/F:
  - Tie-line Input and Output: 2 channels, Max.: 0dB (*2) or less, Average: -15dB (*2) or less, 600Ω, balanced, mini-clamp connector (2 pins)
  - Signal Method: EXES-2000/EXES-6000 tie-line method
  - Selective Signal: DTMF signal
- Network Section:
  - Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
  - Network Protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
  - Audio Packet Transmission System: Unicast, Multicast
  - Number of Paging Destinations: Unicast (max. 16), Multicast (max. 191)
  - Connector: RJ45 connector
  - Voice Sampling Frequency: 16kHz, 8kHz (controllable on the software)
  - Quantifying Bit Number: 16-bit
  - Voice Encoding Method: Sub-band ADPCM, Cryptosystem
  - Voice Packet Loss Recovery: Silence insertion
  - Audio Delay Time: 80 ms, 320 ms (controllable on the software)
- Indicator: Network LNK/ACT indication, Status lamp, Power-on indication lamp
- Other:
  - Firmware update function, System registration data entry hold facility
  - Time of day hold facility, Reset switch (front panel)
- Installation Method: Rack, Desk, Surface mount
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Operating Humidity: 90% RH or less (no condensation)
- Finish: Pre-coated steel plate, black, 30% gloss
- Dimensions (WxHxD): 16.54" x 1.9" x 9.43" (420mm x 44.3mm x 239.5mm)
- Weight: 6.17lbs (2.8kg)
- Shipping Weight: 10.58lbs (4.8kg)
Item Includes:
- 1x AC power cord (2 m)
- 1x CD (for PC setting, maintenance use)
- 10x Mini-clamp plug (2 pins)
- 2x Removable terminal plug (8 pins)
- 4x Removable terminal plug (9 pins)
- 4x Plastic foot
- 4x Screw for fitting plastic foot
- 2x Rack mounting bracket
- 4x Screw for rack mounting
- 2x Wall mounting bracket
- 8x Screw for mounting bracket
- 4x Screw for wall mounting
