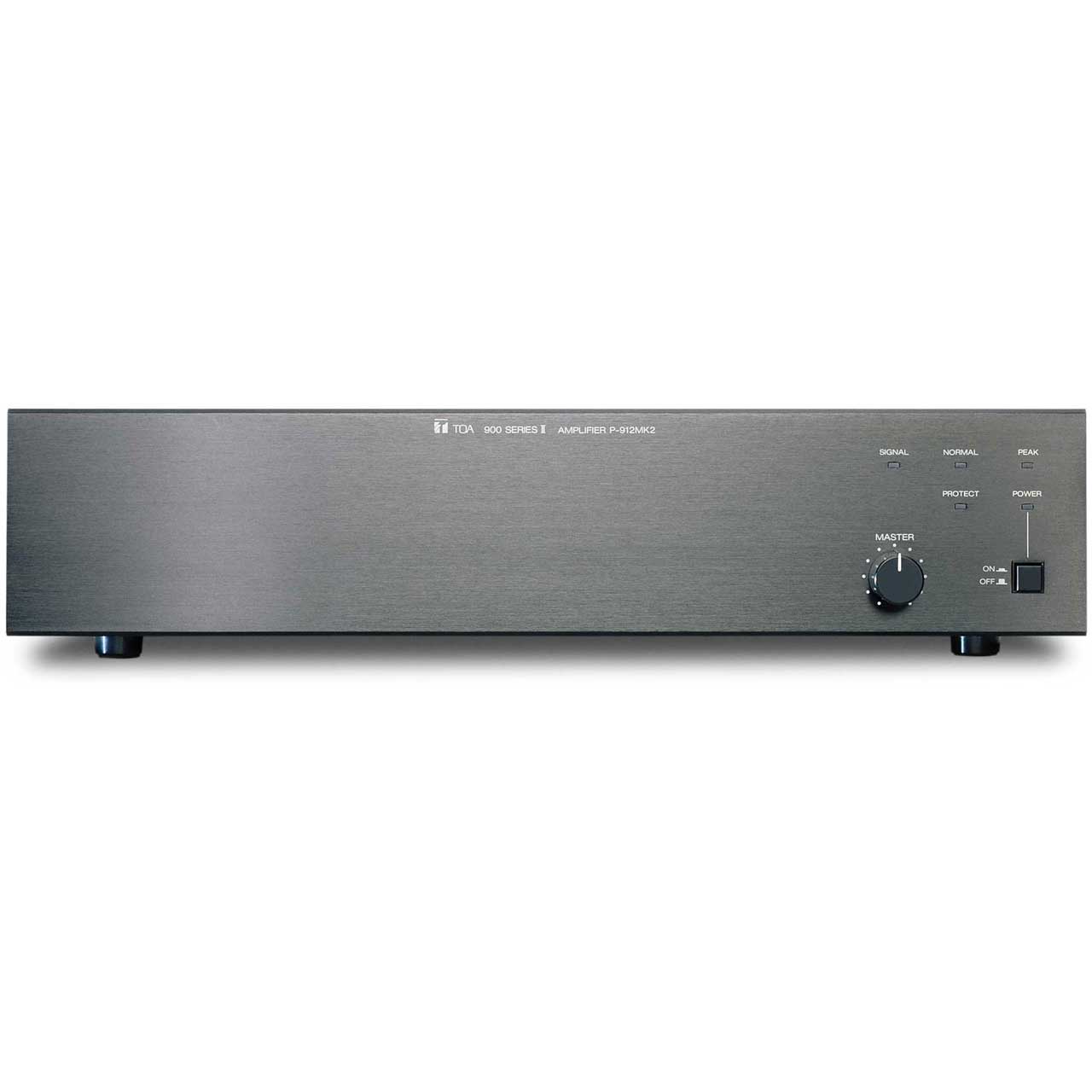

TOA P-912MK2 UL 2U 120Watt Power Amplifier with 1 Module Port - Black

P-912MK2 UL - Overview

• Specifications:

  • Type: Power amplifier
  • Power Requirement: AC mains, 120 V, 60 Hz
  • Power Consumption: 180 W
  • Output Power: 120 W RMS
  • Power Band Width: (D) 20 ? 20,000 Hz, 0.5% THD, (T) 50 ? 20,000 Hz, 0.5% THD
  • Frequency Response: (D) 20 ? 20,000 Hz, ±1 dB, (T) 20 ? 15,000 Hz, ±1 dB, (T) 20 ? 20,000 Hz, +1 dB, -3 dB
  • T.H.D: 0.01% at 1 kHz, rated output
  • Inputs: One Input Port : Port accepts any input module expect T-01
  • Input Sensitivity /Impedance: Input Port : 100 mV or 1000 mV (switchable)/10 kΩ Direct Input : 100 mV or 1000
    mV (switchable)/10 kΩ
  • Outputs(T)=Transformer (D)=Direct: Main (T) : 8 Ω, 25 and 70 volts, balanced, Main (D) : 4 Ω, unbalanced
  • Output Regulation(1kHz): (D) Less than 0.5 dB, no load to full load, (T) Less than 1.0 dB, no load to full load
  • S/N Ratio(Band Pass 20 ? 20,000 Hz): Input level switch in 0 dBV (1000 mV) position : 108 dB, Input level switch in
    -20 dBV (100 mV) position: 90 dB
  • Controls: 1 Input gain control 1 Input level switch, 1 Power ON/OFF switch 1 Low-Cut switch
  • Indicators: 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
  • Protection: Self-protection, with AC fuse (inside)
  • Connectors: Input : Card-edge connector and screw-terminal strip, Output : Screw-terminal strip, AC outlet :
    3-pin grounding type AC power cord/plug : SJT, 3-prong type
  • Temperature Range: -10°C ? +60°C (12°F ? 140°F)
  • Finish: Black
  • Dimensions(WxHxD): 420(16.54") x 99.1(3.90") x 358(14.09") mm
  • Weight: 10.9 kg (24.03 lb.)
  • Accessory: Volume control cover (YA-920)
  • Option: Rack mounting bracket (MB-25B)
