Newtek TCM4KUHDDB Tricaster Mini Deluxe Bundle

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

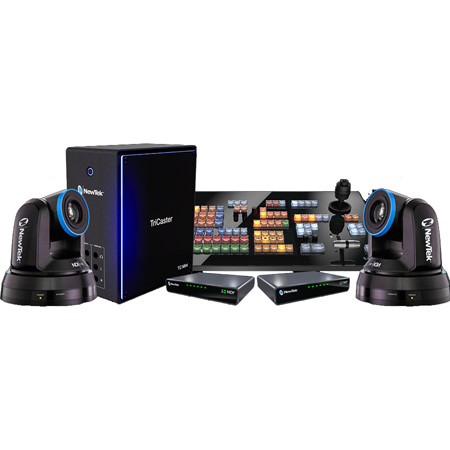

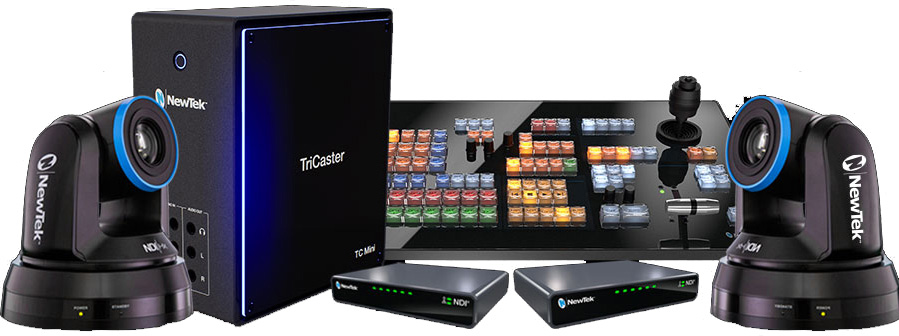

    Newtek TCM4KUHDDB Tricaster Mini Deluxe Bundle

    Manufacturer: NewTek

    Item #: TRI-TCM4KUHDDB   •   MFG #: TCM4KUHDDB




    Our Price:$19,995.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      NewTek TC Mini (TCM4KUHDDB) is an easy to use compact video creation system to let anyone with a story to tell make fun & exciting shows without needing production expertise.

      You don't have to be a video expert to tell your story with television-quality results. with TC Mini, you can be on your way to making a show in resolutions up to 4K UHD for delivery to any type of screen you want within minutes of opening the box. TC Mini takes portable live production to new heights with hundreds of amazing features, including virtual sets, social media publishing, multi-channel audio mixing, streaming, integrated media playback, & even live motion graphics & Live Story Creator MS Word® show automation w/ Premium Access. TC Mini delivers you all the benefits of IP based production using NDI® for easy connectivity to media components while leveraging simple one-to-one connections to your HDMI cameras & devices without cable length limitations.


      • Features

        • TriCaster TC1SP
        • Intuitive layout mapped to the TriCaster TC1 user interface
        • Practical lighting & backlighting for heightened visibility of control panel activity
        • Dynamically variable T-Bar lighting for visual feedback of effect status & progress
        • Premium controls for precision h&ling of real-time video operations
        • Expertly engineered for performance, ergonomics, & style

          PTZ Camera
        • Multicast Mode
        • NDI® Output
        • Power over Ethernet
        • Pan-Tilt-Zoom
        • 3G-SDI & HDMI Output
        • Program & Preview Tally
        • Remote Control & Monitoring
        • Remote Recording
        • Video B&width
        • Video Settings
        • Audi
        • NDI® Virtual Input
        • Network Identification
        • Free Firmware Updates

          TriCaster Mini
        • 4K Ultra HD
        • Multi-Source Video Mixing
        • Built-In Video Servers
        • Skype TX Software Integration
        • Recording
        • Replay
        • Live Streaming
        • Social Media Integration
        • Live Sound Experience
        • Phenomenal Creative Elements
        • Real Time Monitoring & Multiviewers
        • Studio Grade Video Tools
        • Spectular Live Chromakeying
        • World Class Live Virtual Sets
        • Interconnected Workflows

      • Specifications

        • TriCaster TC1SP
        • Stripes: 1.5x panel stripes
        • Source Buttons: 14x switcher source buttons; 11x M/E source buttons
        • Joystick: 1x multi-mode joystick
        • T-Bar: 1x multi-mode T-Bar
        • Connectivity: USB
        • TriCaster Mini
        • Network Video Input: 8x IP video inputs via NDI, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, & frame rates: 2160p 59.94/50/29.97/25/24/23.976 1080p: 59.94/50/29.97/25/24/23.976 1080i: 59.94/50 720p: 59.94/50/29.97/25 SD: 59.94/50/25
        • Network Video: 2x independent IP video mix outputs via NDI
        • Stream: 2x streaming video output, independently configurable, w/simultaneous stream archive
        • Monitor: 4x mini display port w/HDMI output adapters; 2x of the outputs support multiviewers using standard display resolutions
        • Mix/Effect Buses (M/E): 4x M/E buses supporting video re-entry; 1x Mix/Effect channel per bus w/support for up to 2 sources; 2x KEY layers per bus; 9x memory slots per bus; DSK Channels: 2x DSK channels
        • Media: 5x media players; 2x DDR; 2x GFX; 1x Sound; 15x media buffers; 5x animation buffers; 10x graphic buffers
        • Keyers: Integrated LiveMatte chroma & luma keying technology on all source channels & M/E buses; 8x input keyers; 2x media player keyers; 4x M/E keyers; 15x buffer keyers
        • COMP: Integrated video composition engine on the switcher & each M/E bus to create, store, & apply layer configurations & DVE-style motion sequencesl; 16x configurable COMP presets per bus
        • Virtual Sets: Integrated LiveSet technology w/30+ live virtual sets & box effects included
        • DataLink: Integrated DataLink technology enabling real-time, automated data input from internal & external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII & more
        • Recording: 4x recording channels from either NDI inputs or Mix outputs (10x w/Premium Access) Records & retains alpha channel data; 4x QuickTime archival video recorders (Native NDI Codec for recording)
        • Storage: Capacity varies by format, resolution & file specification; Supports recording to external storage via USB 3.0
        • Grab: Grab full-resolution, deinterlaced still images from external video sources & outputs
        • Export: Export video & image files to social media, FTP, local or external volumes, & network servers, w/optional transcoding
        • Audio Mixing: Integrated multi-channel audio mixer w/support for stereo audio, & DSP's
        • Local Audio In/Output: 1x 1/4" bal. mic; 2x 1/4" bal. line/2x 1/4" bal. line; 1x 1/4" stereo headphones jack
        • Network Audio: Native support for network audio input & output via NDI; Embedded audio supported for all NDI input & output video signals; Integrated support* for Dante networking protocol from Audinate
        • Note: *Requires Dante Virtual Soundcard license from Audinate; Requires third-party virtual sound card license (both sold separately)
        • Supported Media File Formats: Import/store & play back multimedia files, w/optional transcoding
        • Processing: Video: Floating Point YCbCr +A 4:4:4:4; Audio: Floating Point, 96kHz
        • Throughput Latency: 1.0-1.5 frames
        • Tally: Support for network tally via NDI
        • MIDI: Support for standard MIDI protocol enabling third-party device control
        • NIC: 2x 1 Gigabit NIC
        • PTZ Camera
        • Video Output/Formats: Video output via NDI HX, 3G-SDI, &/or HDMI/Formats: 1080p: 60, 59.94, 50, 30, 29.97, 25, 1080i: 59.94, 50, 720p: 60, 59.94, 50, 25
        • Lens: 20x Optical/12x Digital
        • Focal Length: 4.7-94mm
        • Aperture: F1.6 to F3.5
        • Shutter/Rotation Speed: 1/1 to 1/10,000sec/300°sec max
        • Panning/Tilting Angle: -170 to +170°/-30 to +90°
        • Horizontal Viewing Angle: 63°
        • Flip: Integrated image flip & mirror function for flexible installation
        • Preset Positions: 128
        • Min Illumination: 1 lux (F1.6, 50IRE, 30fps)
        • Min Object Distance: 300mm (wide)/1500mm (tele)
        • Audio Input: 3.5mm stereo (line)
        • Tally: Tally support via NDI/HX
        • Sensor: 1/2.8" CMOS, 2 megapixels
        • S/N Ratio: >50dB
        • Power: Power over Ethernet via POE+ (802.3at) or included DC 12V 1A external supply

      • Item Includes

        • 1x TriCaster Mini
        • 1x TriCaster TC1SP
        • 2x Input Modules
        • 2x PTZ1 Cameras
