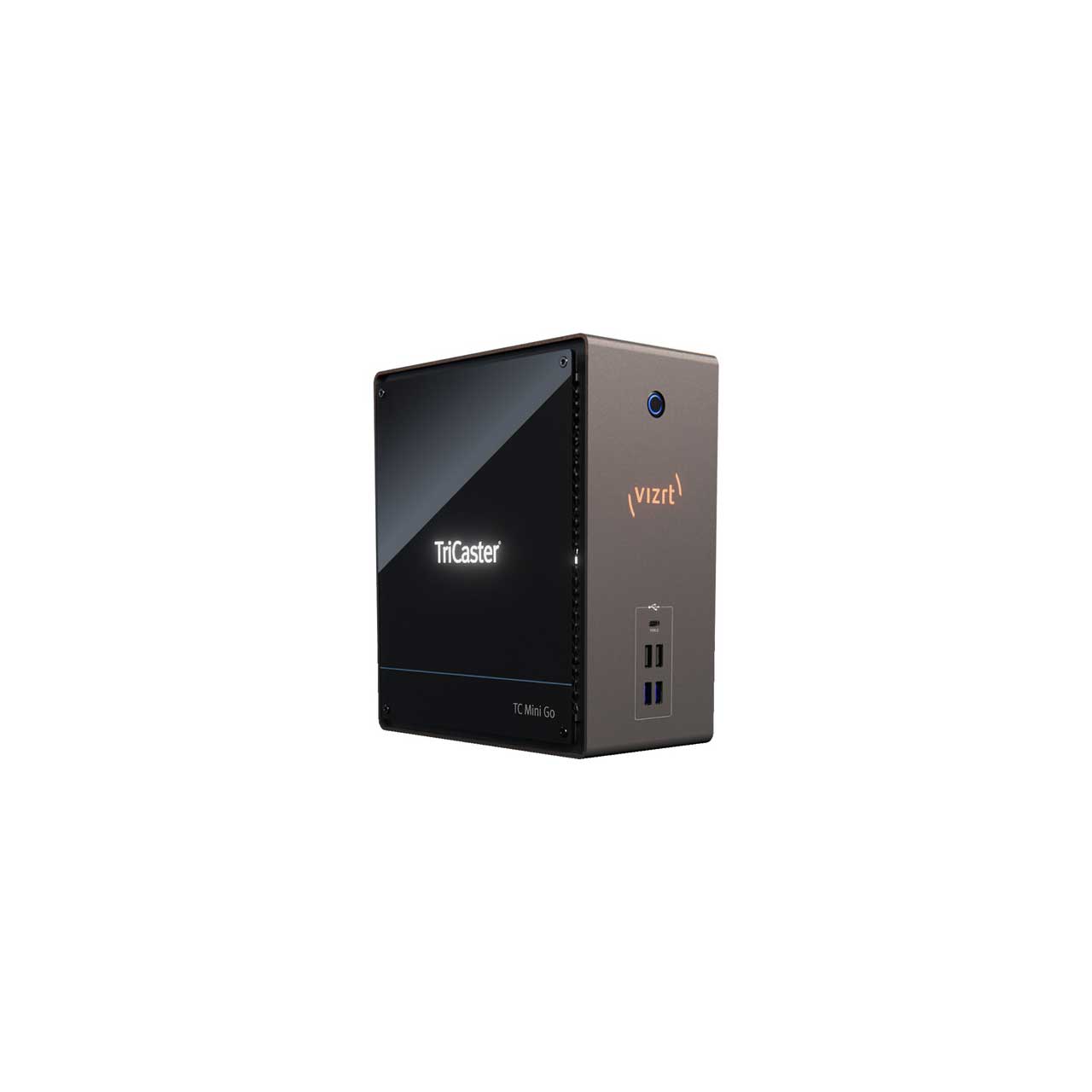

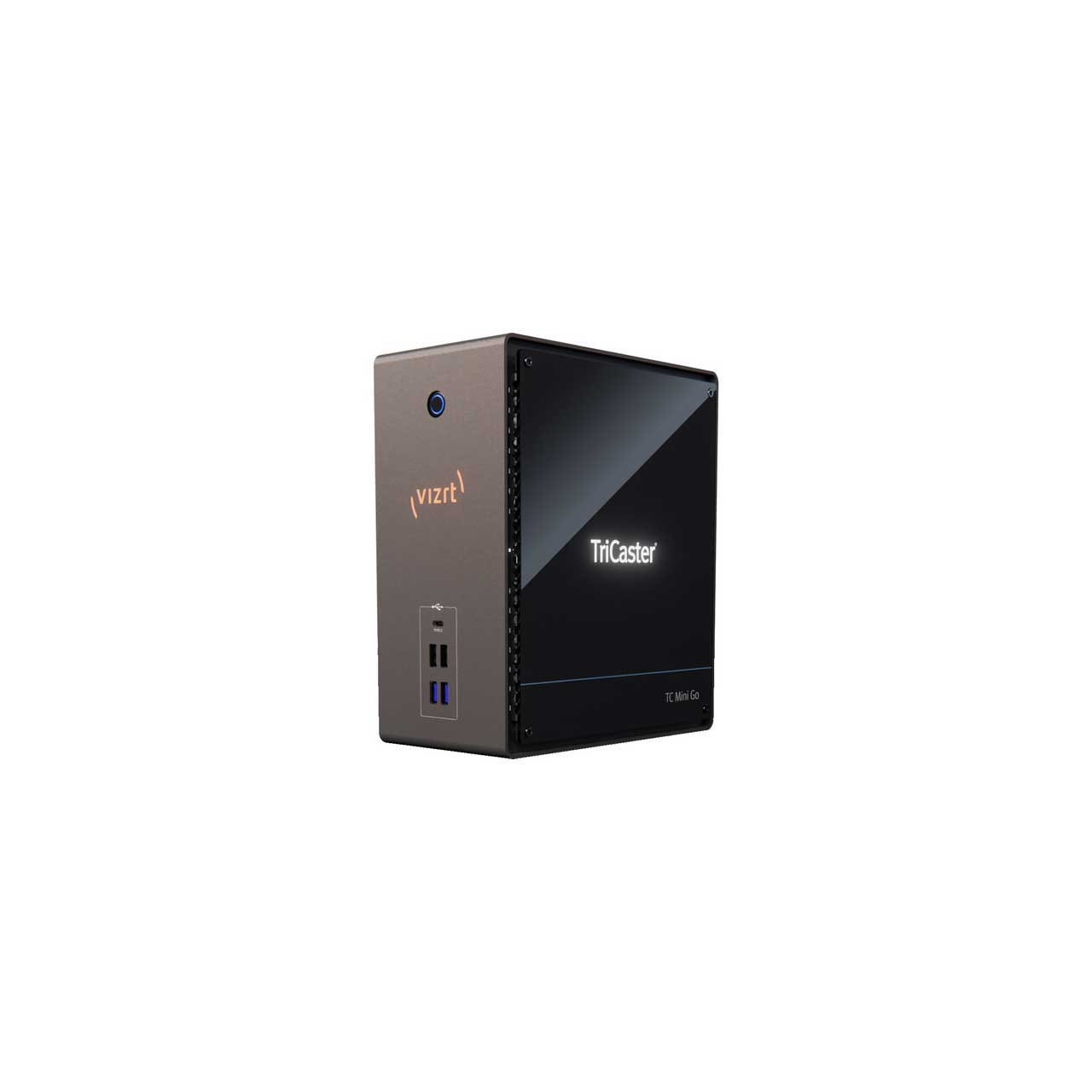

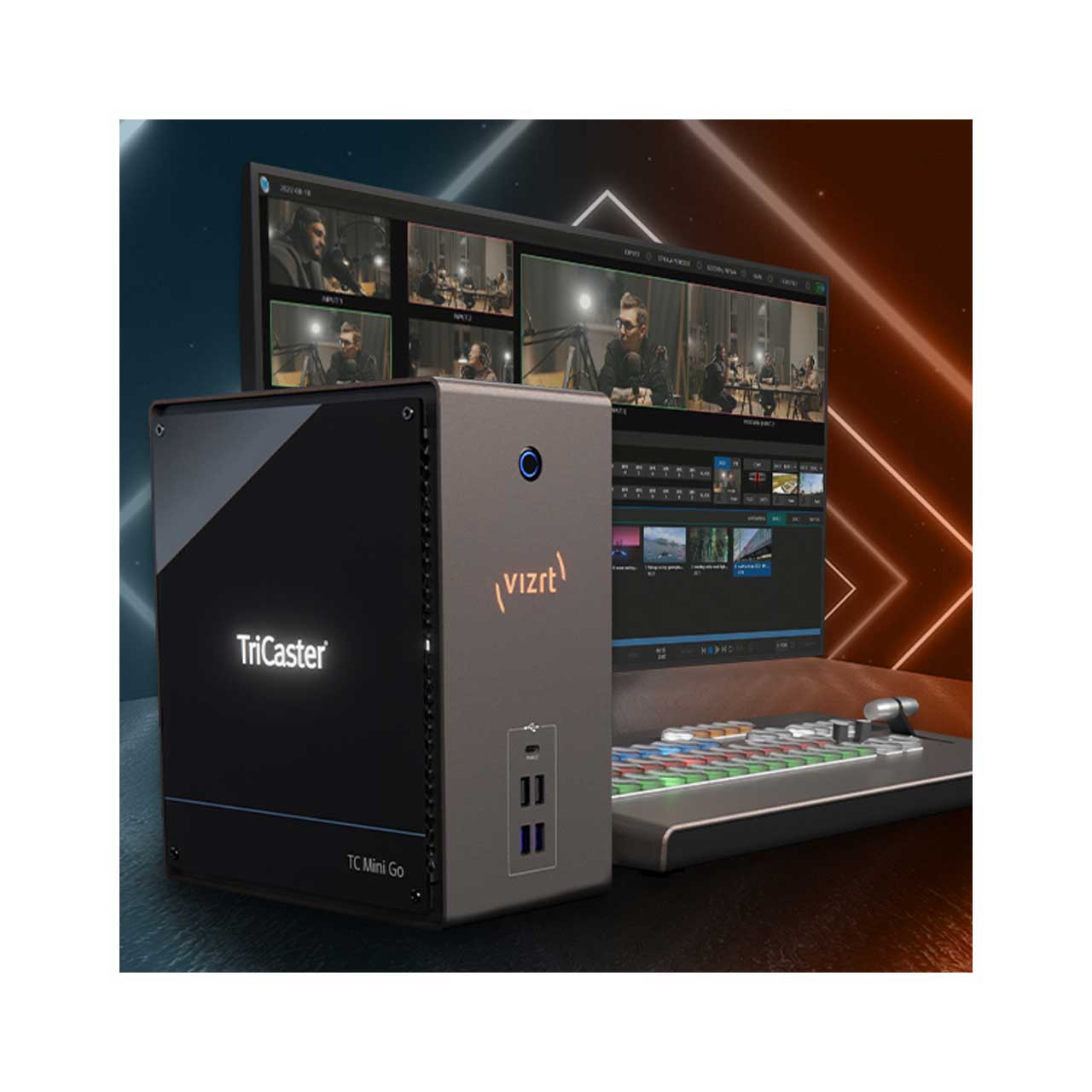

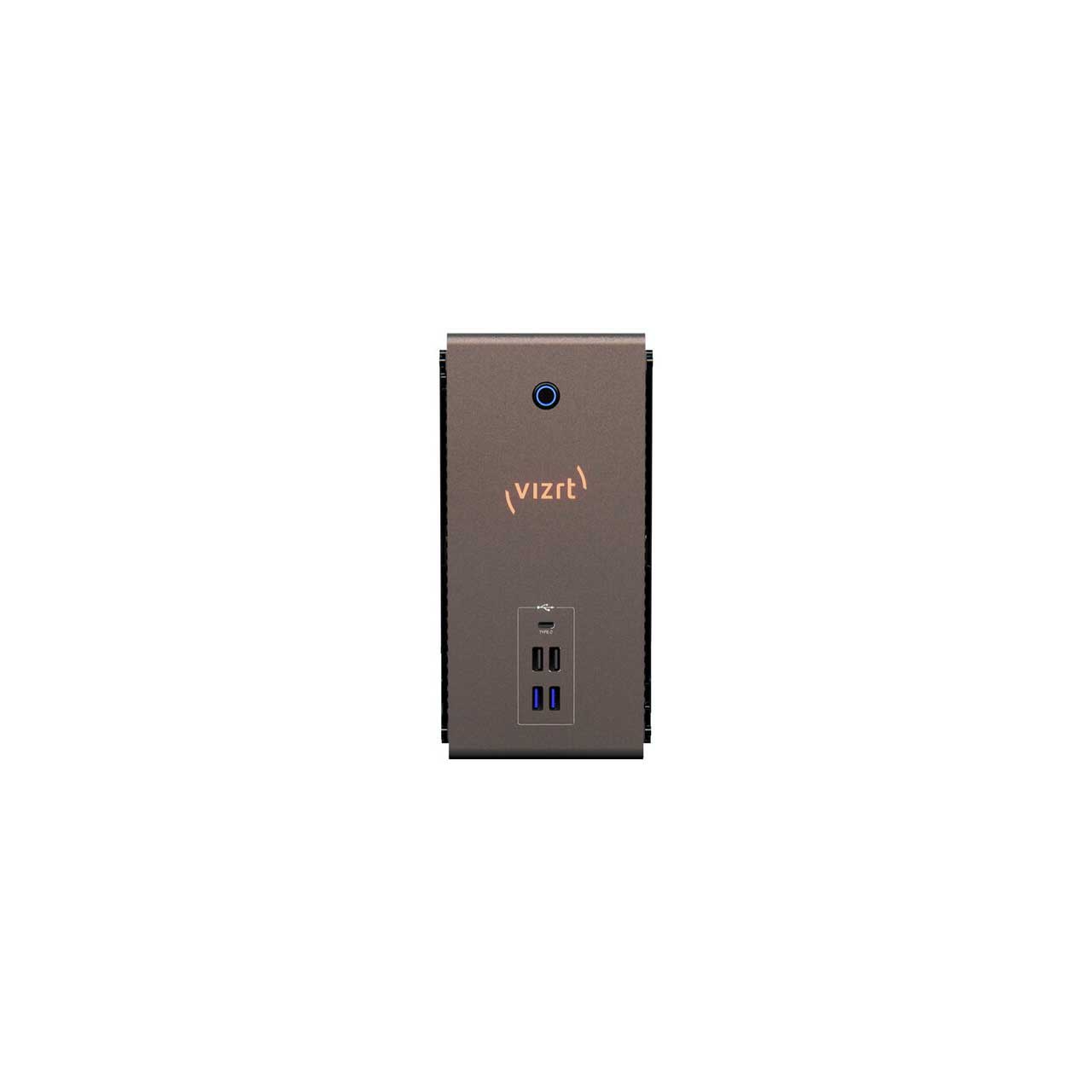

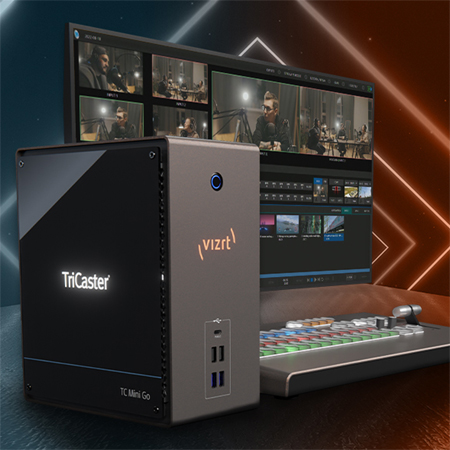

VIZRT TRI-TCMG Tricaster Mini GO Video Mixer - 1080p/60fps - Supports NDI - Mini Control Surface/Carrying Case Bundle

BDL-000000022 - Overview

The Easiest Way to Start Your Tricaster Journey

• Features:

  • All The Connectivity You Need - The TriCaster Mini Go offers all the connectivity you need in one desktop box including 4 external sources with 2x 2.5 Ghz network connections and 11 USB connections with a mix of USB 3.2, 2.0, and type C supporting resolutions up to 1080p/60.
  • Live Link for TriCaster - Live Link allows users to render web pages directly into the TriCaster and pull any web page elements into a production without the need for a 3rd party application. From graphics or images on a web page to videos from your organization's internal training platforms - Live Link offers the ultimate in production agility and freedom. Available now on all current TriCasters - ensure you have the very latest update to take advantage of this exciting feature.
  • Simplified IP Connectivity with NDI - Say goodbye to the tangled mess of bulky video cables and take advantage of the plug and play simplicity of NDI IP video protocol. Connect to a wide variety of NDI-enabled products, along with the world's largest ecosystem of third-party IP video products using a single network cable for video, audio, key, control, tally, and in some cases power over Ethernet.
  • Social Media Publication - Share real-time updates and on-demand content across your social media accounts, uploading images and video directly to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube and more-complete with comments and hashtags.
  • Multichannel Audio Mixing - Set the tone for your production with comprehensive audio integration, including a software-based audio mixer, support for digital, analog, and USB audio devices, audio over IP networking with NDI, Dante, and AES67, professional DSPs, fader control, VU metering, Talk Back communication, and 2 x 2 x 2 stereo audio with two audio mixes.
  • Real-Time Monitoring and Multiviewers - See everything happening during your production with fully adjustable single-screen or multi-screen monitoring. With three customizable multiviewers, configurable windows and workspace layouts, operator confidence monitors, visual indicators, scopes, and more, you can easily personalize the environment to your preference.
  • Built-in Video Players - Add your files to the built-in video players for on-demand and automated playback, including auto-advancing playlists, live-edited highlight reels, and much more. With responsive player controls, presets, real-time editing tools, selectable transitions, and playlist effects, you have everything needed to make magic from your stored media.


• Specifications:

  • Video Input: Up to 4 utilizing IP connections via SRT, NDI, RTMP, RTSP, WebRTC and Microsoft DirectShow compliant devices via USB
  • Audio Input: Embedded audio supported for IP protocols Supplemental support for Dante networking protocol from Audinate 3 Requires Dante Virtual Soundcard license from Audinate (sold separately) Support for professional USB audio devices via compatible WDM audio drivers
  • USB Connectivity: 2x USB 3.2 Type-C ports 6x USB 3.2 Type-A ports 3x USB 2.0 ports
  • Network Video Output: IP video output via NDI - 2x independent video mix outputs
  • Stream Output: 2x streaming video output, independently configurable, with simultaneous stream archive
  • Monitor Outputs: 2x mini display port with output adapters Max monitor resolution 1080p/60
  • Max Session Output Resolution: 1080p/60
  • Mix/Effect Buses (M/E): 2x M/E buses, 2x Keyers per bus, 2x Layers
  • DSK Channels: 2x DSK channels
  • Media: 5x Media Players (2x DDR, 2x GFX, 1x Sound) 15x Media Buffers (5x Live Link or Animation Buffers, 10x Graphic Buffers)
  • Audio Mixing: Integrated multi-channel audio mixer with support for stereo audio, and DSP's
  • Virtual Sets: Integrated LiveSet technology with 30+ live virtual sets and box effects included
  • DataLink: Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
  • Macros: Pre-defined system Macros - Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers - Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions - Supports control via web-based interface
  • Recording: 2x recording channels from either NDI inputs or Mix outputs - Records and retains alpha channel data
  • Storage: Capacity varies by format, resolution and file specification - Supports recording to external storage via USB 3.0 - Support for Network Attached Storage(NAS)
  • Grab: Grab full-resolution, deinterlaced still images from external video sources and outputs
  • Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
  • Supported Media File Formats: Import, store, and play back multimedia files, with optional transcoding, including: - Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more - Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more - Audio: AIFF, MP3, WAV, and more
  • Processing: Video: YCbCr + Alpha color space, using 4:2:2:4 Audio: 96 kHz
  • Latency: Processing Latency: ~1.0-1.5 frames
  • Tally: Support for network tally via NDI
  • MIDI: Support for standard MIDI protocol enabling third-party device control
  • NIC: 2x 2.5 Gigabit NIC


• Item Includes:

  • 1x Vizrt Tricaster Mini Go
  • 1x Tricaster Mini Control Surface
  • 1x Carrying Case


• Warranty:

  • 2-Year Limited Warranty
