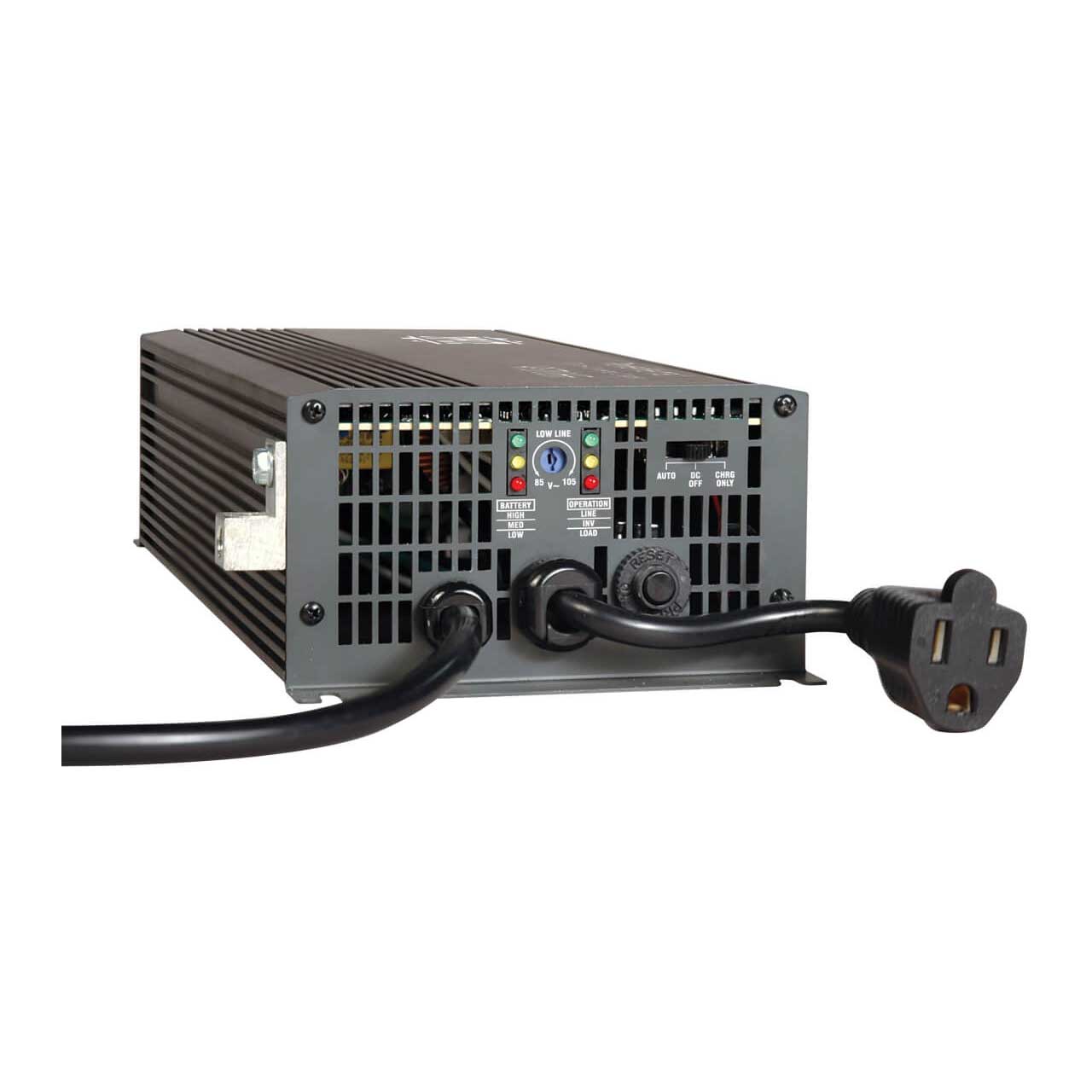

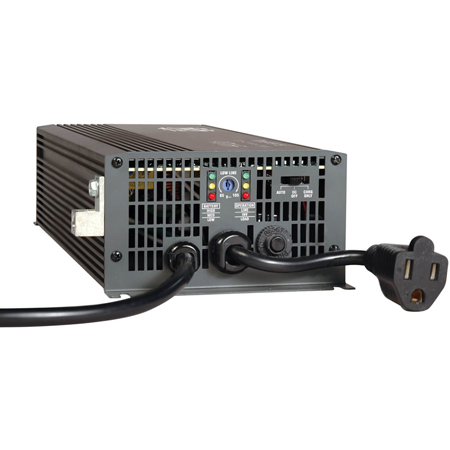

Tripp Lite APS700HF 700 Watt PowerVerter APS 12VDC 120V Inverter/Charger with Auto-Transfer Switching and 1 Outlet

ITEM #: TRL-APS700HF MFG #: APS700HF

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$484.84

Our Price:

$329.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    APS700HF - Overview

    Tripp Lite APS700HF is a portable single-outlet power source for small power applications, such as power tools and computers, as a vehicle inverter, standalone AC power source or extended-run UPS. Ideal for RVs, fleet vehicles and conversion vans.

    700W PowerVerter APS 12V DC 120V AC Inverter/Charger is a reliable power source for a variety of small power applications ranging from power tools to computers and sensitive monitoring equipment. With no fumes, fuel or excess noise, it's an excellent alternative to generator power.

    The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 700W of continuous power, 1050W up to 1.5 seconds, or 1400W of peak power up to 1.1 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breaker protect the unit from damage.

    Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans, the APS700HF converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power and sends it to a NEMA 5-15R outlet for unlimited runtime. When powered by an external 120V AC source, the unit keeps the user-supplied battery charged via a three-stage 6A charging system while simultaneously delivering AC power to connected equipment.

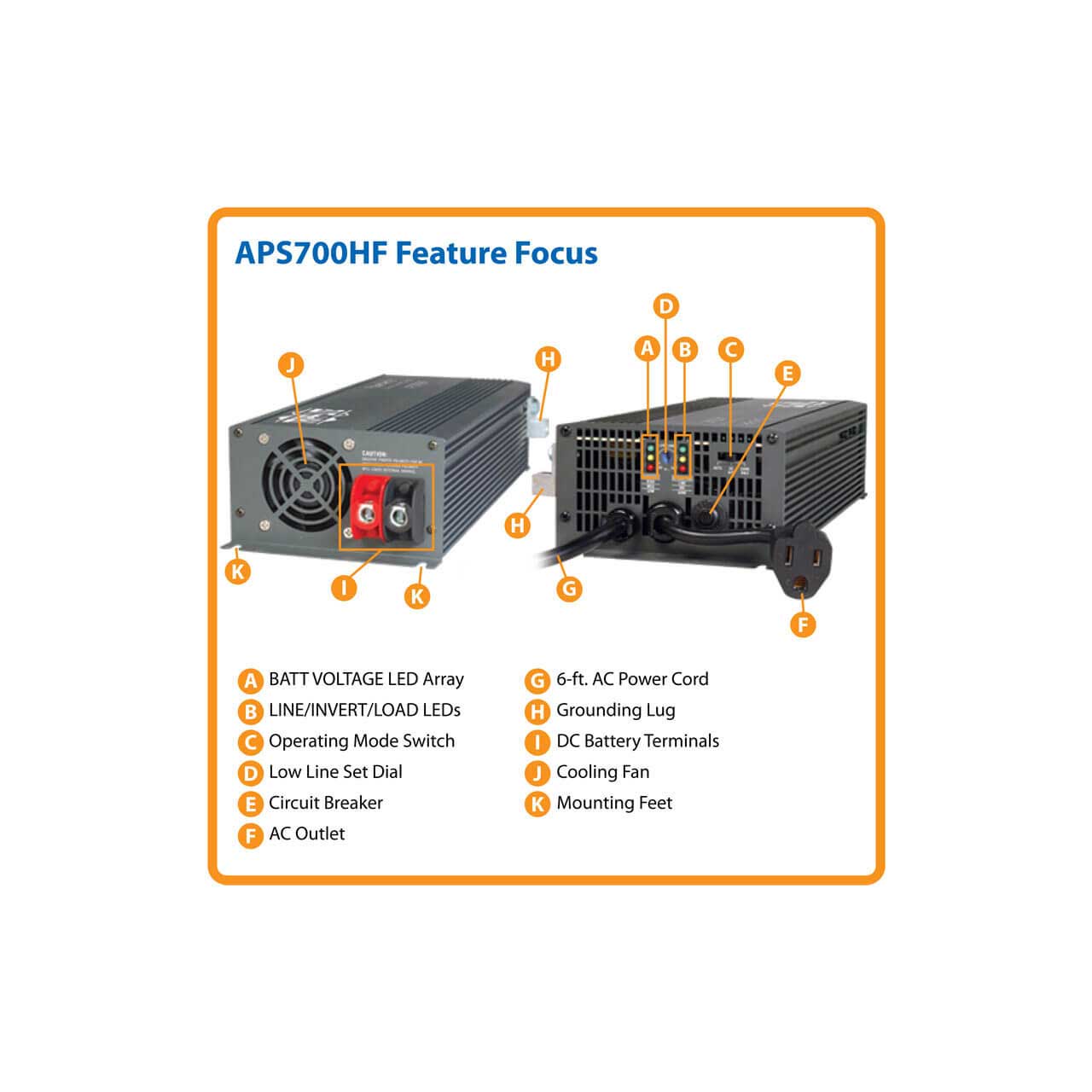

    When used as a UPS, the APS700HF responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status.

    • Features:

      • Delivers clean 120V AC power from AC or DC power source
      • 700W continuous output power; 1400W peak power
      • Auto-transfer switching option for UPS operation
      • Protects against blackouts, surges and EMI/RFI line noise
      • Compact, lightweight aluminum housing weighs just 4 lb.
      • Functions as vehicle inverter, standalone AC power source or extended-run UPS
      • Features NEMA 5-15R outlet
      • Unlimited runtime with variety of user-supplied batteries
      • Automatic overload detector, built-in multi-speed cooling fan and resettable AC circuit breakers protect unit from damage
      • High-current DC input terminals for simple hardwired installation
      • Transfer relay switches to inverter power during blackout in 16.6 ms

    • Specifications:

      • Nominal Input Voltage(s) Supported: 120V AC
      • Maximum Input Amps / Watts: DC INPUT: Full continuous load - 72A at 12V DC. AC INPUT: 8.4 amps at 120VAC with full inverter and charger load (1.4A max charger-only)
      • Recommended Electrical Service: DC INPUT: Requires 12V DC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120V AC recommended
      • Input Connection Type: DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: NEMA 5-15P input plug
      • Voltage Compatibility (VAC): 120
      • Voltage Compatibility (VDC): 12
      • Frequency Compatibility: 60 Hz
      • Pure Sine Wave Output: No
      • Nominal Output Voltage(s) Supported: 120V
      • Output Receptacles: (1) 5-15R
      • Continuous Output Capacity (Watts): 700
      • Peak Output Capacity (Watts): 1400
      • Output Voltage Regulation: LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
      • Output Frequency Regulation: 60 Hz (+/- 0.3 Hz)
      • Overload Protection: Includes 7A output breaker for AC output loads
      • Expandable Runtime: Yes
      • Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet, gel or SLA type batteries
      • Expandable Runtime Description: Runtime is expandable with any number of user supplied wet, gel or SLA type batteries
      • DC System Voltage (VDC): 12
      • Battery Charge: 6A max, steps down to float level to maintain
      • AC Suppression Joule Rating: 300
      • Material of Construction: Aluminum
      • Cooling Method: Multi-speed fan
      • Form Factors Supported: Integrated mounting feet for easy installation
      • Shipping Dimensions (hwd / in.): 8.50 x 14.50 x 8.50
      • Shipping Weight (lbs.): 5.50
      • Unit Weight (lbs.): 4
      • Relative Humidity: 0%-95% Non-Condensing
      • Transfer Time (Line Power to Battery Mode): 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
      • Low Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 85V (user adjustable to 85, 95V - see manual)
      • High Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 139V
      • Product Compliance: RoHS

    • Item Includes:

      • 1x APS700HF 700W PowerVerter APS 12V DC 120V AC Inverter/Charger
      • 1x Owner's manual

    • Warranty:

      • 1-year limited warranty

    • GTIN:

      0037332126948
