Tripp Lite B125-101-60 HDMI over Dual Cat5/Cat6 Extender Kit Transmitter/Receiver for Video & Audio - Up to 150 Feet
  • Tripp Lite B125-101-60 HDMI over Dual Cat5/Cat6 Extender Kit Transmitter/Receiver for Video & Audio - Up to 150 Feet
  • Tripp Lite B125-101-60 HDMI over Dual Cat5/Cat6 Extender Kit Transmitter/Receiver for Video & Audio - Up to 150 Feet
  • Tripp Lite B125-101-60 HDMI over Dual Cat5/Cat6 Extender Kit Transmitter/Receiver for Video & Audio - Up to 150 Feet

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite B125-101-60 HDMI over Dual Cat5/Cat6 Extender Kit Transmitter/Receiver for Video & Audio - Up to 150 Feet

Manufacturer: Tripp Lite

Item #: TRL-B125-101-60   •   MFG #: B125-101-60



List Price:$160.00
Our Price:$114.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Tripp Lite's HDMI Over Dual Cat5 Extender Kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat5/6 cables. When using 24 AWG, Solid Wire Cat6 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to 150 ft. from the source. When using 24 AWG, Solid Wire Cat6 cable, a 3D signal can be extended up to 125 ft. When using 24 AWG, Solid Wire Cat5 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to 100 ft. from the source. When using 24 AWG, Solid Wire Cat5 cable, a 3D signal can be extended up to 75 ft. Simply run two Cat5/6 cables between the local transmitter and remote receiver units, and plug in standard Tripp Lite HDMI cables to the HDMI source and the display.

    The B125-101-60 comes with both local transmitter and remote receiver units. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. The B125-101-60 comes with both local transmitter and remote receiver units. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.


    • Features

      • Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 150 ft. using 24 AWG, Solid Wire Cat6 cabling (Tripp Lite N202-Series)
      • Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 100 ft. using 24 AWG, Solid Wire Cat5 cabling
      • Extends a 3D signal up to 125 ft. using 24 AWG, Solid Wire Cat6 cabling, or up to 75 ft. using 24 AWG, Solid Wire Cat5 cabling
      • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
      • Supports HDCP, EDID and DDC
      • Supports 24-bit True Color (8-bits per channel)
      • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor

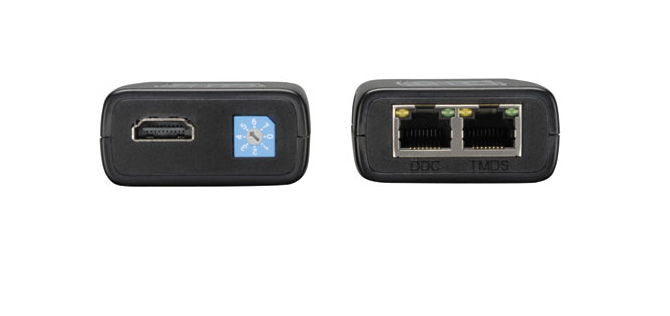

      • Equalization control dial for skew compensation
      • Supports Lip-Sync Pass Through, and CEC pass through
      • Green LED indicate power being received
      • Orange LED indicates signal connection
      • Compliant with the Federal Trade Agreements Act ( TAA ) for GSA schedule purchases

    • Specifications

      • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A
      • Unit Dimensions (hwd / in.): Remote Unit: 2.375"W x 1.75"D x 0.75"H Source Unit: 2.375"W x 1.75"D x 0.75"H
      • Unit Dimensions (hwd / cm): 6.03 x 4.45 x 1.9
      • Color: Black
      • Max 1024 x 768 Range (ft): 150
      • Max 480P Range (ft): 150
      • Max 1440 x 900 Range (ft): 150
      • Max 1080i Range (ft): 150
      • Max 1080P Range (ft): 150
      • Max 480i Range (ft): 150
      • Max 640 x 480 Range (ft): 150
      • Max 800 x 600 Range (ft): 150
      • Max 1600 x 1200 Range (ft): 150
      • Max 720P Range (ft): 150
      • Ports: 1
      • Side A - Connector 1: HDMI (FEMALE)
      • Side A - Connector 2: (2) RJ45 (FEMALE)
      • Side B - Connector 1: HDMI (FEMALE)
      • Side B - Connector 2: (2) RJ45 (FEMALE)
      • Product Warranty Period (Worldwide): 1-year limited warranty

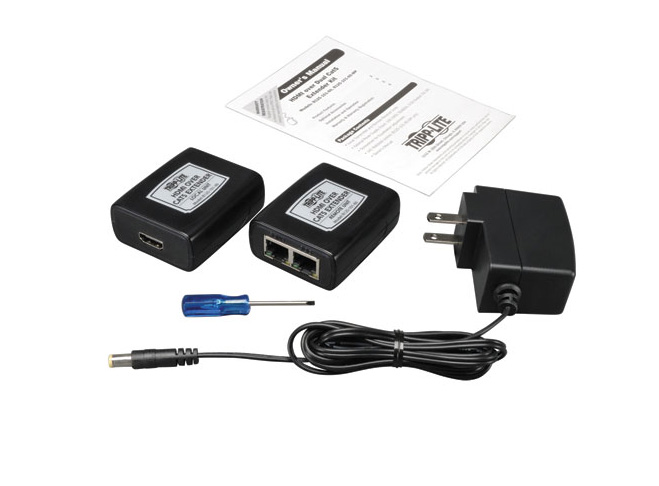

    • Item Includes

      • Local Transmitter and Receiver Units
      • External Power Supply with NEMA 1-15P Plug ( Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A )
      • Screwdriver for Equalization adjustment
      • Owner's Manual

    • Warranty

      • 1 Year

    • GTIN:

      0037332168023
