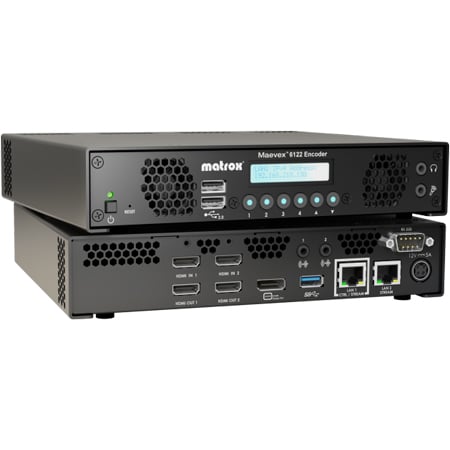

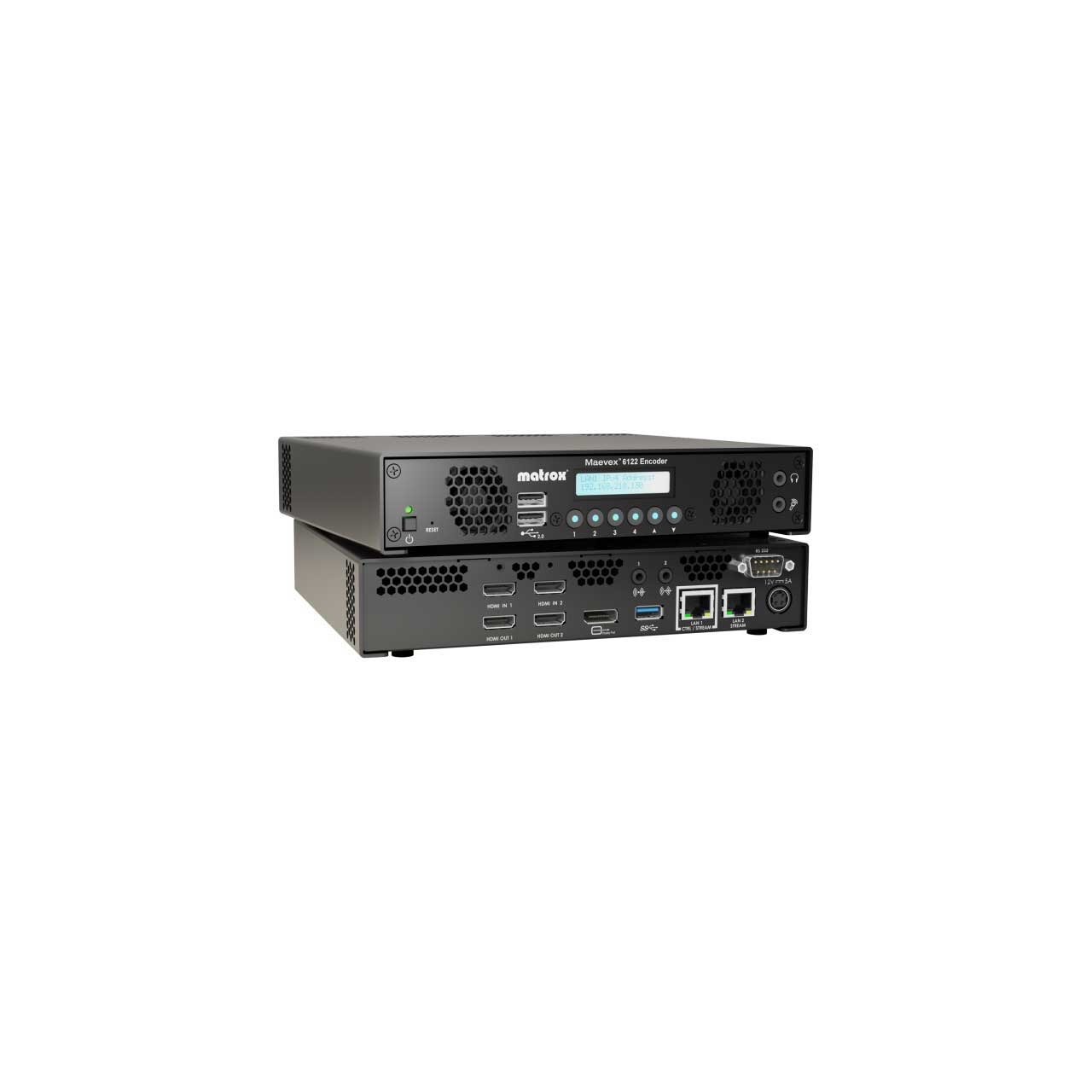

Matrox MVX-E6122-2 Maevex 6122 Dual HDMI Video over IP Encoder

ITEM #: MTX-MVX-E6122-2 MFG #: MVX-E6122-2

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$3,500.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    MVX-E6122-2 - Overview

    Matrox® Maevex 6122 is an HDMI® video encoder that delivers dual 4K capture, encode, stream, and record--with zero latency pass-through. The encoder supports multiple streaming protocols, including SRT and on-device HLS, for easy and secure streaming locally or across the world. Two Gigabit Ethernet ports allow for dual network streaming or separate networks for control data and video data.

    Low latency streaming. High quality experience.
    Achieve zero-latency pass-through for real-time output of audio/video content on up to two 4K displays. This H.264 encoder integrates seamlessly into existing infrastructures and interoperates with virtually any network device, ensuring high-density content distribution and system scalability--all without sacrificing quality. Maevex also uses existing 1 Gigabit Ethernet infrastructure to allow many streams of any quality to be transmitted on a single cable, eliminating the need for a dedicated distribution network. The Maevex 6122 encoder can have latency as low as 16 ms.

    Flexible protocols. Secure streaming.
    Enjoy multiple streaming protocols--HLS, MPEG2-TS, RTP, RTMP, RTSP, and SRT--for trouble-free streaming. Support for the Secure Reliable Transport (SRT) video transport protocol means that secure, low-latency, and high-performance streaming is also realized on noisy or unpredictable networks such as the public Internet. Whether you're dealing with a stable LAN connection, a limited WAN pipeline, or an unpredictable Internet transport,

    Flawless image quality
    Benefit from up to 4K/UHD 4:4:4 sub-sampling support for best-in-breed encoding. The multi-chroma sub-sampling feature delivers 4:4:4, 4:2:2, 4:2:0, and 4:0:0 options, to best balance bitrate and compression demands of different encoding content, environments, and markets. User-definable bitrates and quantization parameters, as well as various encoding modes to optimize for desktop, low-latency, or image quality.

    Dual stream and record. Anywhere, at the same time.

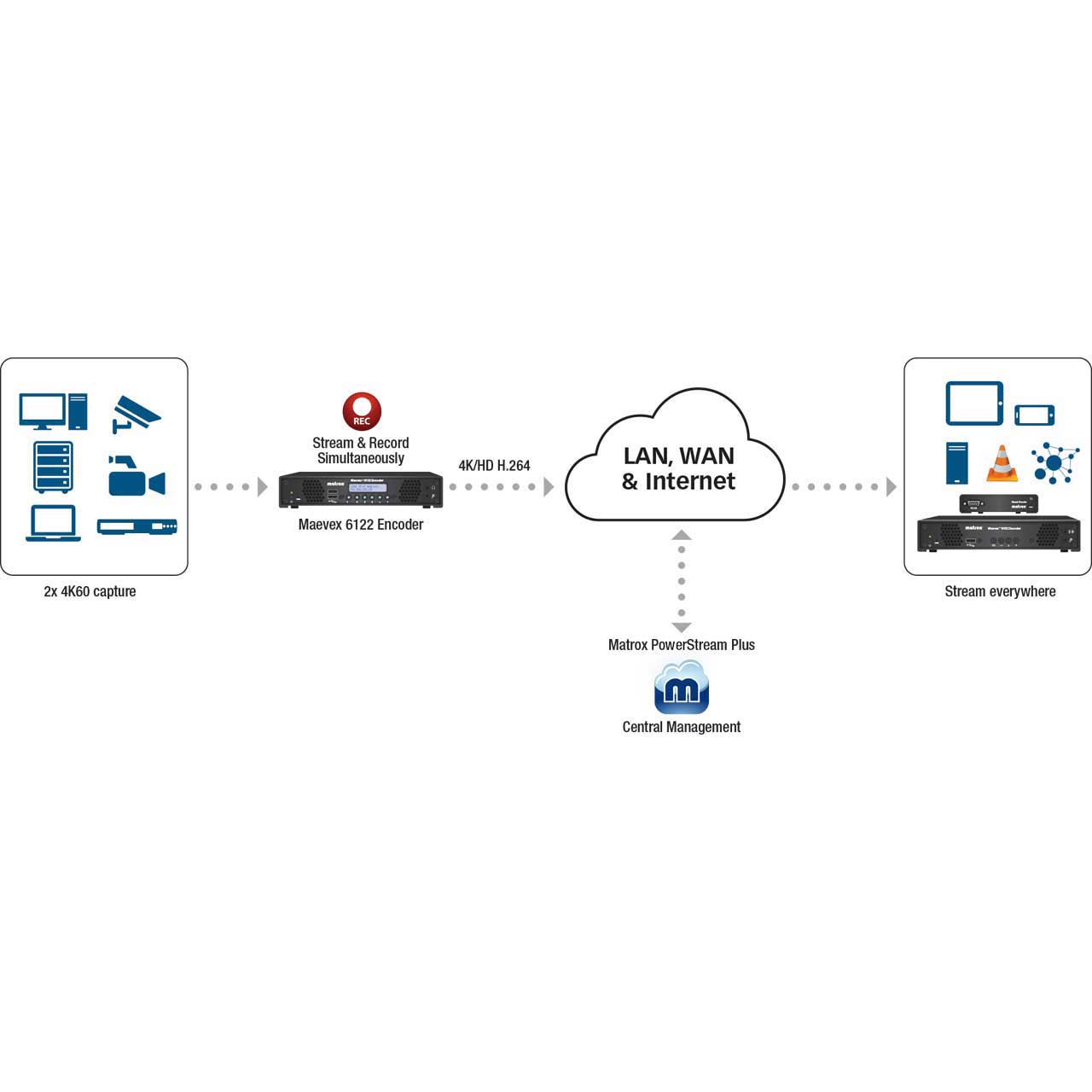

    Maevex 6122 delivers content to on-premises end points, over the LAN, WAN, and internet, feeds cloud-based servers, and records to local or network storage for later editing and viewing. The Maevex 6122 encoder can also transmit live and/or recorded content for multiple video-on-demand platforms --such as Facebook® Live, YouTube®, Twitch, Wowza®, Vimeo®, IBM® Video Streaming, and Restream, to name a few.

    • Features:

      • Dual 4K input with zero latency pass-through
      • Matrox Maevex streaming flexibility
      • HDCP 1.4 and 2.2 compliant
      • H.264 advanced video coding
      • 4:4:4 8-bit support
      • Rack mountable
      • Centralized management via PowerStream Plus or APIs

    • Specifications:

      • Operating Systems
      • Microsoft Windows 10 (64-bit)
      • Windows Server 2016
      • Windows 7 (32-bit, 64-bit)
      • Windows Server 2008 R2
      • Windows Server 2019

        Form Factor
      • Standalone appliance
      • Rack-mountable: 1RU, 1/2 rack

        Video Input
      • Channels: 2
      • Formats: HDMI (Type A) with audio support

        Video Output
      • Channels: 2
      • Formats: HDMI (Type A)

        Audio Input
      • 2x HDMI digital LPCM two-channel stereo audio: 2x 3.5 mm analog stereo audio, 1 Vrms (0 dBV), 14.3 kΩ (gain = 0 dB), -60 dB to +6 dB (default is 0 dB)
      • 1x 3.5 mm stereo mic in: 2.5 V, 1 Vrms (0 dBV), 15 kΩ (gain = 0 dB), 5 kΩ (gain= 10 dB), -74 dB to +41 dB (default is 0 dB).

        Audio Output
      • 2x HDMI digital LPCM two-channel stereo audio
      • 1x 3.5 mm headphones out: 1.2 Vrms (1.6 dBV), 32 mW into 32Ω, -74 dB to 0 dB (default is 0 dB)

        Network Connector
      • 2x RJ45 with status LED indicators

        USB Ports
      • 2x USB 2.0
      • 1x USB 3.0

        RS-232
      • 1x for IP to RS-232 control

        Confidence Preview
      • 1x DisplayPort 1.1
      • Max. resolution: 1920x1080

        Multi-Unit Support
      • Yes

        Color Space and Chroma Sub-Sampling
      • RGB and YUV 8- and 10-bit support
      • Color space conversion support: 4:0:0 (8-bit and 10-bit*), 4:2:0 (8-bit and 10-bit*), 4:2:2 (8-bit), 4:4:4 (8-bit) *1080p60 max
      • Video Input Resolutions: 2x 3840x2160 @60Hz or 2x 4096x2160 @60Hz

        Video and Audio Processing
      • Video Scaling: Yes
      • Video Compositing: Yes, fixed formats including Picture-in-Picture (PiP), Picture-by-Picture (PbP), quadrant
      • HDCP Support: Only available between Maevex 61X2 Encoders and Maevex 6152 Decoder
      • Audio Encoding Format: MPEG-4 AAC-LC/HEv1/HEv2
      • Audio Output Format: AAC, PCM, Stereo, and Mono
      • Audio Sampling Frequency: 32 kHz, 44.1 kHz, 48 kHz
      • Audio Bitrates: Up to 144 Kbps (AAC-HEv2), Up to 288 Kbps (AAC-HEv1), Up to 576 Kbps (AAC-LC)

        Codec
      • Video Encoding Formats: H.264/MPEG-4 Part 10 (AVC)
      • Encoding Profiles: Baseline (BP), Main (MP), High (HiP), High 10 (Hi10P), High 4:2:2 (Hi422P), CAVLC 4:4:4 intra (44), High 4:4:4 predictive profile separate plane (Hi444PP)
      • Encoder Bitrates Range: 15 Mbps (default): 50 Kbps to 120 Mbps
      • Encoding Rate Control: Adjustable GOP size, Constant Bitrate (CBR), Favor quality and optimize for desktop or latency, Variable Bitrate (VBR)
      • Encoding Level: Up to 5.2

        Encoding Capability
      • 4:2:0: 2x 3840x2160 @60Hz, 1x 4096x2160 @60Hz, 4x 3840x2160 @30Hz, 3x 4096x2160 @30Hz, 2x 1920x1080 @30Hz, 4x 1920x1080 @60Hz, 8x 1920x1080 @60Hz, 16x 1920x1080 @30Hz
      • 4:4:4: 1x 3840x2160 @30Hz, 1x 4096x2160 @30Hz, 2x 1920x1080 @60Hz, 3x 1920x1080 @60Hz, 6x 1920x1080 @30Hz.

        Network
      • Network Standard: 100/1,000 base-T Ethernet, Auto speed, Half/full duplex
      • Routing Scheme: Unicast, Multicast, Multi-unicast
      • IP Addressing: IPv4, IPv6, DHCP (default) and static IP
      • Streaming Protocols: HLS, MPEG2.TS over UDP, RTMP, RTP/RTCP (both required) over UDP, RTSP (TCP), RTCP & RTP (UDP) - all required, RTSP over TCP (interleaved), SRT
      • Command and Control: HTTPS over TCP, UPnP (discovery)

        Recording
      • File Format: MP4, MOV, fMP4
      • Timestamp: Automatic in filename
      • Programmability: Duration, File frequency, Max. file length, Start date and time
      • Recording Locations: External hard drive, 2x USB 2.0 (front) and 1x USB 3.0 (back), Shared network drive or NAS

        Physical
      • Product Dimensions: 8.53 x 7.52 x 1.68"
      • Unit Weight: Device only 3.3lbs, With accessories packaged: 6.6lb
      • Power Consumption: 45W

    • Item Includes:

      • 1x Maevex 6122 Dual 4K Encoder
      • 1x Power Supply 100-240 VAC in, 12 VDC out, 60W
      • 1x DIN4 locking power connector
      • 1x Power Cords

    • Warranty:

      • 2 Year
