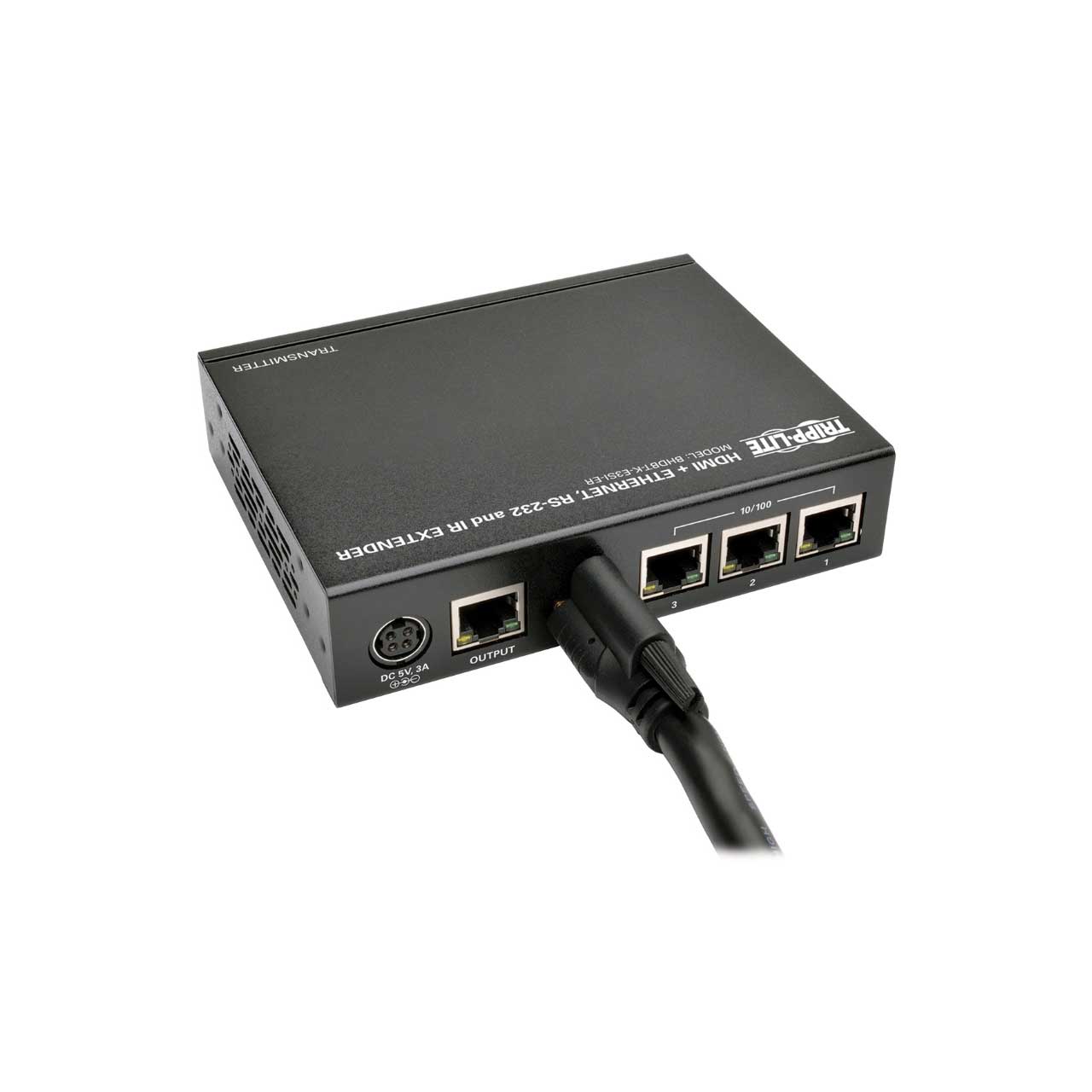

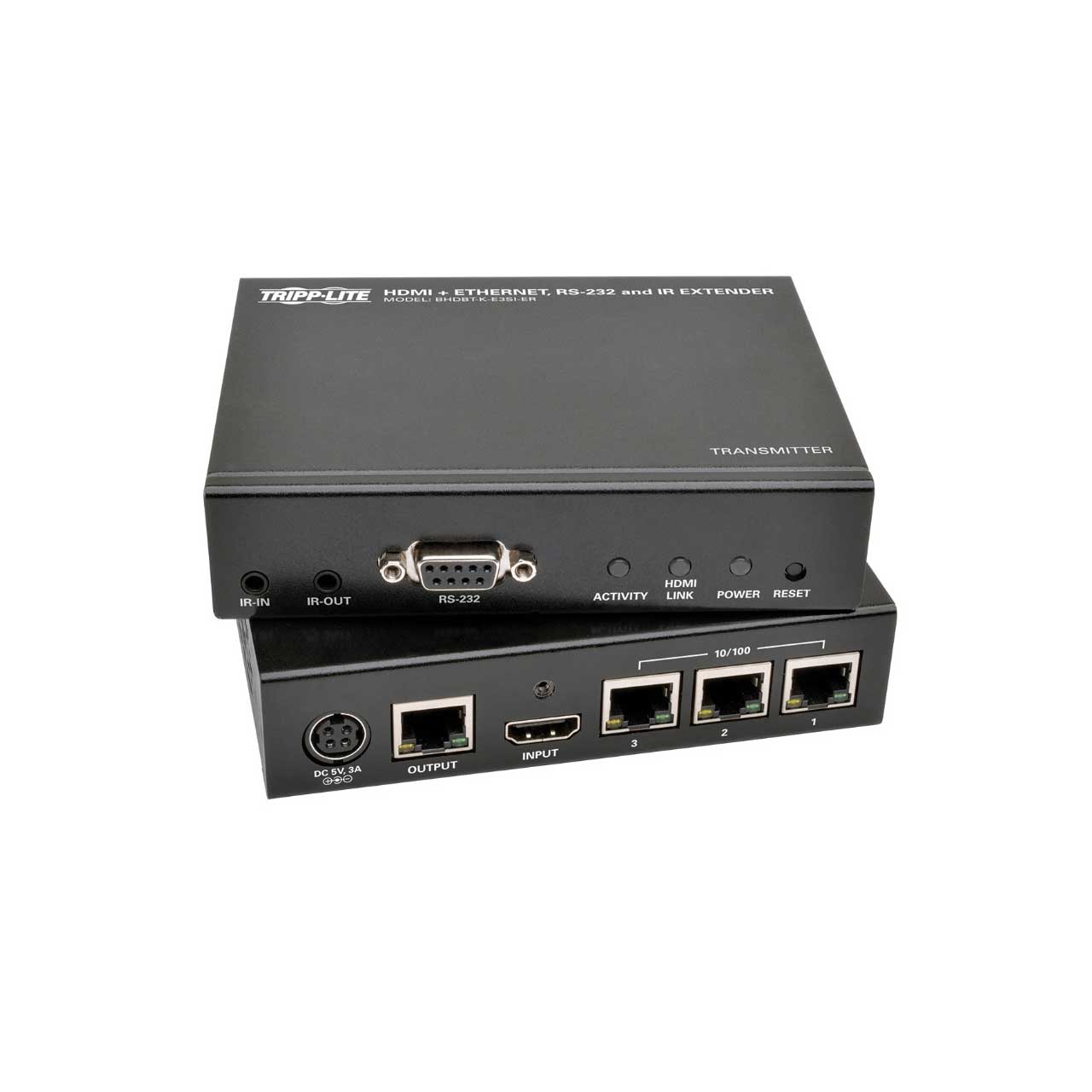

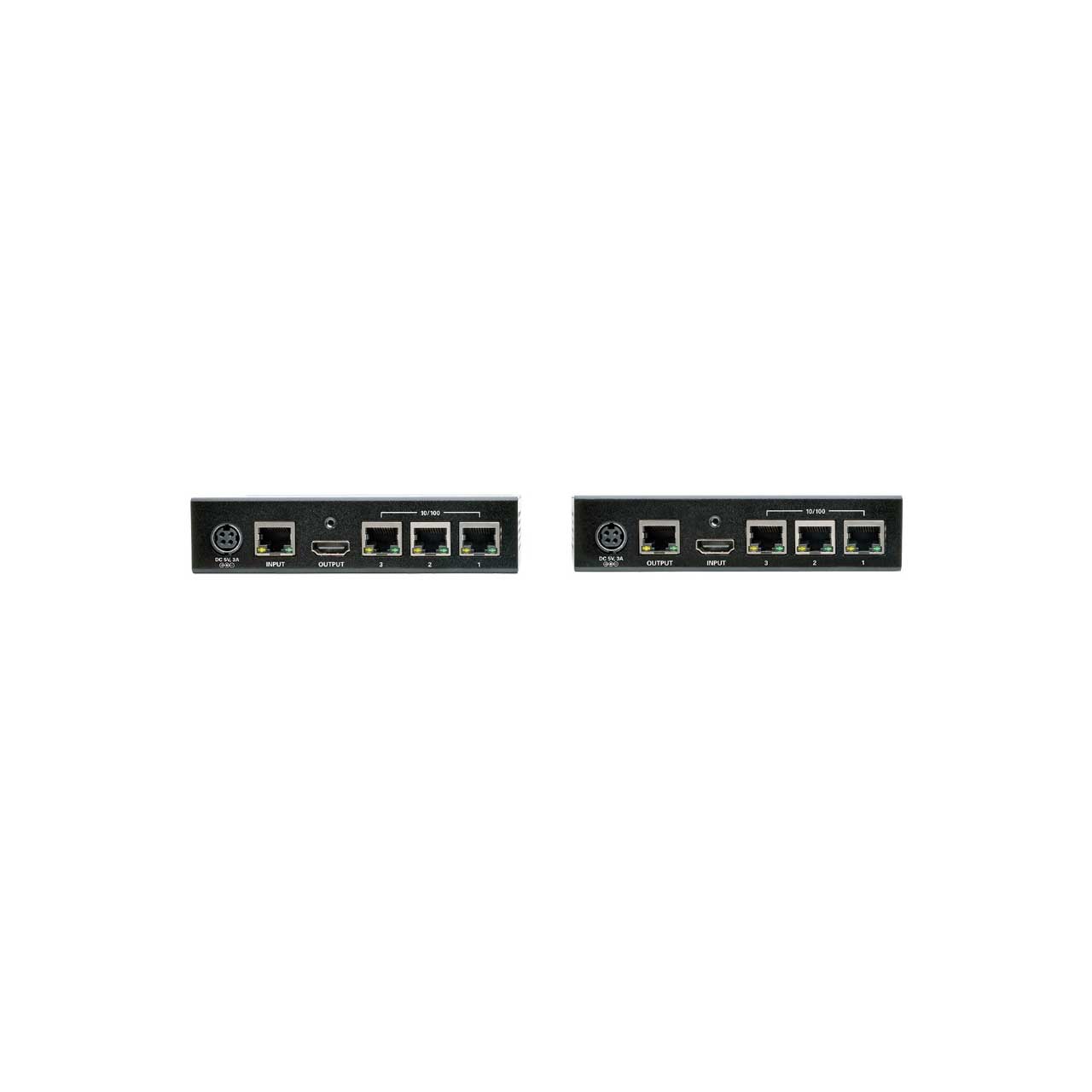

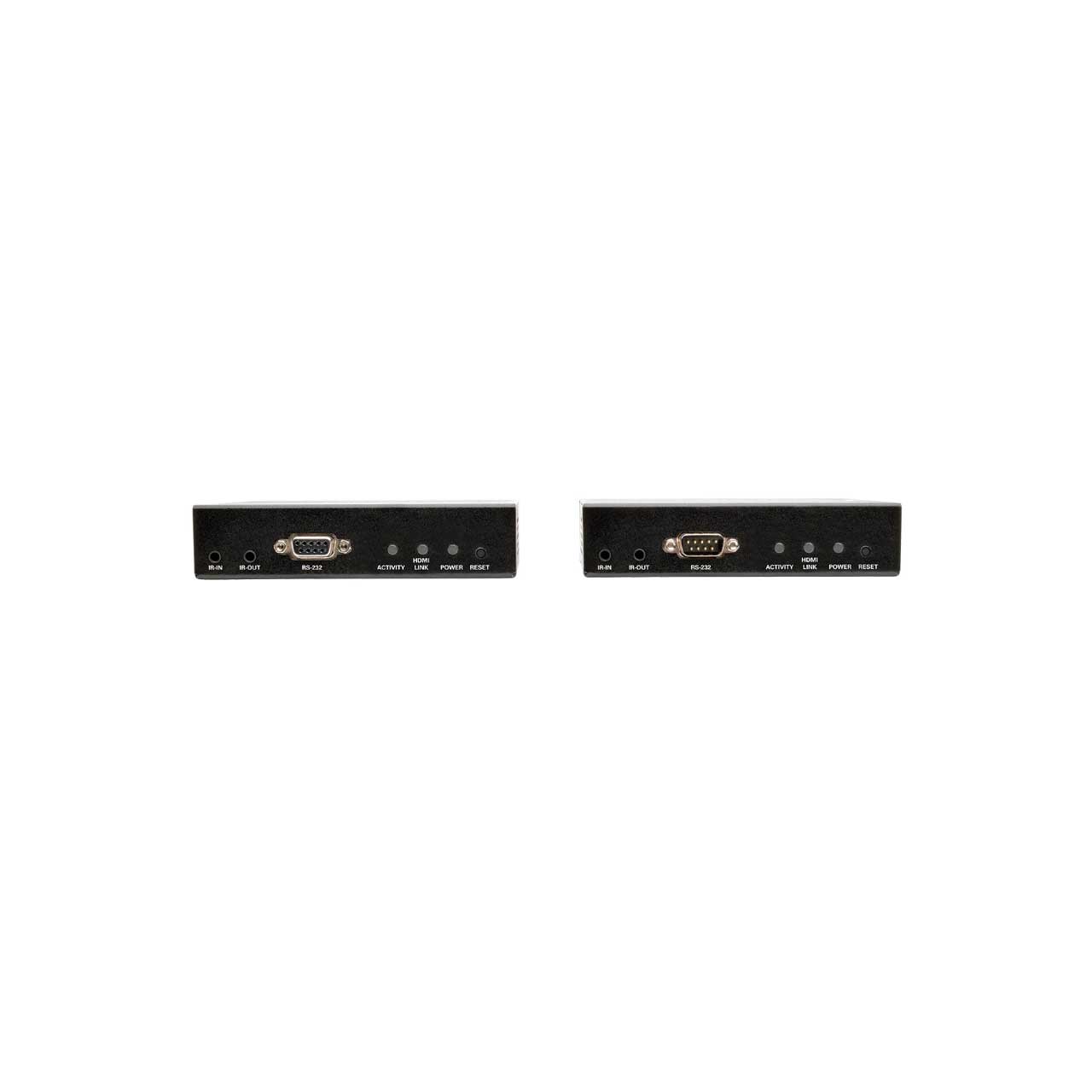

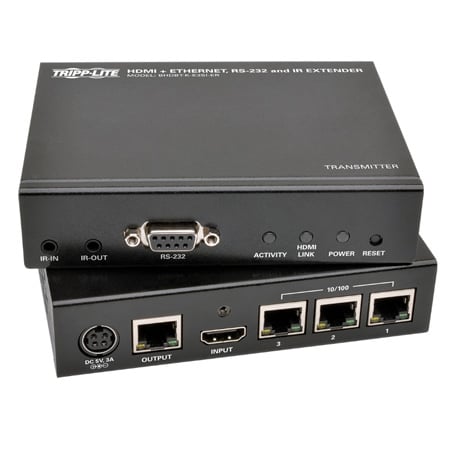

Tripp Lite BHDBT-K-E3SI-ER HDBaseT HDMI over Cat5e/6/6a Extender Kit with Ethernet Serial and IR Control 1080p - 500 ft

ITEM #: TRL-BHDBTKE3SIER MFG #: BHDBT-K-E3SI-ER

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$632.00

Our Price:

$421.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    BHDBT-K-E3SI-ER - Overview

    The BHDBT-K-E3SI-ER HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 500 feet over a single Cat5e/6/6a cable, including a 1920 x 1080 (1080p) signal @ 60 Hz. In addition to HDMI, RS-232 and IR signals, this extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray player, cable/satellite box, and HDTV, to communicate with each other and access online content via LAN.

    You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-E3SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP.

    • Features:

      • Extends HDMI Video/Audio, Ethernet, RS-232 Serial and IR Control Signals Over a Single Cat5e/6/6a Cable
      • Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths
      • Extends a high-definition 1920 x 1080 (1080p) @ 60 Hz signal up to 500 ft.
      • Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
      • Supports 3D video, EDID and HDCP
      • Reduces cable clutter and installation costs Built-In 10/100 Ethernet Ports on Transmitter and Receiver
      • Allows connected devices to communicate with each other and access online content via LAN Controls Other Display Devices
      • 2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
      • RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors Easy to Set Up and Use
      • Plug and play with no software or drivers to download and install
      • Included mounting hardware for installing each unit on a wall, rack or pole Locking HDMI Ports on Transmitter and Receiver
      • Prevent cables from coming loose or disconnected, ensuring an intact signal TAA-Compliant
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications:

      • AC Adapter: Input: 4.5 ft 100-240V, 50/60Hz, 1A; Output: 5V, 3A
      • Accessories Type: Extender
      • Max 1024 x 768 Range (ft): 500
      • Max 480P Range (ft): 500
      • Max 1440 x 900 Range (ft): 500
      • Max 1080i Range (ft): 500
      • Max 1080P Range (ft): 500
      • Max 480i Range (ft): 500
      • Max 640 x 480 Range (ft): 500
      • Max 800 x 600 Range (ft): 500
      • Max 1600 x 1200 Range (ft): 500
      • Max 720P Range (ft): 500
      • Ports: 1
      • Side A - Connector 1: HDMI (FEMALE)
      • Side A - Connector 2: (3) RJ45 (FEMALE)
      • Side A - Connector 3: RJ45 (FEMALE)
      • Side A - Connector 4: DB9 (FEMALE)
      • Side B - Connector 1: HDMI (FEMALE)
      • Side B - Connector 2: (3) RJ45 (FEMALE)
      • Side B - Connector 3: RJ45 (FEMALE)
      • Side B - Connector 4: DB9 (MALE)
      • Product Warranty Period (Worldwide): 1-year limited warranty

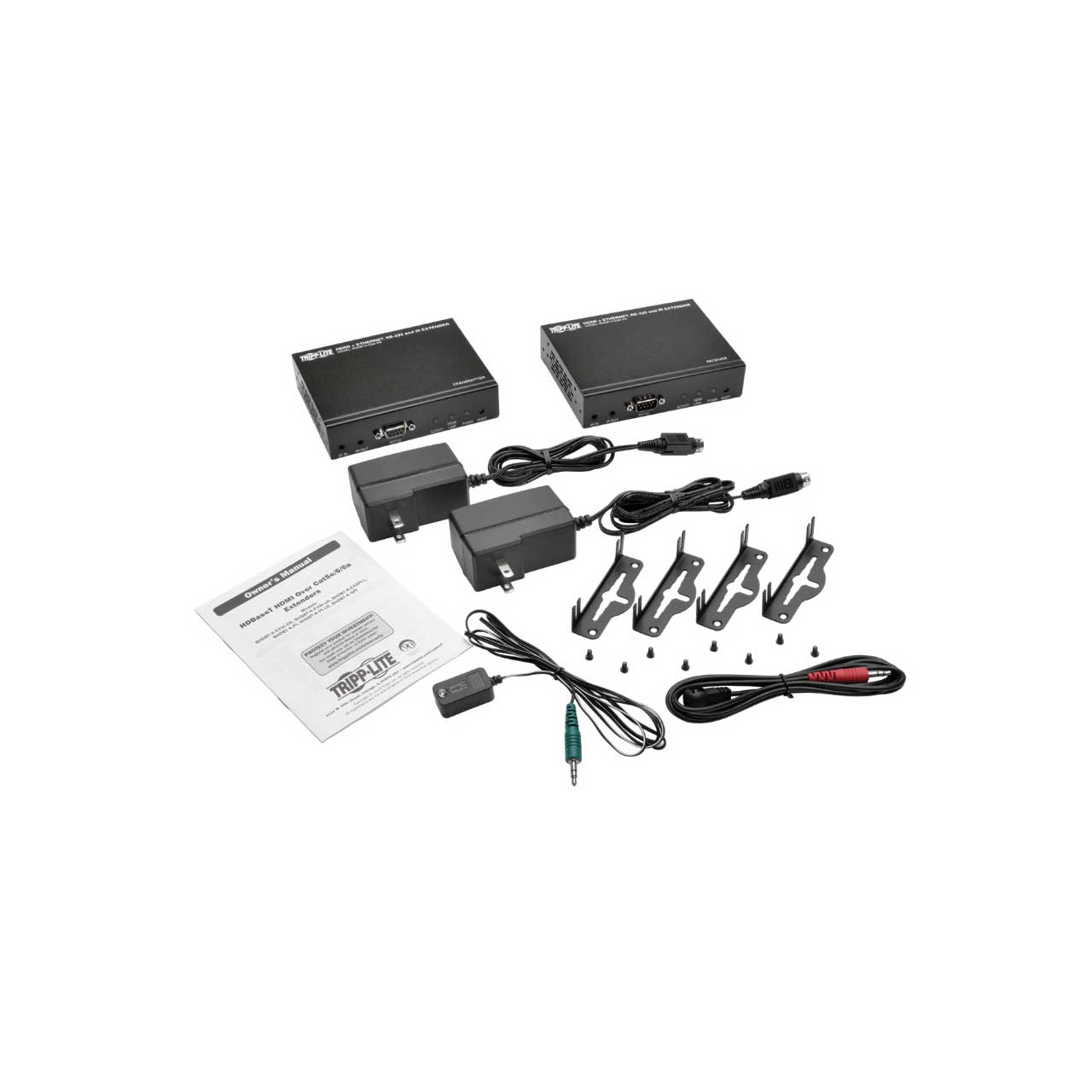

    • Item Includes:

      • Transmitter unit
      • Receiver unit
      • IR-IN cable - 5 ft.
      • IR-OUT cable - 6 ft.
      • (2) External Power Supplies with NEMA 1-15P Plug- 4.5 ft. (Input: 100–240V, 50/60 Hz, 1A; Output: 5V, 3A)
      • Mounting hardware
      • Owner’s manual

    • Warranty:

      • 1 Year

    • GTIN:

      0037332188175
