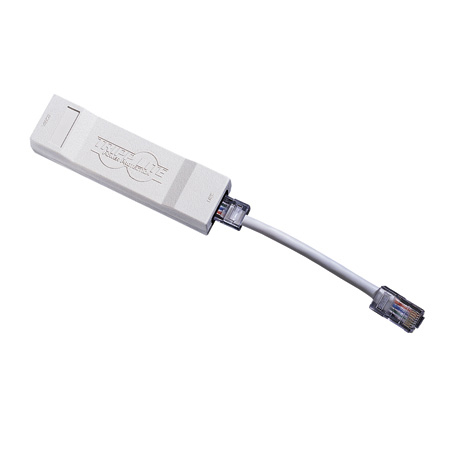

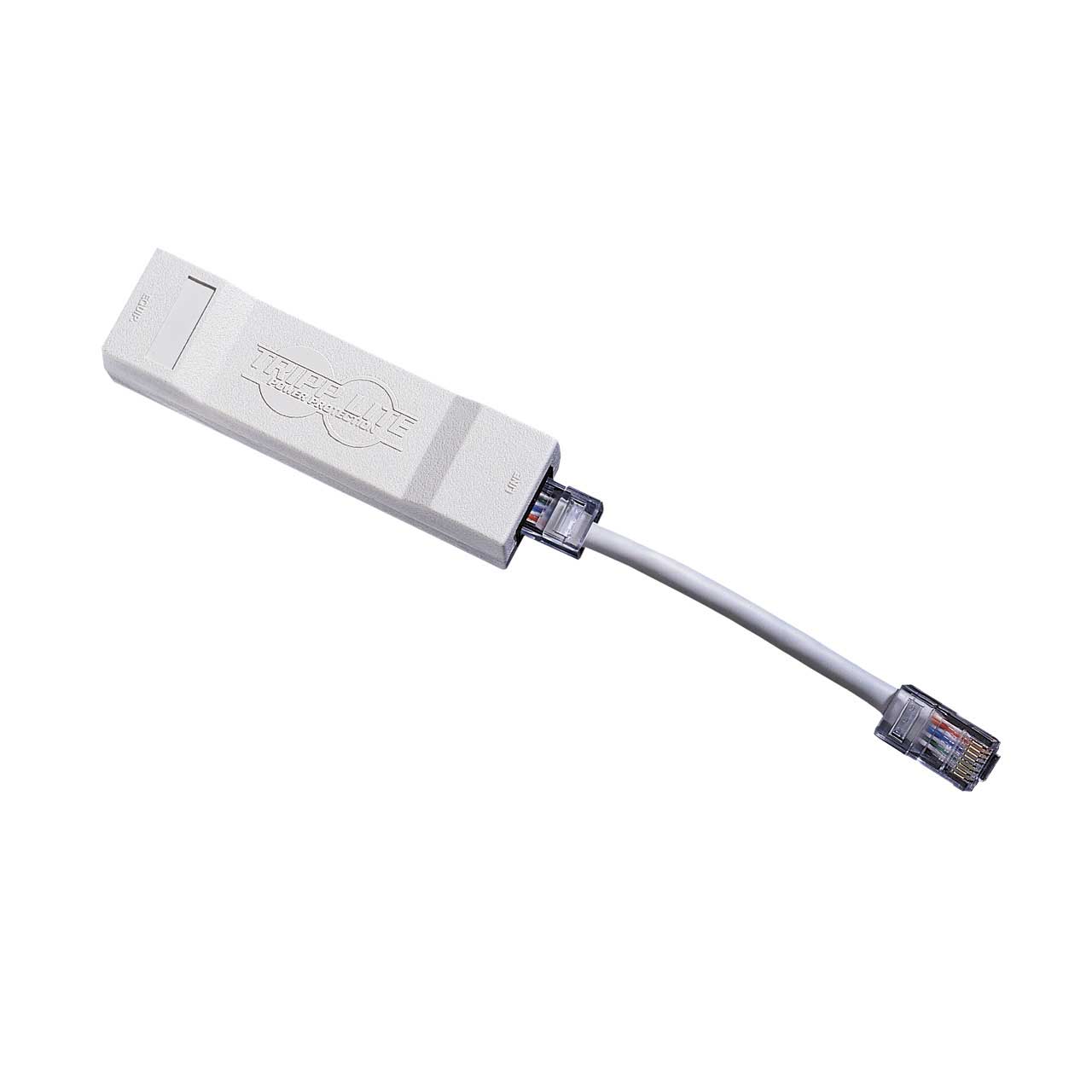

Tripp Lite DSUT1CSU RJ45 protector (Wires 1-8) for T-1 equipment/ CSU/DSUs
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Tripp Lite DSUT1CSU RJ45 protector (Wires 1-8) for T-1 equipment/ CSU/DSUs

    Manufacturer: Tripp Lite

    Item #: TRL-DSUT1CSU   •   MFG #: DSUT1CSU




    Tripp Lite's DSUT1CSU offers complete surge suppression for equipment on digital and leased lines, T1 and ISDN interfaces. Ideal for the protection of sensitive "U" and "S/T" interfaces on modems, NT1 devices, CSU/DSUs, terminal adapters and other pieces of high-speed equipment. Convenient 8 position input/output RJ style jacks are RJ11/45/48 compatible, includes 5 inch ethernet patch cable for convenient placement at the protected device network connection. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges, faulty wiring or lightning away from network interface connections. Tripp Lite network surge suppressors reduce blown interface ports, garbled network transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground.SUPPRESSION: 1 set RJ11/45/48 in/out jacks, protects wires 1-8, 60V clamping.

    What is the main culprit of electrical surges?
    Electrical devices that require lots of power to operate. Depending on the wiring of your Studio or Production suite, you may notice at times that your lights flicker when powerful devices turn on and off, e.g. your air conditioner. When these devices are switched on, they demand a lot of electricity, which puts a lot of strain on the grid and can cause surges.
    When should you use a surge protector?
    All the time. The real question is really which devices you should connect to a surge protector. You don’t need a surge protector for your desk lamp or your standing fan, but you do want a surge protector for expensive devices that have intricate microprocessors, like computers, DVR's, LED/LCD monitors, power amps, Studio Lighting, Powered Nearfield Speaker monitors, etc. Think of it this way: if there was an electrical surge that destroyed all of the devices connected to your outlets, which lost devices would pain you the most? Plug those into a surge protector. It’s better to be safe than sorry.

    • Features

      • DSUT1CSU offers full surge suppression for CSU/DSU's and other high speed equipment on digital and leased lines, T1 and ISDN interfaces
      • Convenient RJ45 input and output connections make for simple installation (RJ45 input/output connections, pins 1-8, 60V clamping)
      • 5 inch ethernet patch cable enables ideal protection placed as close as possible to the point of use
      • Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground
    • Specifications

      • Product Group: SURGE PROTECTORS
      • TAA Compliant: No
      • Intended Application: Home/Office; Computer Networks
      • Style: Direct Plug-In
      • Surge Style: IN-LINE
      • Surge Type: Network/Server
      • Circuit Breaker (amps): 200
      • Outlet Quantity / Type: 0
      • Number of Outlets: 1
      • Recommended Electrical Service: 120V, 230V
      • Input Connection Type: RJ45
      • Input Cord Length (ft.): 0
      • Unit Carton UPC#: 37332010872
      • AC Suppression Joule Rating: 0
      • Clamping Voltage (RMS): 60
      • Telephone/DSL Protection: Yes
      • Telephone/DSL Protection Details: 1 line
      • Cable (Coax) Protection: No
      • Network (Ethernet) Protection: Yes
      • Additional Dataline Protection: 42012
      • Product Warranty Period (Worldwide): Lifetime limited warranty
      • Selector Type: SURGE SUPPRESSORS
    • Item Includes

      • DSUT1CSU dataline protector
      • 5 inch RJ45 patch cable
      • Instruction manual and warranty information
