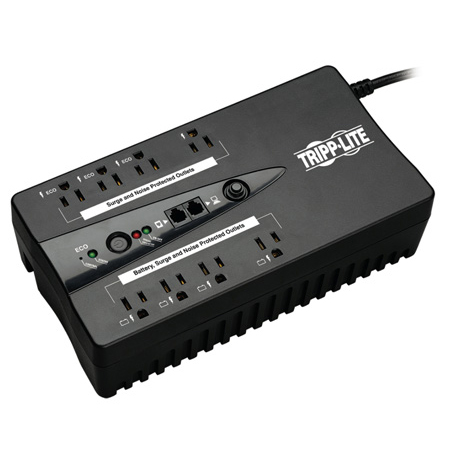

    ECO650UPSM - Overview

    The standby Tripp Lite ECO650UPSM UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 10-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

    Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the ECO650UPSM should keep an energy-efficient desktop computer with small LCD monitor powered as long as 16 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

    Five 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout.

    By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. An ECO power-saving option features three switched ECO outlets (two surge-only, one surge- and battery-protected) that turn off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. These outlets are recommended for printers, desk lamps and other non-essential peripherals that don't need to be operational all the time.

    • Features:

      • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
      • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
      • 10 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
      • Home-friendly alarm remains silent in backup mode, sounding only when imperative
      • ENERGY STAR-certified to save electricity, lower costs, and protect the environment
      • 3-year limited warranty
      • $100,000 Ultimate Lifetime Insurance
    • Specifications:

      • Input
      • Rated input current (Maximum Load): 6A
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS Input Connection Type: 5-15P
      • Input Circuit Breakers: 7A
      • UPS Input Cord Length (ft.): 5
      • Recommended Electrical Service: 15A 120V
      • Input Phase: Single-Phase

      • Output Volt Amp Capacity (VA): 650
      • Output Watt Capacity (Watts): 325
      • Nominal Voltage Details: 120v nominal output in battery mode
      • Frequency Compatibility: 50 / 60 Hz
      • Output Voltage Regulation (Line Mode): 120V (±20%)
      • Output Voltage Regulation (Battery Mode): 120V (±10%)
      • UPS Output Receptacles (Surge Suppression Only): 5 UPS outlets, 5 surge-only outlets
      • Hot-Swap PDU options: PDUB15 (2U / 8 5-15R outlets)
      • Output AC Waveform (AC Mode): Pure sine wave
      • Output AC Waveform (Battery Mode): PWM sine wave
      • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
      • Output Receptacles: (10) 5-15R
      • Individually Controllable Load Banks: No

      • Full Load Runtime (min.): 1 min. (325w)
      • Half Load Runtime (min.): 4.5 min. (162.5w)
      • DC System Voltage (VDC): 12
      • Battery Recharge Rate (Included Batteries): 6.5 hours (10% to 90%)
      • Battery Access: Battery access door
      • Battery Replacement Description: Replaceable internal batteries (see manual)
      • Expandable Runtime: No

        User Interface, Alerts & Controls
      • Switches: Switch controls power off/on status and ECO mode off/on status
      • Audible Alarm: UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
      • LED Indicators: 1 Status LED reports operating mode, ECO mode and fault status

        Surge / Noise Suppression
      • UPS AC Suppression Joule Rating: 316
      • UPS AC Suppression Response Time: Instantaneous
      • UPS Dataline Suppression: 1 line TEL/DSL or Ethernet
      • EMI / RFI AC Noise Suppression: Yes

      • Installation Form Factors Supported with Included Accessories: Tower; Ultra-compact desktop; Wallmount
      • Primary Form Factor: Desktop
      • Primary UPS Depth (mm): 185
      • Primary UPS Height (mm): 105
      • Primary UPS Width (mm): 110
      • Shipping Dimensions (hwd / in.): 7.36 x 5.67 x 10.86
      • Shipping Weight (lbs.): 4.40
      • UPS Housing Material: ABS
      • UPS Power Module Dimensions (hwd, in.): 4.13 x 4.33 x 7.28
      • UPS Power Module Weight (kg): 1.80
      • UPS Power Module Weight (lbs.): 3.96

      • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range: +5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
      • Relative Humidity: 0 to 90%, non-condensing
      • AC Mode BTU / Hr. (Full Load) : 13.1
      • AC Mode Efficiency Rating (100% Load): >98%
      • Operating Elevation (ft.): Up to 10,000 ft.
      • Operating Elevation (m): Up to 3000m
    • Warranty:

      • 3-year limited warranty
    • GTIN:
