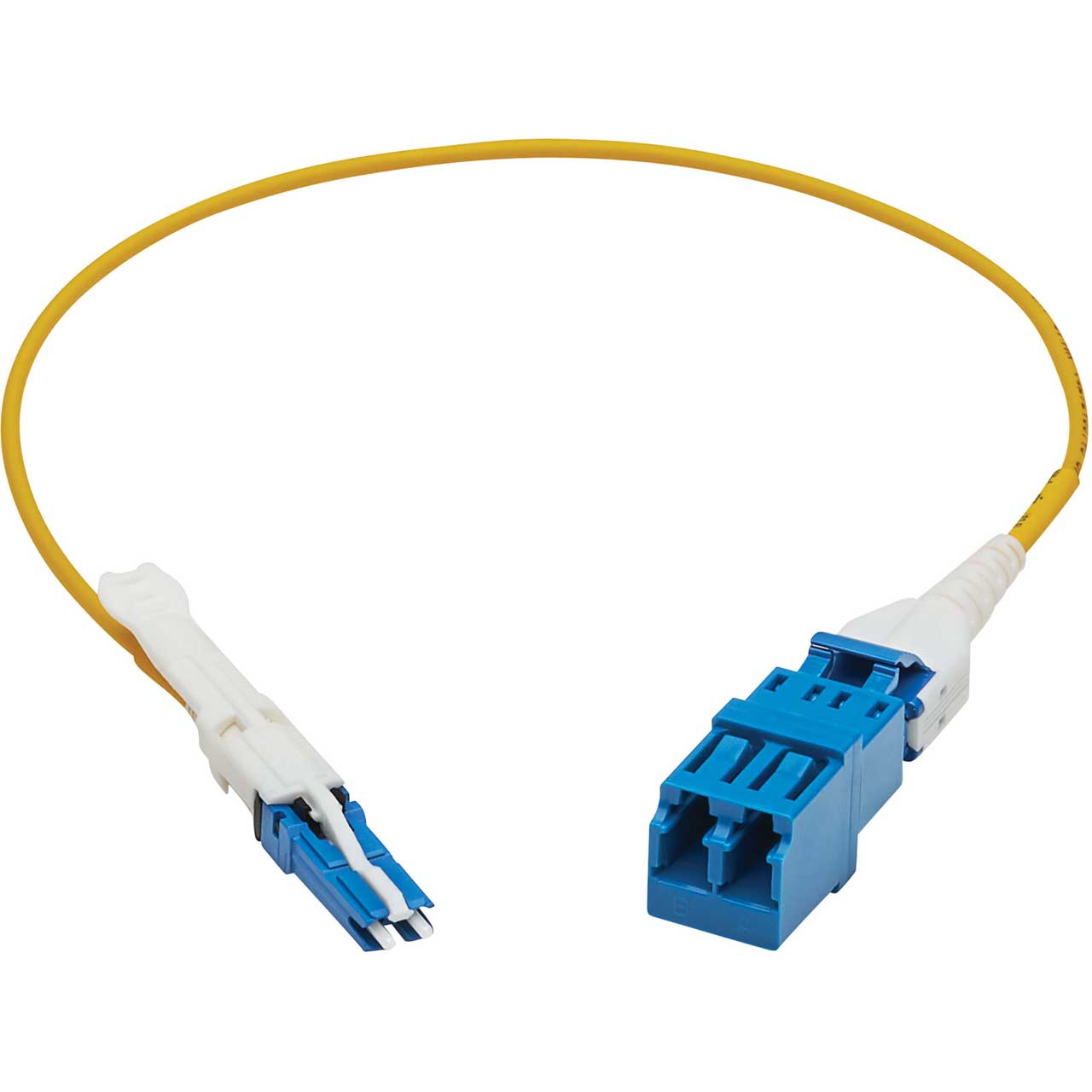

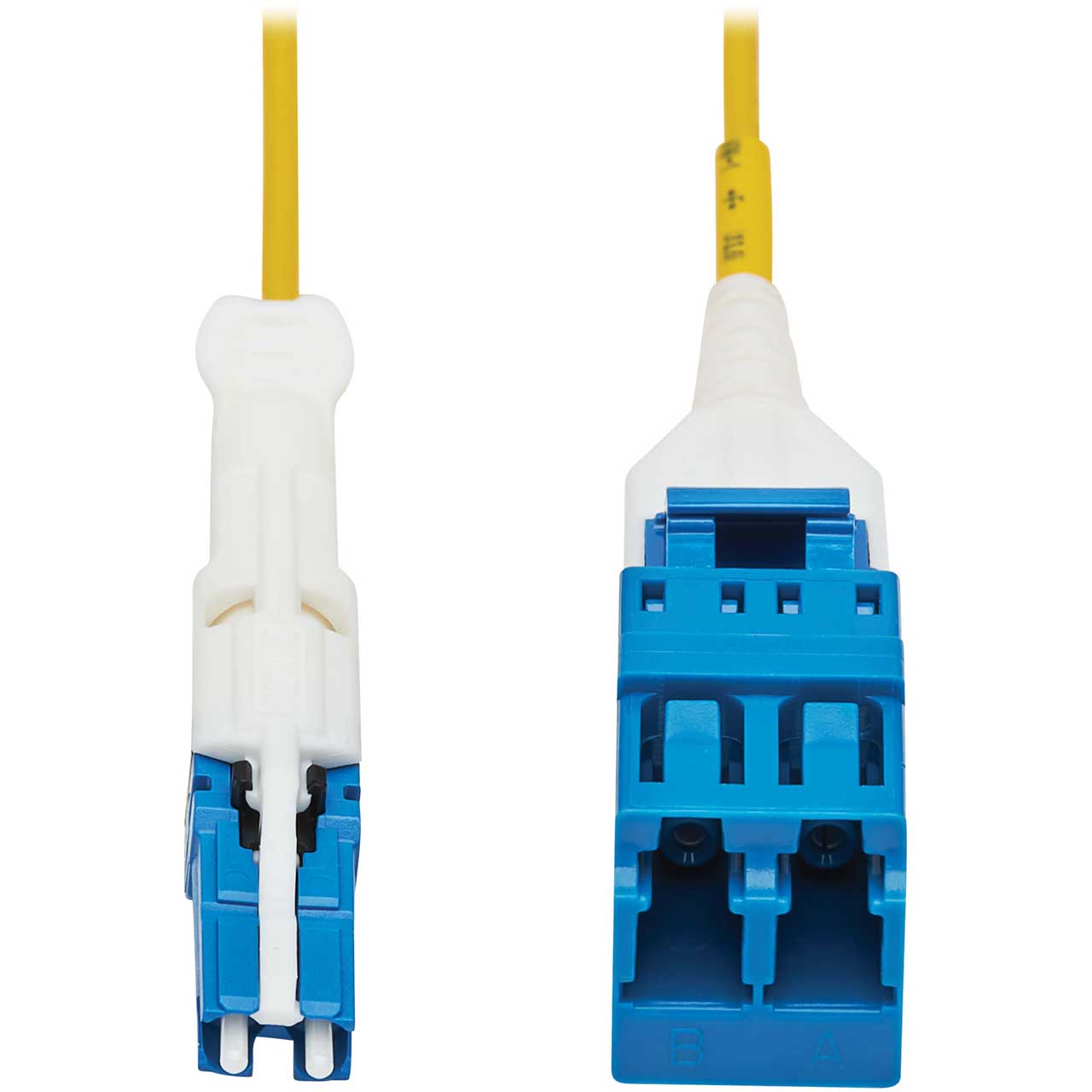

Tripp Lite N381L-001-MF Duplex SMF Fiber Optic Cable Adapter 8.3 LSZH M/F CS-UPC LC-UPC

ITEM #: TRL-N381L-001-MF MFG #: N381L-001-MF

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$51.60

Our Price:

$39.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    N381L-001-MF - Overview

    400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data Networking
    As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This duplex singlemode 8.3/125 OS2 adapter is an ideal choice for converting LC cabling to CS cabling in 400G Ethernet applications up to two kilometers (at 1310 nm). It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

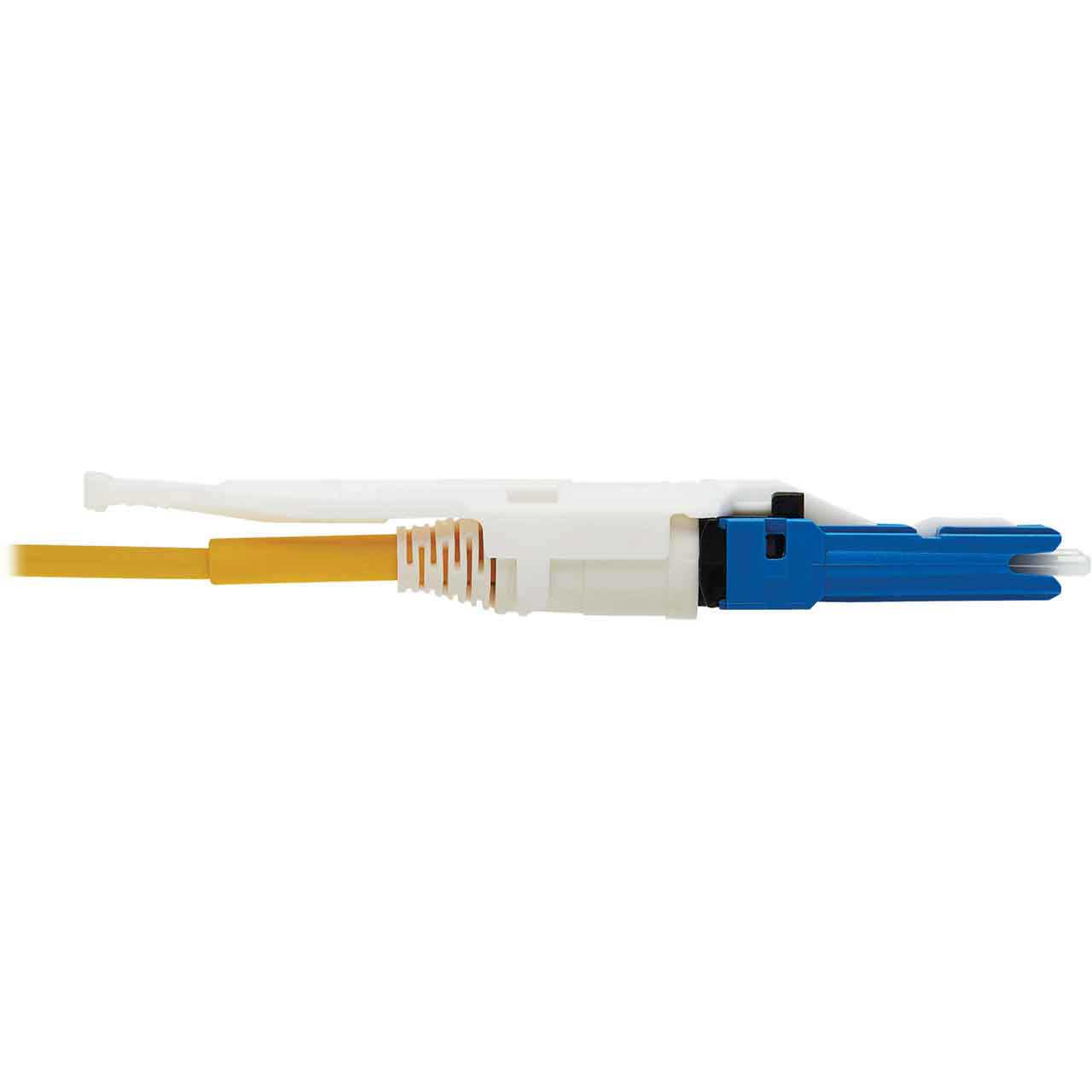

    Compact CS Connector Designed for the Latest QSFP-DD Transceivers
    The CS end is 40 percent smaller than a standard LC connector, making it compatible with the latest 400G QSFP-DD transceivers and an excellent solution for high-density network applications. A push/pull tab allows dense vertical stacking in switches or patch panels where space is at a premium and makes the cable easy to install or remove with one hand.

    Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
    The OS2-rated adapter has a yellow jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. It also complies with G657A2 bend-insensitive fiber standards, which allows for easy installation without excessive care when storing the fiber due to the increased bend radius.

    • Features:

      • 12 in. adapter converts a standard LC cable to CS in your high-bandwidth network
      • OS2-rated cable recommended for 400 Gb speeds up to 2 km (@ 1310 nm)
      • CS connector 40% more dense than standard LC end for easier cable management
      • Smaller-format CS end designed for next-generation 400G QSFP-DD transceivers
      • Yellow LSZH jacket allows fast, easy identification in a crowded switch or patch panel

    • Specifications:

      • General
      • Attenuation @ 1310NM: 0.35dB/KM
      • Primary Coating Diameter: 600
      • Technology: Singlemode
      • Optical Mode: OS2
      • Attenuation @ 1550NM: 0.21dB/KM

        Isolation:
      • Insertion Loss: <0.30dB

        Physical:
      • Color: Blue; Yellow
      • Cable Jacket Rating: LSZH
      • Clad Diameter: 125 micron
      • Core Diameter: 8.3 micron
      • Number of Fibers: 2
      • Cable Length (ft.): 1
      • Cable Length (in.): 12
      • Minimum Bend Radius: 20MM (DYNAMIC); 10MM (STATIC)

        Environmental
      • Operating Temperature Range: -4 to 140 F (-20 to 60 C)
      • Storage Temperature Range: -4 to 140 F (-20 to 60 C)
      • Operating Humidity Range: 5% TO 85% RH, NON-CONDENSING
      • Storage Humidity Range: 5% TO 85% RH, NON-CONDENSING

        Communications
      • Network Speed: 400Gbe

        Connections

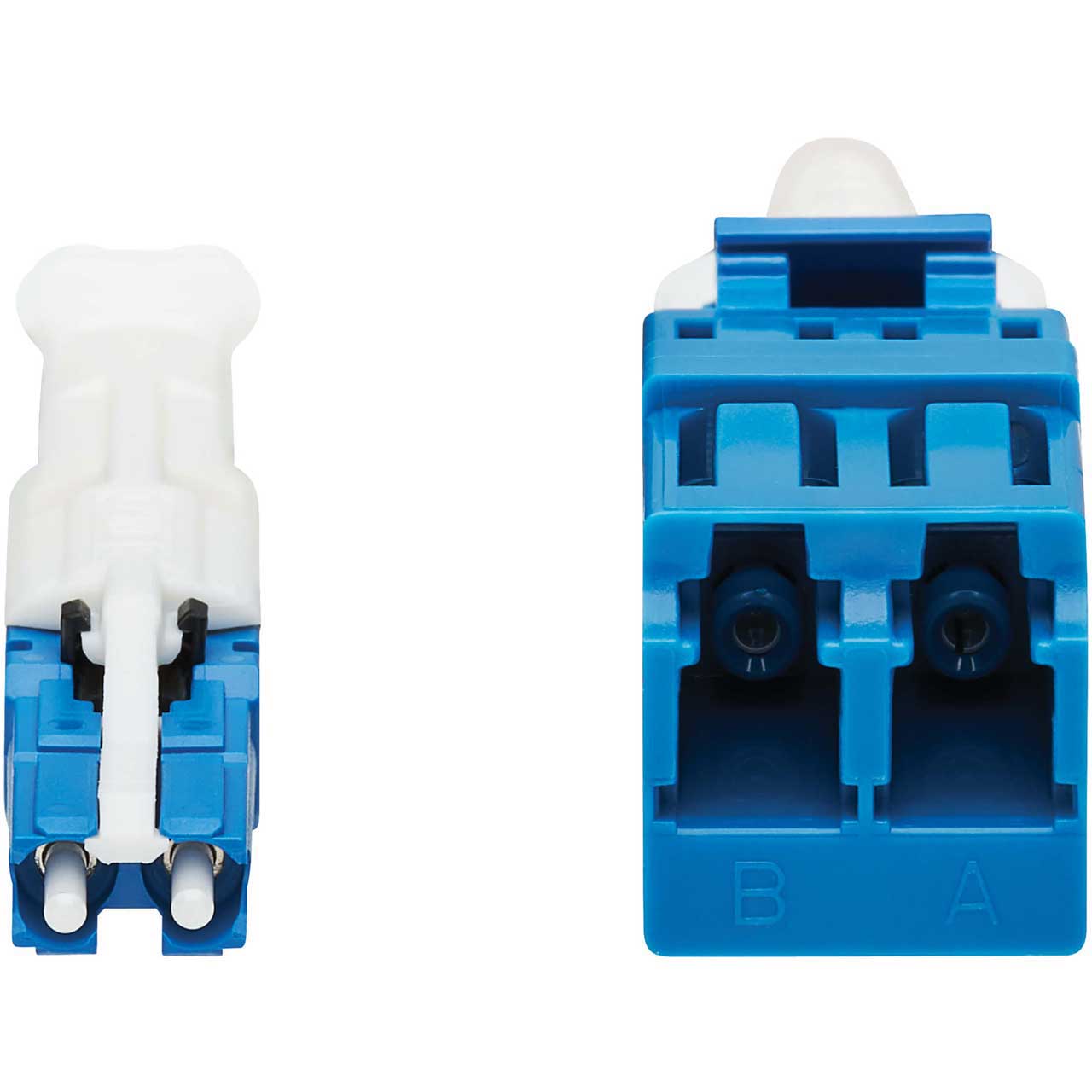

      • Side A - Connector 1: CS (MALE)
      • Side A - Connector 2: LC DUPLEX (FEMALE)
      • Side B - Connector 1: LC DUPLEX (FEMALE)

        Features & Specifications
      • Transmission Distance: 2KM @ 1310NM WAVELENGTH
      • Push/Pull Tabs: Yes

    • Item Includes:

      • 1x N381L-001-MF 400 Gb Duplex Singlemode 8.3/125 OS2 Fiber Optic Cable Adapter, Yellow, 1 ft.

    • Warranty:

      • Lifetime Limited Warranty

    • GTIN:

      0037332260116
