Tripp Lite NG16 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch - Metal Housing
  • Tripp Lite NG16 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch - Metal Housing
  • Tripp Lite NG16 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch - Metal Housing
  • Tripp Lite NG16 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch - Metal Housing
  • Tripp Lite NG16 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch - Metal Housing
  • Tripp Lite NG16 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch - Metal Housing

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite NG16 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch - Metal Housing

Manufacturer: Tripp Lite

Item #: TRL-NG16   •   MFG #: NG16



List Price:$144.62
Our Price:$103.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The NG16 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds 10/100/1000 Mbps Ethernet capacity to your home office, small office, workgroup or creative production environment. Share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit speeds, improving efficiency and cutting costly downtime.

    This rack-mount/desktop switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. No configuration is required, so you can have your Gigabit network up and running immediately. Easy-to-read LEDs indicate connection and activity status for each port. IEEE 802.3x flow control allows smooth transmission of large files.

    The NG16 supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just seven watts max. The detachable five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.


    • Features

      • Enterprise Managed Network Switch
      • 16 twisted-pair RJ45 Gigabit Ethernet ports
      • Auto-negotiable 10/100/1000 Mbps
      • Automatic MDI/MDIX cross-over detection
      • 32 Gbps switching capacity (2 Gbps per port with full duplex)

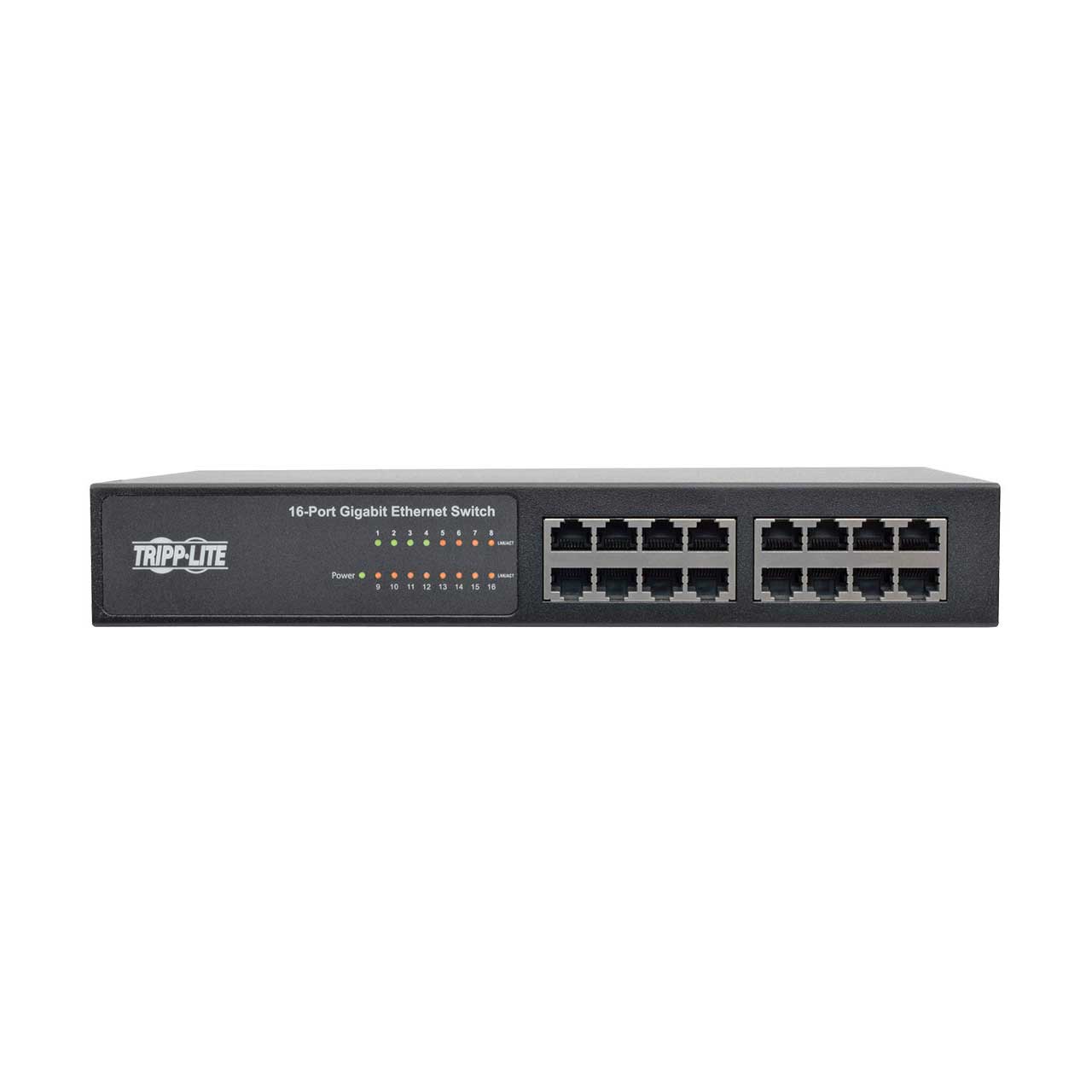

      • Easy-to-read LEDs indicate connection and activity status for each port
      • Supports 9k jumbo frames
      • Supports MAC address auto-learning and auto-aging
      • Supports 802.3x flow control (full duplex) and back pressure (half duplex)

        Compliant with IEEE 802.3az Energy Efficient Ethernet Standards
      • Automatically shifts unused ports to low-power state without interrupting network connection
      • Consumes very little input power-just 7W max
      • Also meets IEEE 802.3ab, 802.3i, 802.3u and 802.3 standards

        Heavy-Duty Metal Housing

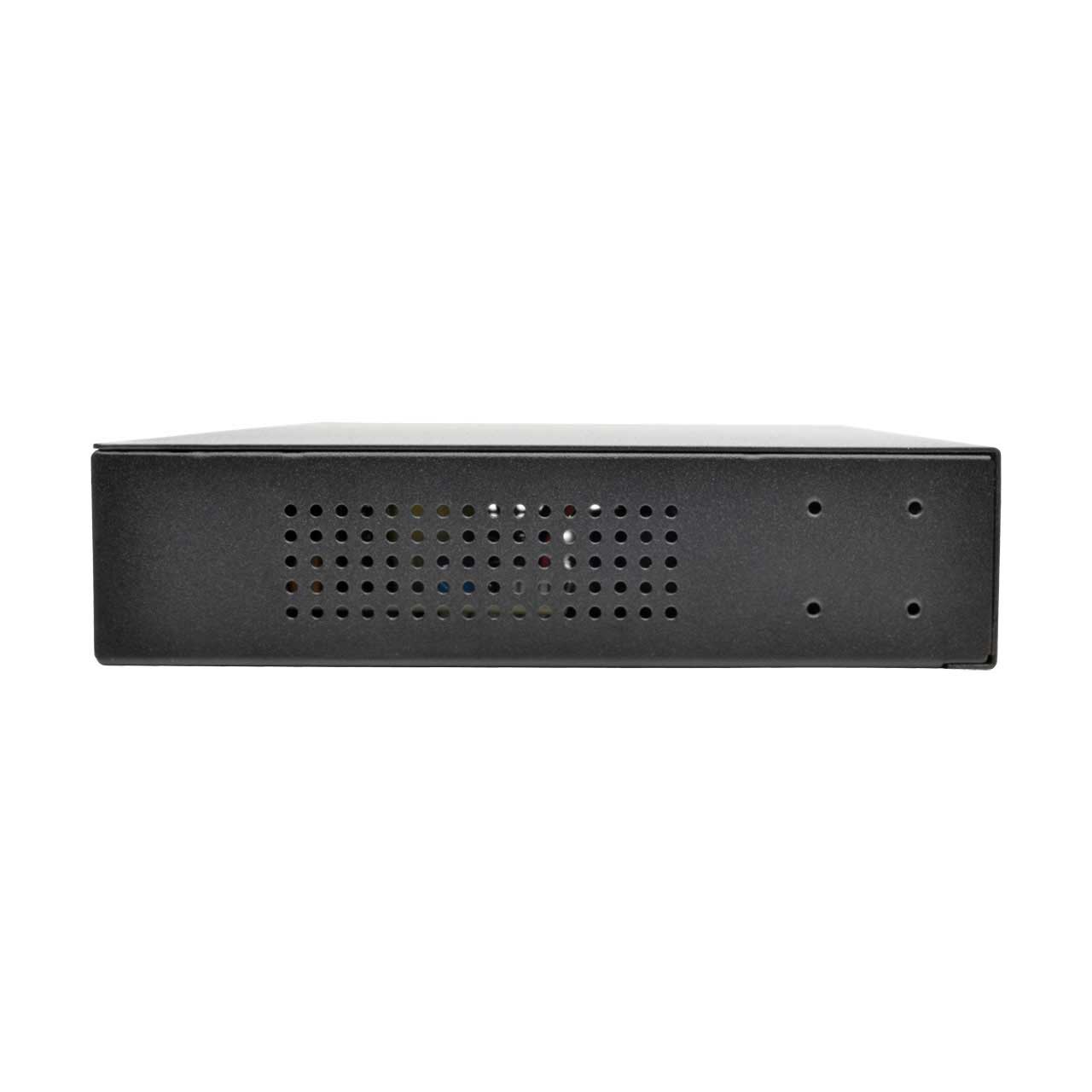

      • Fanless design for silent operation

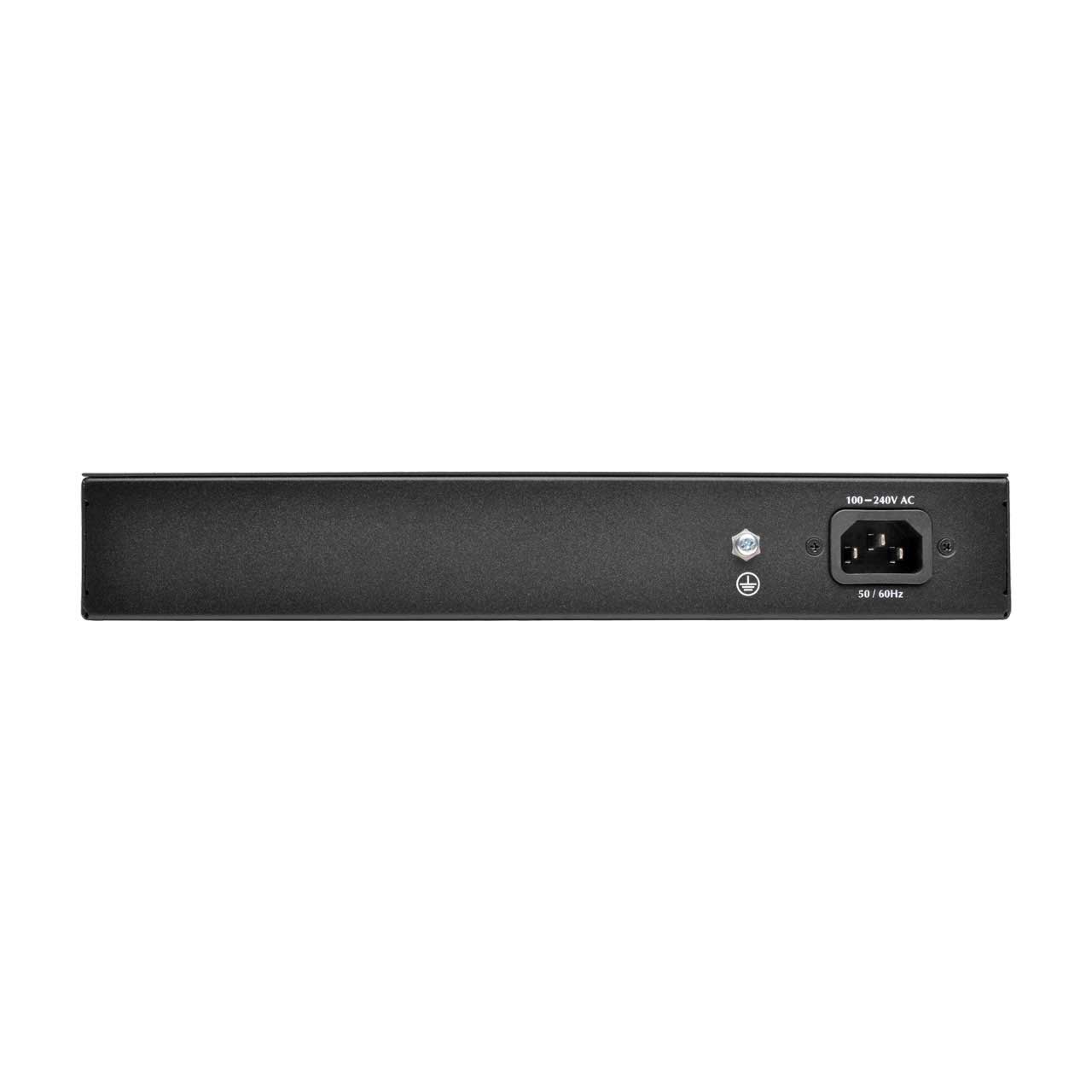

      • Detachable 5 ft. AC power cord with NEMA 5-15P plug
      • Plug-and-play-no configuration necessary

        Versatile Installation Options

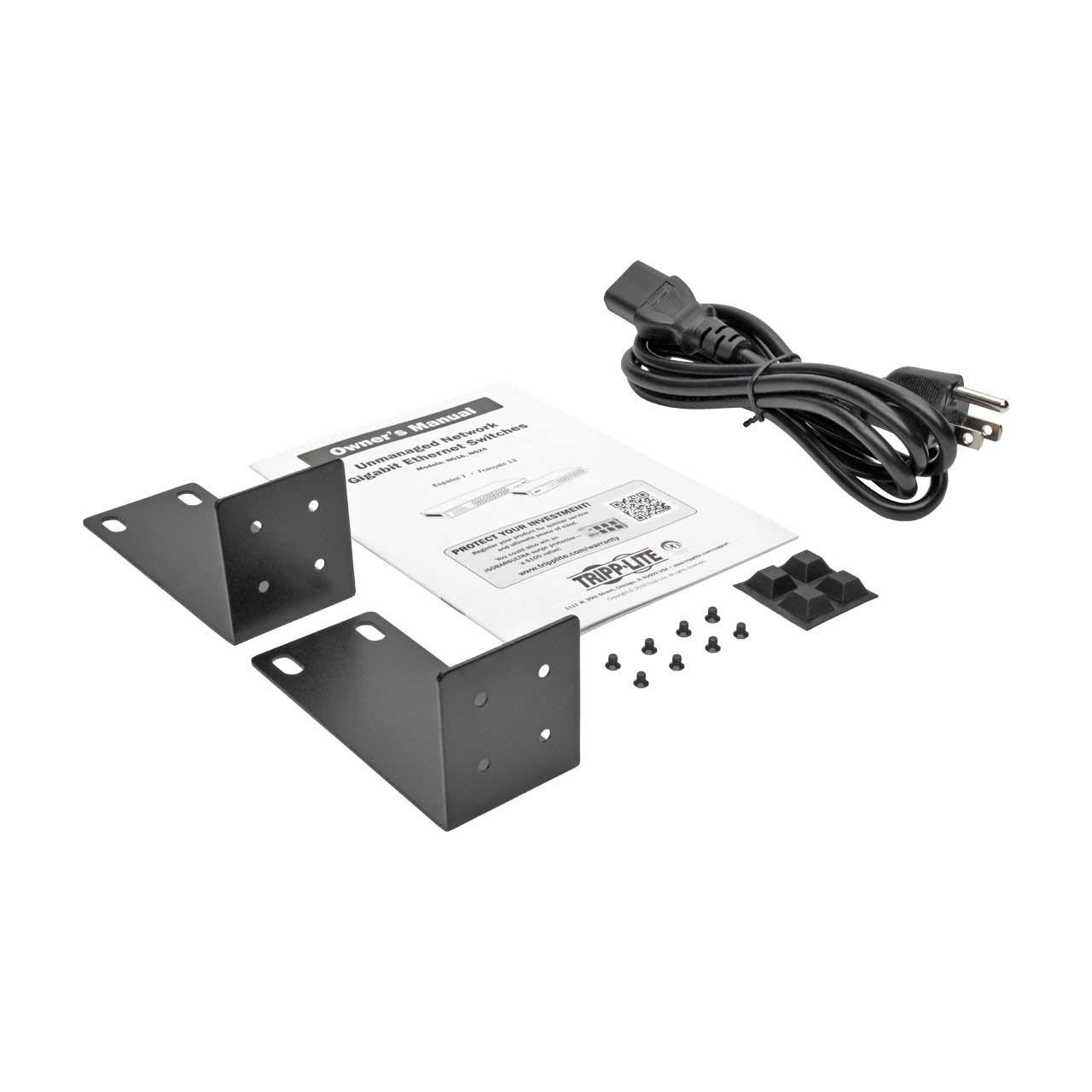

      • Includes rubber feet for secure placement on flat desktop surface

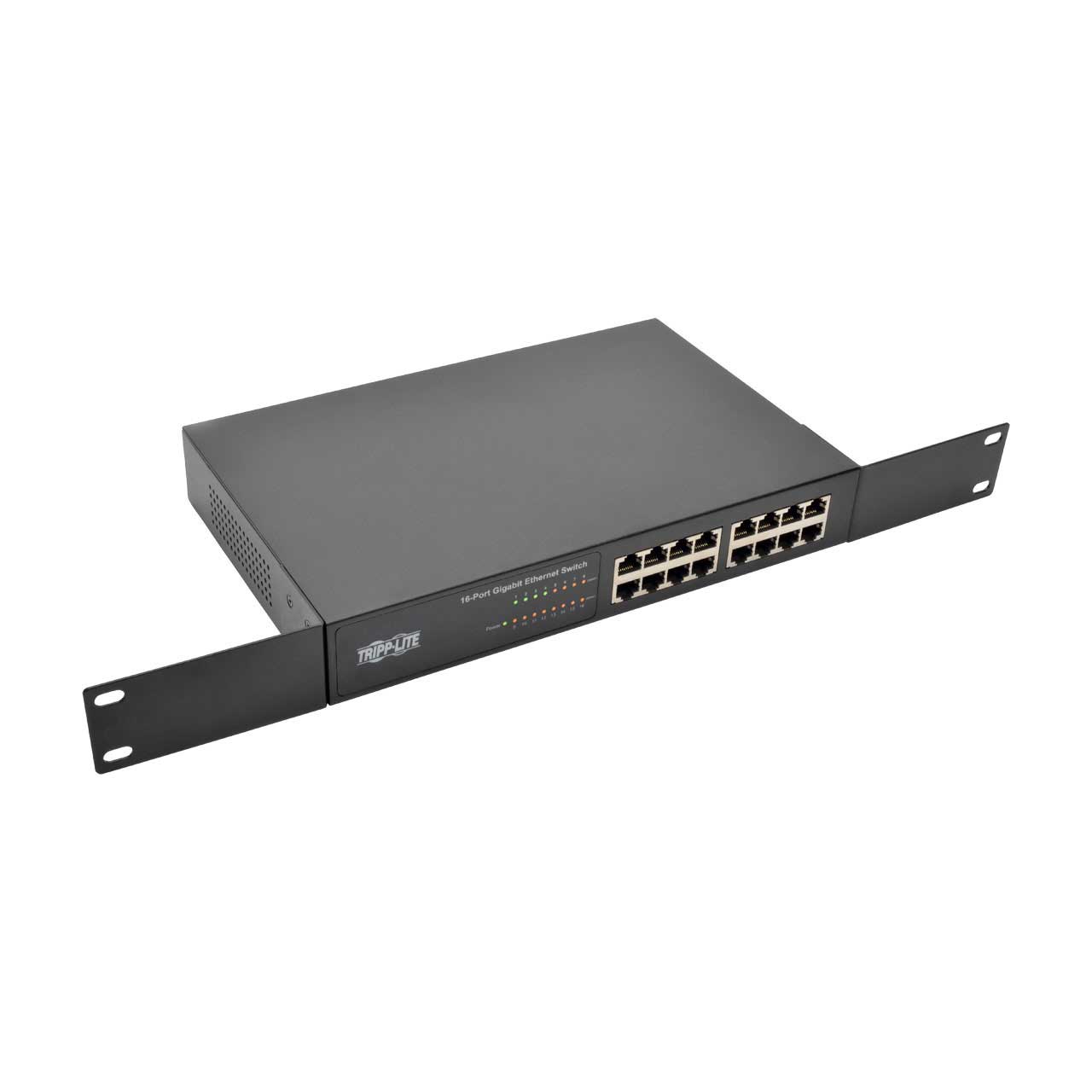

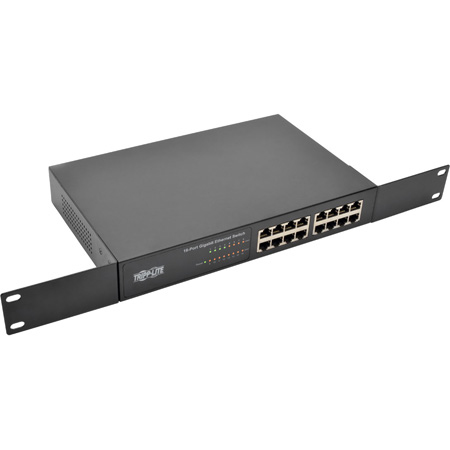

      • Mounts in 1U of EIA-standard 19 in. rack with included brackets
      • Grounding lug included

    • Specifications

      • Input
      • Electrical Consumption: Up to 7 watts
      • Nominal Input Voltage Description: Accepts 100-240V AC nominal input
      • Plug Type: Includes NEMA 5-15P input plug
      • Input Cord Length (ft.): 5
      • Input Cord Length (m): 1.52

        User Interface, Alerts & Controls
      • LED Indicators: Power LED (Green for Power On); One LED per RJ-45 port (Green indicates 10/100Mbps link; Amber indicates1000Mbps link; LEDs flash to indicate port activity)

        Physical
      • Primary Form Factor: Desktop; Rackmount
      • Shipping Dimensions (hwd / in.): 3.03 x 9.65 x 17.24
      • Shipping Dimensions (hwd / cm): 7.7 x 24.51 x 43.8
      • Shipping Weight (lbs.): 4.92
      • Shipping Weight (kg): 2.23
      • Unit Dimensions (hwd / in.): 1.74 x 11.02 x 7.09
      • Unit Dimensions (hwd / cm): 4.42 x 27.99 x 18.01
      • Unit Weight (lbs.): 3.2
      • Unit Weight (kg): 1.45
      • Color: Black
      • Form Factors Supported: Desktop, Rackmount

        Environmental
      • Storage Temperature Range: -40 to 158° F (-40 to 70° C)
      • Relative Humidity: 10 to 90% (Non-condensing)
      • Operating Temperature: 32 to 104° F (0 to 40° C)

        Connection
      • Network Switch Ports: (16) 10/100/1000 (RJ45)

    • Warranty

      • 5-year limited warranty

    • GTIN:

      0037332194725
