NG16POE - Overview

The NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.

Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this Ethernet switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 260W. Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.

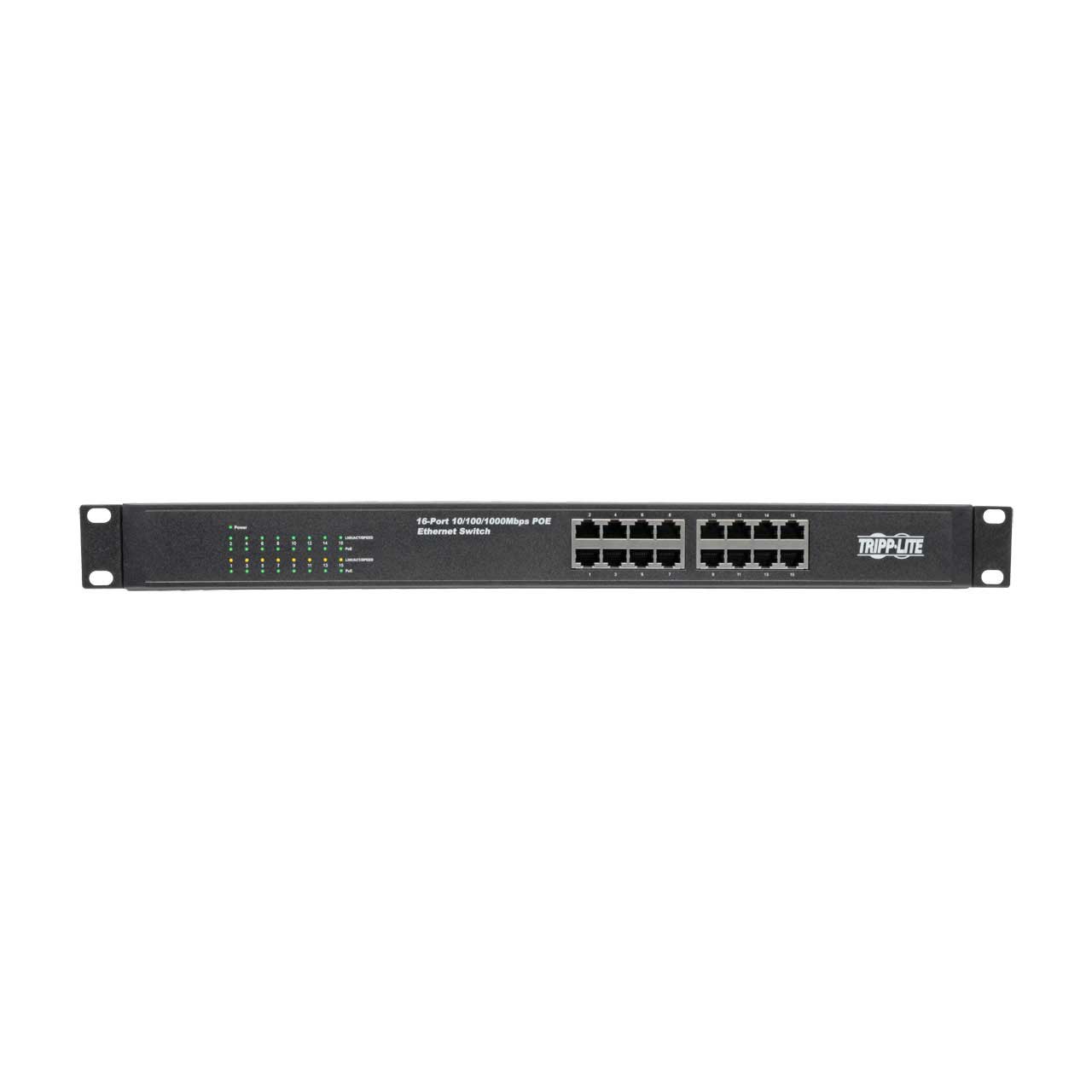

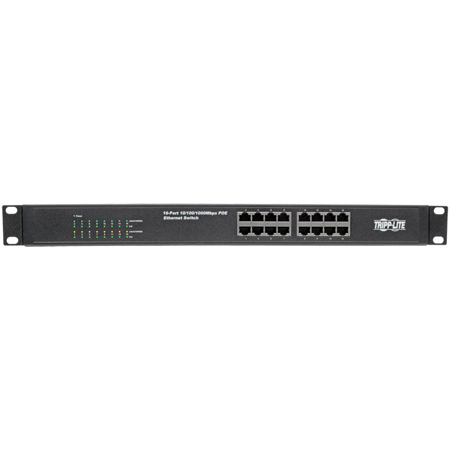

This unmanaged switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It's plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.

The detachable six-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.

  • Features:

    • Unmanaged Network Switch for Home/Small Offices, Workgroups and Security Applications
    • 16 twisted-pair RJ45 Gigabit Ethernet ports with PoE+ capability
    • Auto-negotiable 10/100/1000 Mbps
    • Automatic MDI/MDIX cross-over detection
    • 32 Gbps switching capacity (2 Gbps per port with full duplex)
    • LEDs indicate power, connection, activity and PoE status per port
    • Supports 9k jumbo frames, MAC address auto-learning and auto-aging, and 802.3x flow control (full duplex) and back pressure (half duplex)
    • 260W Total PoE+ Budget
    • Up to 30W PoE per port
    • Each port supplies PoE+ power to connected devices via network cable
    • Heavy-Duty Metal Housing
    • Detachable 6 ft. AC power cord with NEMA 5-15P plug
    • Plug-and-play-no configuration necessary
    • Versatile Installation Options
    • Includes rubber feet for secure placement on flat desktop surface
    • Mounts in 1U of EIA-standard 19 in. rack with included brackets
    • Grounding lug included

  • Specifications:

    • Input
    • Electrical Consumption: 400W maximum power consumption (at 100% switching capacity with 260W POE consumption)
    • Nominal Input Voltage Description: 100-240V AC nominal input
    • Plug Type: Detachable NEMA 5-15P input cord
    • Input Cord Length (ft.): 6
    • Input Frequency: 50/60 Hz

      Physical
    • LED Indicators: Power LED (Red); Two LEDs per RJ-45 port (UPPER LED: Green indicates 10/100Mbps link; Amber indicates; 1000Mbps link; LEDs flash to indicate port activity / LOWER LED: Green indicates POE is active)
    • Primary Form Factor: Desktop; Rackmount
    • Rack Height (U Spaces): 1
    • Unit Dimensions (H x W x D): 1.73" x 17.4" x 8.19"
    • Unit Weight (lbs.) 6.17
    • Color: Black
    • Form Factors: Supported Desktop, Rackmount

      Environmental
    • Storage Temperature Range: 14 to 158° F
    • Relative Humidity: 10 to 90% (non-condensing)
    • Operating Elevation (ft.): Up to 10,000
    • Operating Temperature: 32 to 104° F
    • Operating Elevation (m): Up to 3000

      Connections
    • Network Switch Ports: (16) 10/100/1000 (RJ45)
    • PoE Supported Ports: 16
    • PoE Capability: 30W (802.3at)
    • PoE Power Budget (Watts): 260

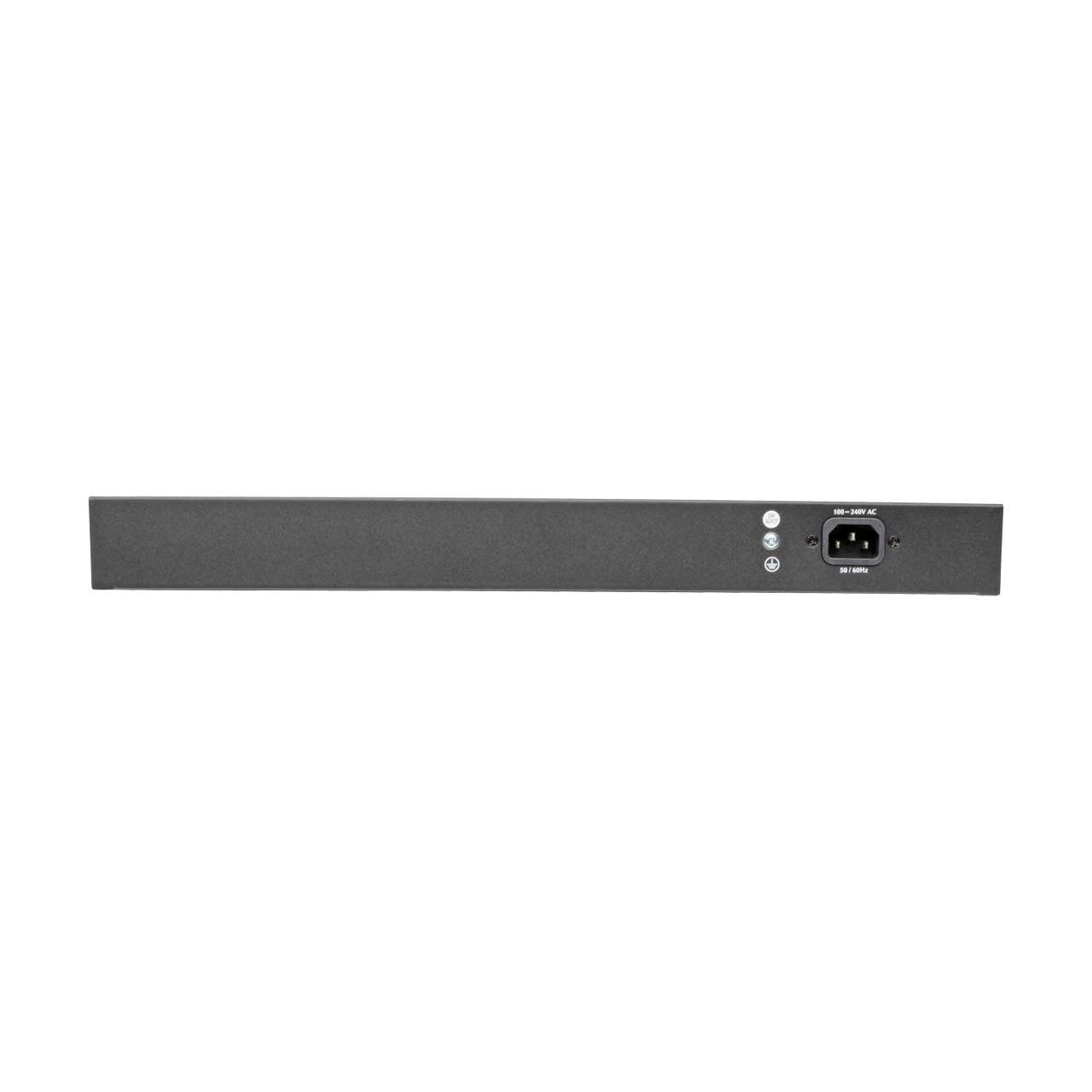

    • Grounding Lug: Includes back panel grounding lug

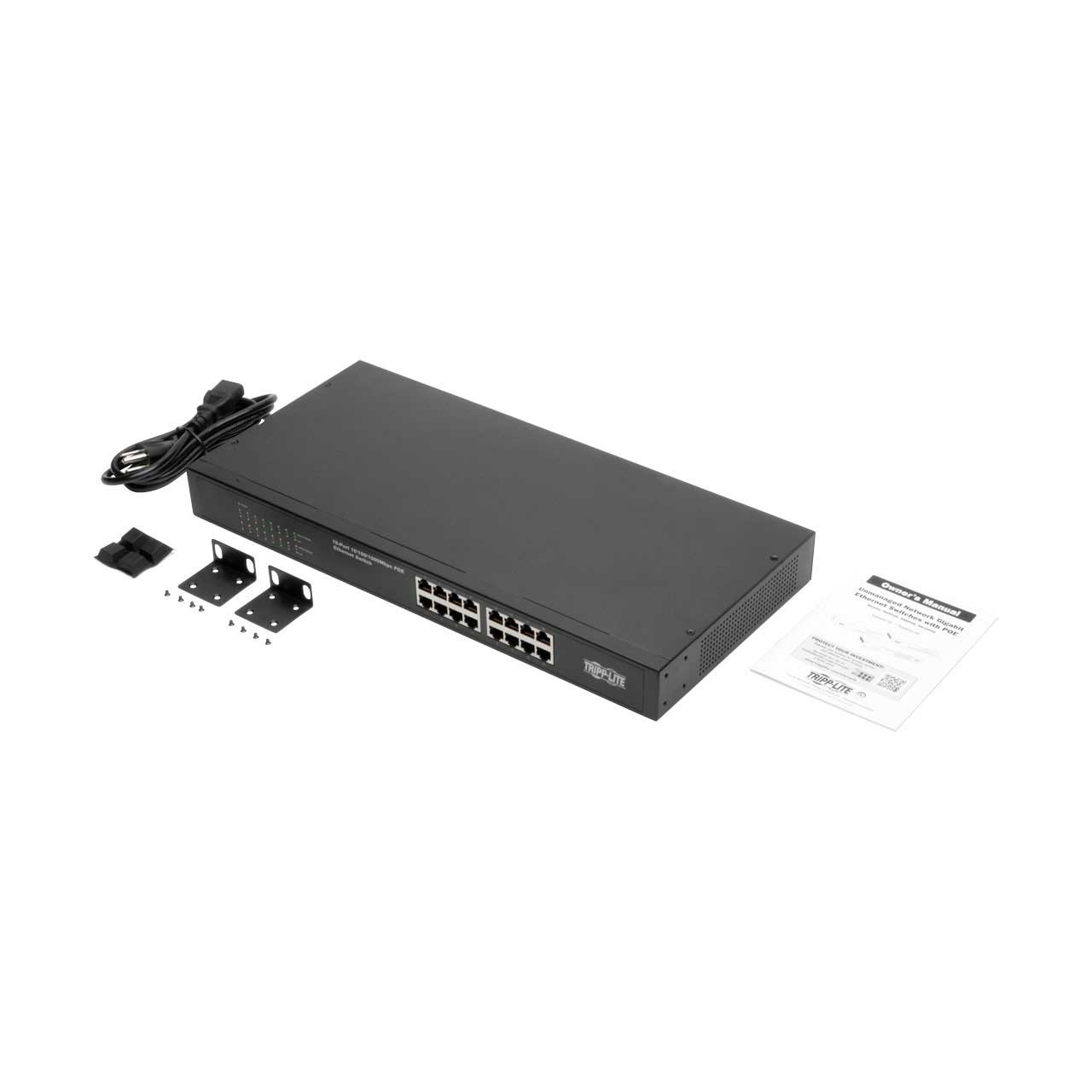

  • Item Includes:

    • NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch
    • Detachable AC power cord with NEMA 5-15P plug, 6 ft.
    • (2) Rack-mounting brackets
    • (8) Screws
    • (4) Rubber feet
    • Owner's manual

  • Warranty:

    • 5 year Limited

  • GTIN:

    0037332194800
