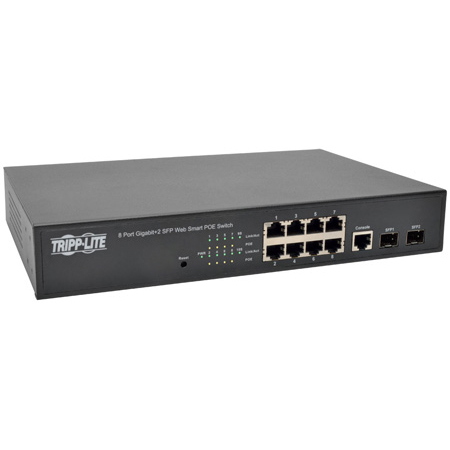

Tripp Lite NGS8C2POE 8 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed PoE plus Switch - 140W - 20 Gbps

ITEM #: TRL-NGS8C2POE MFG #: NGS8C2POE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$348.80

Our Price:

$252.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    NGS8C2POE - Overview

    The energy-efficient NGS8C2POE 8-Port Gigabit L2 Web-Smart Managed PoE+ Network Switch features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Each port can be configured to supply up to 30W of PoE+ (Power over Ethernet) via network cable to connected devices, such as VoIP phones and security cameras. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.

    Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.

    The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.

    • Features:

      • Enterprise Managed Network Switch
      • 8 twisted-pair RJ45 Gigabit Ethernet ports
      • Auto-negotiable 10/100/1000 Mbps
      • Automatic MDI/MDIX cross-over detection
      • 20 Gbps switching capacity (2 Gbps per port with full duplex)
      • Easy-to-read LEDs indicate connection and activity status for each port
      • Supports 9k jumbo frames
      • Supports MAC address auto-learning and auto-aging up to 8,000 addresses
      • Advanced Enterprise-level and L2 management features

        140W Total PoE+ Budget
      • Each RJ45 port can be configured to supply PoE+ to connected devices, such as VoIP phones and security cameras
      • 30W maximum per port
      • Total PoE power split into 2 port groups, each 70W max

        Built-In Web-Smart Management Software
      • Monitors and controls connected equipment via simple Web interface
      • VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance

        Dual Dedicated Mini-GBIC SFP Ports
      • Connect to Mini-GBIC SFP modules for uplinking to other switches via optical fiber or copper
      • LEDs indicate interface traffic

        Compliant with Energy Efficient Ethernet standards
      • Automatically shifts unused ports to low power state without interrupting network connection
      • Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1d, 802.1w and 802.3ad standards

        Versatile Installation Options
      • Fanless metal housing mounts in 1U of EIA-standard 19 in. racks
      • Supports desktop installation using included rubber feet on flat surface
      • 5 ft. power cord with NEMA 5-15P plug connects to compatible AC power source

    • Specifications:

      • Input
      • Electrical Consumption: 300 watts max.
      • Input Plug Features: Detachable NEMA 5-15P to C13 input plug can be replaced with a wide variety of 100 to 240V international
      • cordsets that terminate to a C13 connector on the output side
      • Input Cord Length (ft.): 5
      • Input Cord Length (m): 1.52
      • Voltage Compatibility (VAC): 100; 110; 120; 127; 208/240
      • Input Phase: Single-Phase
      • Input Plug Type: NEMA 5-15P

        User Interface, Alerts & Controls
      • Switches: 1 included switch enables factory reset
      • LED Indicators: Power LED (Green for Power On); One connection/activity LED per RJ-45 port (Amber indicates 10/100Mbps link; Green indicates 1000Mbps link; LEDs flash to indicate port activity); One POE port per RJ-45 port (Green when POE is active; Blinks when port is overloaded); Two LEDs indicate SFP connection (Green)

        Physical
      • Primary Form Factor: Desktop; Rackmount
      • Minimum Required Rack Depth (inches): 8.07
      • Minimum Required Rack Depth (cm): 20.50
      • Shipping Weight (lbs.): 7.06
      • Shipping Weight (kg): 3.21
      • Unit Dimensions (hwd / in.): 1.73 x 17.32 x 8.07
      • Unit Dimensions (hwd / cm): 4.39 x 43.99 x 20.5
      • Unit Weight (lbs.): 5.4
      • Unit Weight (kg): 2.45
      • Color: Black
      • Minimum Required Rack Depth (mm): 205

        Environmental
      • Storage Temperature Range: -40 to 158° F (-40 to 70° C)
      • Relative Humidity: 10 to 90% (Non-condensing)
      • Operating Elevation (ft.): 10,000
      • Operating Temperature: 32 to 104° F (0 to 40° C)
      • Operating Elevation (m): 3,000

        Connection
      • Network Switch Ports: 10; (8) 10/100/1000 (RJ45); (2) Dedicated SFP

    • Warranty:

      • 5-year limited warranty

    • GTIN:

      0037332194855
