Tripp Lite PDU12IEC Single-Phase Basic PDU - 16A 100-240V

ITEM #: TRL-PDU12IEC MFG #: PDU12IEC

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$329.48

Our Price:

$229.53

Availability: In Stock
iAvailability Description Popup


    PDU12IEC - Overview

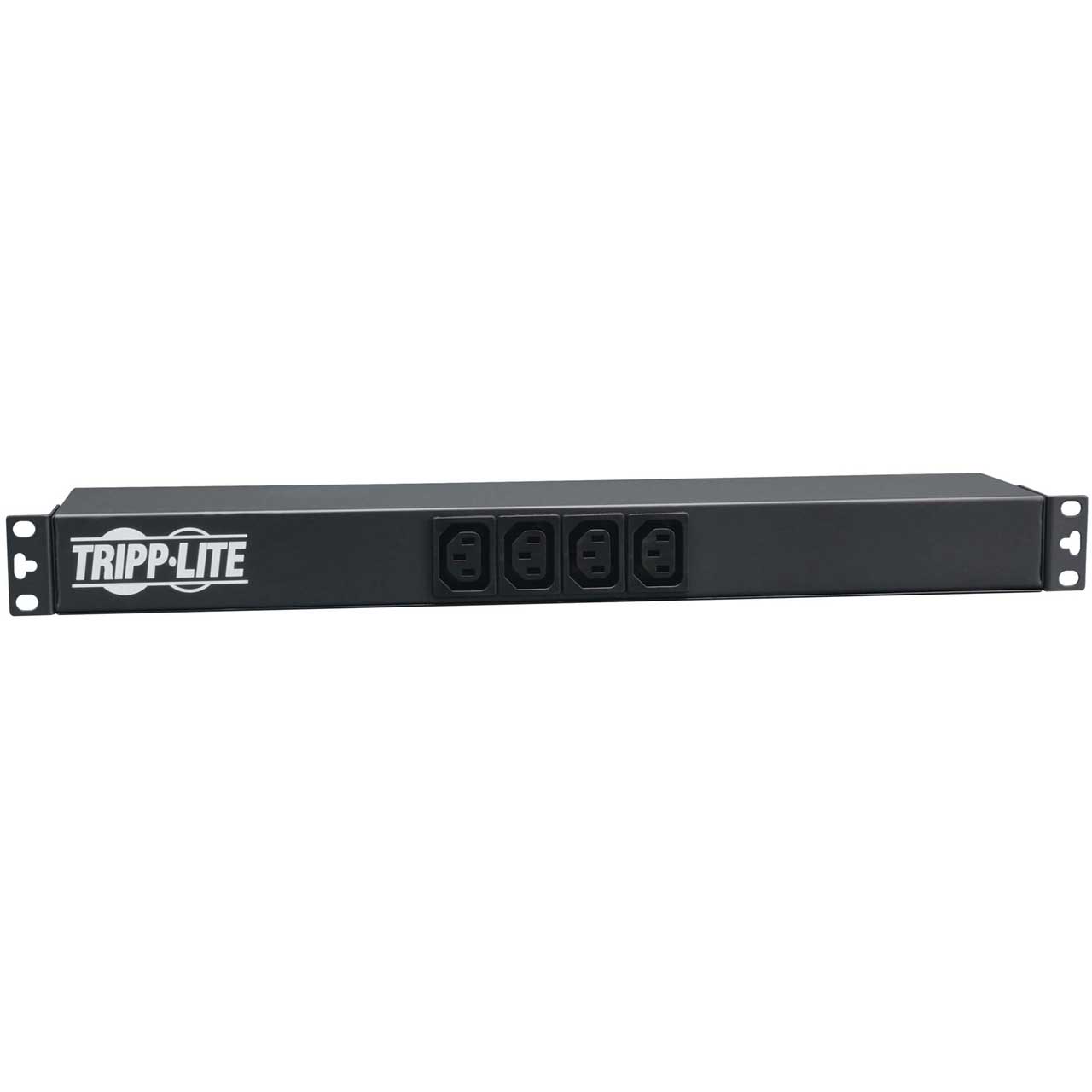

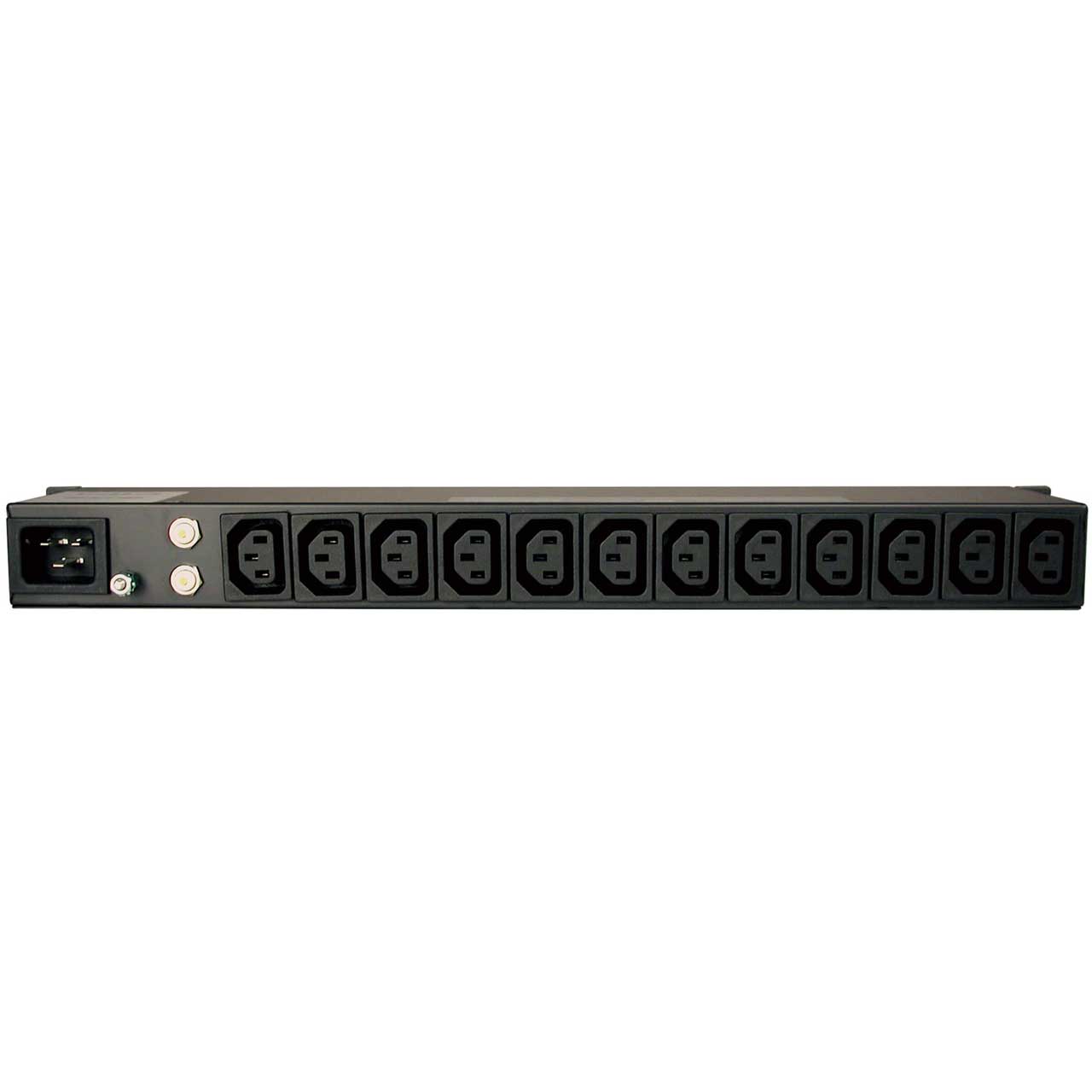

    The Tripp Lite PDU12IEC 1.9/3.8kW Single-Phase 120-240V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU12IEC features a single load bank with 14 total outlets-eight rear C13, two rear C19 and four front C13. The C20 inlet accepts a variety of user-provided power cords that connect to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.

    The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 16A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory (sold separately), you can adapt the PDU12IEC for vertical 0U rack-mounting.

    • Features:

      • C20 inlet accepts wide variety of user-supplied power cords
      • 14 total outlets-8 rear C13, 2 rear C19 and 4 front C13
      • Switchless design prevents accidental shutdown
      • Reversible all-metal housing
      • Installs in rack, on wall or under counter
      • 5-year limited warranty
      • Built-in 16A circuit breakers protect outlets against overloads
      • C20 inlet accepts wide variety of user-supplied power cords
      • Rear-panel grounding lug
      • Mounts horizontally in 1U of EIA-standard 19 in. 2- and 4-post racks
      • Reversible all-metal housing faces front or rear in rack
      • Ready for toolless 0U vertical installation with optional PDUSIDEBRKT (sold separately)
      • Also mounts on wall, workbench or under a counter

    • Specifications:

      • Input
      • PDU Input Voltage: 100; 120; 127; 200; 208; 220; 230; 240
      • Recommended Electrical Service: 20A 120V; 20A 208/240V; 16A 230V
      • Maximum Input Amps: 16
      • PDU Plug Type: IEC-320 C20
      • Input Phase: Single-Phase
      • Input Cord Details: C20 inlet accepts user supplied input cable with C19 output connection

        Output
      • Output Capacity Details: 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V), 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (12) C13; (2) C19
      • Output Nominal Voltage: 100; 120; 127; 200; 208; 220; 230; 240
      • Overload Protection: 16A circuit breaker

        User Interface, Alerts & Controls
      • Switches: No power switch

        Physical
      • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
      • Material of Construction: Metal
      • Minimum Required Rack Depth (inches): 7.8
      • Outlets Measurement (Center to Center): Distance between Front (C13) outlets = 28.75mm; Distance between Rear (C19) outlets = 55mm; Distance between Rear (C13) outelts = 28.75mm
      • PDU Form Factor: Horizontal (1U)
      • Shipping Dimensions (hwd / in.): 2.10 x 20.60 x 9.30
      • Shipping Weight (lbs.): 3.70
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4.25
      • Unit Weight (lbs.): 3.20

        Environmental
      • Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
      • Relative Humidity: 5-95% non-condensing
      • Operating Elevation (ft.): 0-10,000
      • Operating Elevation (m): 0-3000

    • Item Includes:

      • PDU12IEC 1.6/3.8kW Single-Phase 100-240V Basic PDU
      • Mounting hardware
      • Owner's manual

    • GTIN:

      0037332116253
