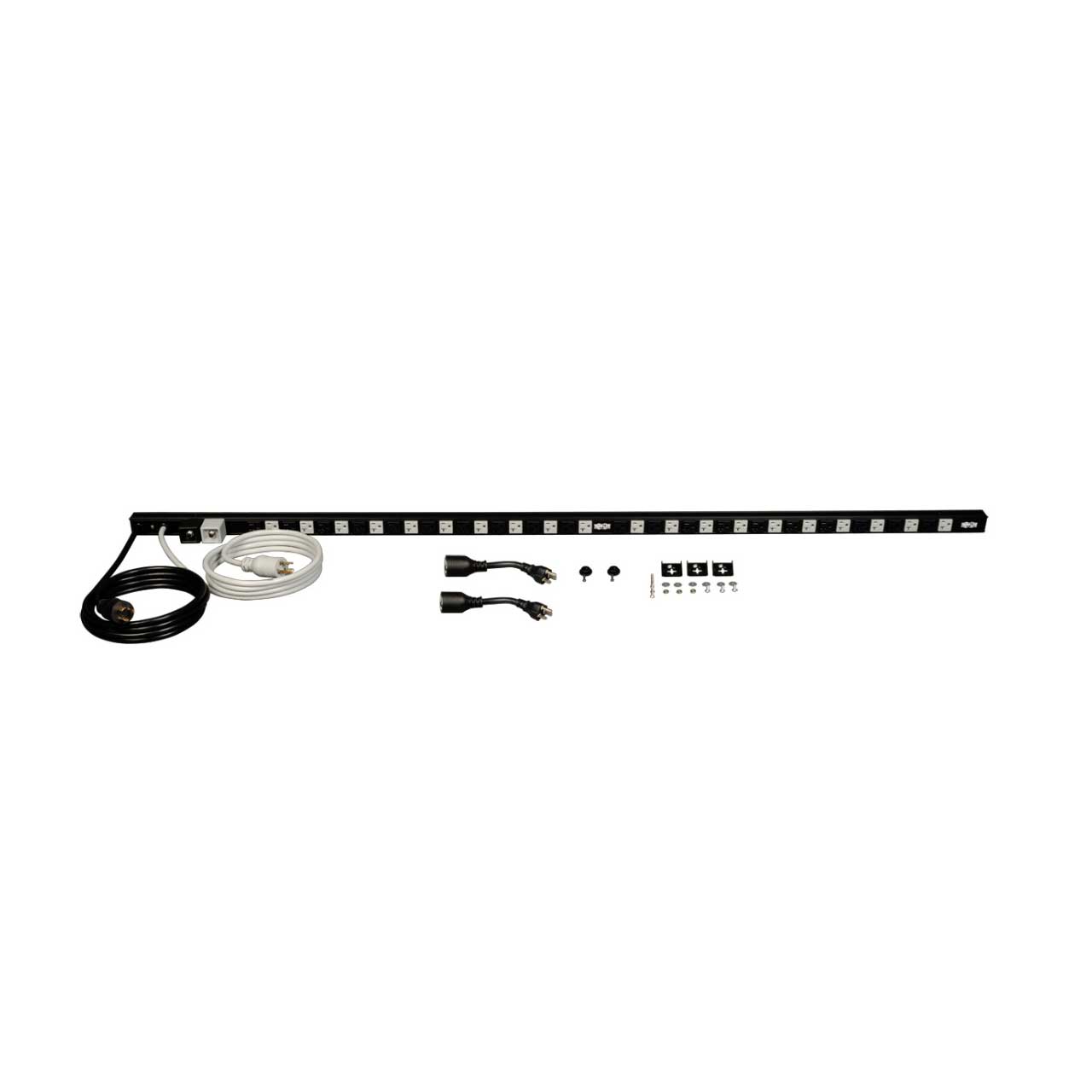

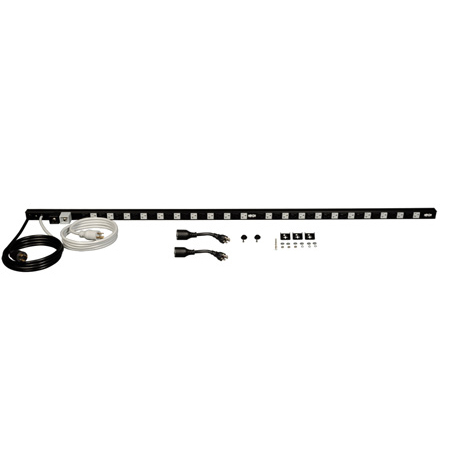

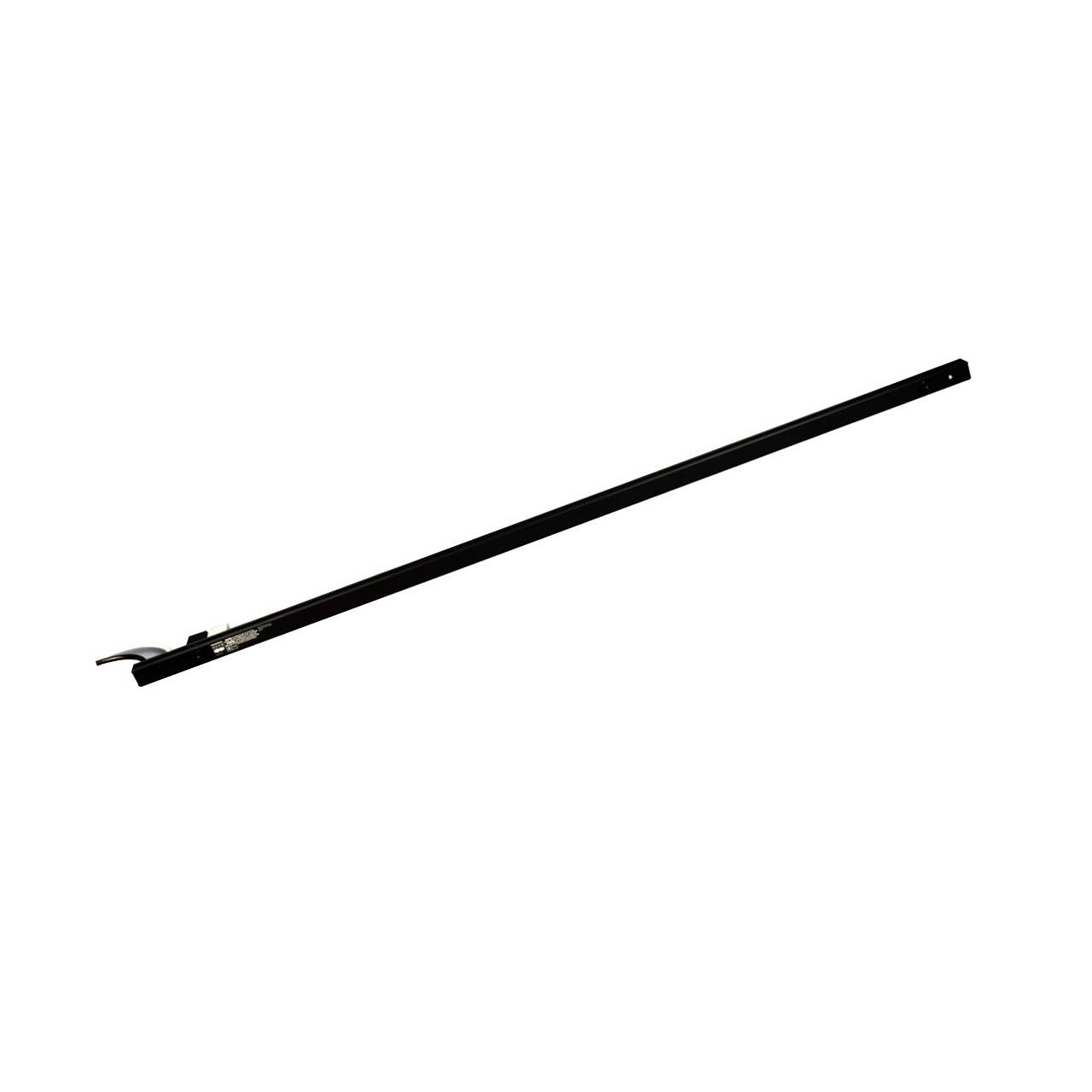

Tripp Lite PDU40TDUAL PDU Basic Dual Circuit 120V 20A 5-15/20R 40 Outlet L5-20P 0URM

Manufacturer: Tripp Lite

Item #: TRL-PDU40TDUAL   •   MFG #: PDU40TDUAL



List Price:$346.16
Our Price:$238.52

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. Dual independent power circuits offer all the benefits of two PDUs in a single housing, ideal for network equipment fitted with dual redundant input cables.


    • Features

      • 40A total single phase 120V Basic Power Distribution Unit / PDU with dual independent 120V 20A circuits (Agency de-rated to 16A per circuit)
      • Functions as two PDUs built into a single 70 in. / 1778mm 0U vertical rackmount housing
      • Color coded circuit identification with separate black and gray colored outlets, circuit breakers and line cords
      • 40 NEMA 5-15/20R outlets (20 black / 20 gray)

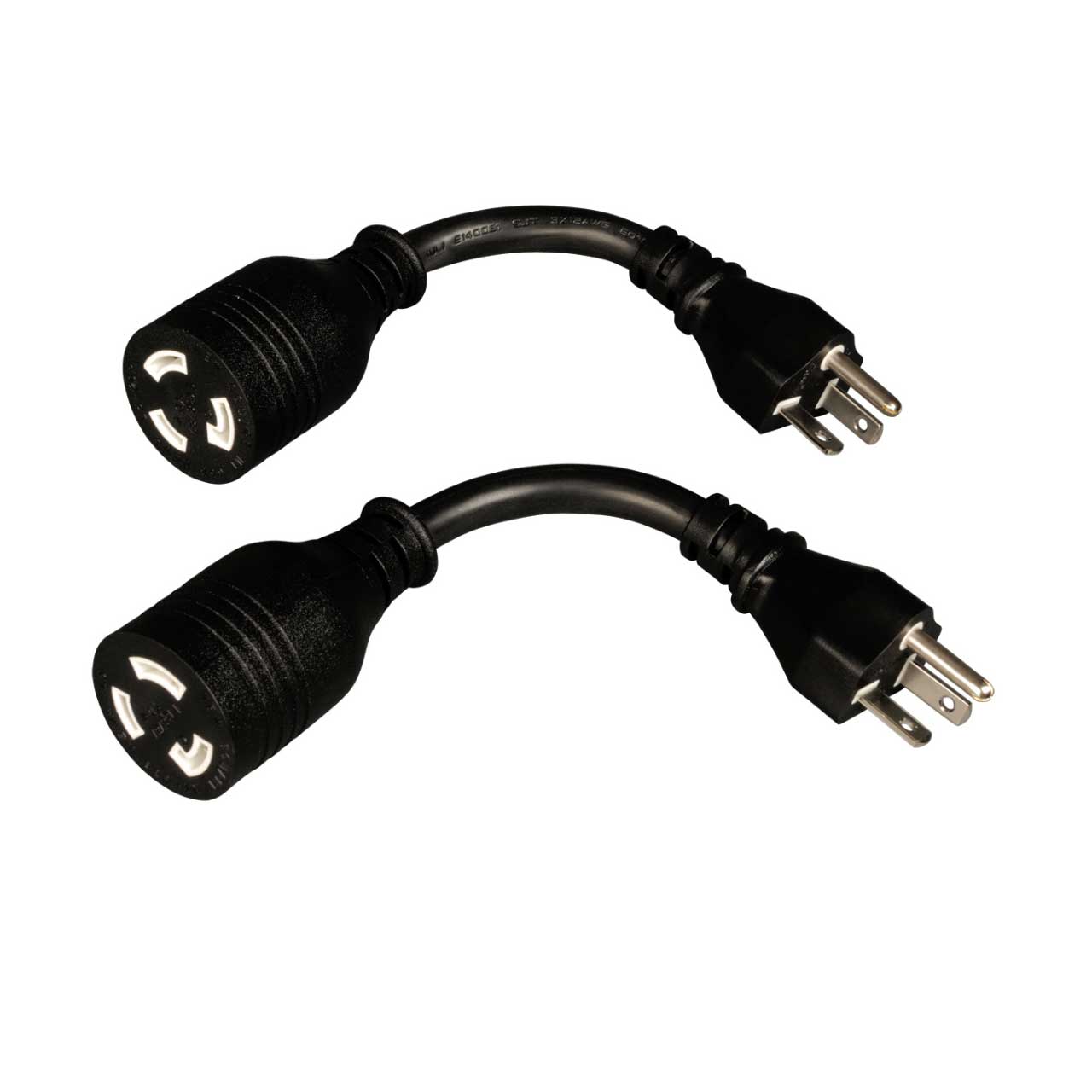

      • Two 10 ft. / 3m NEMA L5-20P / 5-20P compatible inputs (1 black / 1 gray)

    • Specifications

      • Style Vertical Rackmount, Wallmount, Raceway, Workbench
      • PDU Type Basic
      • Output Capacity Details 3.8kW total - 1.9kW per circuit (120V); 4.0kW total - 2.0kW per circuit (127V); 3.2kW total - 1.6kW per circuit (100V input); 40A maximum total - 20A maximum per circuit (Agency de-rated to 32A continuous total - 16A per circuit)
      • Frequency Compatibility 50 / 60 Hz
      • Output Receptacles (40) 5-15/20R
      • Output Receptacle Details 20 grey-color outlets are powered via the grey-color input cable; 20 black-color outlets are powered via the black-color input cable
      • Output Nominal Voltage 100-127V nominal, single phase
      • Overload Protection 2 x 20A circuit breakers; Grey-color circuit breaker protects grey-color outlets; Black-color circuit breaker protects black-color outlets
      • Outlet Type NEMA 5-15R, NEMA 5-20R
      • PDU Input Voltage 100; 120; 127
      • Recommended Electrical Service Two 20A 120V circuits
      • Maximum Input Amps 40
      • Maximum Input Amps Details 20A maximum per circuit (Agency de-rated to 16A per circuit continuous)
      • PDU Plug Type NEMA 5-20P; NEMA L5-20P
      • Input Cord Length (ft.) 10
      • Input Cord Length (m) 3.05
      • Input Cord Details Set of two input power cords; Grey-color input cord powers grey-color outlets; Black-color input cord powers black-color outlets
      • Input Phase Single-Phase
      • Switches n/a
      • Shipping Dimensions (hwd / in.) 5 x 2.25 x 71.25
      • Shipping Dimensions (hwd / cm) 12.7 x 5.7 x 181
      • Shipping Weight (lbs.) 10
      • Shipping Weight (kg) 4.5
      • Unit Dimensions (hwd / in.) 70 x 1.5 x 3
      • Unit Dimensions (hwd / cm) 177.8 x 3.8 x 7.6
      • Unit Weight (lbs.) 9
      • Unit Weight (kg) 4.1
      • Material of Construction Metal
      • Form Factors Supported Zero U vertical rackmount, wallmount, raceway, workbench and more
      • PDU Form Factor Vertical (0U)
      • Storage Temperature Range 5 to 122F (-15 to 50C)
      • Relative Humidity 5 to 95% non-condensing
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • Certifications Tested to UL60950-1 (USA), CSA (Canada), RoHS compliant

    • Warranty

      • 2-year limited warranty
