Tripp Lite PDUMH20ATNET PDU Switched ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal

Manufacturer: Tripp Lite

Item #: TRL-PDUMH20ATNET   •   MFG #: PDUMH20ATNET



List Price:$910.80
Our Price:$628.45

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

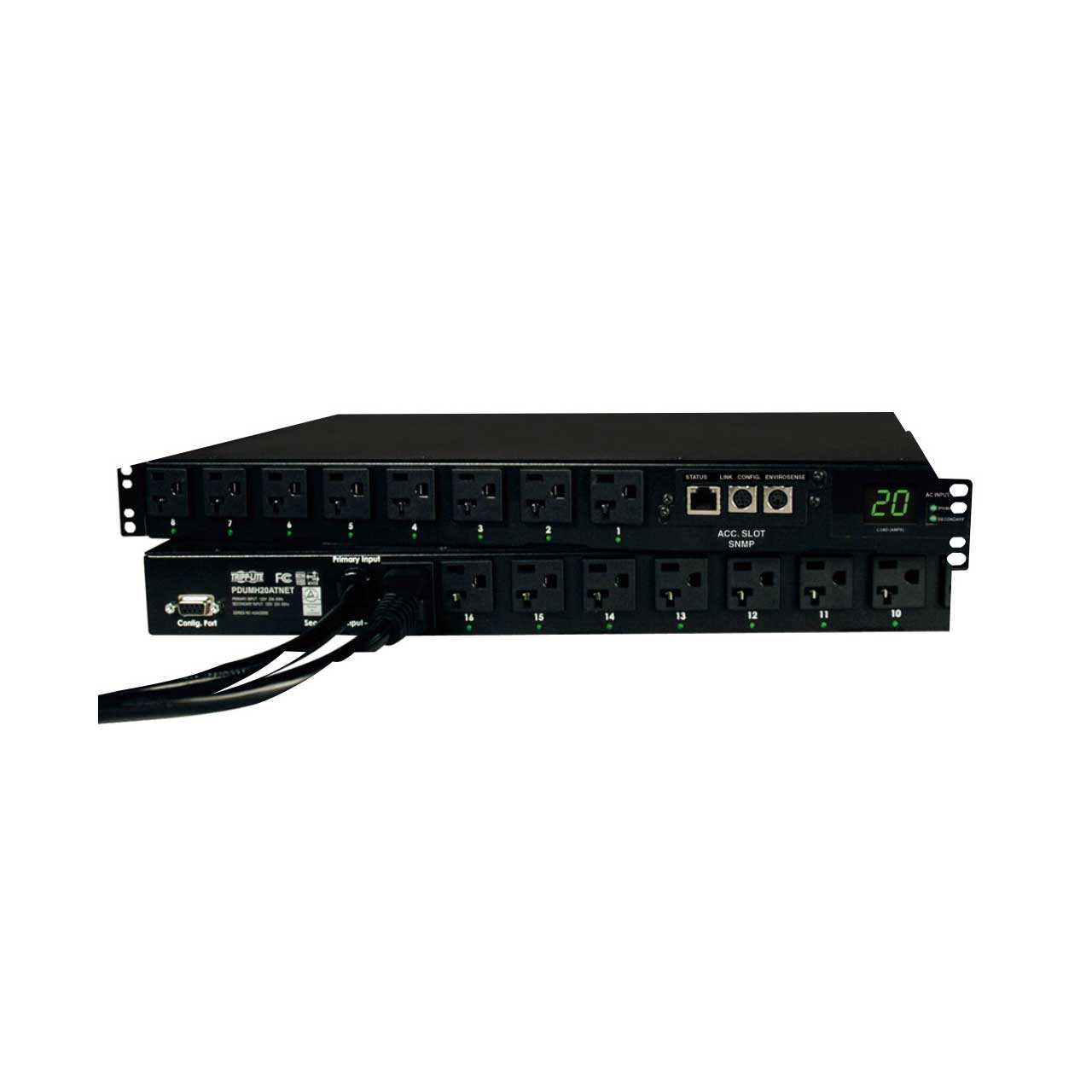

    Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.


    • Features

      • Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis

    • Specifications

      • Style Rackmount
      • PDU Type Auto-Transfer Switch; Switched
      • Output Capacity Details 1.92kW (120V), 2.03kW (127V), 1.6kW (100V); 20A maximum (Agency de-rated to 16A continuous)
      • Frequency Compatibility 60 Hz
      • Output Receptacles (16) 5-15/20R
      • Output Nominal Voltage 100-127V nominal, single phase
      • Overload Protection n/a
      • Outlet Type NEMA 5-15R, NEMA 5-20R
      • Customized Load Management Receptacles 16 individually switched output receptacles
      • PDU Input Voltage 100; 120; 127
      • Recommended Electrical Service 20A 120V
      • Maximum Input Amps 20
      • Maximum Input Amps Details Agency de-rated to 16A continuous
      • PDU Plug Type NEMA 5-20P; NEMA L5-20P
      • Input Cord Length (ft.) 12
      • Input Cord Length (m) 3.6

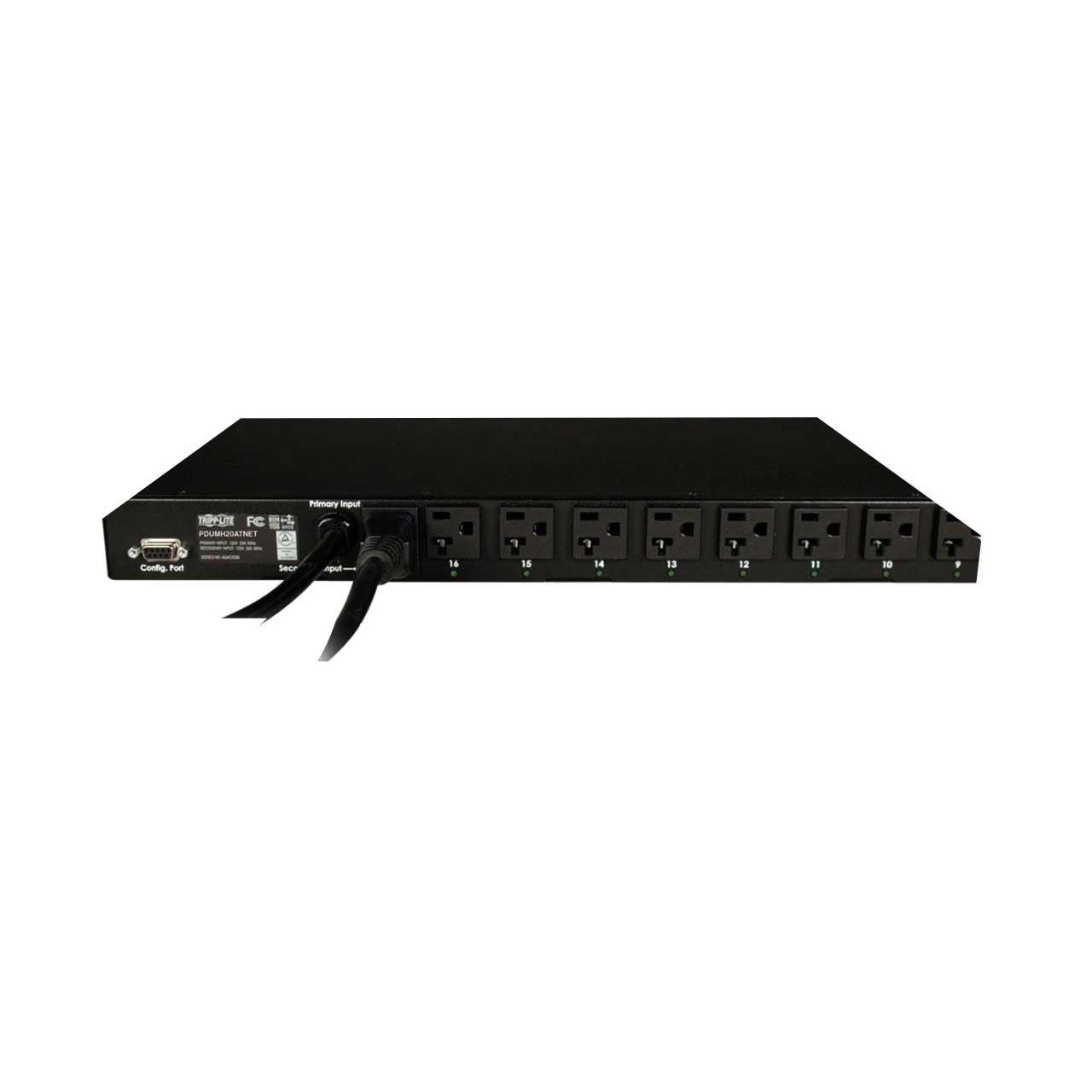

      • Input Cord Details Set of two input power cables support connection to separate PRIMARY and SECONDARY power sources
      • Input Phase Single-Phase

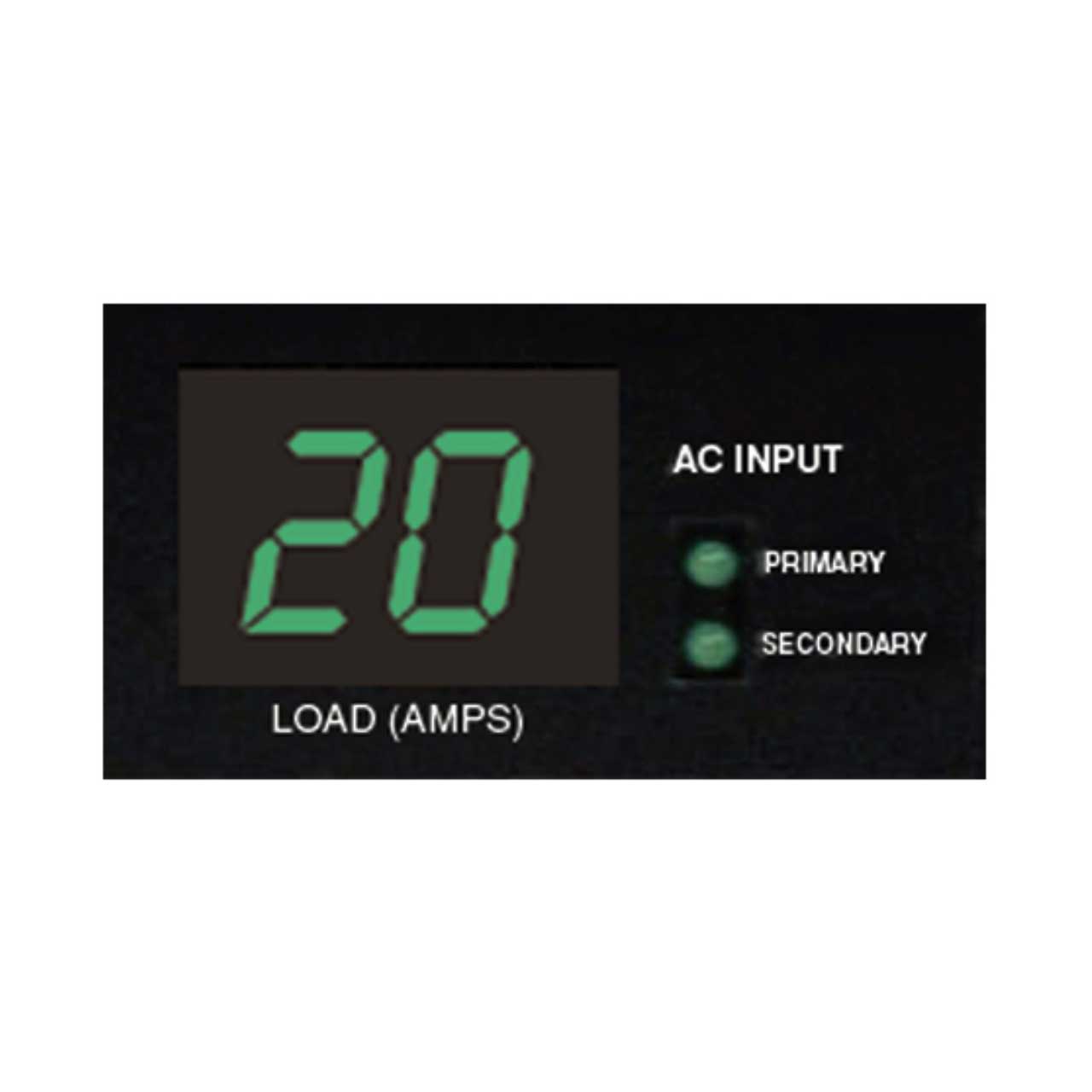

      • Front Panel LCD Display Digital display reports total PDU output current in amps

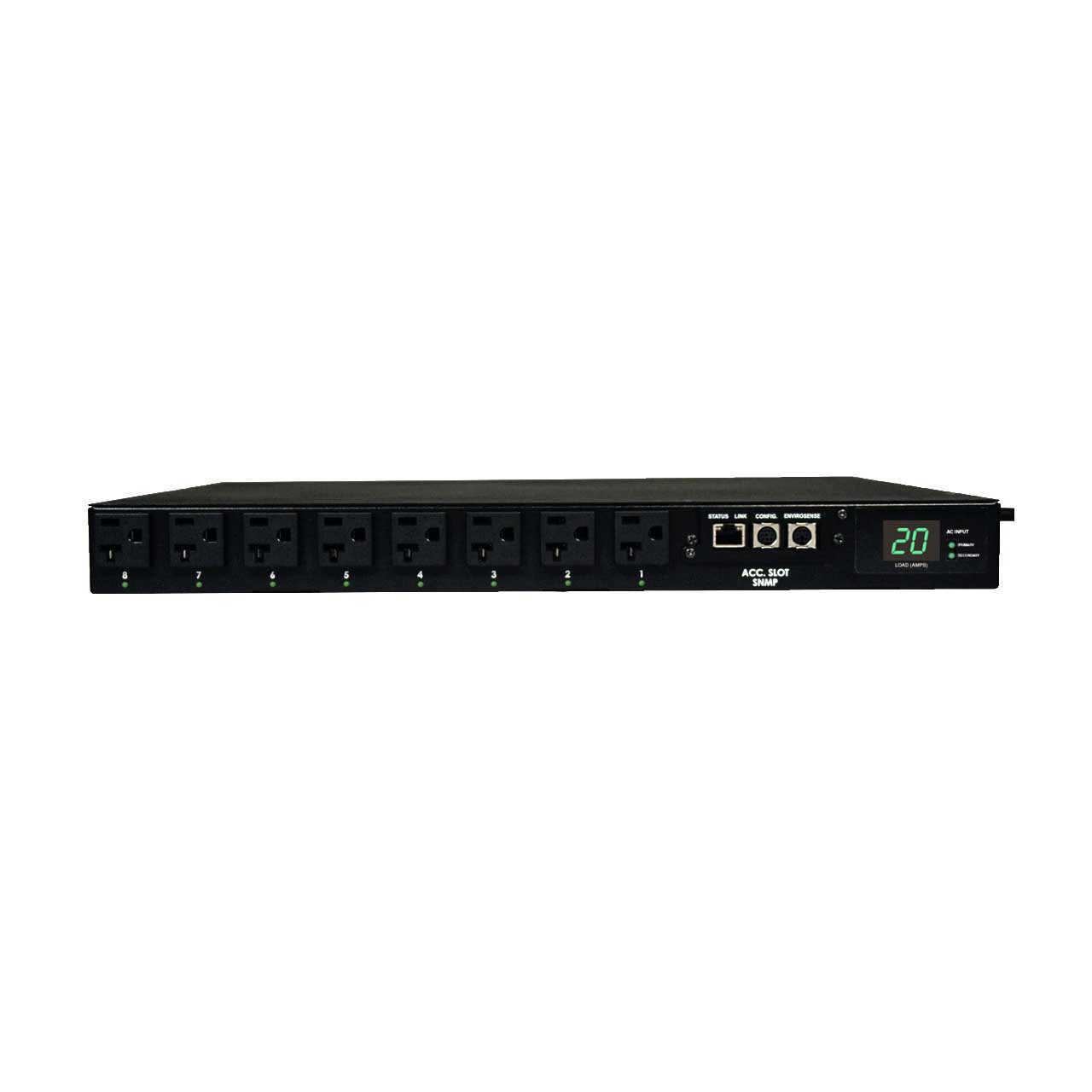

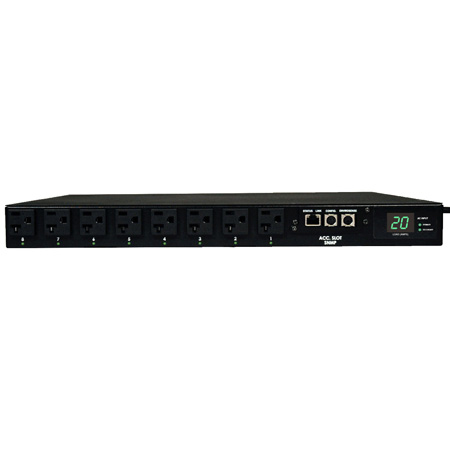

      • Front Panel LEDs 16 front panel LEDs display power on / off status for each outlet, plus 2 LEDs for power status on each input line cord; Digital current meter display shows the amount of power consumption in amps for entire output of PDU.
      • Switches n/a
      • Shipping Dimensions (hwd / in.) 6.25 x 22.5 x 23.5
      • Shipping Dimensions (hwd / cm) 15.9 x 57.2 x 59.7
      • Shipping Weight (lbs.) 16.4
      • Shipping Weight (kg) 7.4
      • Unit Dimensions (hwd / in.) 1.75 x 17.5 x 14.5
      • Unit Dimensions (hwd / cm) 4.44 x 44.4 x 36.8
      • Unit Weight (lbs.) 12.2
      • Unit Weight (kg) 5.5
      • Material of Construction Metal
      • Form Factors Supported 1U rackmount
      • PDU Form Factor Horizontal (1U, 2U, etc)
      • Storage Temperature Range 5 to 122F (-15 to 50C)
      • Relative Humidity 5 to 95% non-condensing
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via network interface
      • TVSS Grounding Rear grounding lug
      • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMH20ATNETAA
      • Certifications Tested to UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant
      • Product Warranty Period (Worldwide) 2-year limited warranty
