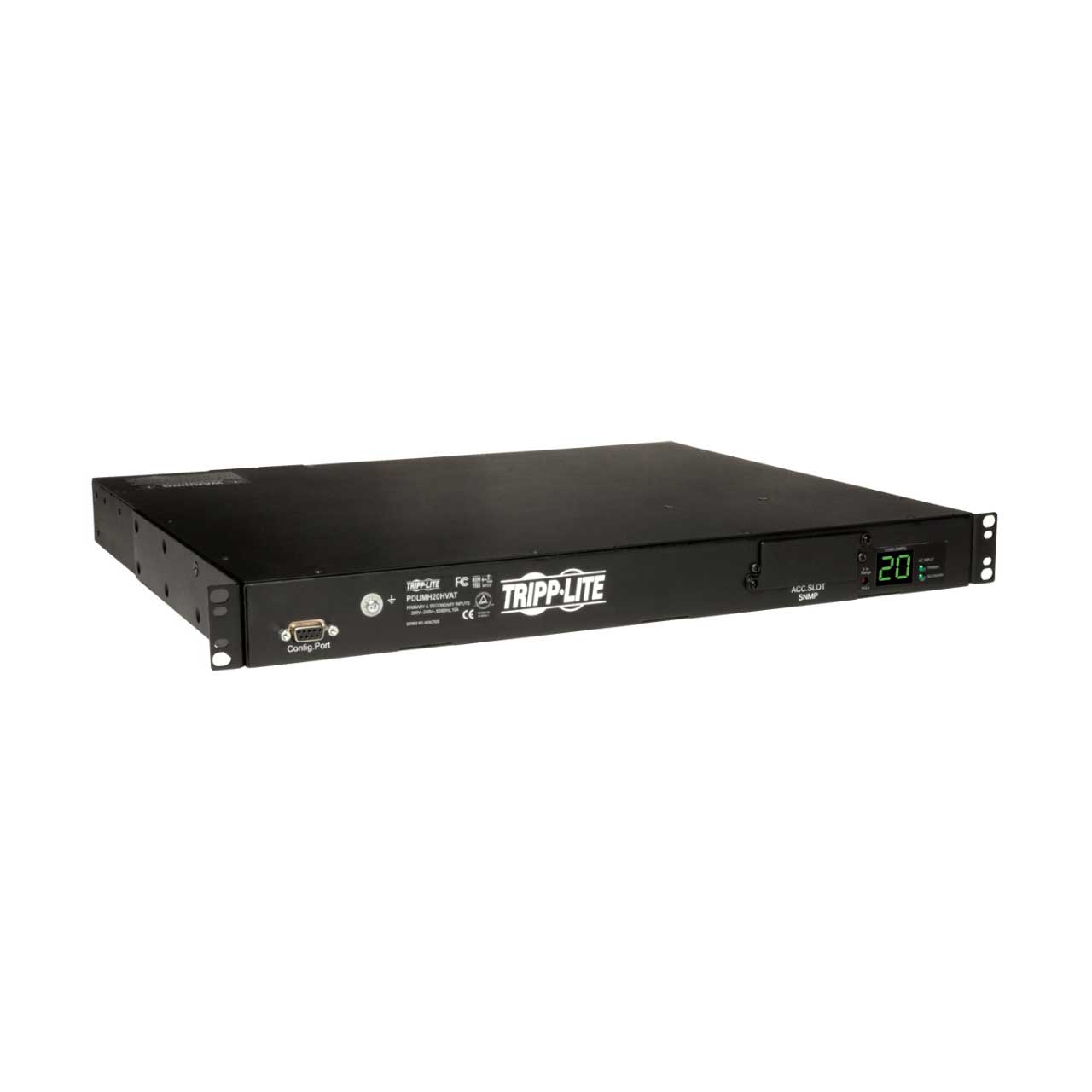

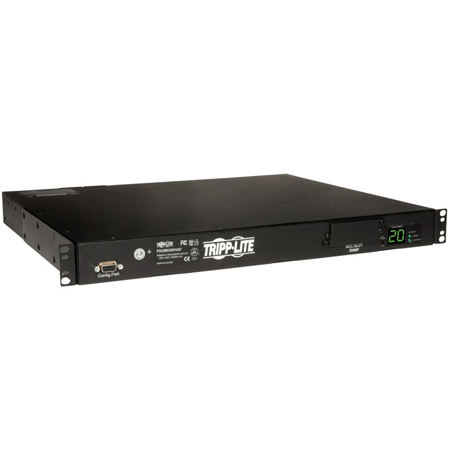

Tripp Lite PDUMH20HVAT PDU Metered ATS 200V-240V 20A 8 C13; 2 C19 2 C20 Horizontal 1URM

Manufacturer: Tripp Lite

Item #: TRL-PDUMH20HVAT   •   MFG #: PDUMH20HVAT



List Price:$576.00
Our Price:$397.44

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.


    • Features

      • 20A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
      • Built-in 2 digit visual meter continuously reports PDU load level in amps
      • Attached NEMA L5-20P 20A 120V input plug with 15 ft. / 4.5m line cord
      • Includes 5-20P 20A 120V plug adapter
      • 1U horizontal rackmount format installs in one rack space

    • Specifications

      • Style Rackmount
      • PDU Type Auto-Transfer Switch; Metered
      • Output Capacity Details 3.33kW (208V), 3.52kW (220V), 3.68kW (230V), 3.84kW (240V), 3.2kW (200V); 20A maximum (Agency de-rated to 16A continuous)
      • Frequency Compatibility 50 / 60 Hz

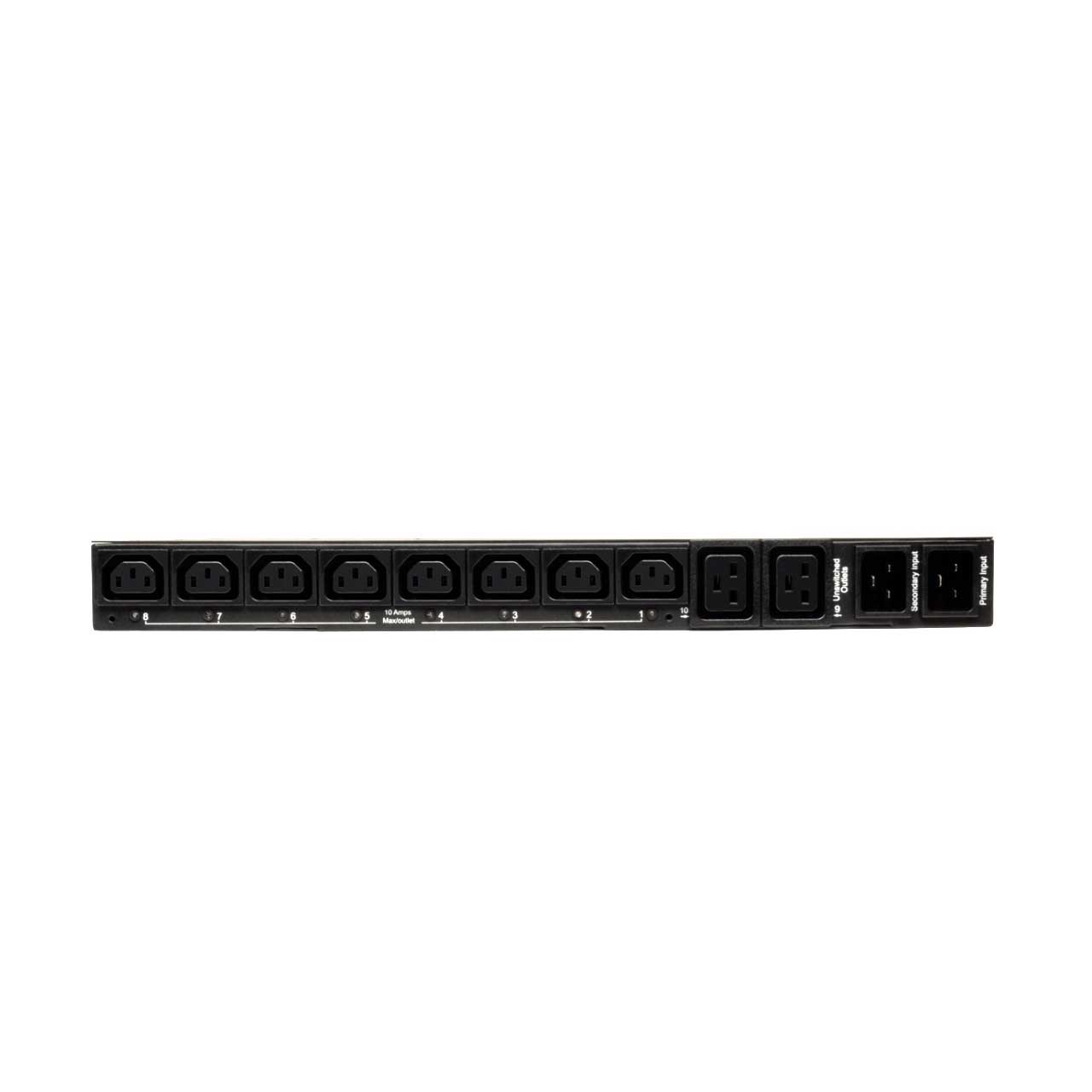

      • Output Receptacles (8) C13; (2) C19
      • Output Nominal Voltage 200-240V nominal, single phase
      • Overload Protection n/a
      • Outlet Type IEC-C13, IEC-C19
      • Customized Load Management Receptacles Adding SNMPWEBCARD accessory offers upgrade path to switched PDU (only C13 outlets are switchable upon upgrade); SNMPWEBCARD also can be inserted temporarily as a configuration tool to custom program power-on and power-off C13 outlet sequences with user-specified time delays in response to loss and restoration of primary input
      • PDU Input Voltage 200; 208; 220; 230; 240
      • Recommended Electrical Service 20A 208/240V; 16A 230V
      • Maximum Input Amps 20
      • Maximum Input Amps Details Agency de-rated to 16A continuous
      • PDU Plug Type IEC-320 C20
      • Input Cord Length (ft.) 12
      • Input Cord Length (m) 3.6

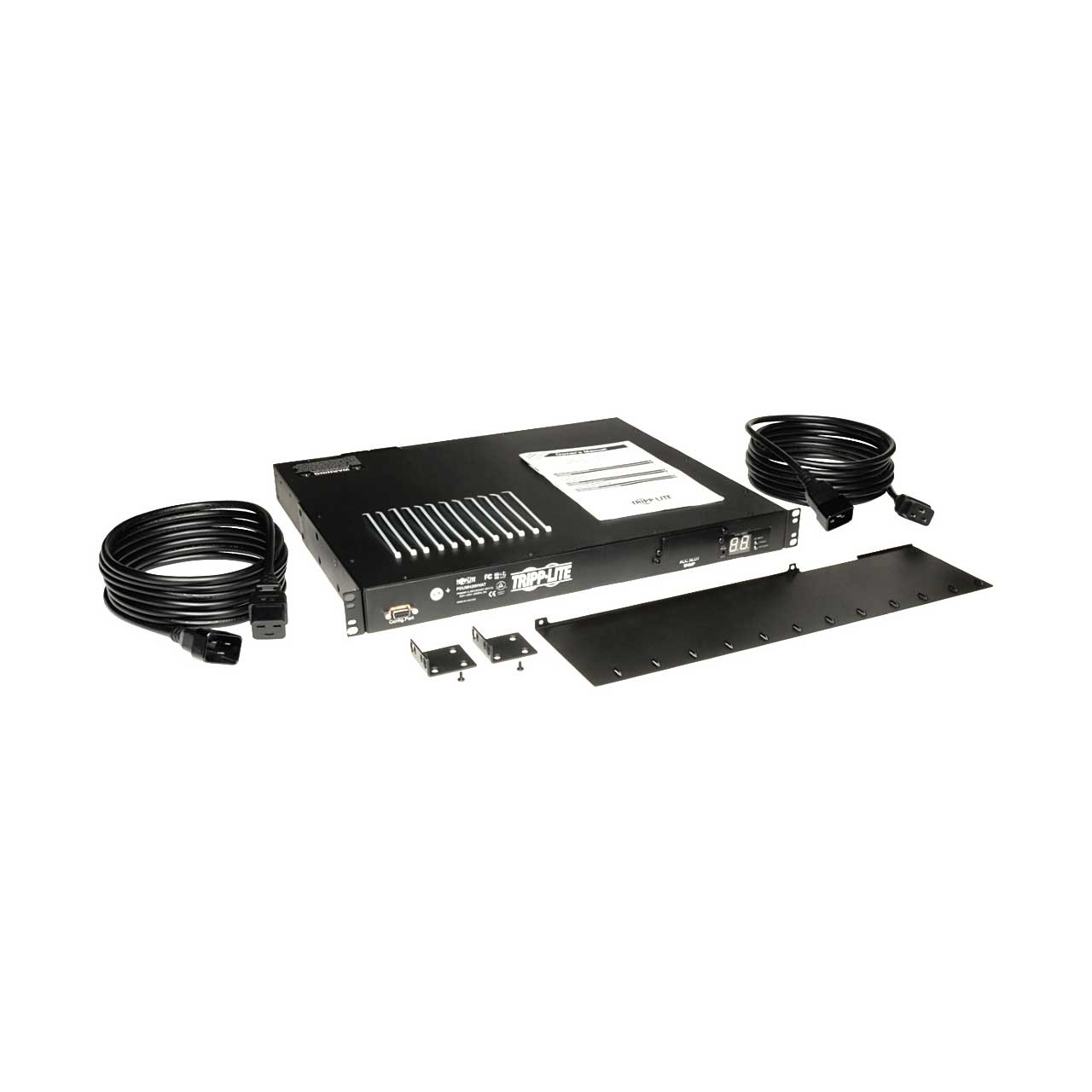

      • Input Cord Details Two input connections enable connection to separate primary and secondary power sources
      • Input Phase Single-Phase

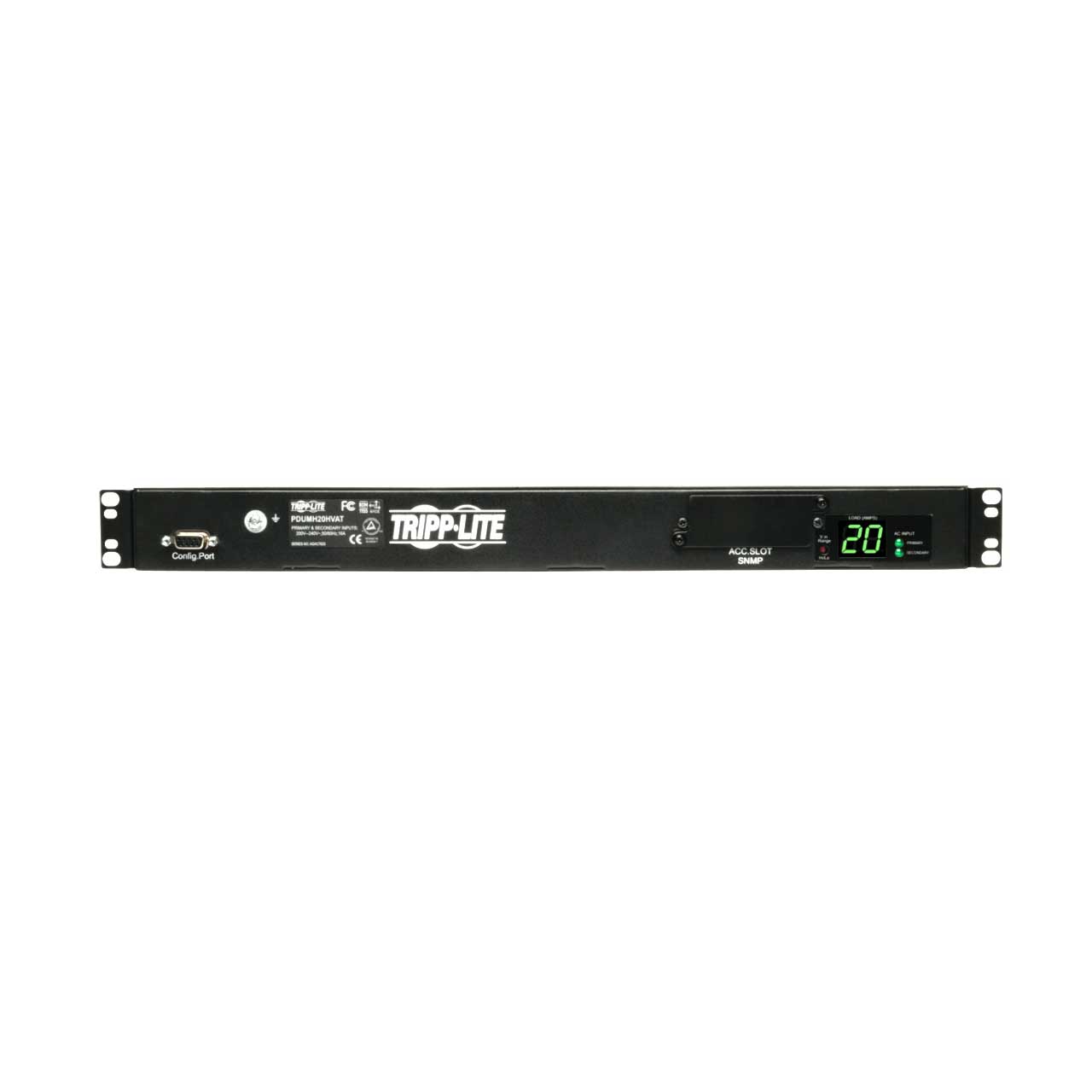

      • Front Panel LCD Display Digital display reports total PDU output current in amps
      • Front Panel LEDs 8 front panel LEDs display power on/off status for each C13 outlet, plus 2 LEDs for power status on Primary and Secondary input connection
      • Switches Toggle switch near digital display enables the setting of "HI" for 220, 230 or 240V nominal applications or "LO" for 200 or 208V applications
      • Shipping Dimensions (hwd / in.) 5.3 x 23.6 x 21
      • Shipping Dimensions (hwd / cm) 13.5 x 59.9 x 53.3
      • Shipping Weight (lbs.) 19.98
      • Shipping Weight (kg) 9.1
      • Unit Dimensions (hwd / in.) 1.72 x 17.3 x 14.8
      • Unit Dimensions (hwd / cm) 4.4 x 43.9 x 37.6
      • Unit Weight (lbs.) 10.3
      • Unit Weight (kg) 4.7
      • Material of Construction Metal
      • Form Factors Supported 1U rackmount
      • PDU Form Factor Horizontal (1U, 2U, etc)
      • Storage Temperature Range 5 to 122F (-15 to 50C)
      • Relative Humidity 5 to 95% (non-condensing)
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • TVSS Grounding Rear grounding lug
      • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMH20HVATAA
      • Certifications Tested to UL 60950 (USA, Canada), CE (Europe), Class A (Emissions), NOM (Mexico), RoHS Complaint
      • Product Warranty Period (Worldwide) 2-year limited warranty
