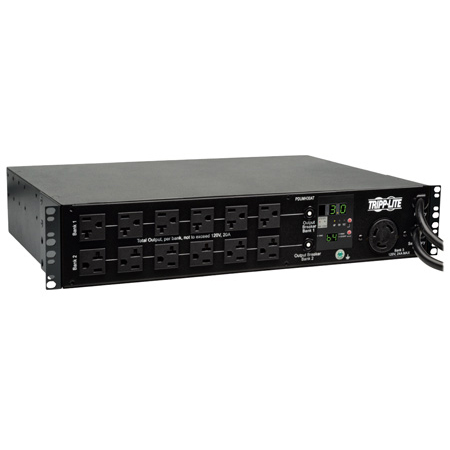

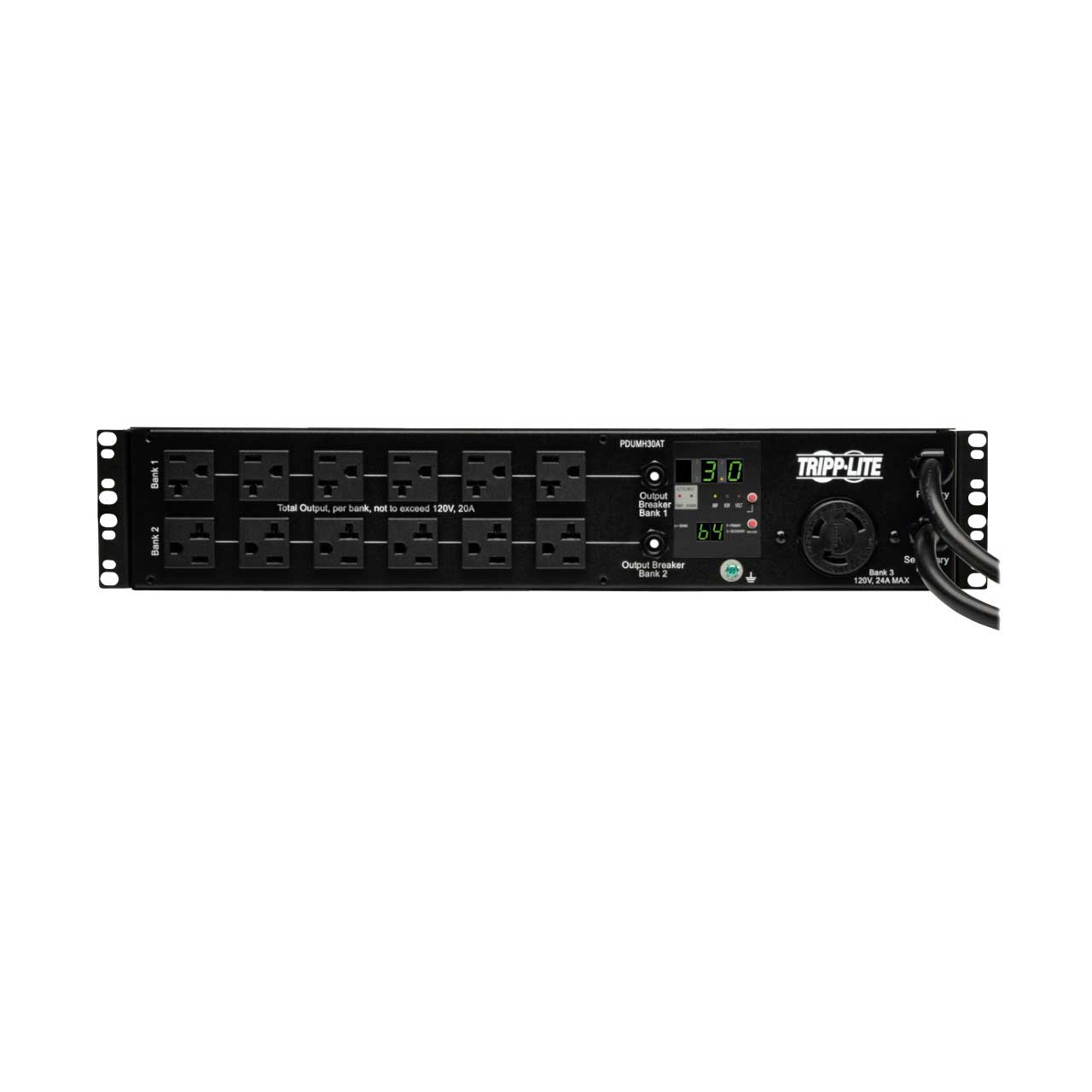

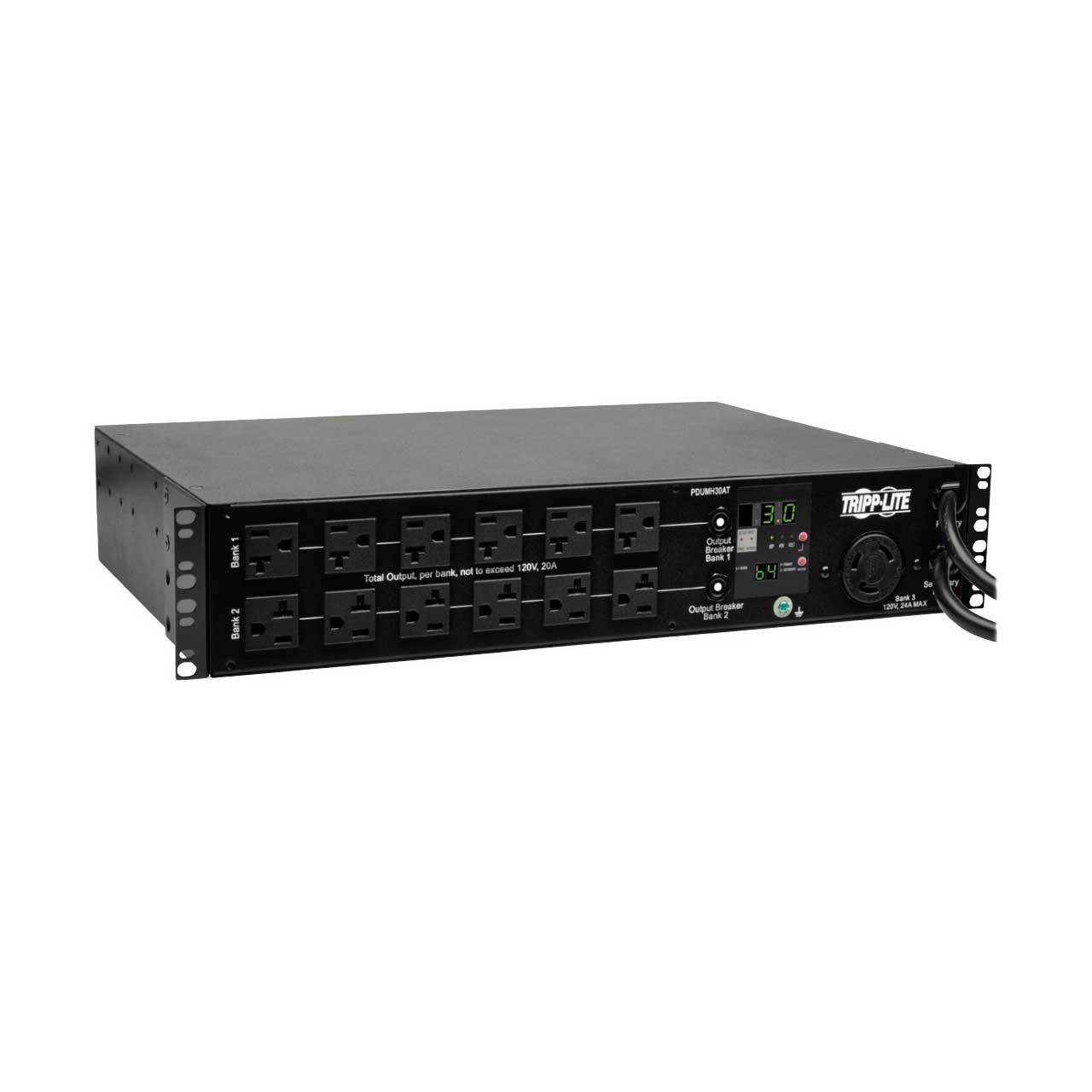

Tripp Lite PDUMH30AT PDU Metered ATS 120V 30A 24 5-15/20R 1 L5-30R L5-30P 2URM
  • Tripp Lite PDUMH30AT PDU Metered ATS 120V 30A 24 5-15/20R 1 L5-30R L5-30P 2URM
  • Tripp Lite PDUMH30AT PDU Metered ATS 120V 30A 24 5-15/20R 1 L5-30R L5-30P 2URM
  • Tripp Lite PDUMH30AT PDU Metered ATS 120V 30A 24 5-15/20R 1 L5-30R L5-30P 2URM
  • Tripp Lite PDUMH30AT PDU Metered ATS 120V 30A 24 5-15/20R 1 L5-30R L5-30P 2URM
  • Tripp Lite PDUMH30AT PDU Metered ATS 120V 30A 24 5-15/20R 1 L5-30R L5-30P 2URM

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite PDUMH30AT PDU Metered ATS 120V 30A 24 5-15/20R 1 L5-30R L5-30P 2URM

Manufacturer: Tripp Lite

Item #: TRL-PDUMH30AT   •   MFG #: PDUMH30AT



List Price:$907.20
Our Price:$625.97

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.


  • Features

    • 120V 30A Automatic Transfer Switch (ATS) / Metered PDU (Agency de-rated to 24A continuous)
    • Provides a redundant power option for critical networking equipment with a single input power cord

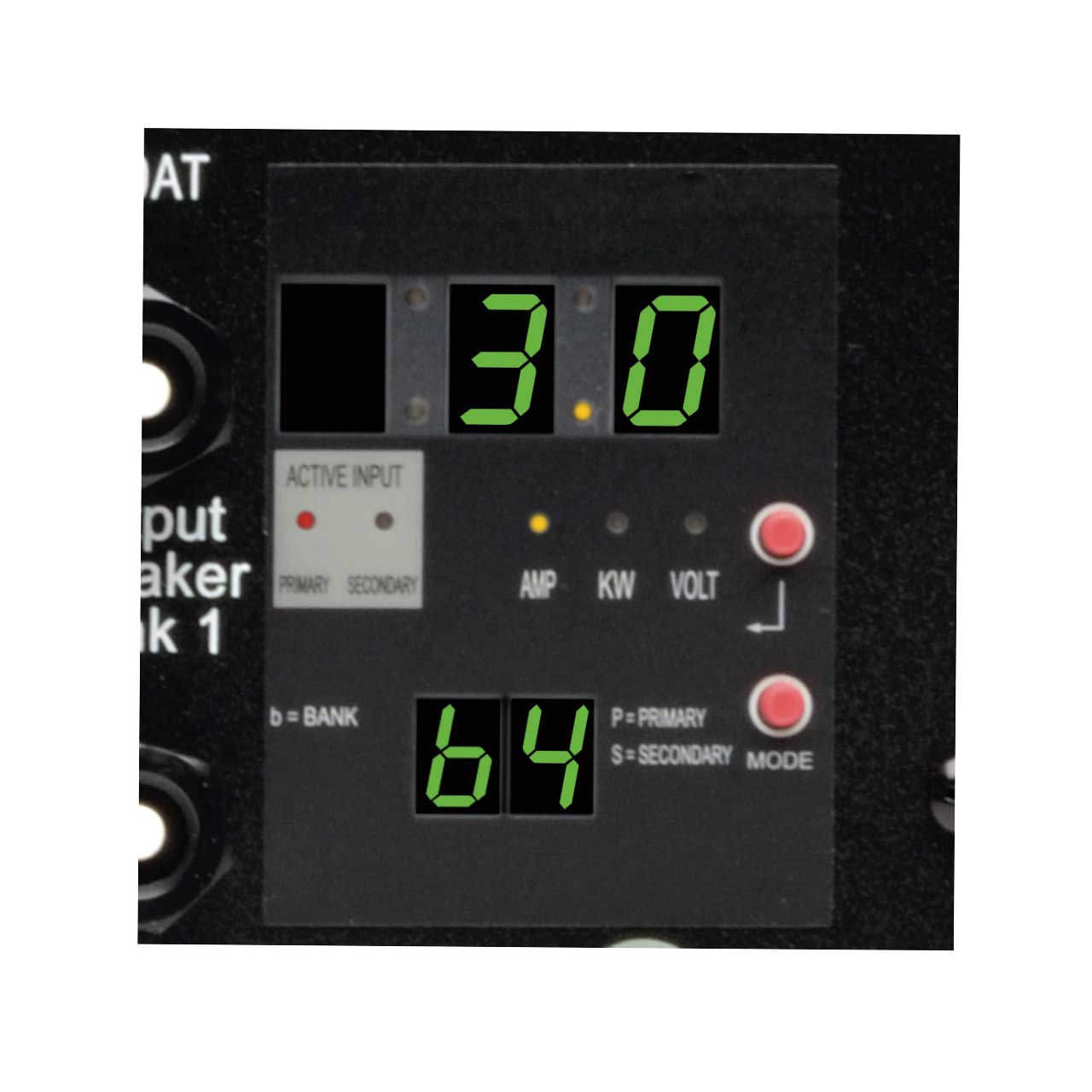

    • Visual meter reports output amp and kW power consumption, plus voltage
    • 2U horizontal rackmount form factor; 11.9 in. / 30.2 cm depth
    • 25 outlets (24 5-15/20R, 1 L5-30R)
    • Set of two 10 ft. / 3m NEMA L5-30P input line cords enable separate PRIMARY and SECONDARY input connections
    • ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
    • Highly reliable solid-state switching enables fast 1-5 millisecond transfer between primary and secondary inputs
    • ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
    • Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
    • On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
    • Front panel LEDs confirm power availability on both input lines
    • TAA Compliant Version Available - Order Tripp Lite PDUMH30ATAA

  • Specifications

    • OUTPUT
    • Output Capacity Details
    • 2.9kW (120V input), 3.0kW (127V input), 2.4kW (100V input); 30A maximum (agency de-rated to 24A continuous)
    • Frequency Compatibility: 60 Hz
    • Output Receptacles: (24) 5-15/20R; (1) L5-30R
    • Output Nominal Voltage: 100-127V nominal, single phase
    • Outlet Type: 5-15/20R, L5-30R

    • INPUT
    • PDU Input Voltage: 100; 120; 127
    • Maximum Input Amps: 30
    • Maximum Input Amps Details: Agency de-rated to 24A continuous
    • PDU Plug Type: NEMA L5-30P
    • Input Phase: Single-Phase

  • Item Includes

    • Auto Transfer Switch PDU
    • Rackmount installation brackets
    • Installable plug-retention shelves & cable ties
