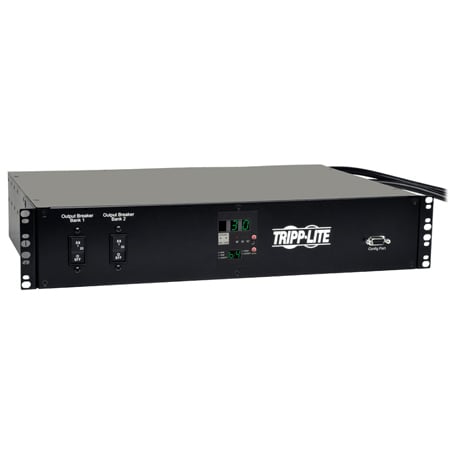

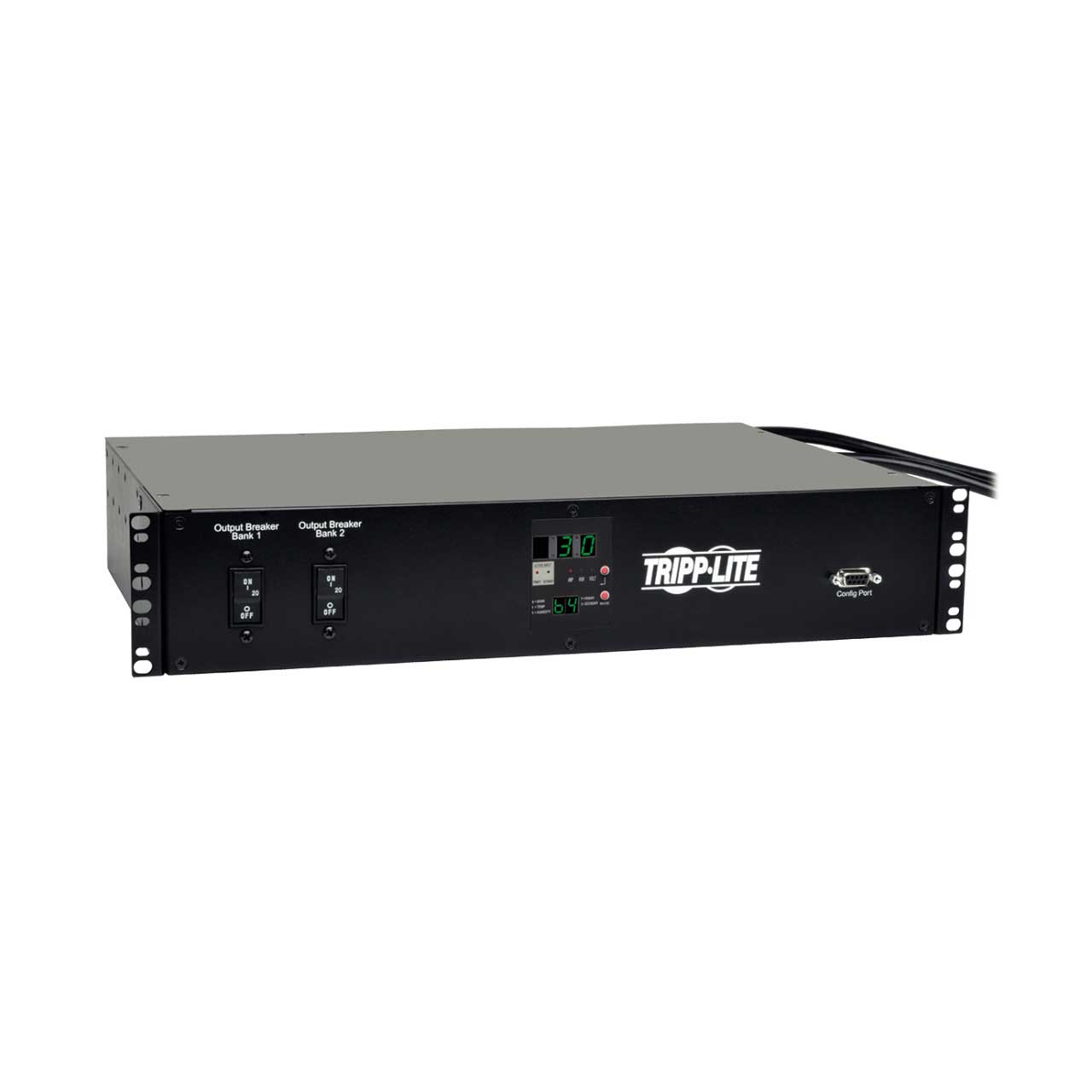

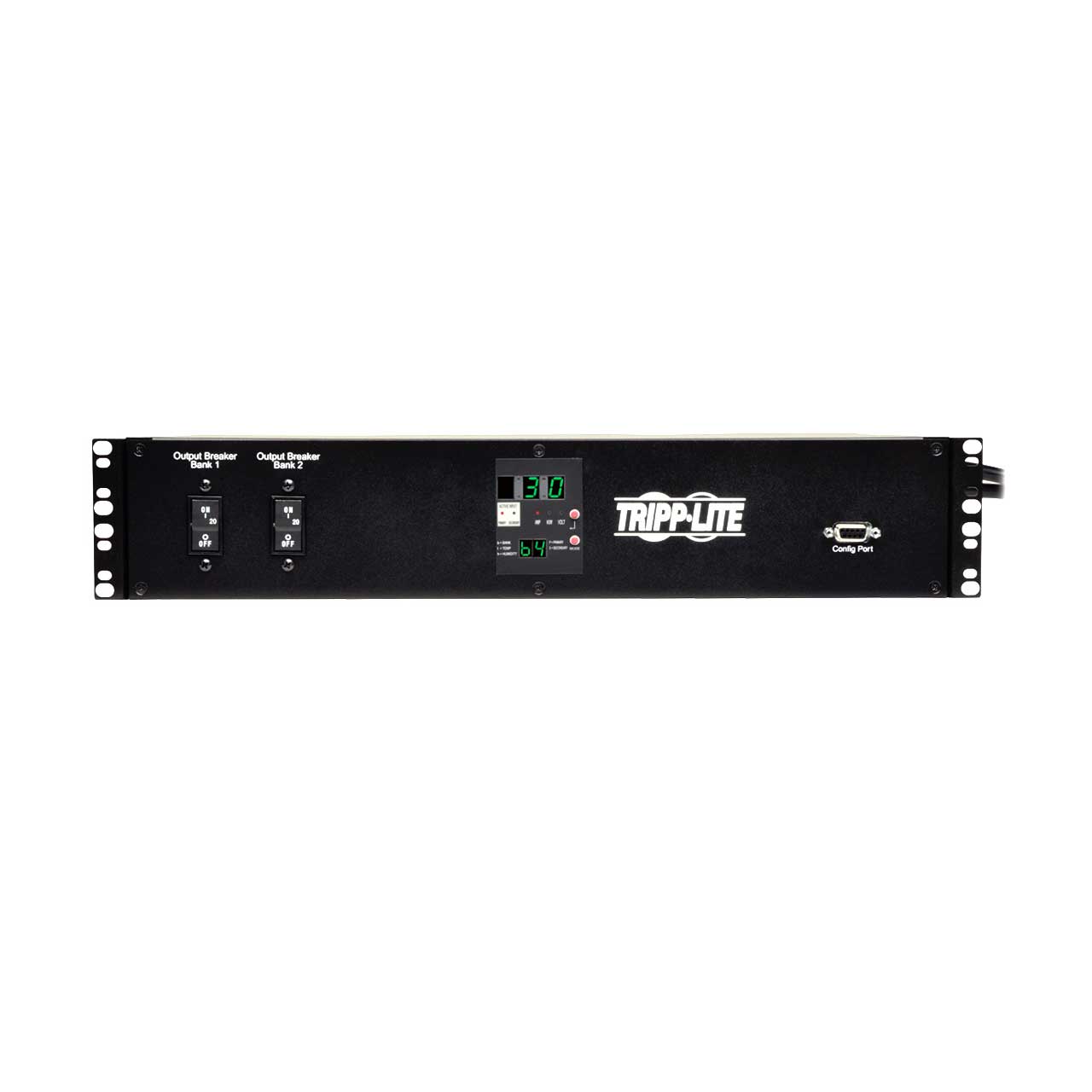

Tripp Lite PDUMH30HVAT PDU Metered ATS 208V / 240V 30A 16 C13; 2 C19; 1 L6-30R 2URM

ITEM #: TRL-PDUMH30HVAT MFG #: PDUMH30HVAT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,151.28

Our Price:

$804.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PDUMH30HVAT - Overview

    Tripp Lite Metered ATS / Auto Transfer Switch PDU systems enable redundant power configurations for network devices with a single input cord connection. Set of two ATS inputs support connection to separate PRIMARY and SECONDARY power sources. The ATS normally maintains continuous output to connected equipment derived from the primary input. If the primary input fails or becomes unstable, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources to support a variety of advanced redundant power networking applications. Enables fault-tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time, similar to Tripp Lite SmartOnline series. ATS configurations utilizing separate mains circuits, backup generators and even out-of-phase power sources are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front panel current meter offers selectable 4 segment voltage, amperage and kilowatt loading information.

    • Features:

      • 30A 208/240V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 24A continuous)
      • Attached L6-30P 208/240V single phase input, 12 ft. / 3.6m input cord
      • 2U horizontal rackmount form factor
      • 16 switched c13 outlets
      • Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis

    • Specifications:

      • Style Rackmount
      • PDU Type Metered; Auto-Transfer Switch
      • Output Capacity Details 5kW (208V); 30A maximum (agency de-rated to 24A continuous)
      • Frequency Compatibility 60 Hz

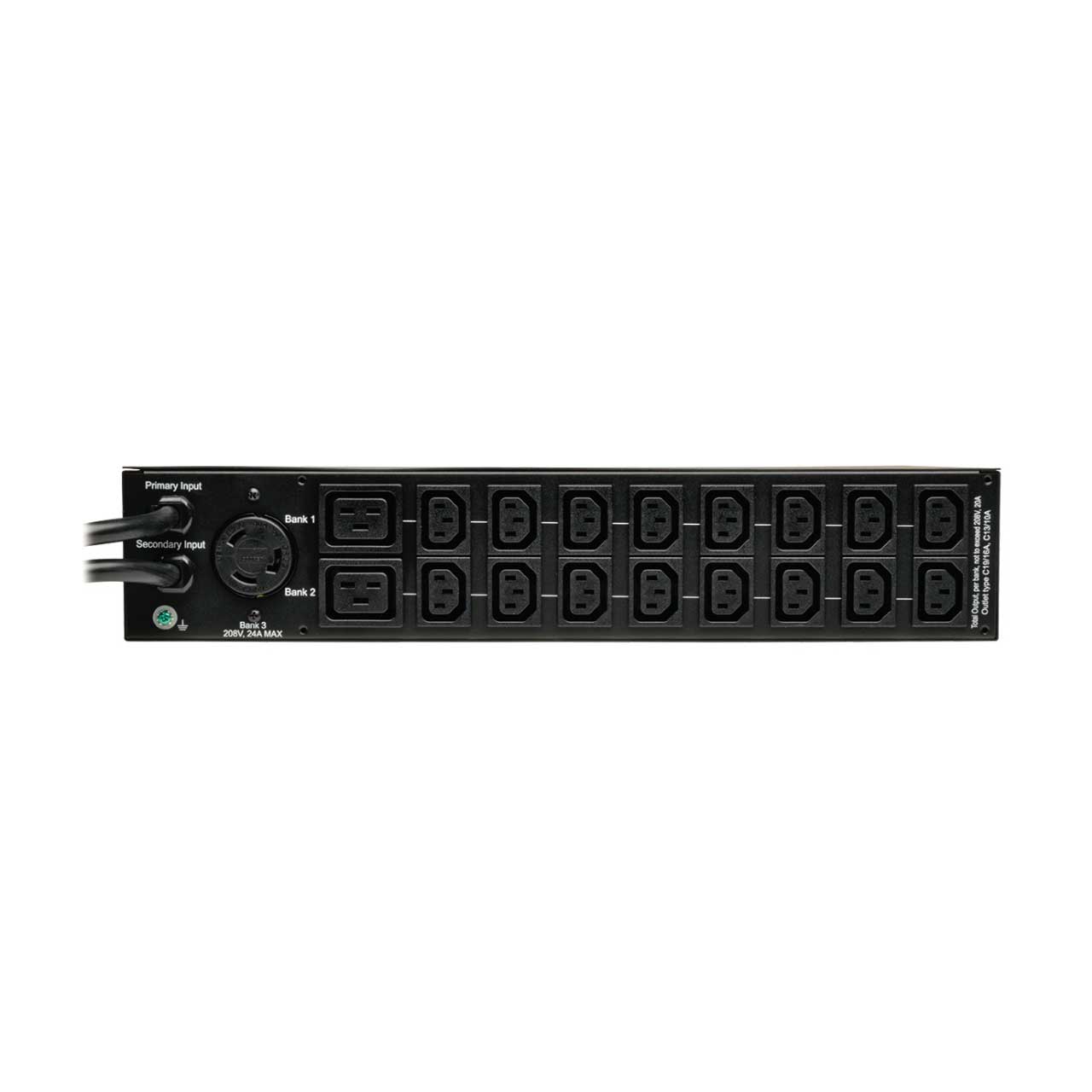

      • Output Receptacles (16) C13; (2) C19; (1) L6-30R
      • Output Nominal Voltage 200, 208V nominal, single phase
      • Overload Protection Includes two 20A output circuit breakers; Breaker 1 controls the upper row of 9 outlets (8 C13, 1 C19); Breaker 2 controls the lower row of outlets (8 C13, 1 C19); L5-30R outlet is unbreakered
      • Outlet Type C13, C19, L6-30R
      • PDU Input Voltage 200; 208
      • Recommended Electrical Service 30A 208V
      • Maximum Input Amps 30
      • Maximum Input Amps Details Agency de-rated to 24A continuous
      • Input Connection Type Two labelled NEMA L6-30P cables support Primary and Secondary input connections
      • PDU Plug Type NEMA L6-30P
      • Input Cord Length (ft.) 10
      • Input Cord Length (m) 3
      • Cable Length (m) 3
      • Input Phase Single-Phase

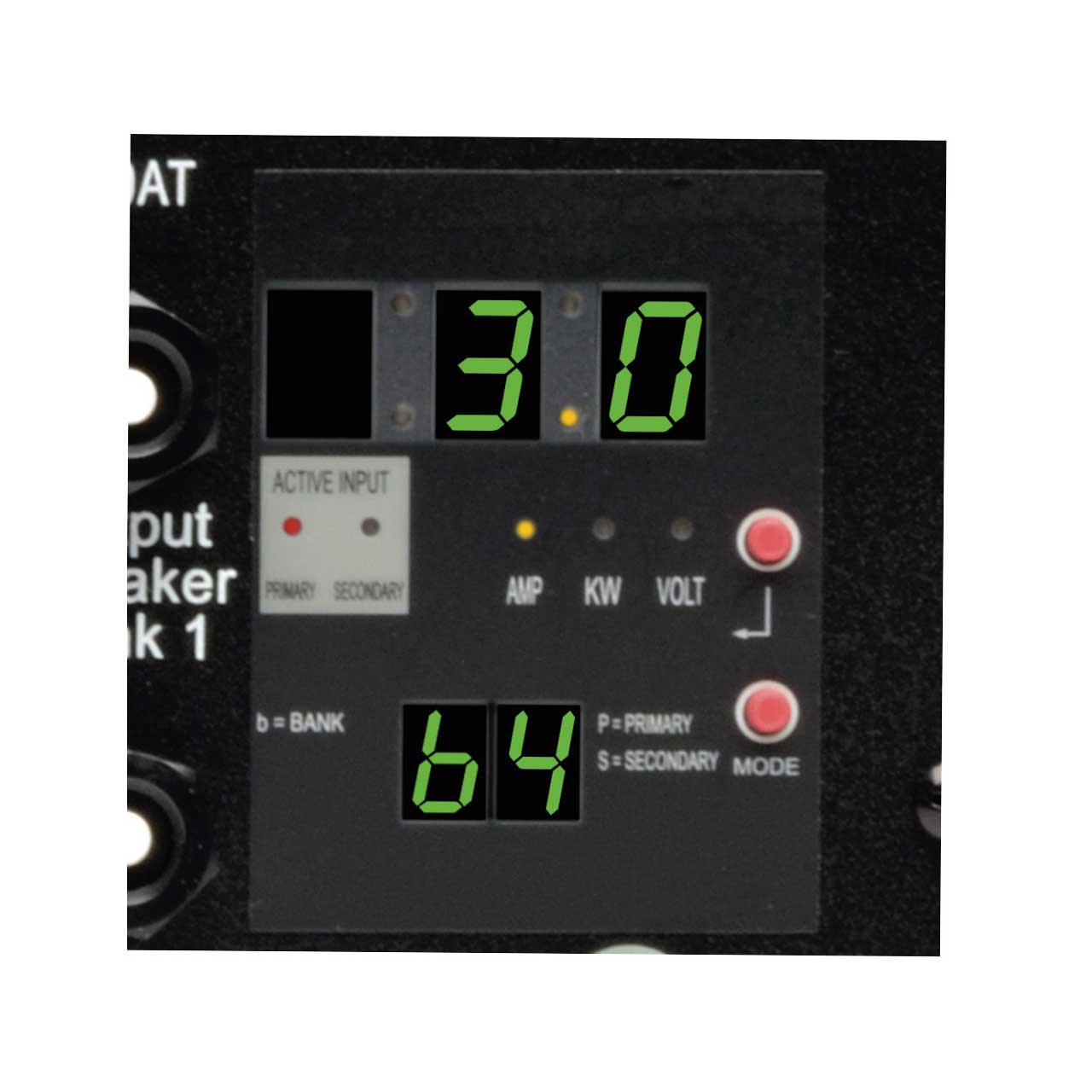

      • Front Panel LCD Display Digital display reports output amps in 4 separately metered loading segments (BANK 1: Outlets #1-9; BANK 2: Outlets #10-18; BANK 3: Outlet #19), whole-PDU output kW load level and input voltage on primary and secondary input lines
      • Front Panel LEDs Front panel LEDs confirms amp / kilowatt / voltage reporting information
      • Switches ENTER and MODE switches toggle the digital display to show output amps (Banks 1-4), total kW output and input voltage (primary, secondary)
      • Shipping Dimensions (hwd / in.) 8 x 20.5 x 17
      • Shipping Dimensions (hwd / cm) 20.3 x 52.1 x 43.2
      • Shipping Weight (lbs.) 16.9
      • Shipping Weight (kg) 7.7
      • Unit Dimensions (hwd / in.) 3.5 x 17.5 x 12.5
      • Unit Dimensions (hwd / cm) 8.8 (2U) x 44.4 x 31.7
      • Unit Weight (lbs.) 16.9
      • Unit Weight (kg) 7.7
      • Material of Construction Metal
      • Form Factors Supported 2U rackmount
      • PDU Form Factor Horizontal (1U, 2U, etc)
      • Storage Temperature Range 5 to 122F (-15 to 50C)
      • Relative Humidity 5 to 95% (non-condensing)
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMH30HVATAA
      • Certifications Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Complaint
      • Product Warranty Period (Worldwide) 2-year limited warranty

    • GTIN:

      0037332159212
